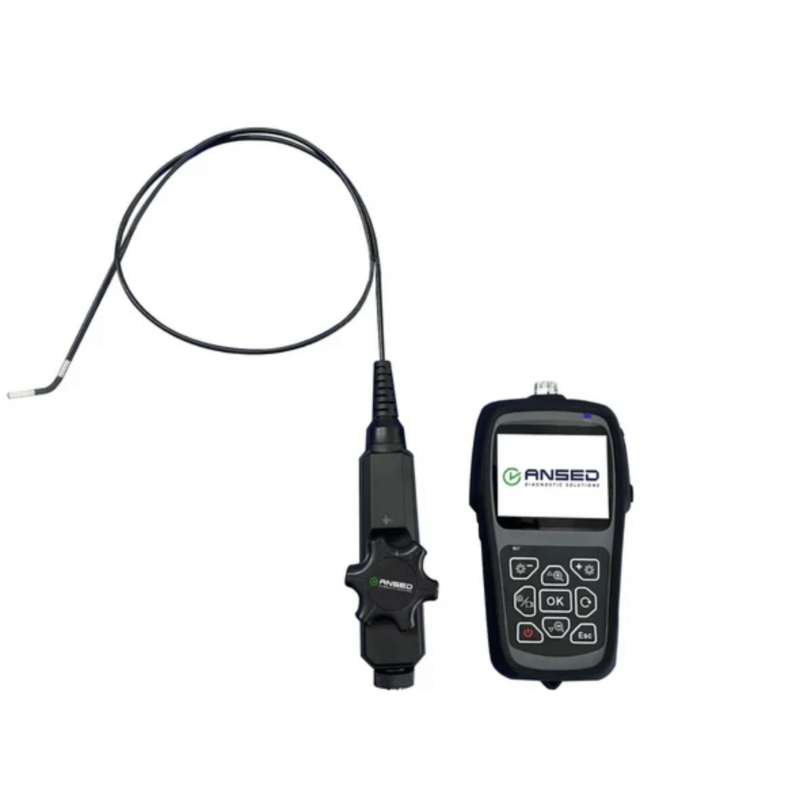

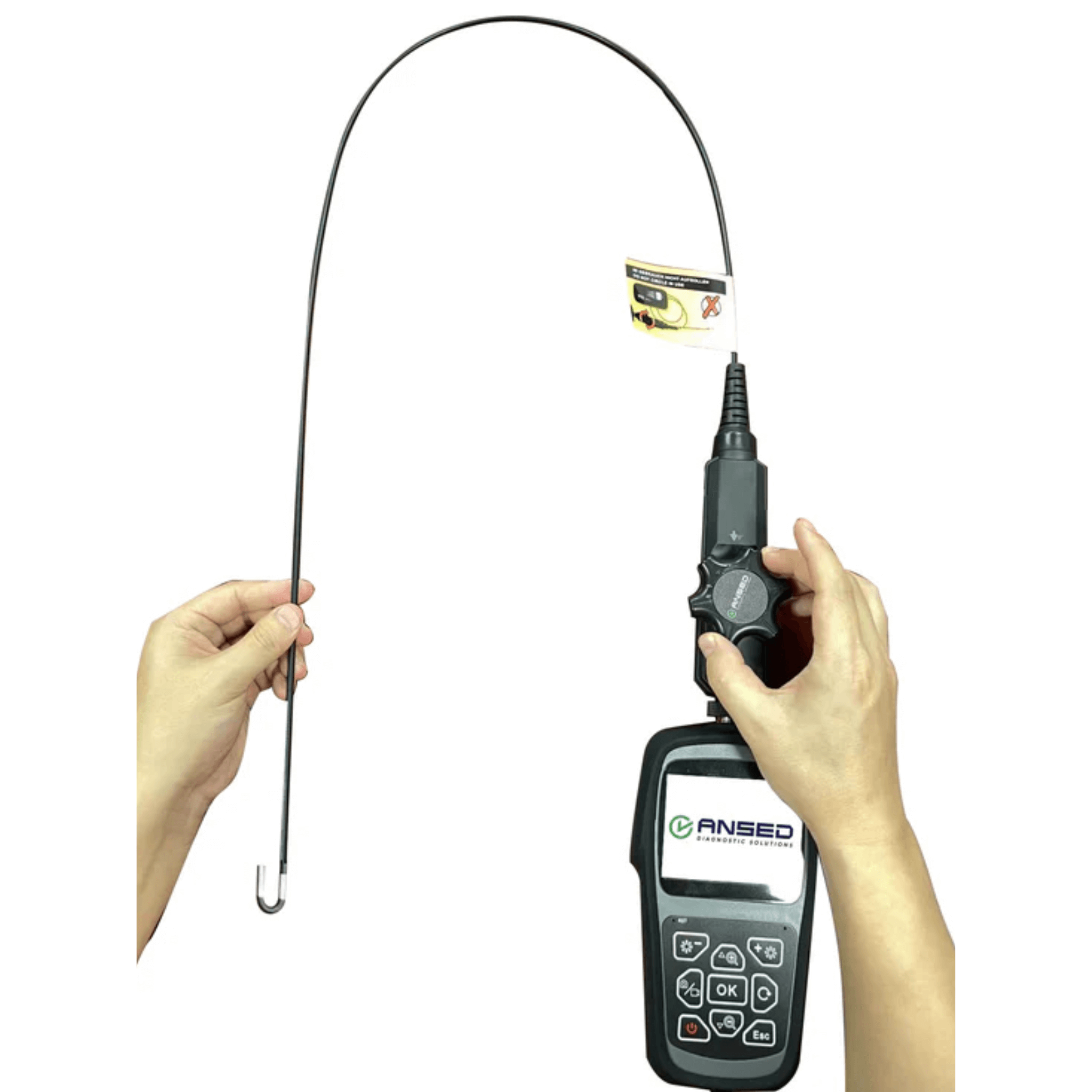

DVSK-39ART Hi-Res Digital Video Scope Kit with 3.9mm Articulation Probe by Ansed

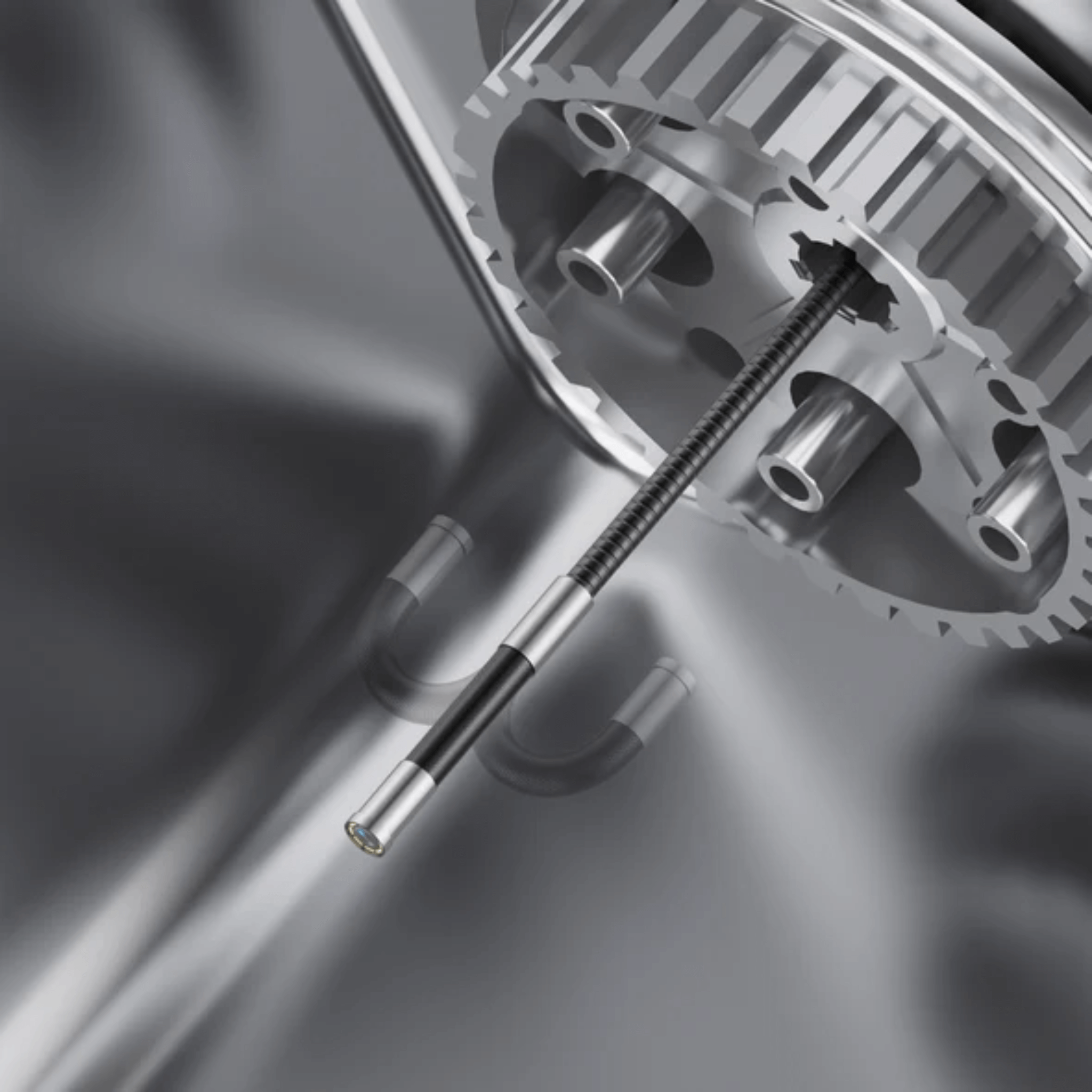

Diagnosing issues in hard-to-reach areas can be a nightmare without the right tools. The DVSK-39ART Hi-Res Digital Video Scope Kit, featuring a 3.9mm articulation probe, solves this challenge by providing high-definition visuals in tight spaces like engine internals, fuel nozzles, or brake systems. Its 180° flexible probe allows access to areas that would normally require disassembly, saving both time and effort. Whether you’re dealing with engine internals or complex industrial components, the DVSK-39ART lets you diagnose problems with ease and precision.
With features like photo and video capture, multiple zoom levels, and a shock-resistant design, this video scope ensures durability and versatility. The ability to capture detailed, timestamped images or videos makes documentation simple, and the scope comes in a sturdy carrying case for easy portability. It’s an essential tool for technicians and mechanics who need reliability in the field.
Product Includes:
- Main monitor device

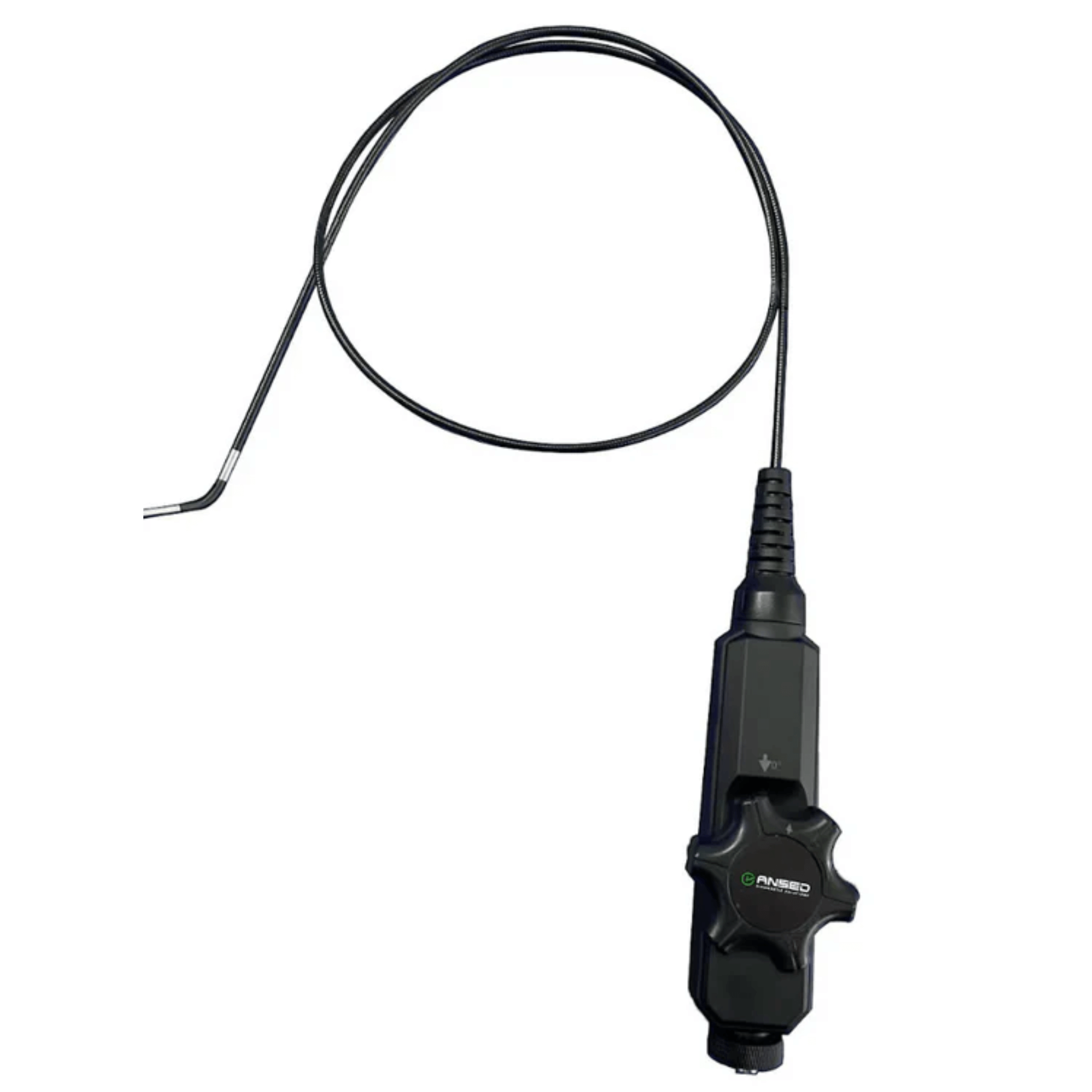

- 3.9mm Articulation probe
- 8GB SD mini card
- USB cable for charging
- User manual
- Hard-shell plastic carrying case
Articulation Probe DVSK-39ART Specifications
- Monitor: 3.5” full-view IPS LCD
- Resolution: 1280 x 720 (HD)
- Zoom: Digital zoom (1.4x / 1.6x / 2x)
- Battery: 1500mAh lithium polymer
- Weight: 252g (8.9 oz)
- Dimensions: 18.5 cm x 10.0 cm x 3.2 cm (7.3” x 3.9” x 1.3”)
- Supports 13 languages
- Solid rubber boot protector for shock resistance
DVSK-39ART Articulation Probe Special Features

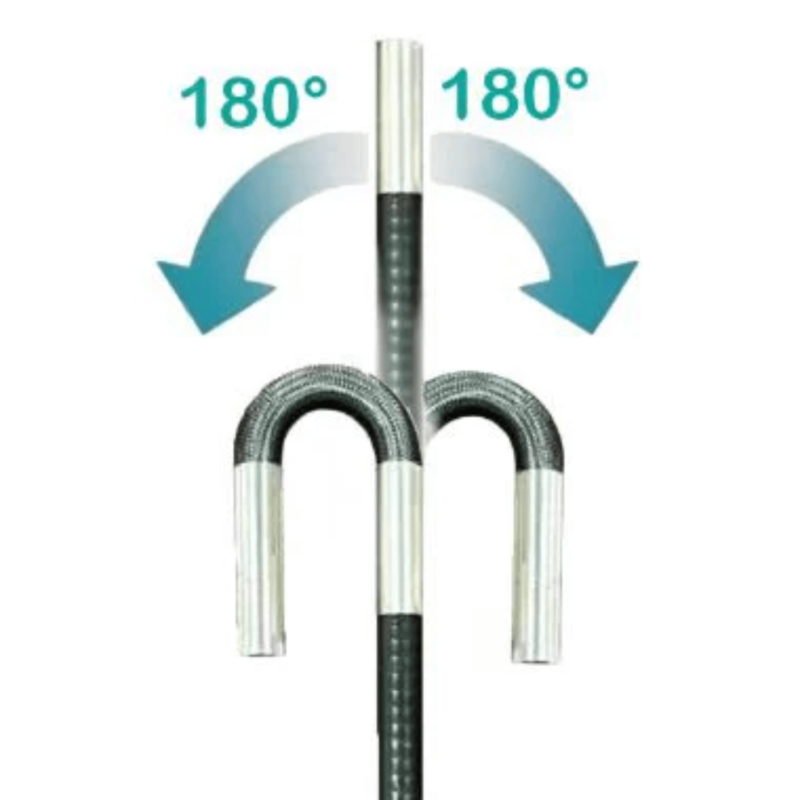

- 3.9mm diameter articulation probe with 180° flexibility
- High-resolution photos and videos with date and timestamp
- Digital zoom with multiple levels (1.4x / 1.6x / 2x)
- Image flip and brightness adjustment
- Rechargeable lithium polymer battery
- Durable, shock-resistant design
- Comes with a hard-shell plastic carrying case for portability and protection
Kit Includes:
- Tester unit with 7” color TFT touchscreen display
- Rechargeable LiPo 3.7V / 2000mA battery
- USB smart battery charger with LED indicator
- PC connection via USB port
- Durable ABS enclosure with rubber bumper
- Universal diesel compression adaptor (for European, Chevy/GMC Duramax, Dodge Cummins, and Ford Powerstroke engines)
- Universal gasoline (petrol) compression adaptor
- 8 professional quick coupling adaptors
- Vacuum adaptors
Universal Digital Pressure HU35025 Tester Specifications
- Display: 7-inch color TFT with resistive touch panel
- Battery: LiPo 3.7V / 2000mA rechargeable
- Sensors:
- Sensor 0: 0 to 300 Bars
- Sensor 1: Up to 3 Bars
- Recalibration: Possible recalibration option
- Construction: ABS enclosure with rubber bumper, screws mounted on brass inserts
- Mounting: 1/4 thread brass insert at the back for mounting suction cups
- PC Connectivity: USB port for connection, data saving, exporting, printing, and sharing results
HU35025 Universal Digital Pressure Tester Special Features
- Comprehensive Pressure Measurement: Capable of measuring diesel and petrol engine compression, oil pressure, turbo pressure, cooling system pressure, fuel low pressure, vacuum pressure, particle filter pressure, and exhaust backpressure.
- Universal Adaptor Design: Includes universal diesel and gasoline compression adaptors, fitting a wide range of engines including common rail diesel engines and popular truck engines like Duramax, Cummins, and Powerstroke.
- Digital Functionality: User-friendly touchscreen interface allows for easy control and data management, including saving, exporting, printing, and sharing diagnostic results.
- Robust Design: Built with an ABS enclosure and rubber bumpers, designed for durability in workshop environments.
- Battery Powered: Operates on a rechargeable LiPo battery with a smart USB charging system.
Ansed DVSK-39ART Documentations
