412A Alignment Lift + RJ6 Rolling Jacks Combo by Atlas

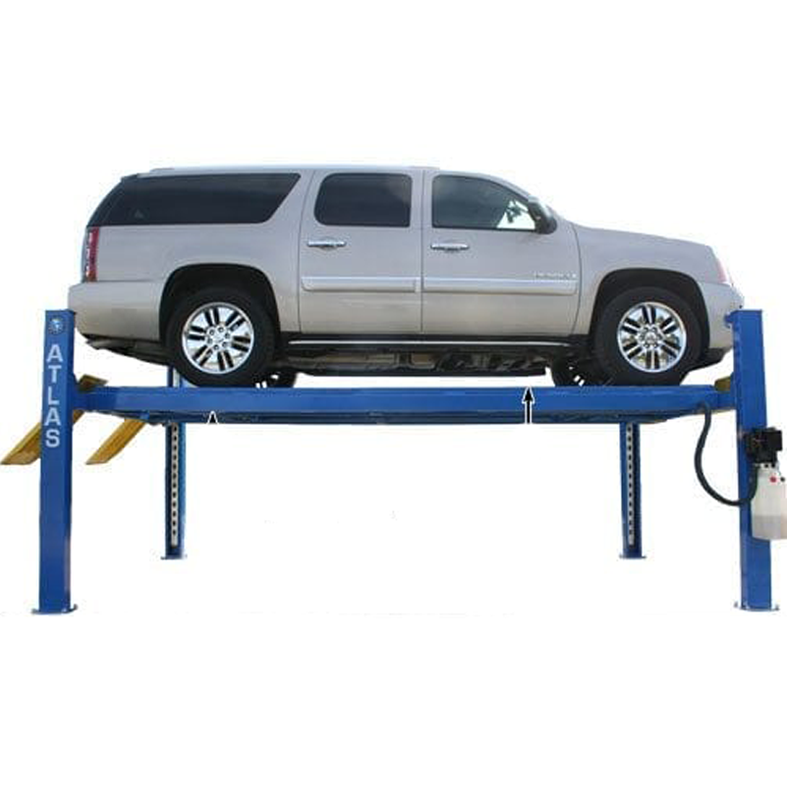

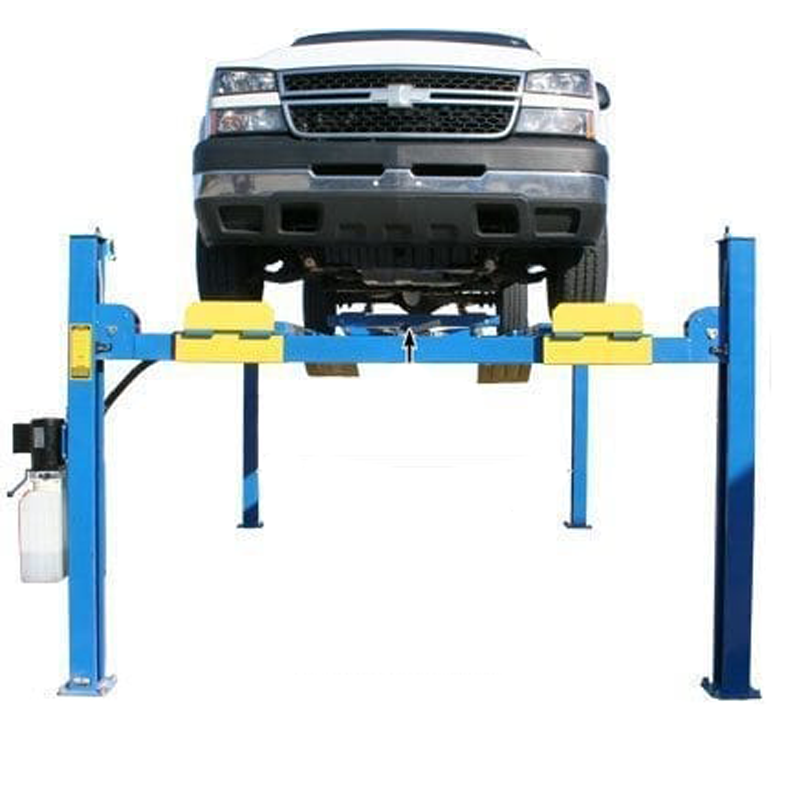

The Atlas 412A 4-Post Alignment Lift is the ultimate solution if you’re serioyus of becoming a professional automotive shop. With a robust 12,000 lb capacity and a maximum lifting height of 77 3/4″, this commercial-grade lift handles everything from compact cars to heavy-duty duallys. Its 194 1/2″ long and 20″ wide runways accommodate wheelbases up to 185″, while the 70 1/4″ clearance underneath maximizes workspace. The high-strength cable system and underslung hydraulic cylinder, powered by a 220-volt single-phase unit, ensure smooth and reliable operation.

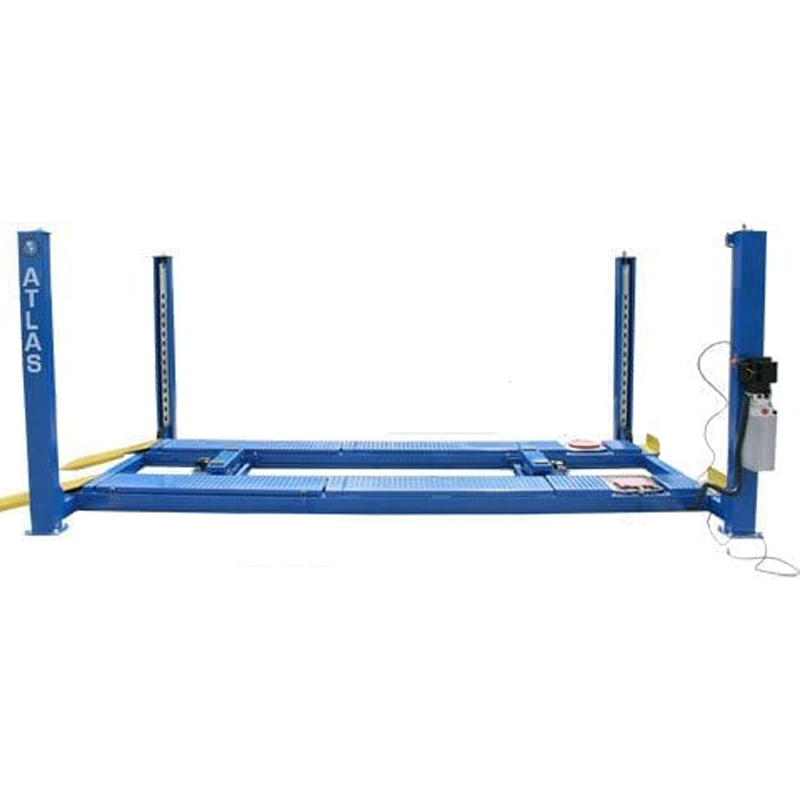

What sets the 412A apart are its built-in slip plates and alignment turntables, guaranteeing level positioning for precise alignments. The turntables’ adjustable placement along the runway adapts to various vehicle sizes, while included metal covers allow non-alignment use. Paired with two Atlas RJ6 rolling bridge jacks, each boasting a 6,000 lb capacity and 21″ maximum lift height, this combo offers unparalleled versatility. The RJ6 jacks feature air/hydraulic operation (70-115 PSI required) and multiple safety lock positions. With its air-operated single-point lock release, powder-coated finish, and comprehensive safety features, the Atlas 412A alignment system is the professional upgrade your shop needs to boost efficiency and capability.
4-Post Alignment Lift 412A Specifications:
- Capacity: 12,000 lb.
- Lifting Height: 77 3/4″ (6′ 5 3/4″)
- Overall Width of Columns (Without Motor): 126 1/4″ (10′ 6 1/4″)
- Overall Width of Columns (With Motor): 135 1/4″ (11′ 3 1/4″)
- Overall Length with Approach Ramp: 236 1/2″ (19′ 8 1/2″)
- Length Between Columns: 183 1/4″ (15′ 3 1/4″)
- Runway Length: 194 1/2″ (16′ 2 1/2″)
- Runway Width: 20″
- Thickness of Runway: 7 1/2″
- Width Between Runways: 43 1/4″ (w/ Rail 39 3/4″)
- Outside Runway to Outside Runway: 83 1/4″ (6′ 11 1/4″)
- Clearance Under Runways: 70 1/4″ (5′ 10 1/4″)
- Clearance Between Columns: 112 5/8″ (9′ 4 5/8″)
- Height of Columns: 89 3/4″ (7′ 5 3/4″)
- Maximum Wheel Base: 185″ (15′ 5″)
- Drive Thru: 98″ (8′ 2″)
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 2,900 lbs.
- Concrete Requirement: Minimum of 6″ with a 3000 psi rating
412A 12,000 lb 4-Post Alignment Lift Special Features:
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement
- Runway Covers Included (when Turntables are Removed)
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,900 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

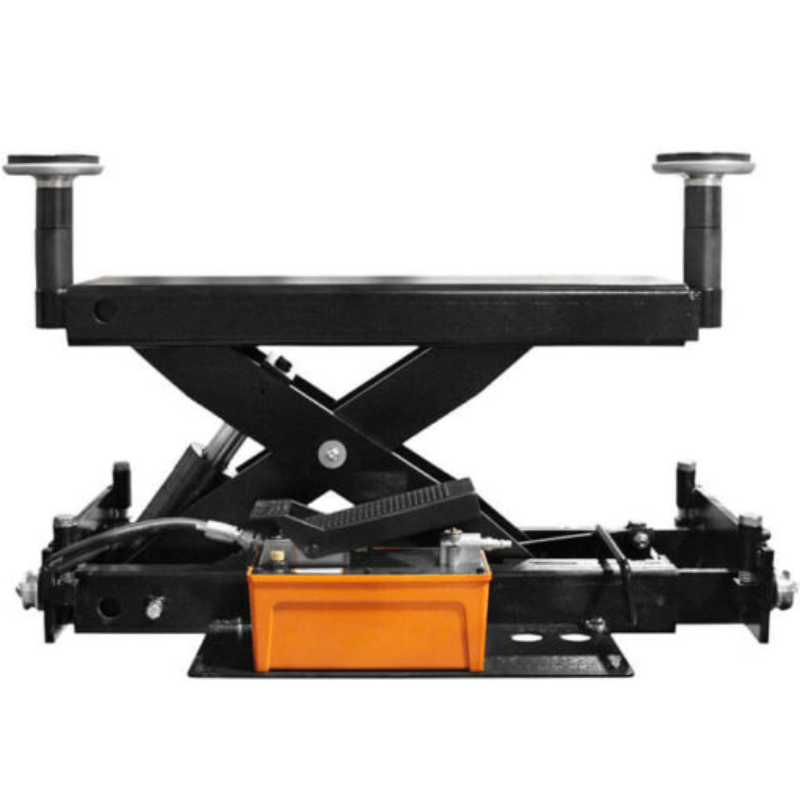

RJ6 Rolling Jack Specifications
- Maximum Capacity: 6,000 lb.
- Maximum Width: 55″ (4′ 7″)
- Minimum Width: 35″ (2′ 11″)
- Distance Between Runway Capability: 32″-52″
- Maximum Lifting Height (With Adapters): 21″ (1′ 9″)
- Air Requirement: 70-115 PSI
- Shipping Weight: 350 lbs.
- Adapter Heights: 2 Each 2″, 3″
- Arm Hole/Adapter Peg Size: 1.5″
RJ6 Rolling Jack Special Features
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas 412A Documentation:
412A Alignment Lift Optional Item Sold Separately
This Item has a FLAT RATE SHIPPING FEE: $899
*Warehouse pickup is not an option on Atlas alignment lifts.
**Due to Extra Large Size, product cannot be delivered to a freight terminal.
