Atlas ML-4034BC 74,000 lb Mobile Column Lift (4 pack) – ALI Certfieid

ML-4034BC Mobile Column Lift by Atlas

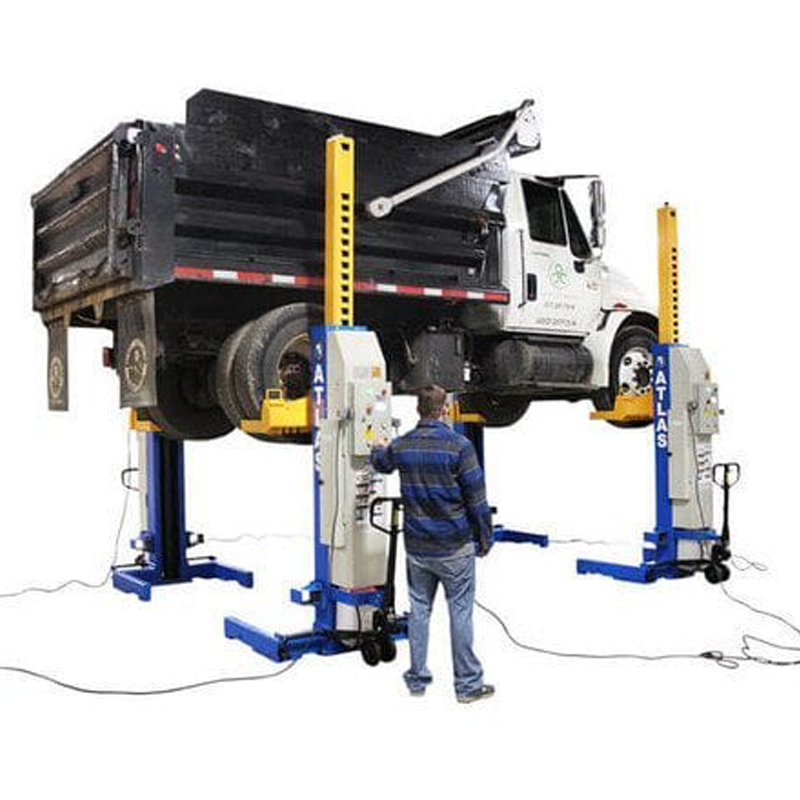

Heavy trucks and tight spaces don’t usually mesh together. So if you are you losing business because you can’t accommodate long wheelbase vehicles and really big trucks, the ALI Certified Atlas Maxima ML4034BC mobile column lift system is about to transform your operations – for good.

This system boasts an impressive 18,500 lbs lifting capacity per column – PER COLUMN! That’s an eye-watering 74,000 lbs capacity in total. Plus, you have the flexibility to add more columns as needed. Imagine effortlessly lifting vehicles with tire diameters from 19 to 44 inches, all while navigating through your shop with ease thanks to the hydraulic pallet jack systems. With DC motors powered by rechargeable batteries, you’ll get 10-20 lifts per charge, keeping your workflow smooth and uninterrupted. The LCD screens and emergency stop buttons ensure you’re always in control. Ready to revolutionize your heavy vehicle maintenance? The Maxima® ML4034BC is your ticket to profitability.

Mobile Column Lift ML-4034BC Specifications:

• Capacity per Column: 18,500 LB.
• Motor: 2.2 Kw 24V DC motor with two batteries per column
• Max. Lifting Height: 67″ (5′ 7″)
• Overall Height: 145″ (12′ 1″)
• Resting Height: 88 1/2″ (7′ 4 1/2″)
• Width: 43 1/2″ (3′ 7 1/2″)
• Length: 55 1/2″ (4′ 7 1/2″)
• Column Width: 13 1/4″
• Warranty: 2 Year Limited
• Shipping Weight (For Four Columns): 6,800 LB. each
• Shipping Weight Per Column: 1,700 LB. each
• Max Tire Diameter: 44″
• Min Tired Diameter: 19″

ML-4034BC 74,000 lb Mobile Column Lift Special Features:

• ALI CERTIFIED
• Lift Qty: 4
• Simultaneous operation of all columns
• LCD screen shows exact lifting height of each column
• Electronic system ensuring synchronization of all columns
• Double-safety guaranteed by both hydraulic flow control and mechanical locks
• Portable columns make your work easy and comfortable
• Can be Expanded from a four (74,000 lb. capacity) column system to a six (111,000 lb. capacity) or eight (148,000 lb. capacity) column system
• Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
• Emergency stop button on every column
• Four 32′ column connecting cables included
• 2.2 Kw 24V DC motor with two batteries per column
• 2 Year Limited Warranty
• Lifting capacity per column: 18,500
• Weight per column: 1,700 lbs
• Shipping Weight (for four columns): 6800 lbs

Atlas ML-4034BC Documentation:

   Atlas ML-4034BC Column Lift Product Manual
