Atlas 9OHSC-SS, 9,000 lb 2 Post Lift

Working on cars is a pain. It’s dirty, it’s backbreaking, and it’s time-consuming. You deserve better. Picture spending hours on your back, covered in grease, just to change an oil filter. The Atlas® 9OHSC two-post lift is the answer to your wishes. With a hefty 9,000 lb capacity, it can handle anything you put on it. Its single-piece columns and extra-long carriages are built to last, giving you peace of mind while you work. Plus, with a generous 100.5” drive-thru, you can easily maneuver any car into position.

The 9OHSC stands tall at 11’10”, and it features a 133.5” floor width. It features a max lift height of 76 3/4″. Now imagine the relief of working on a car at a comfortable height, without sacrificing safety or strength. You’ll be wondering how you ever lived without this.

2 Post Lift 9OHSC-SS Specifications:

• Capacity: 9,000 LB.

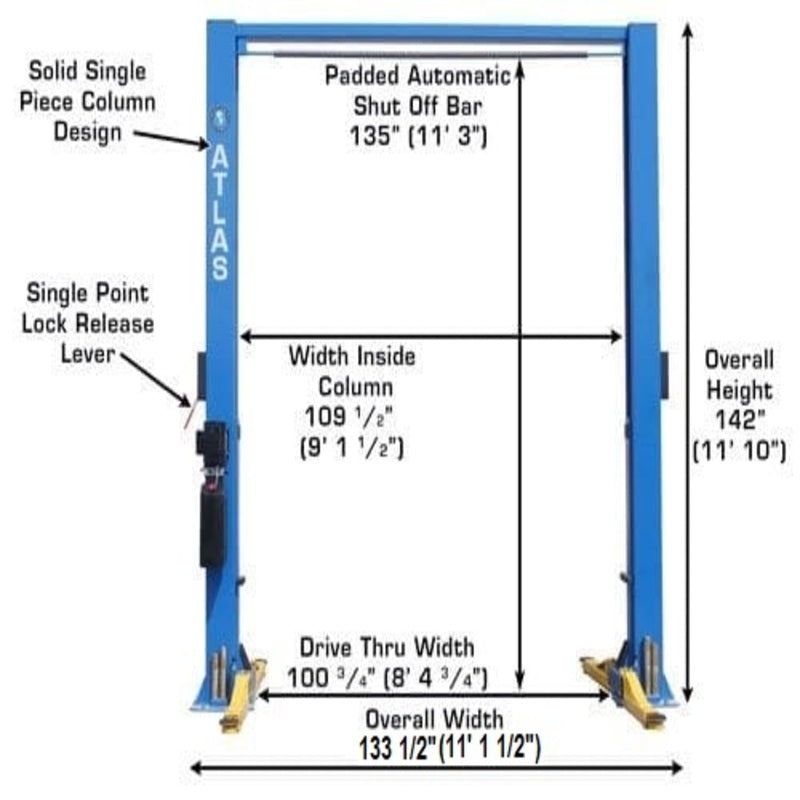

• Overall Height 142″ (11′ 10″)
• Overall Floor Width133 1/2″ (11′ 1 1/2″)
• Outside Column to Outside Column 125 1/2″ (10′ 5 1/2″)

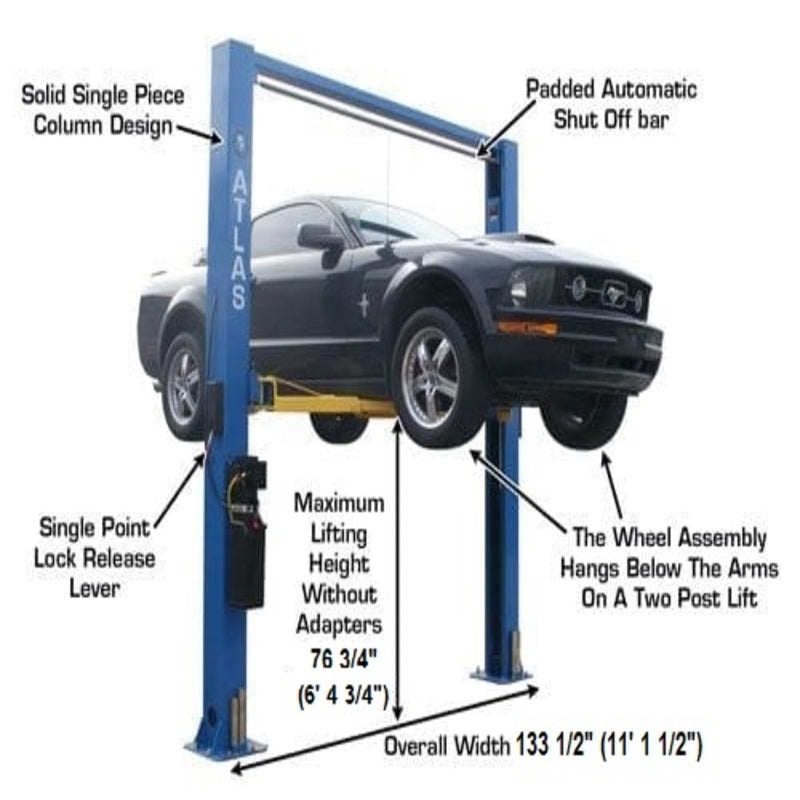

• Maximum Lift Height (Without Adapters) 76 3/4″

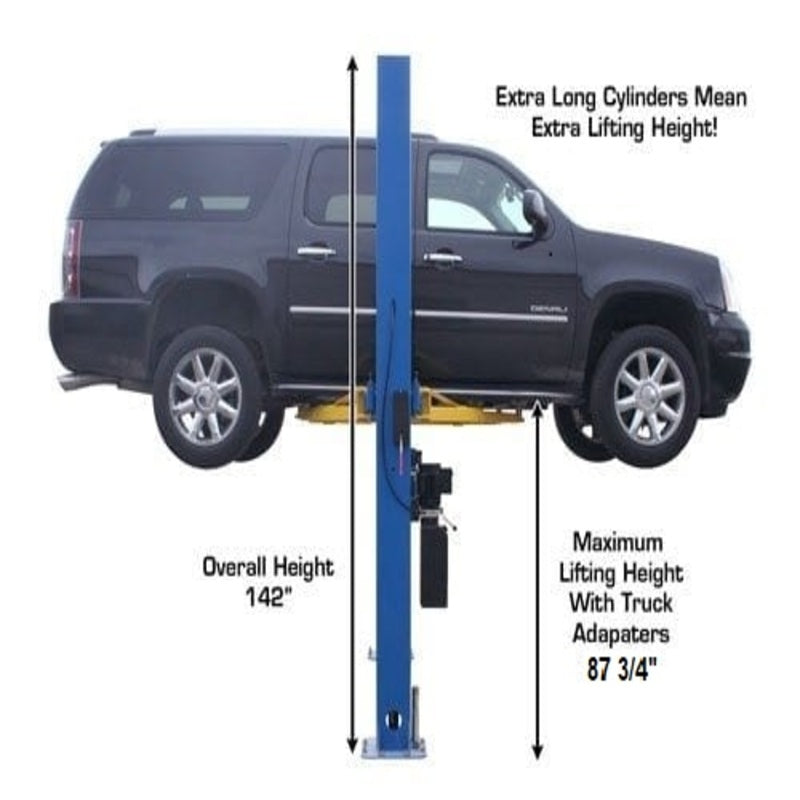

• Maximum Lift Height (With Adapters) 87 3/4″
• Minimum Arm Height 4″
• Inside Column 109 1/2” (9′ 1 1/2”)
• Drive Thru 100 1/2” (8′ 4 1/2”)

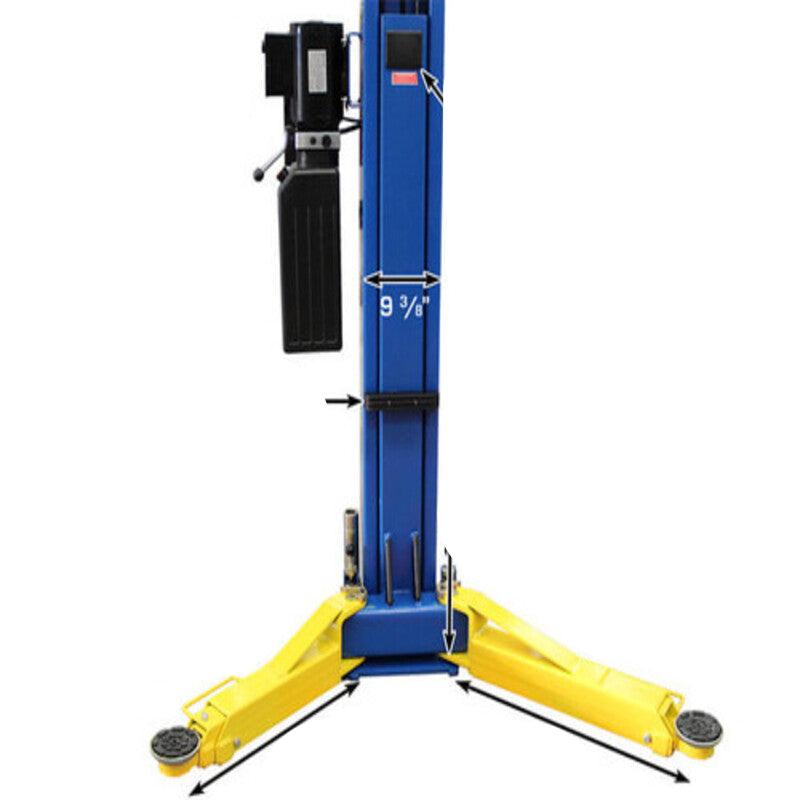

• Column Size 8″ x 9 3/8″
• Column Thickness of Steel 5mm
• Base Of Lift 16 3/4″ x 17 3/4″
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,430 LBS.
• Pallet Size:  146-1/2″ Long x 43″ Tall x 19″ Wide
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4″ of concrete with a 3000 psi. rating

9OHSC-SS 9,000 lb 2 Post Lift Special Features:

• Single-Piece Column Design
• Overhead, Open-Floor Style Lift
• 3-stage Front Arms, 2-Stage Rear Arms
• Lock Release: Single Point
• Double Safety Lock System

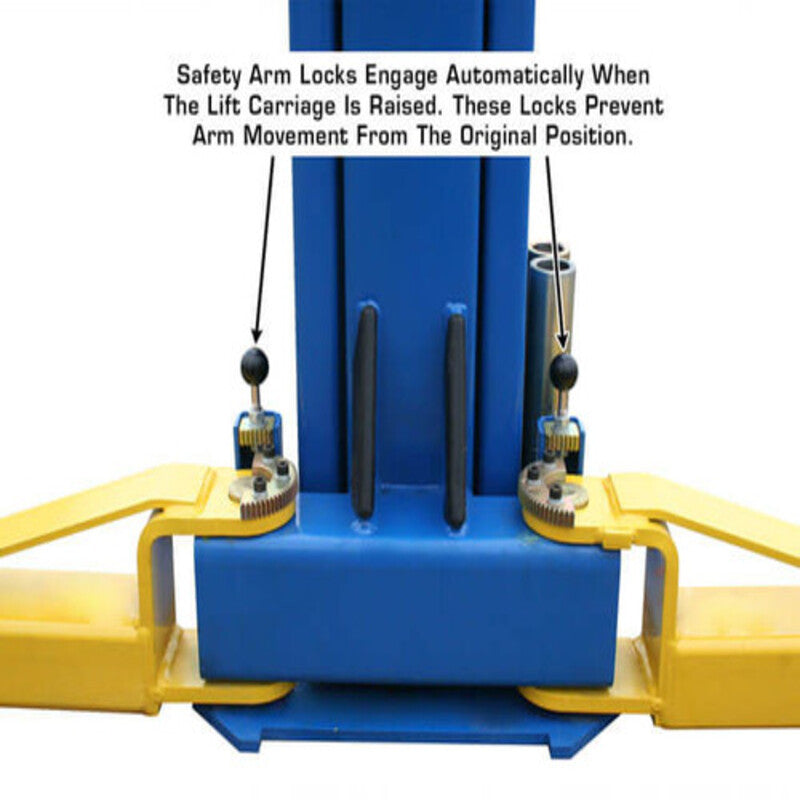

• Automatic Arm Restraints
• Dual Hydraulic Chain-Drive Cylinders
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:
•     Mounting Hardware
•     12-piece Truck Adapter Set
• Optional Item(Sold Separately)
  • Lawnmower Adapter for 2-Post Lift

Atlas 9OHSC-SS Documentation:

   Atlas 9OHSC-SS 2 Post Lift Product Manual
