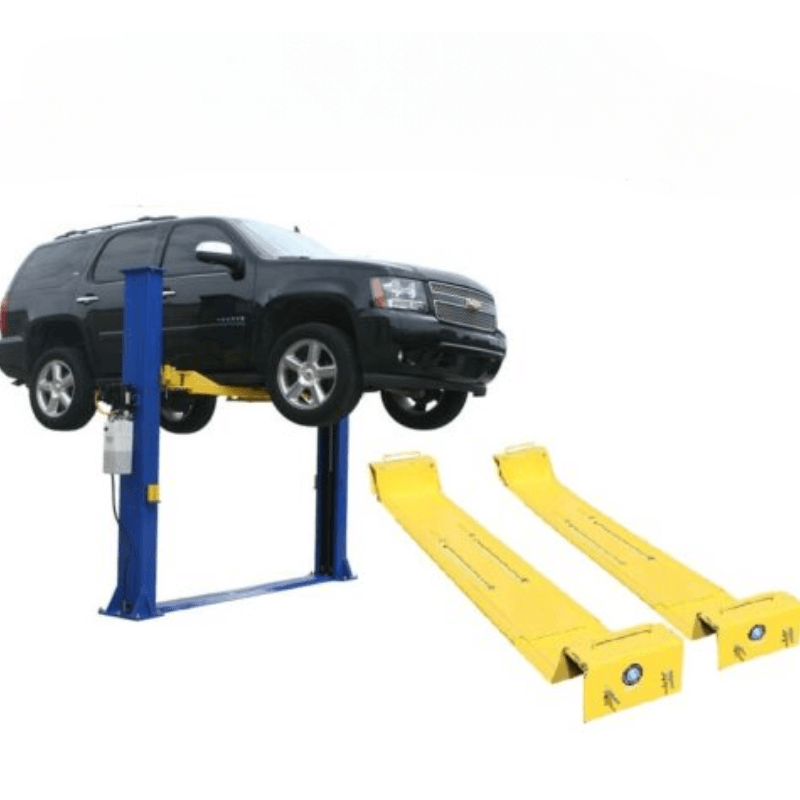

9KBPX 9,000 lb Baseplate Lift w/ LMA Combo by Atlas

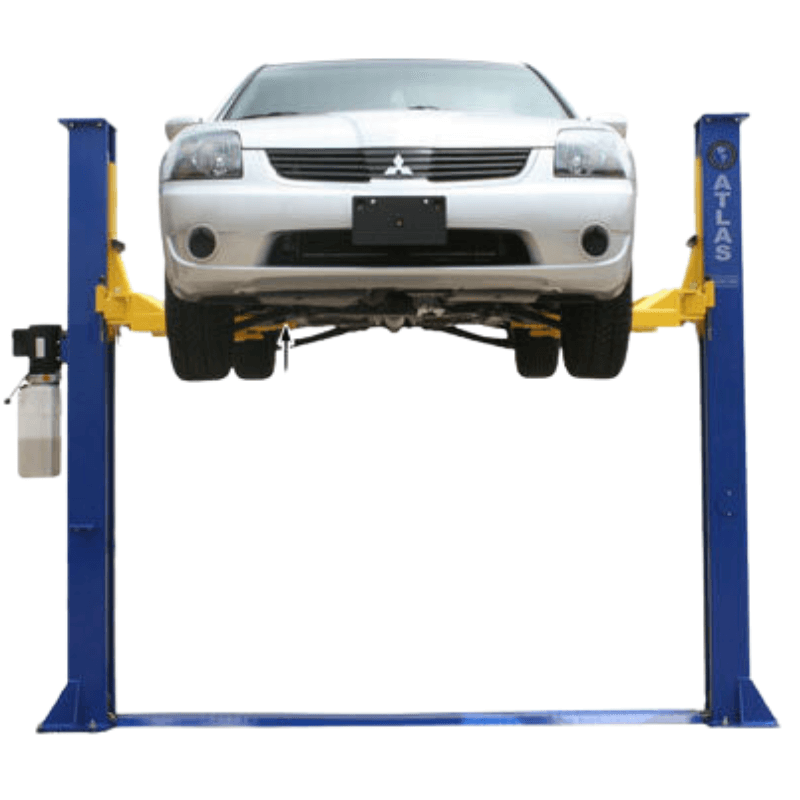

Looking for a lift that can handle your car and lawnmower? Enter the 9KBPX 9,000 lb Baseplate Lift w/ LMA Combo by Atlas—a two-post lift designed to fit in garages with ceilings as low as 9 feet 6 inches. With a 9,000 lb capacity, it’s built for small shops or at-home DIYers who need to service cars, SUVs, and Diesel Duallys. It’s packed with features like a chain-over roller design, dual hydraulic cylinders, and a Secondary Lock System (SLS) that springs into action if the chain slackens.
But wait, there’s more! This combo comes with the Lawn Mower Adapter (LMA), making your lift more versatile than you ever imagined. Lift ATVs, UTVs, and even lawnmowers with ease. The LMA’s weight capacity shifts based on where you position it, so for maximum lift power, keep those plates close to the columns. If you’re ready to upgrade your lift, but space is tight—Atlas has you covered.
Baseplate Lift w/ LMA Combo 9KBPX Specification
- Capacity: 9,000 lbs.
- Overall Height: 111 1/2″ (9’ 3 1/2″)
- Overall Floor Width: 134 1/2″ (11’ 2 1/2″)
- Outside Column to Outside Column: 124 7/8″ (10’ 4 7/8″)
- Maximum Lift Height (Without Adapters): 74 1/2″
- Maximum Lift Height (With Adapters): 81″
- Minimum Arm Height: 4″
- Inside Column: 110” (9’ 2”)
- Drive Thru: 101” (8’ 5”)

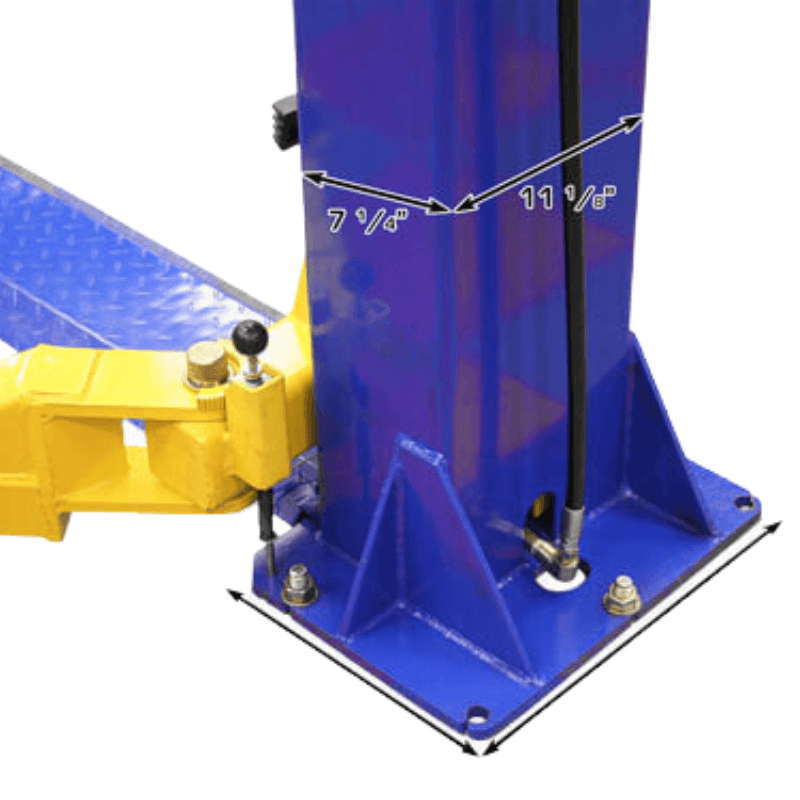

- Column Size: 7 1/4″ x 11″
- Column Thickness of Steel: 5mm
- Base Of Lift: 14 1/4″ x 18 1/4″

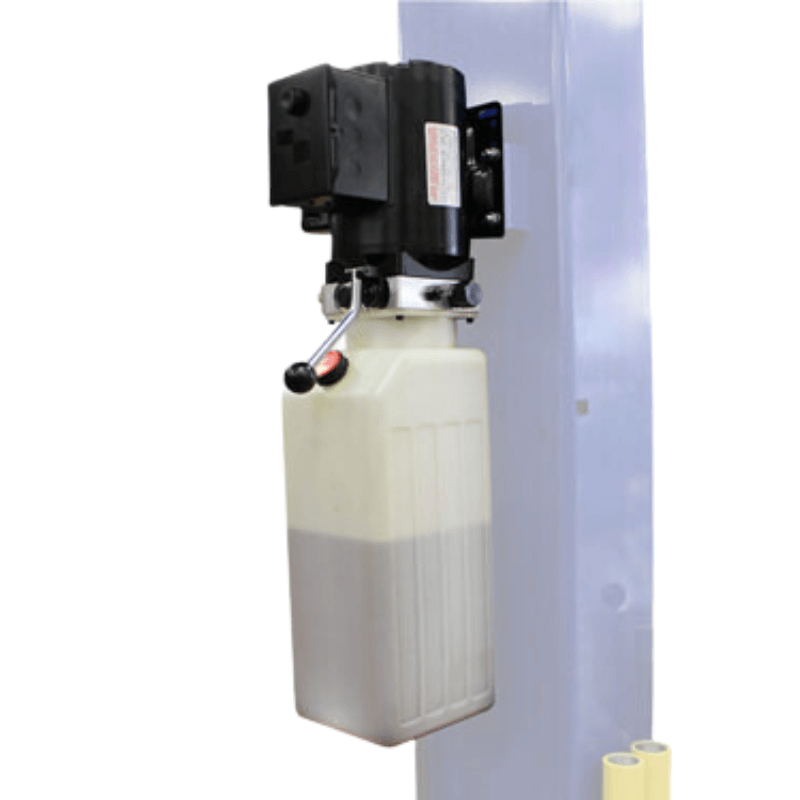

- Motor/Electrical Requirement: 220 volt single (1) phase; a 30 amp breaker is recommended
- Oil Requirement: 3-5 gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 1,400 lbs.
- Adapter Heights: 4 each of 1.5” and 5”
- Arm Hole/Adapter Peg Size: 1.5”
- Requires a minimum of 4″ of concrete with a 3000 psi rating

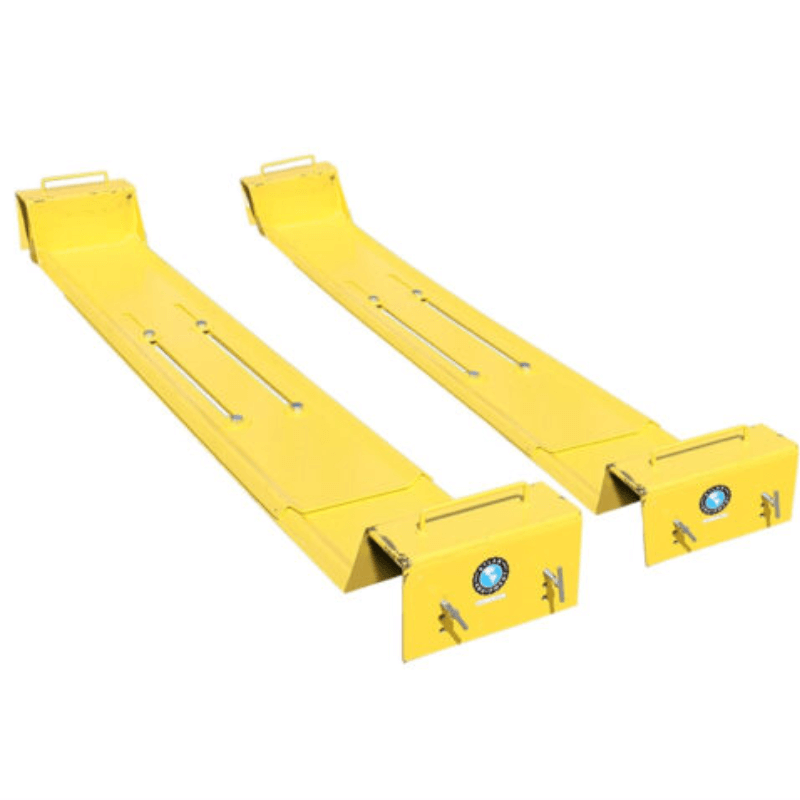

Atlas® Lawn Mower Adapter (LMA) Specifications:
- Capacity: Up to 5,000 lbs.*
- Adjusts In Width: 8′ 11″
- Wheel Base: 32″ to 90″**
- Wheel Well Width: 12″
- Thickness Of Steel: 1/4″ (2 Gauge)
- Shipping Weight: 600 lbs.
9KBPX Baseplate Lift w/ LMA Combo Special Features
9KBPX
- 9,000 lb. Capacity
- Baseplate, Open-Top Style Lift
- Designed For Low Ceiling Clearance – 9′ 3 ½” Columns
- Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)
- Free 8 Piece Truck Adapter Set

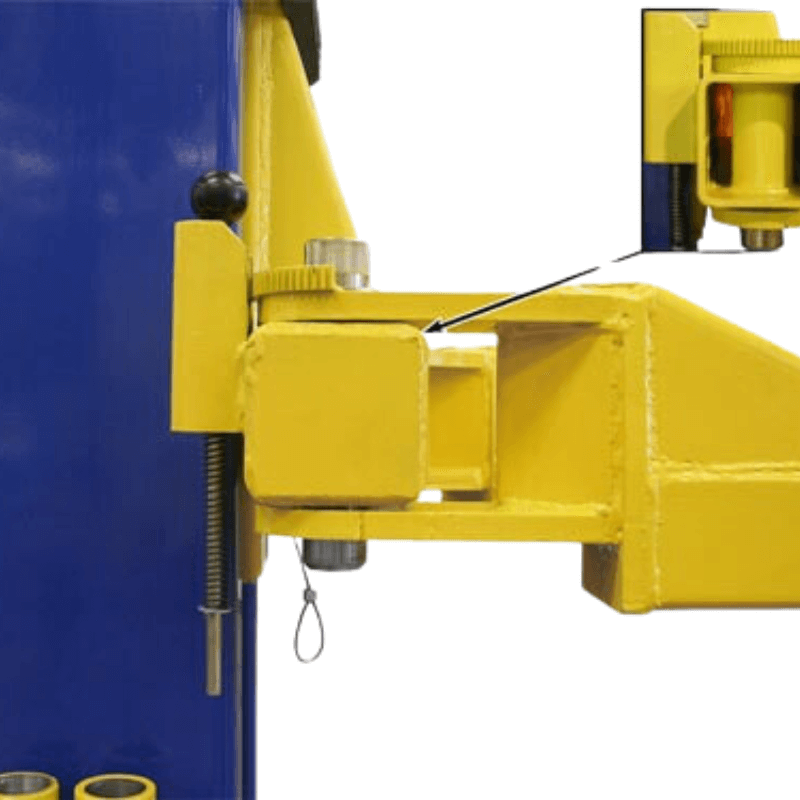

- Automatic Arm Restraints
- Dual Point Lock Release
- Mounting Hardware Included
- Shipping Weight: 1,400 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
LMA
- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 plates and all hardware
- Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
- Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
- Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)
