Atlas BP10000X, 10,000 lb 2 Post Lift – Low Ceiling

Are bulky vehicles and low ceilings giving you a headache? Meet the Atlas® BP10000X, the superhero of low-ceiling garages! This 10,000 lb capacity beast laughs in the face of heavy-duty trucks while ducking under 11-foot ceilings like a limbo champion. With its single-point lock release and reinforced columns, it’s tougher than a drill sergeant at boot camp.

From three-ton duallies to tiny Smart Cars, this lift doesn’t discriminate. It’ll hoist them all with a maximum lift height of 86 3/8″ (with adapters), giving you plenty of room to work your magic. The BP10000X isn’t just strong; it’s smart too. Its super-symmetric design and dual hydraulic chain drive cylinders make it smoother than a buttered skillet. Ready to transform your cramped garage into a powerhouse workshop? The Atlas® BP10000X is your ticket to the big leagues!

 2 Post Lift BP10000X Specifications:

• Capacity 10,000 LB.

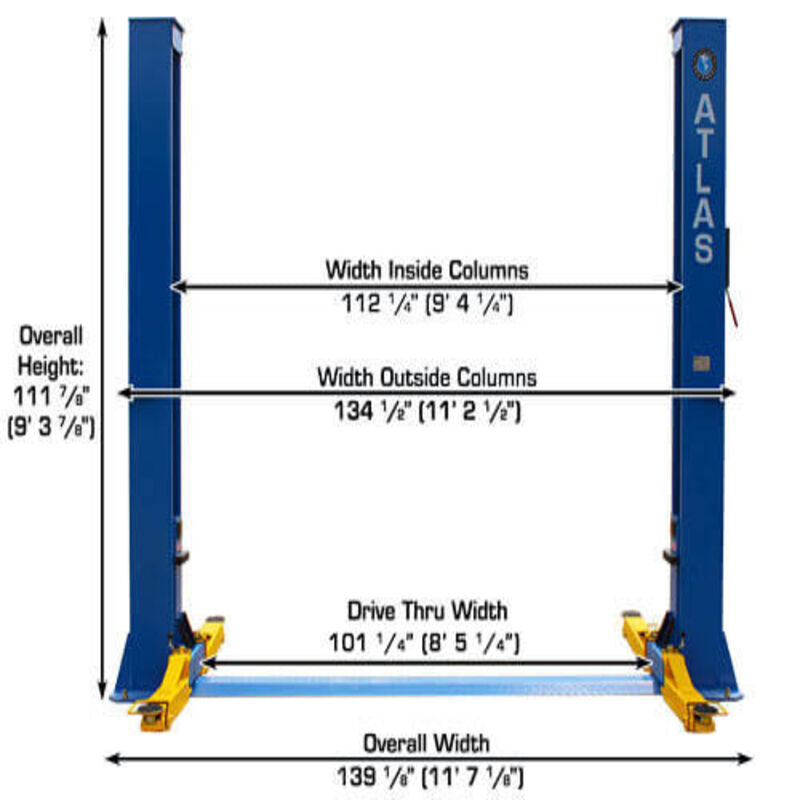

• Overall Height 111 7/8″ (9′ 3 7/8″)

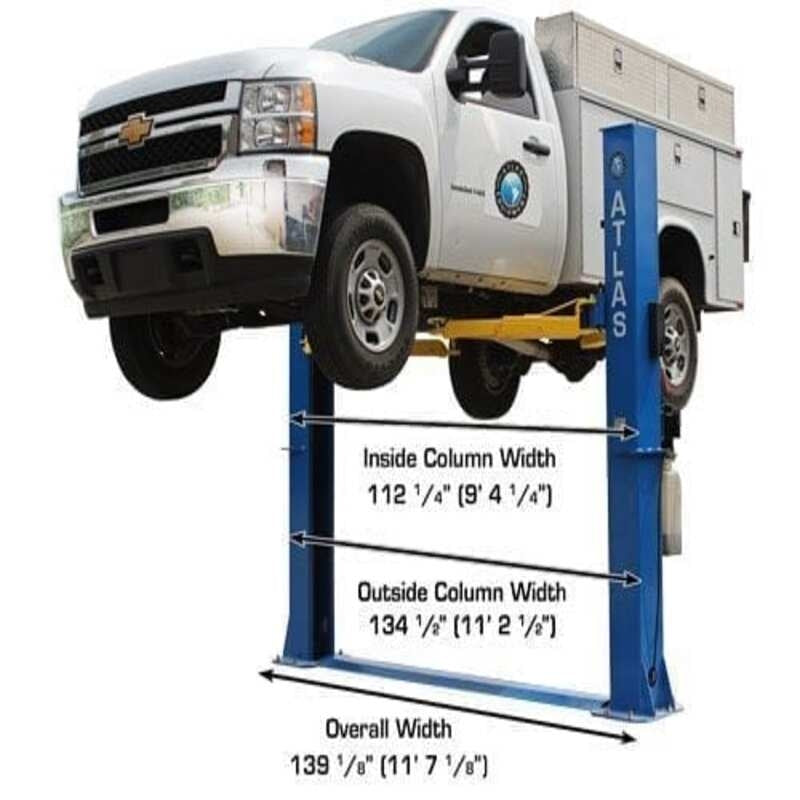

• Overall Floor Width 139 1/8″ (11′ 7 1/8″)
• Outside Column to Outside Column 134 1/2″ (11′ 2 1/2″)

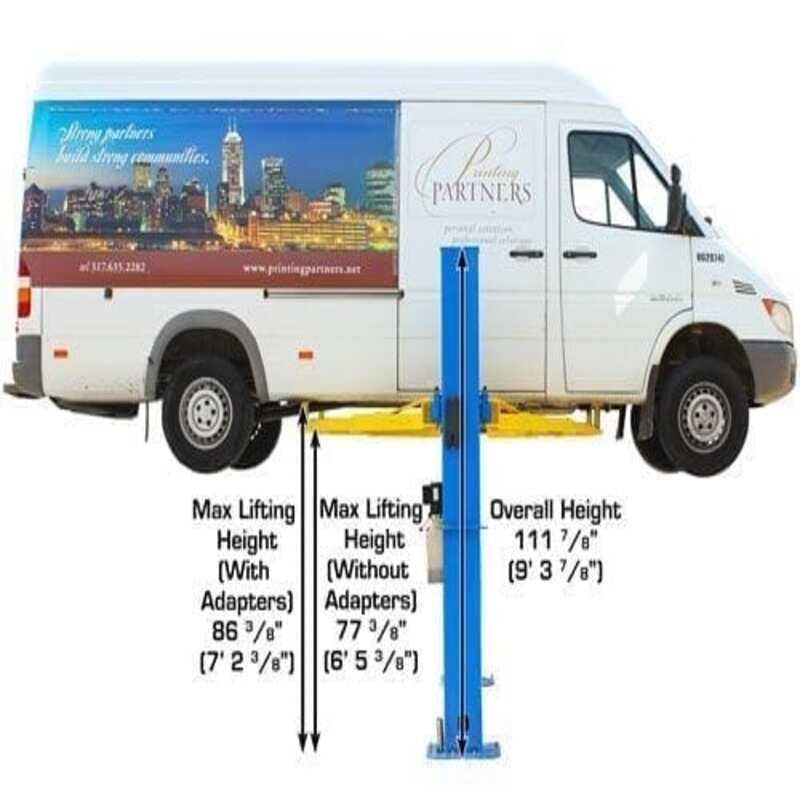

• Maximum Lift Height (Without Adapters) 77 3/8″

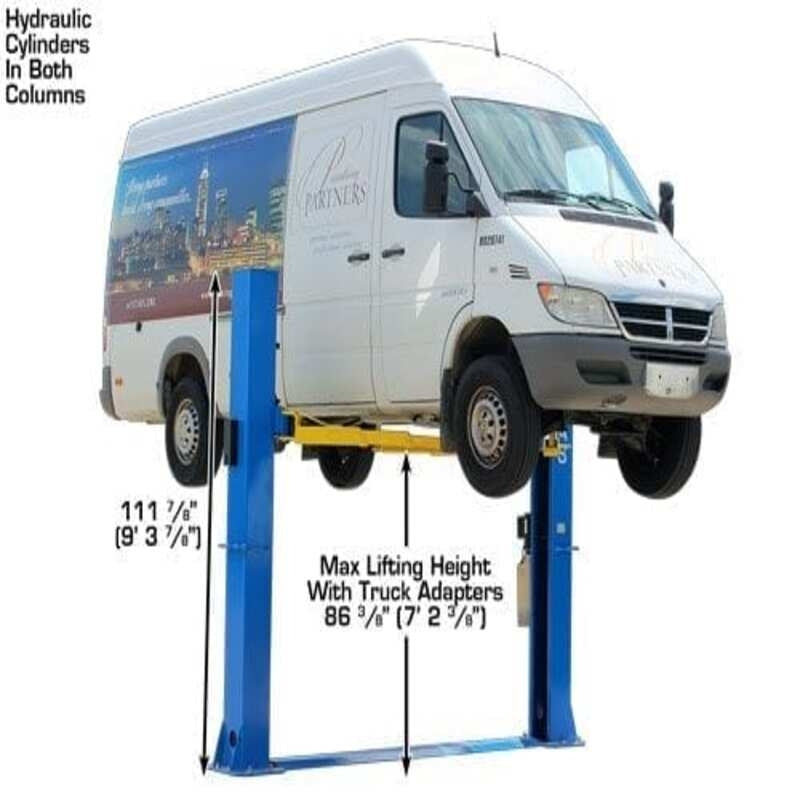

• Maximum Lift Height (With Adapters) 86 3/8″
• Minimum Arm Height 4″
• Inside Column 112 1/4” (9′ 4 1/4”)

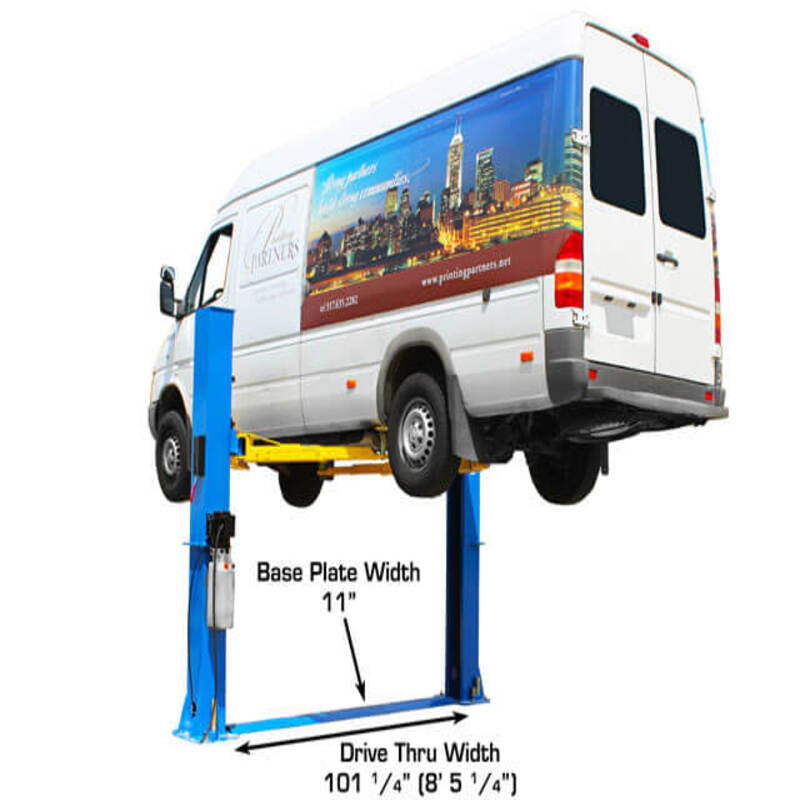

• Drive Thru 101 1/4” (8′ 5 1/4”)
• Column Size 9 1/2″ x 11″
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2″ x 21 1/2″
• Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,640 LBS.
• Pallet Size:  115″ Long x 32″ Tall x 22″ Wide + 1 small pallet
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4″ of concrete with a 3000 psi. rating

BP10000X 10,000 lb 2 Post Lift Special Features:

• Commercial Grade – Welded Support Gussets Increase Column Strength
• Baseplate, Open-Top Design

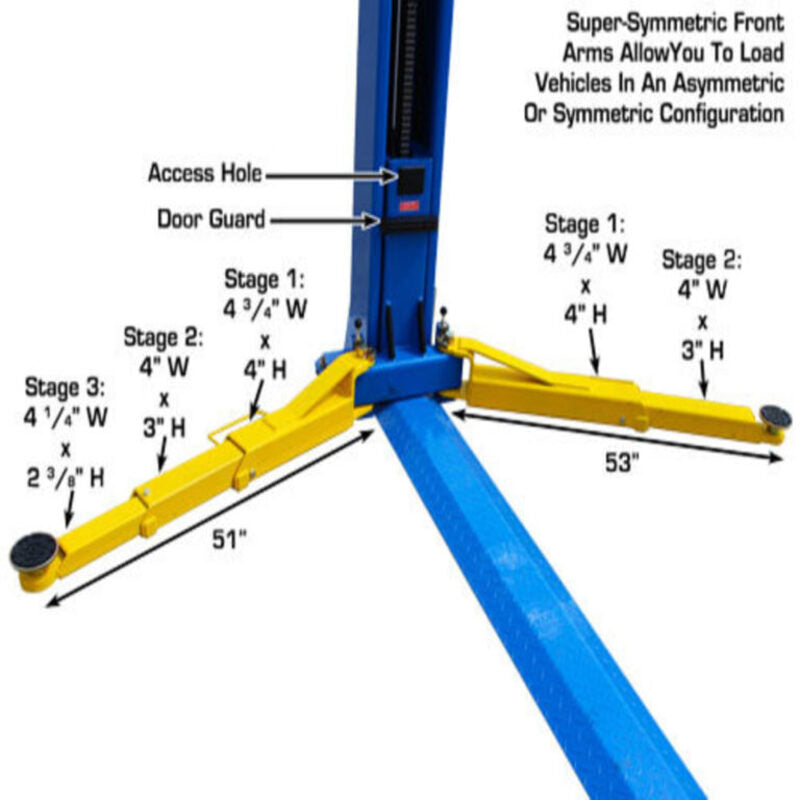

• Super Symmetric
• Lock Release: Single Point

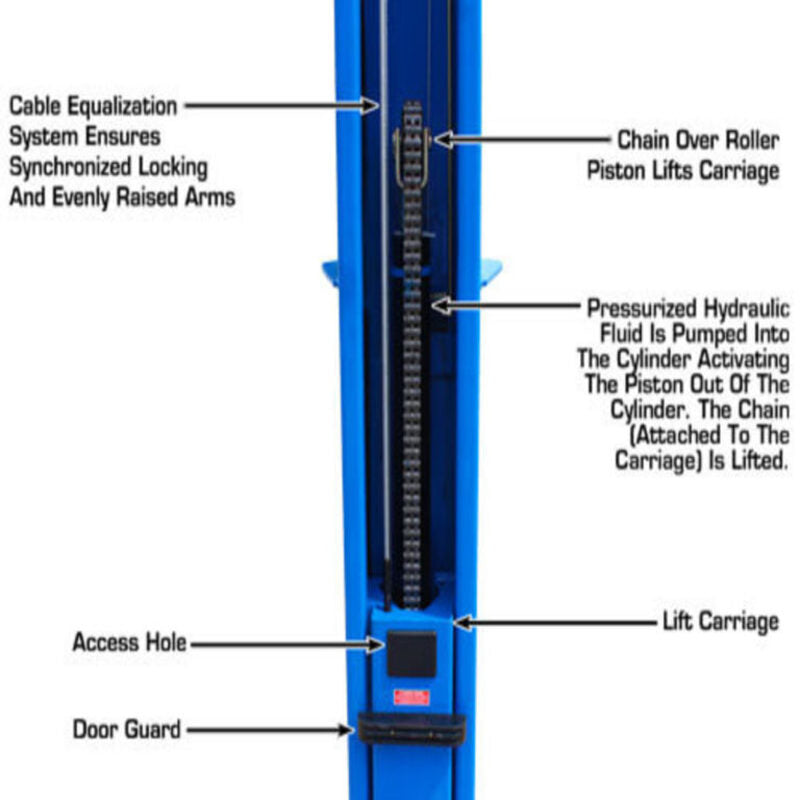

• Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
• Powder Coat Finish
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:

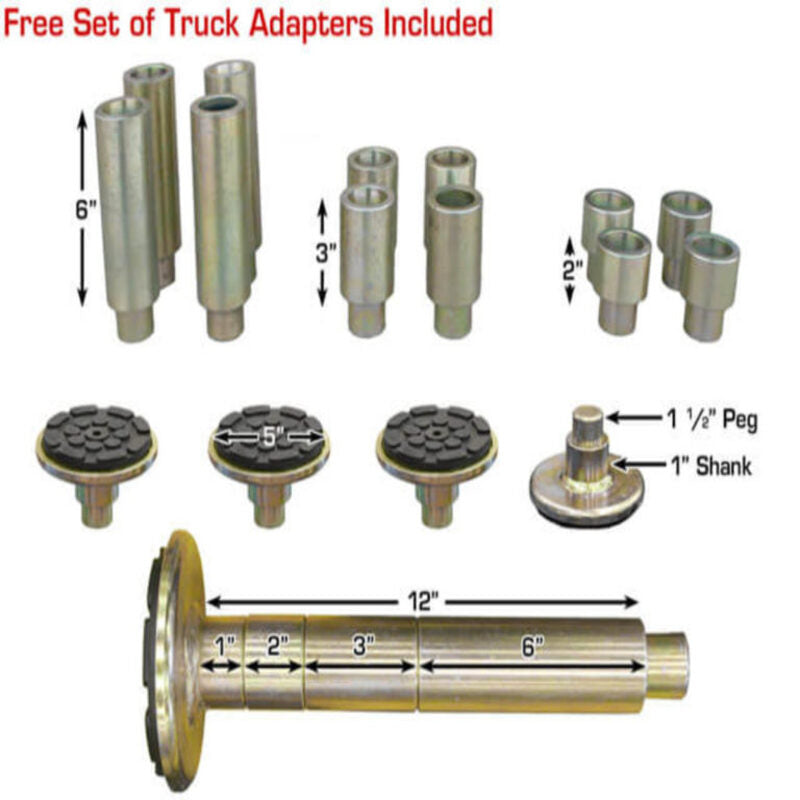

  • 12-piece Truck Adapter Set
• Optional Item(Sold Separately)
  • Lawnmower Adapter for 2-Post Lift
