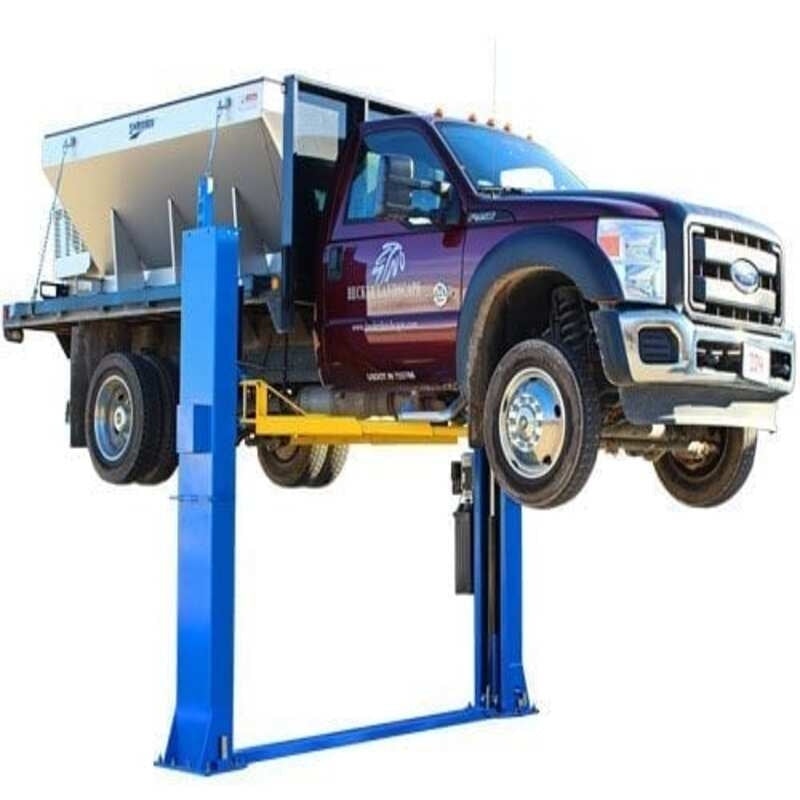

Atlas BP12000X, 12,000 lb 2 Post Lift – Commercial Grade

Is your current lift wheezing under the weight of heavy vehicles? Are you constantly playing a frustrating game of “dodge the ceiling” with taller trucks? Your garage is in dire need of a solution, and your competitors are circling like sharks, ready to snatch those lucrative heavy-duty jobs.

Enter the Atlas® BP12000X – your garage’s new best friend. This 12,000-pound capacity titan is the answer to your prayers, with a height of just 122 1/2″ that’ll slide under your ceiling like a limbo champion. But don’t let its low profile fool you – this lift is tougher than a two-dollar steak. With its adjustable width settings, it’ll handle everything from wide-bodied trucks to slender sports cars. The BP12000X’s symmetric three-stage arms and oversized columns are itching to show you what real lifting power looks like. With the Atlas® BP12000X, you’ll be lifting your way to the top of the automotive repair and maintenance food chain!

 2 Post Lift BP12000X Specifications:

• Capacity 12,000 LB.

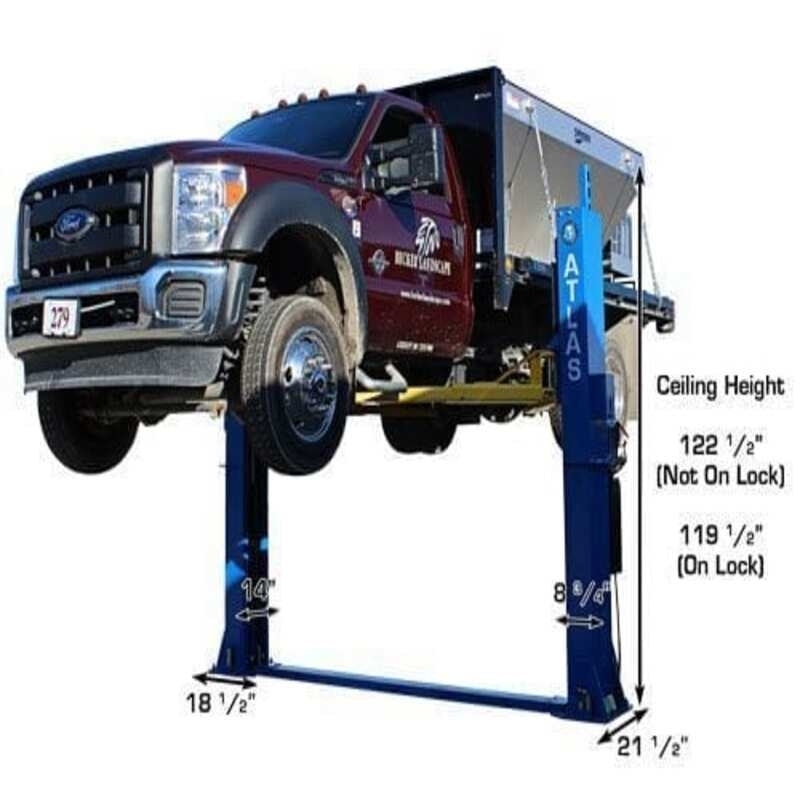

• Overall Height 122 1/2″ (10′ 2 1/2″)

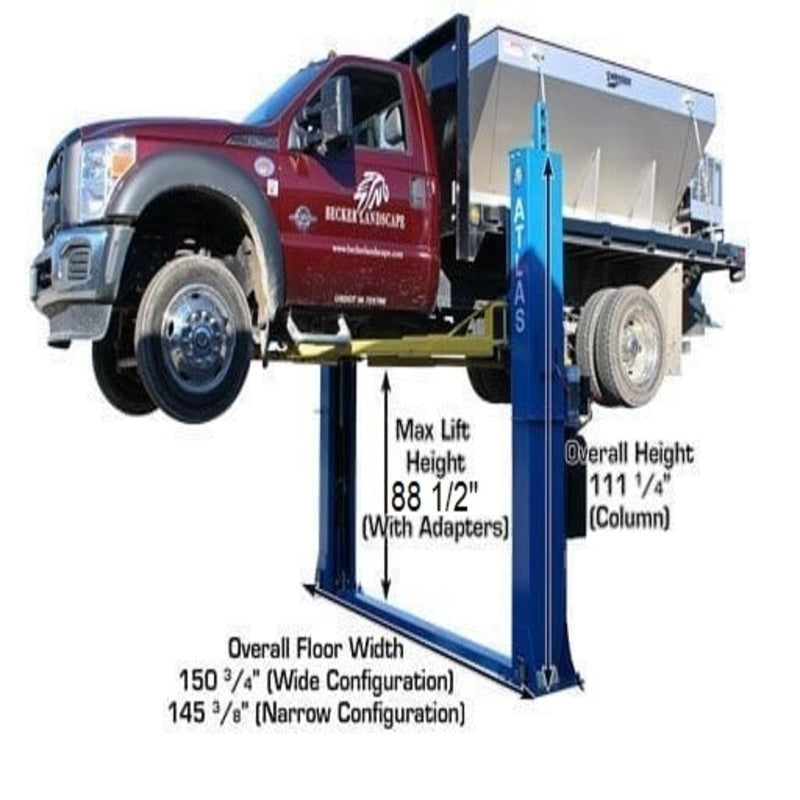

• Overall Floor Width 149 3/8″ (12′ 5 3/8″) or 154 1/2” (12′ 10 1/2”)

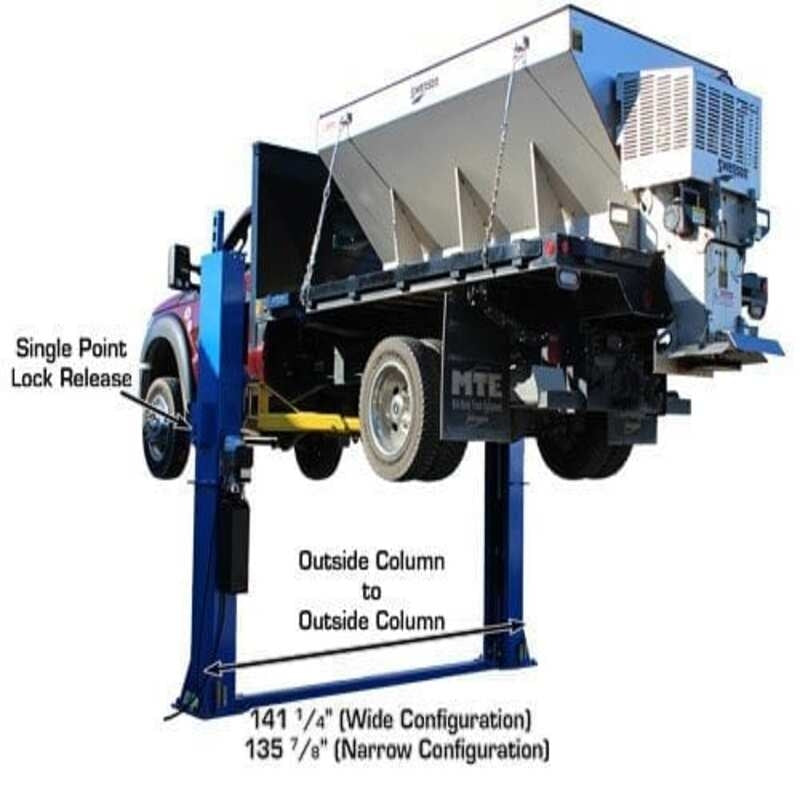

• Outside Column to Outside Column 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4”)
• Maximum Lift Height (Without Adapters) 77 1/2″

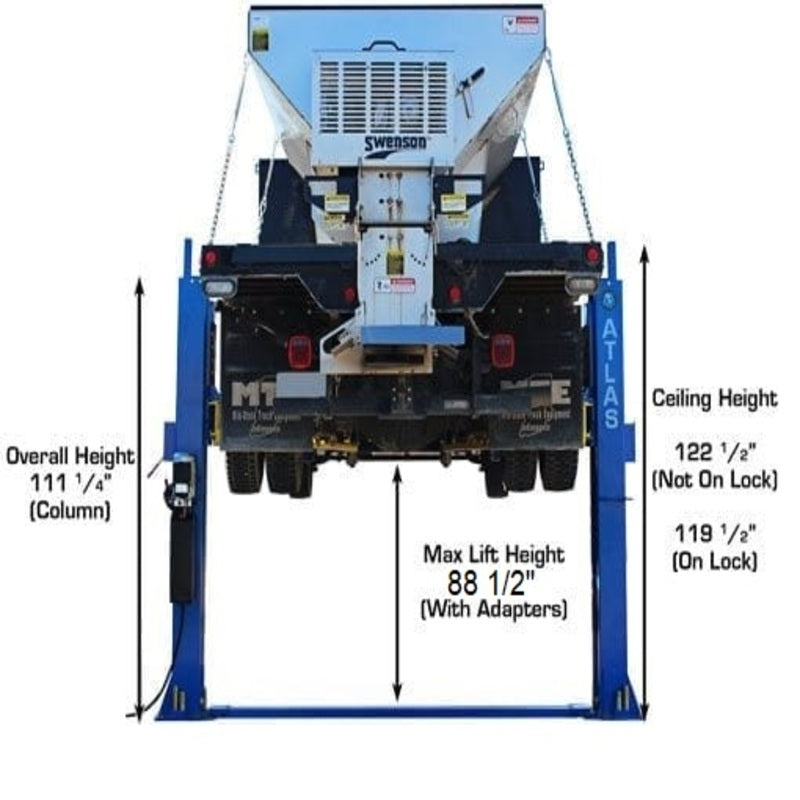

• Maximum Lift Height (With Adapters) 88 1/2″
• Minimum Arm Height 4″

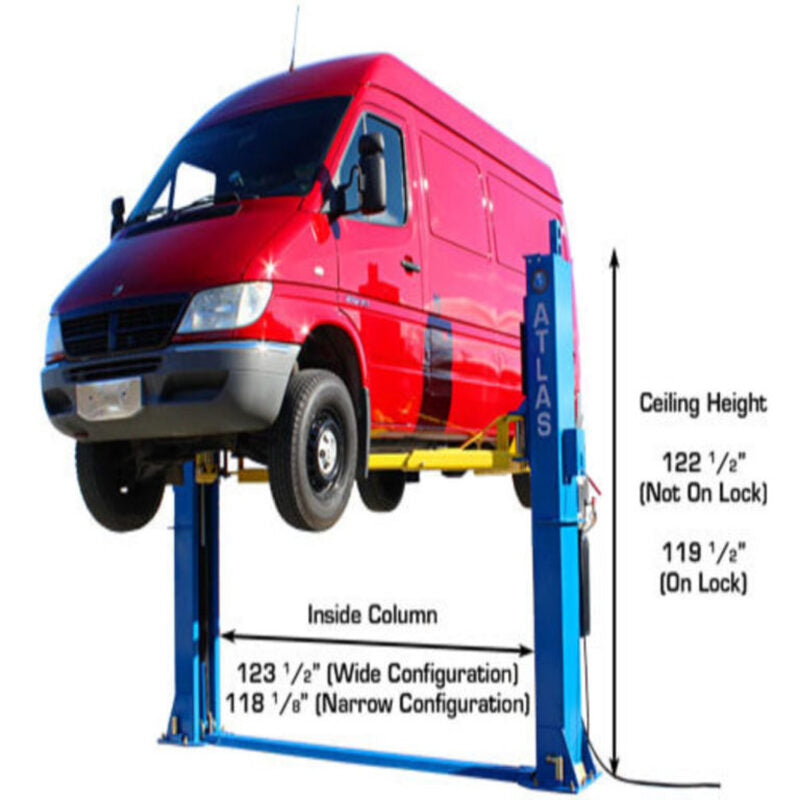

• Inside Column 118 1/8” (9′ 10 1/8”) or 123 1/2″ (10′ 3 1/2″)
• Drive Thru 103 5/8” (8′ 7 5/8”) or 109” (9′ 1”)
• Column Size 8 3/4″ x 14″
• Column Thickness of Steel 6mm

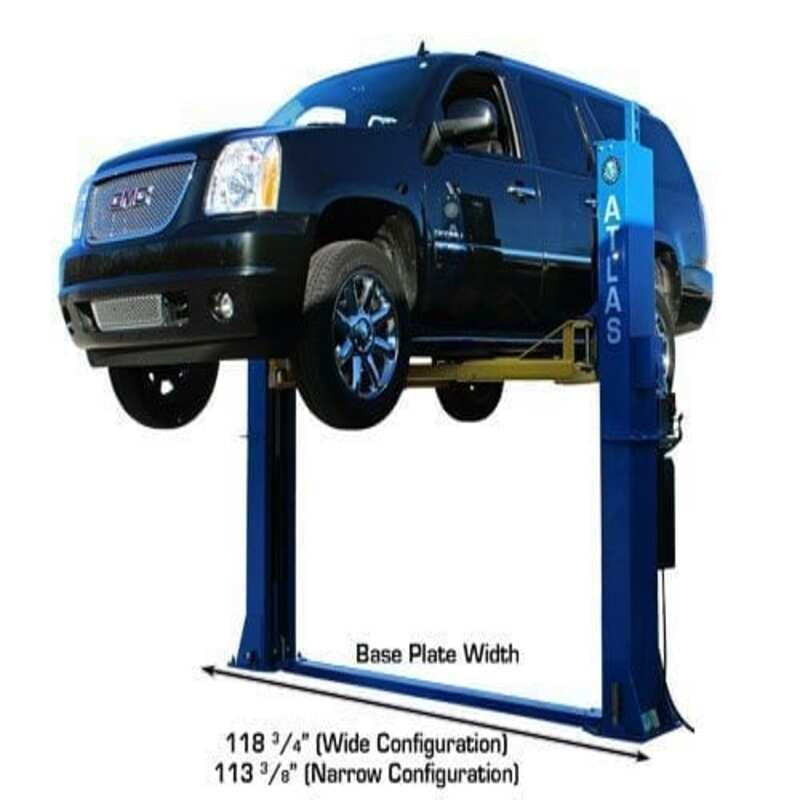

• Base Of Lift 18 1/2″ x 21 1/2″
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,130 LBS.
• Pallet Size:  115-1/4″ Long x 44″ Tall x 22-1/2″ Wide
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 6″ of concrete with a 3000 psi. rating

BP12000X 12,000 lb 2 Post Lift Special Features:

• Heavy Duty, Commercial Grade Strength
• Baseplate, Open-Top Design
• 3-Stage Symmetric
• Adjustable Width
• Automatic Arm Restraints

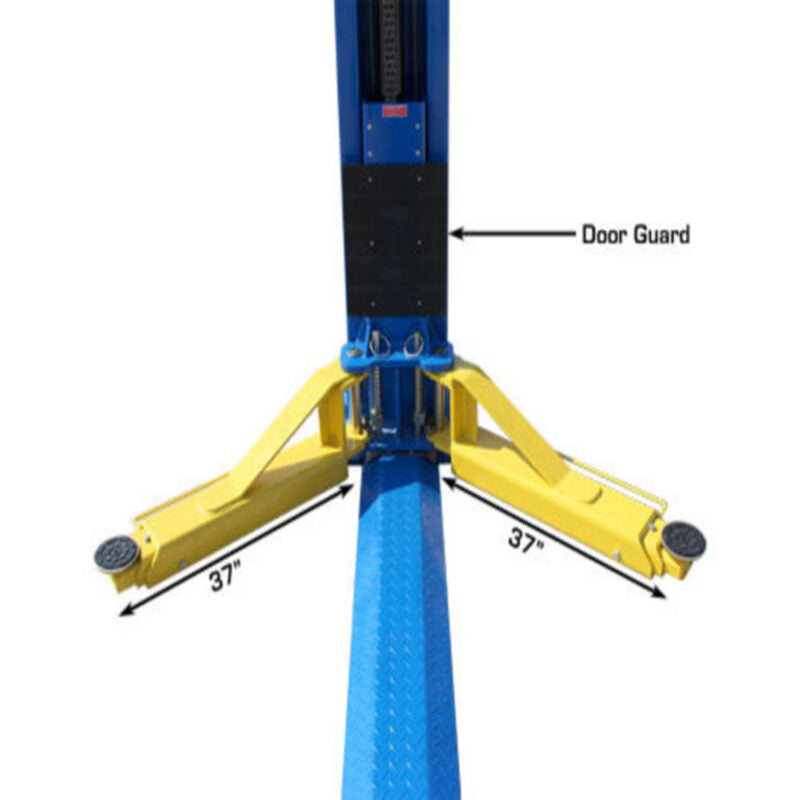

• Rubber Guards on Carriages

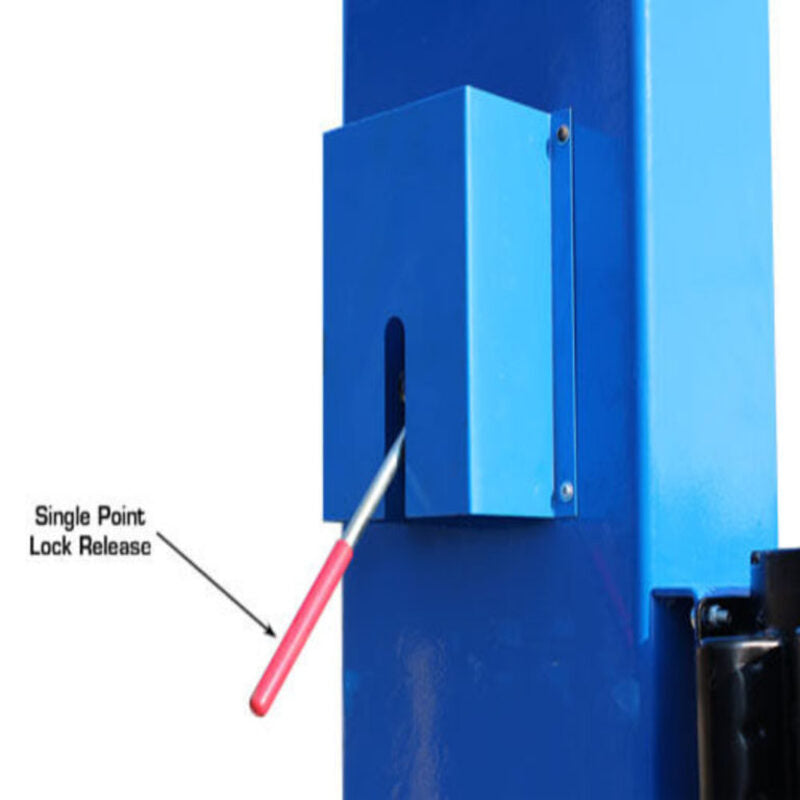

• Lock Release: Single Point

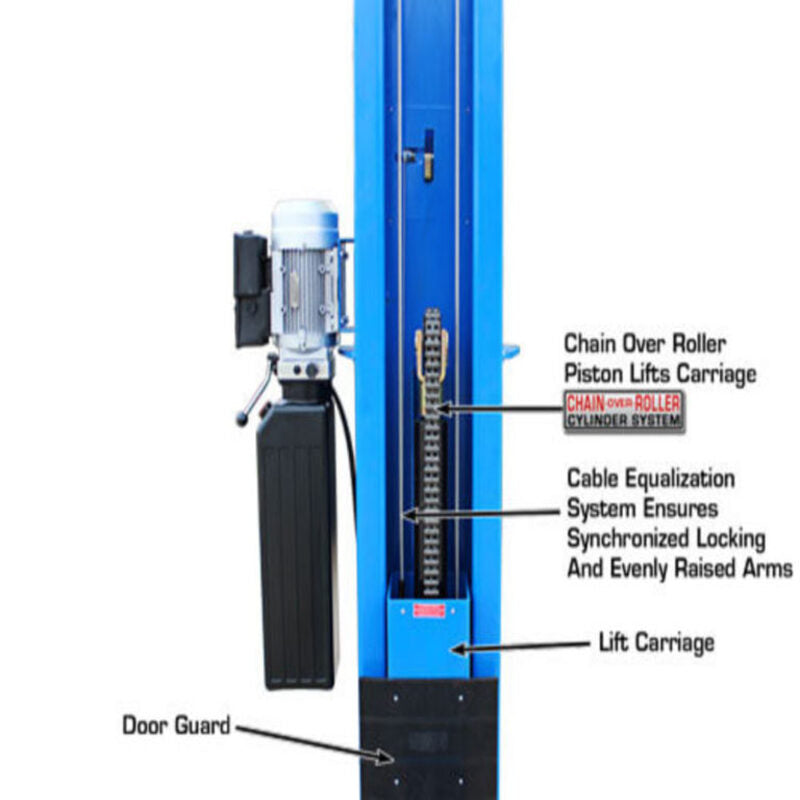

• Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
• Powder Coat Finish
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:
•     12-piece Truck Adapter Set

Atlas BP12000X Documentation:

   Atlas BP12000X 2 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $599

Warehouse Pickup locations (No shipping charge):

• Fresno, CA
• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
