Atlas Garage Pro 9000 – 9,000lb Extra Large Vehicle Storage Lifts

Your garage is a chaotic mess. If your cars could talk, they’d tell you they’re suffocating. You’re dreaming of a more organized, functional space – and closing your eyes is the only way to not deal with the mess that is your garage. Hurts, doesn’t it?

The Atlas® Garage PRO9000 will take the hurt away. This heavy-duty lift, capable of handling a massive 9,000 lbs, is the ultimate space-saver. Designed for hobbyists and shop owners it boasts extra length and width, accommodating vehicles from Smart Cars to Diesel Duallys with ease. Its 85” lifting height and 80 ¼” clearance under runways ensure even your tallest ride fits comfortably. And with a sturdy build and a double lock safety system, you can rest assured your car is secure. No more car Tetris. No more sacrificing precious space. And with our included goodies like drip trays and a jack tray, you’re set up for success from day one.

Atlas Pro9000 Vehicle Storage Lifts Specifications:

• Capacity 9,000 Lb.

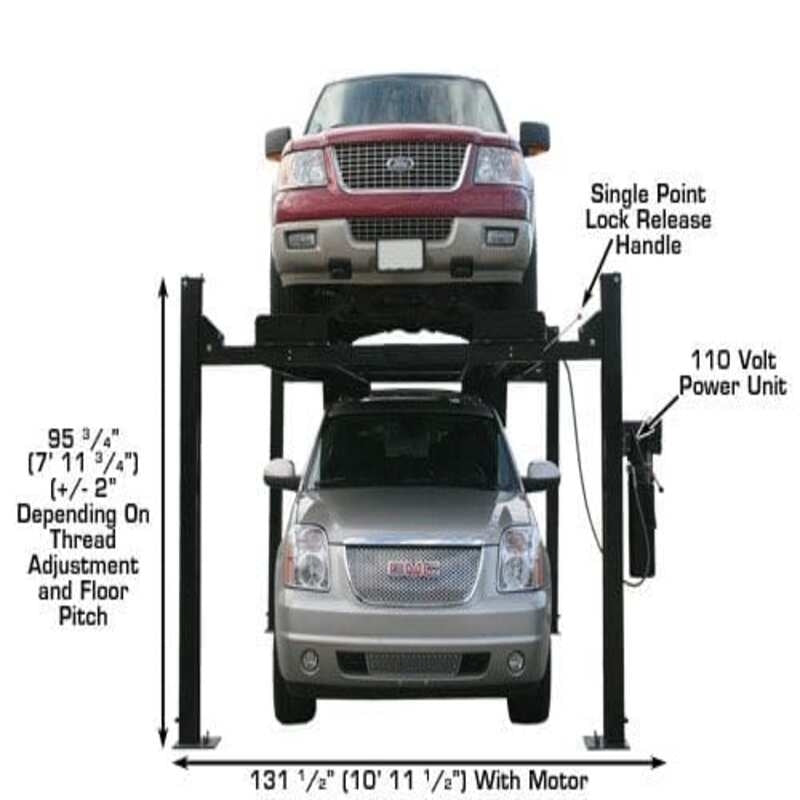

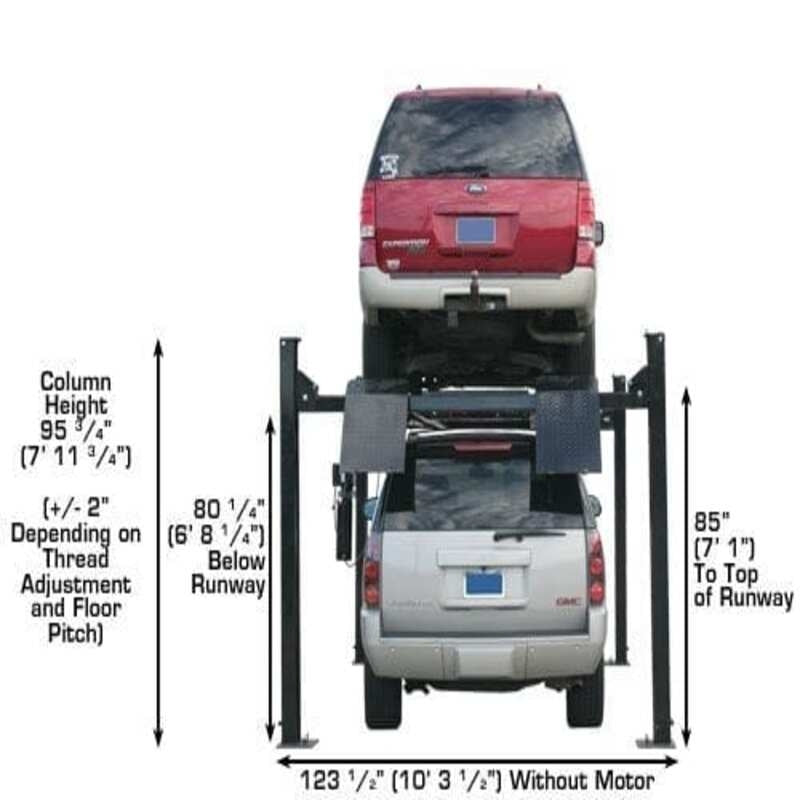

• Lifting Height To Top Of Runway 85″ (7′ 1″)

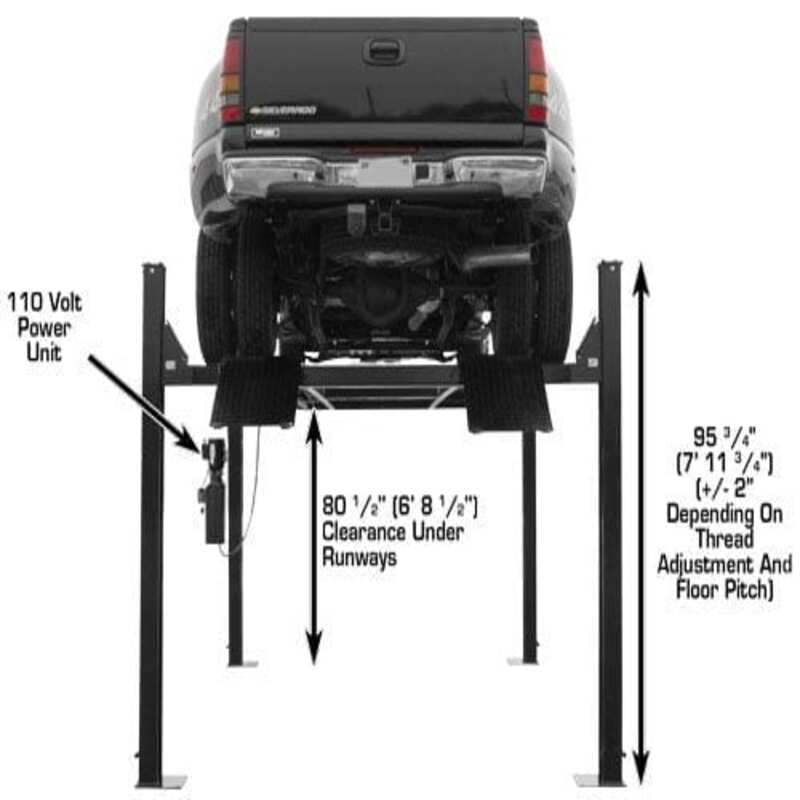

• Clearance Under Runways 80 1/4″ (6′ 8 1/4″)
• Height Of Columns 95 3/4″ (7′ 11 3/4″)
• Overall Width (Without Motor) 123 1/2″ (10′ 3 1/2″)
• Overall Width (With Motor) 131 1/2″ (10′ 11 1/2″)

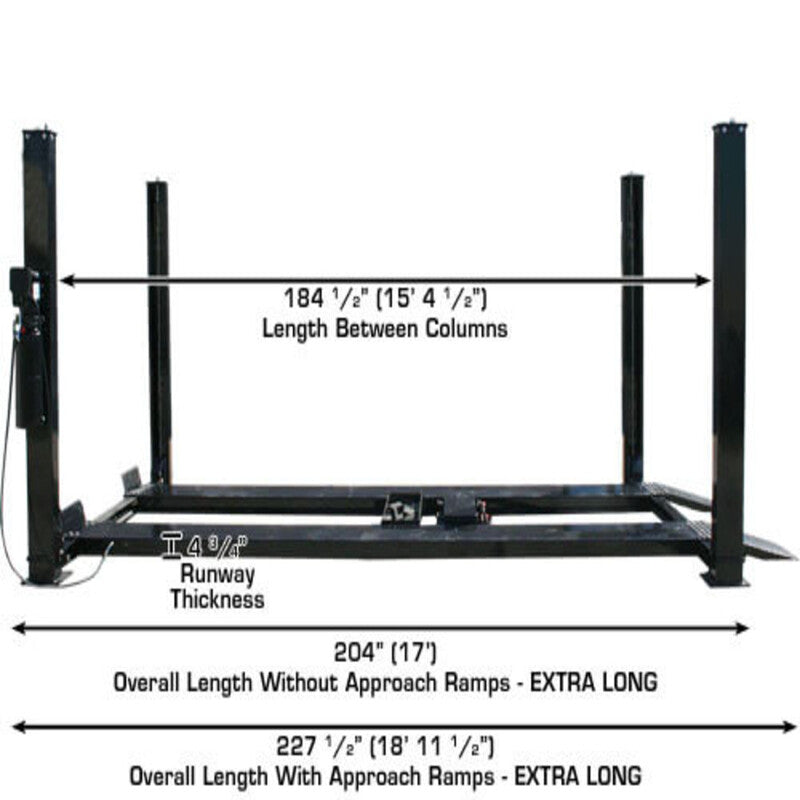

• Overall Length With Approach Ramp 227 1/2″ (18′ 11 1/2”)
• Approach Ramp 31″ (2′ 7″)
• Runway Width 21 1/4″ (w/ Rails) or 20″ (Driving Surface)
• Runway Length 199 1/2″ (16′ 7 1/2″)
• Runway Thickness 4 3/4″
• Width Between Runways 39 3/4″ (3′ 3 3/4″)
• Width Between Runway Rails 35 1/2″ (2′ 11 1/2″)
• Outside Runway To Outside Runway 79″ (6′ 7″)
• Clearance Between Columns 110 1/2″ (9′ 2 1/2″)
• Length Between Columns 184 1/2″ (15′ 4 1/2″)
• Maximum Wheel Base 187″ (15′ 7″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 97 1/4″ (8′ 1 1/4″)
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 2,300 lb.
• Pallet Size:  202-1/4″” Long x 28-1/2″ Tall x 21-1/2″ Wide

Pro9000 9,000 lb 4 Post Vehicle Storage Lifts Special Features:

• Capacity: 9,000 lb
• Style: Extra Tall, Extra Wide, Extra Long
• Heavy Duty
• Design Free Standing & Portable
• Diamond Plated Runways
• Lock Release: Single-Point
• Lock Design Lock Ladder w/ Double Lock Safety System
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
• Unit Includes:
  •      Caster Kit with Polyurethane Wheels Included
  •      Steel Approach Ramps Included

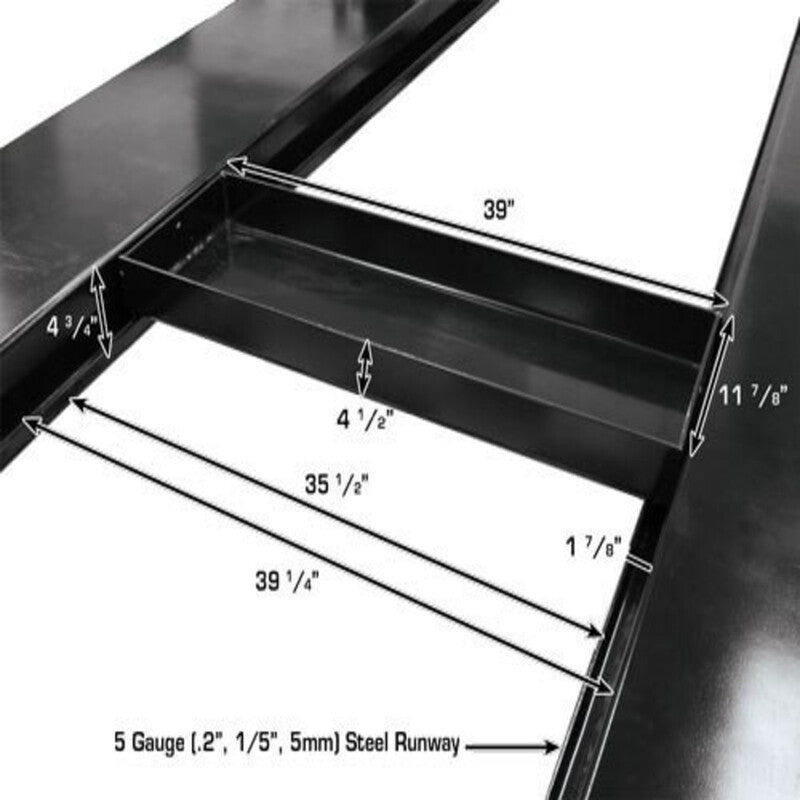

  •      Steel Jack Tray Included
  •     4 Plastic Drip Trays
  •     4 Wheel Stops
  •     2 Rubber Wheel
• Buy as a Combo Atlas PRO9000 + PROjack35
• Buy as a Combo Atlas PRO9000 + RJ6
• Optional Item (Sold Separately)
  • 39″ Steel Jack/Drip Tray
  • 39″ Plastic Drip Tray

Atlas PRO9000 Manual:

   Atlas Garage Pro9000 Manual

This Item has a FLAT RATE SHIPPING FEE: $599

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
