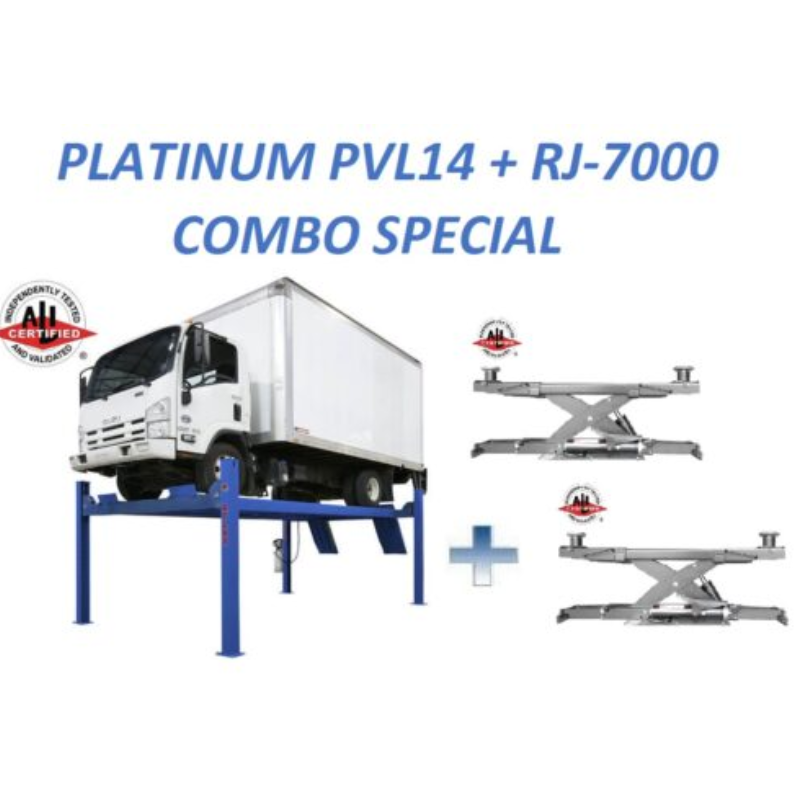

Platinum PVL14 + RJ7000 Rolling Jacks ALI Certified Combo by Atlas
Your current lift setup is the weak link in your automotive chain. It’s not just about slow service anymore; it’s about missed opportunities, safety concerns, and the nagging feeling that you’re always one step behind the competition. Enter the Atlas Platinum PVL14 Combo – your all-in-one answer to modern automotive challenges.
With a hefty 14,000 lb capacity and a 76 1/2″ lift height, it handles everything from compact cars to light commercial vehicles. The ALI certification ensures you’re not just meeting safety standards; you’re exceeding them. But here’s where it gets interesting: The included RJ7000 Rolling Bridge Jacks, each with a 7,000 lb capacity, turn wheel service into a breeze. And with a lifting range from 36″ to 45 1/2″, they’re as flexible as a yoga instructor. The ALLY Hydraulic AL2650 power unit, with its high-silver-content windings, runs cooler and more efficiently than your morning espresso machine. From its 205 1/2″ long runways to its air-operated single point lock release, every feature of the PVL14 is designed to boost your productivity. With the Atlas Platinum PVL14 Combo, you’re setting the pace.
4 Post Vehicle Storage Lifts PVL14 Specifications:
- Capacity: 14,000 lb.
- Lifting Height: 76 1/2″ (6′ 4 1/2″)
- Overall Width of Columns (Without Motor): 131 3/4″ (10′ 11 3/4″)
- Overall Width of Columns (With Motor): 140 1/2″ (11′ 8 1/2″)
- Overall Length with Approach Ramp: 251 1/2″ (20′ 11 1/2″)
- Length Between Columns: 196″ (16′ 4″)
- Runway Length: 205 1/2″ (17′ 1 1/2″)
- Runway Width: 20″
- Thickness of Runway: 7″
- Width Between Runways: 42 3/4″ (w/ Rail 39 1/4″)
- Outside Runway to Outside Runway: 83 1/8″ (6′ 11 1/8″)
- Clearance Under Runways: 69 1/2″ (5′ 9 1/2″)
- Clearance Between Columns: 116 3/8″ (9′ 8 3/8″)
- Height of Columns: 92 1/2″ (7′ 8 1/2″)
- Maximum Wheel Base: 195″ (16′ 3″)
- Drive Thru: 94 1/2″ (7′ 10 1/2″)
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 2,800 lbs.
- Concrete Requirement: Minimum of 6″ with a 3000 psi rating
PVL14 14,000 lb 4 Post Vehicle Storage Lifts Special Features:
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,800 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
Platinum RJ7000 Rolling Jack Specifications
- Qty: 2
- Maximum Capacity: 7,000 lb.
- Maximum Width: 45 1/2″ (3′ 9 1/2″)
- Minimum Width: 36″ (3′)
- Distance Between Runway Capability: 36″-45″
- Maximum Lifting Height (With Adapters): 27 1/2″ (2′ 3 1/2″)
- Air Requirement: 70-115 PSI
- Shipping Weight: 400 lbs.
- Double Screw-Up Adapter Pad: 1 1/2″ – 4″
PLATINUM RJ7000 Special Features
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 1 Year Parts Only Warranty
Atlas PVL14 Documentation:
Atlas Platinum PVL14 4 Post Vehicle Storage Lifts Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $899
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
