Pro8000EXT-L 4 Post Vehicle Storage Lifts by Atlas
The Atlas® Garage PRO8000EXT-L might just be what you’re looking for to expand that garage of yours. This 8,000 lb capacity 4-post lift is about to revolutionize your workspace efficiency. Boasting an impressive 84″ lifting height and 78.5″ clearance under runways, this beast lets you stack vehicles with ease. With 185″ long runways and a 173″ maximum wheelbase, it accommodates even your longest restoration projects.
Imagine doubling your workspace vertically without sacrificing precious floor space. The PRO8000EXT-L’s 108″ width fits most shop layouts, while its 22″ wide runways with 38″ between them ensure stability and accessibility for various vehicle sizes. It comes fully equipped with a caster kit, steel approach ramps, jack tray, drip trays, and wheel stops – everything you need to boost productivity immediately. Get the PRO8000EXT-L and don’t let space constraints limit your business growth.
4 Post Vehicle Storage Lifts Pro8000EXT-L Specifications:
- Capacity 8,000 lbs.
- Lifting Height To Top Of Runway 84″ (7′)
- Clearance Under Runways 78 1/2″ (6′ 6 1/2″)
- Height Of Columns 98 1/2″ (8′ 2 1/2″)
- Overall Width (Without Motor) 108″ (9′)

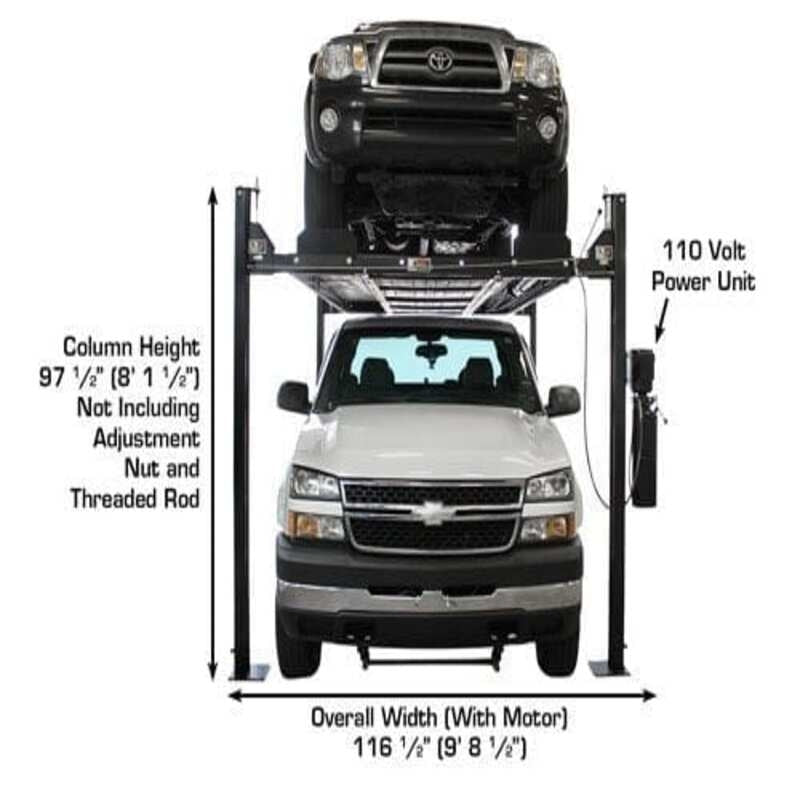

- Overall Width (With Motor) 116 1/2″ (9′ 8 1/2″)
- Overall Length With Approach Ramp 222″ (18′ 6”)

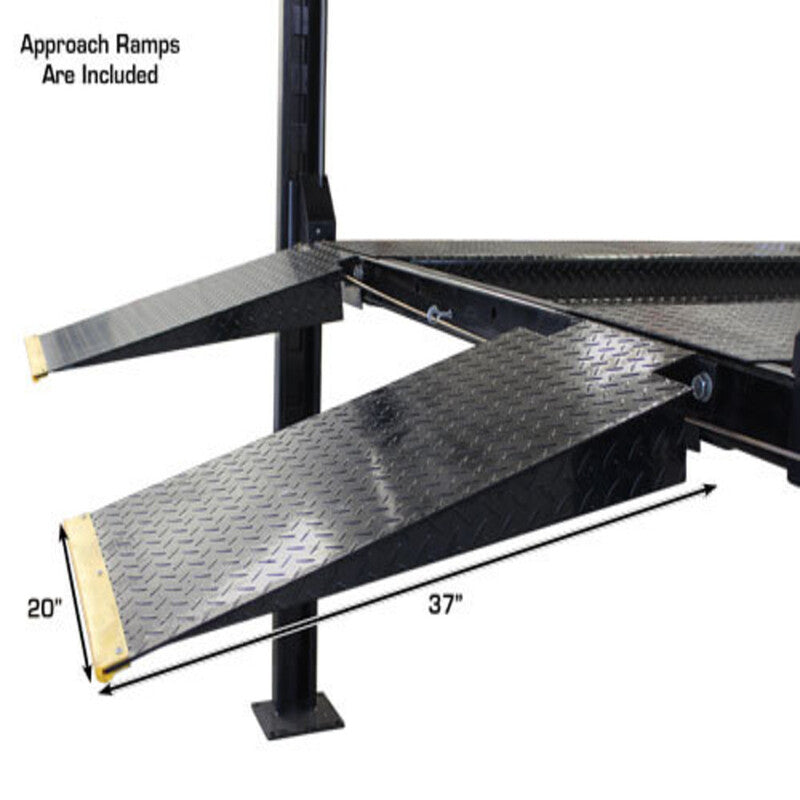

- Approach Ramp 37″ (3′ 1″)
- Runway Width 22″ (w/ Rails) or 18 3/4″ (Driving Surface)
- Runway Length 185″ (15′ 5”)
- Runway Thickness 4 1/2″

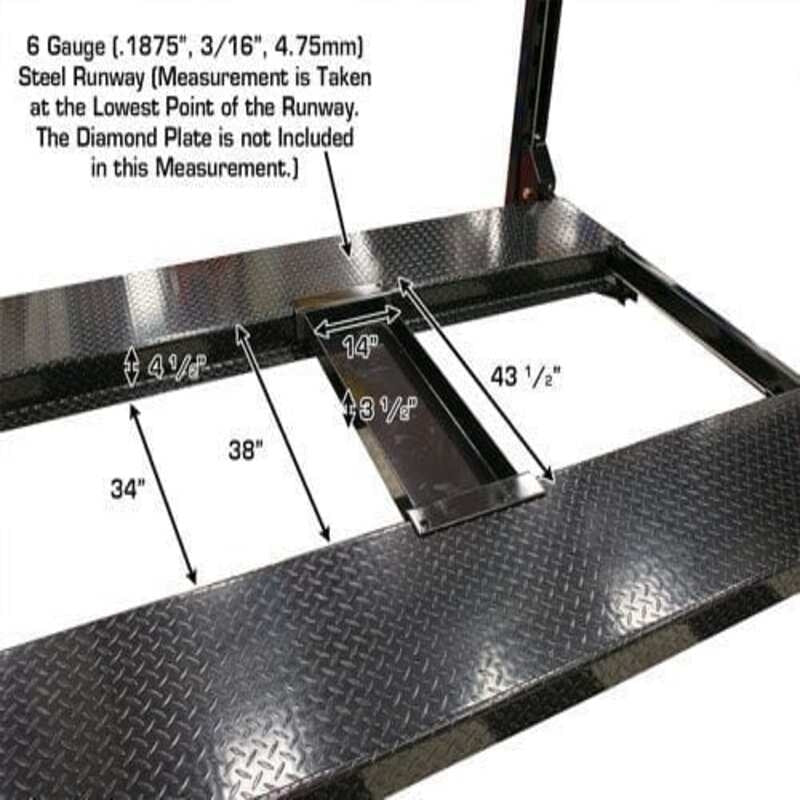

- Width Between Runways 38″ (3′ 2″)
- Width Between Runway Rails 34″ (2′ 10″)
- Outside Runway To Outside Runway 77 3/4″ (6′ 5 3/4″)

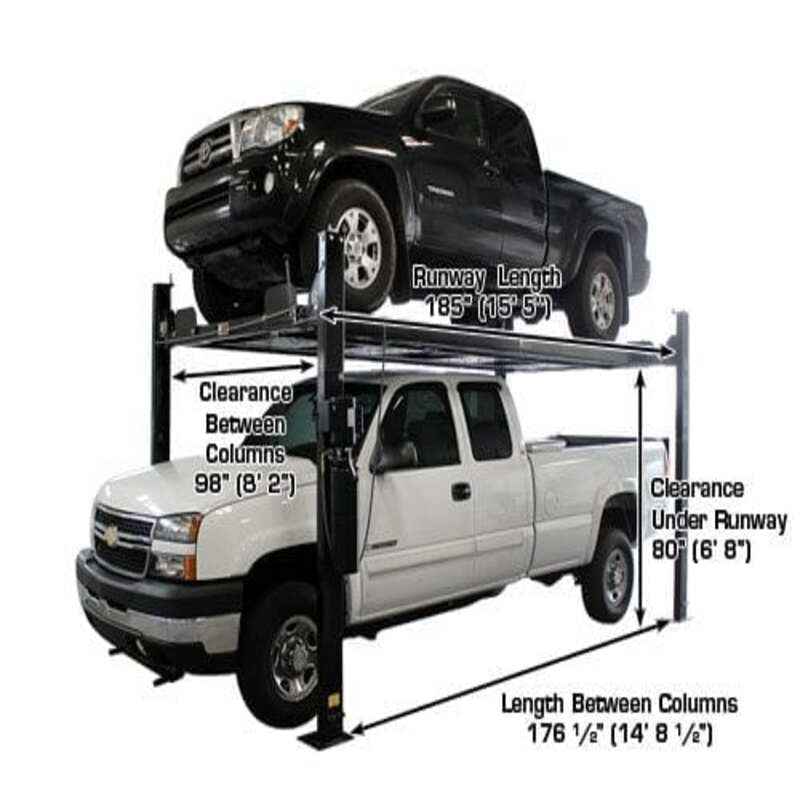

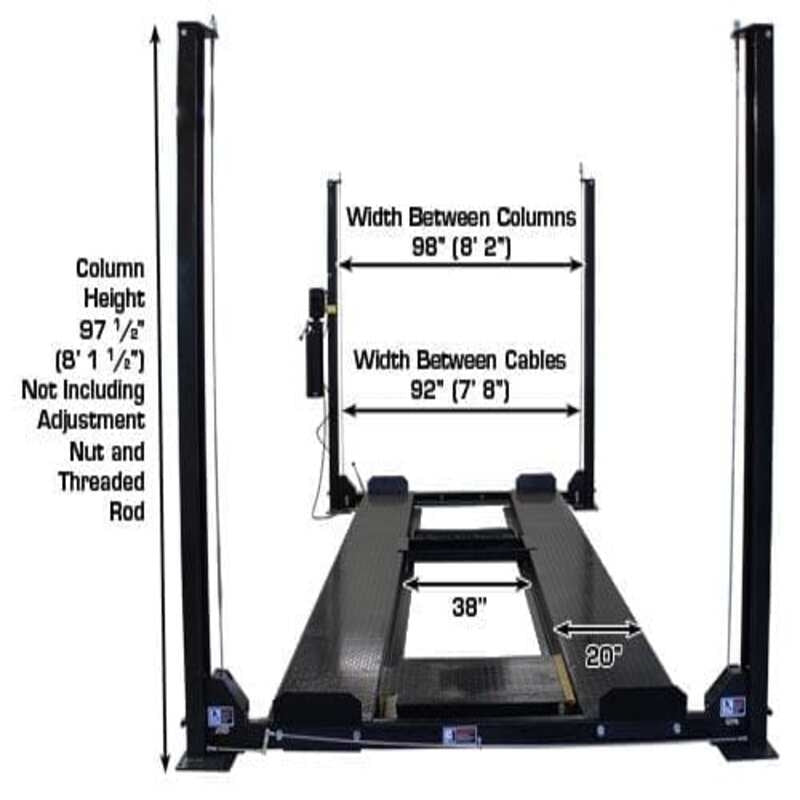

- Clearance Between Columns 98″ (8′ 2″)
- Length Between Columns 176 1/2″ (14′ 8 1/2″)

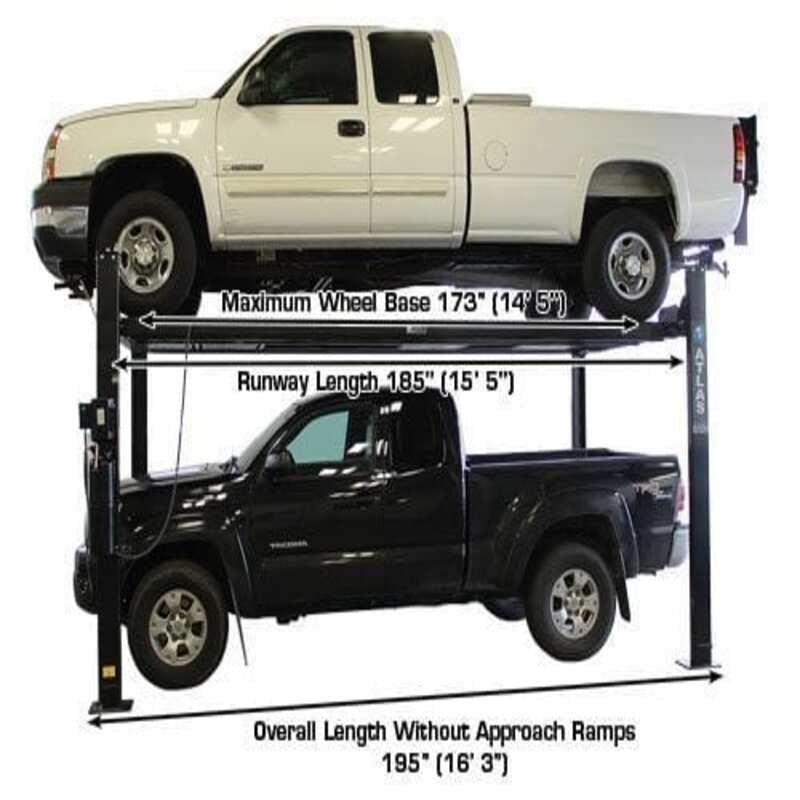

- Maximum Wheel Base 173″ (14′ 5″)

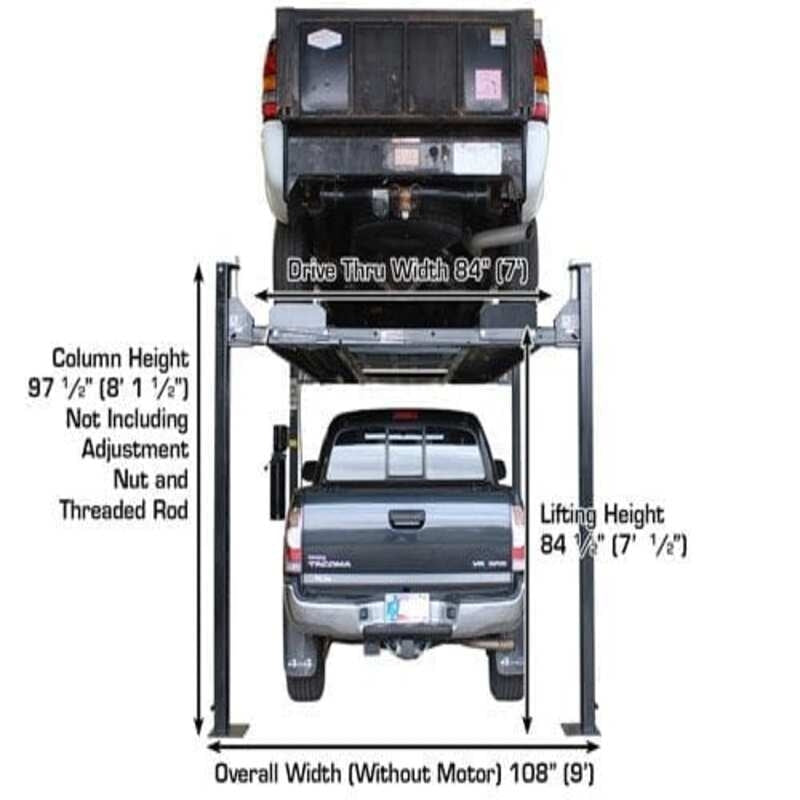

- Drive Thru (Outside Of Tire To Outside Of Tire) 84″ (7′)
- Shipping Weight 1,850 lb.
- Pallet Size: 187-1/2″ Long x 30″ Tall x 22″ Wide
Pro8000EXT-L 8,000 lb 4 Post Vehicle Storage Lifts Special Features:
- Capacity: 8,000 lb
- Style: Extra Tall
- Design Free Standing & Portable
- Diamond Plated Runways
- Lock Release: Single-Point

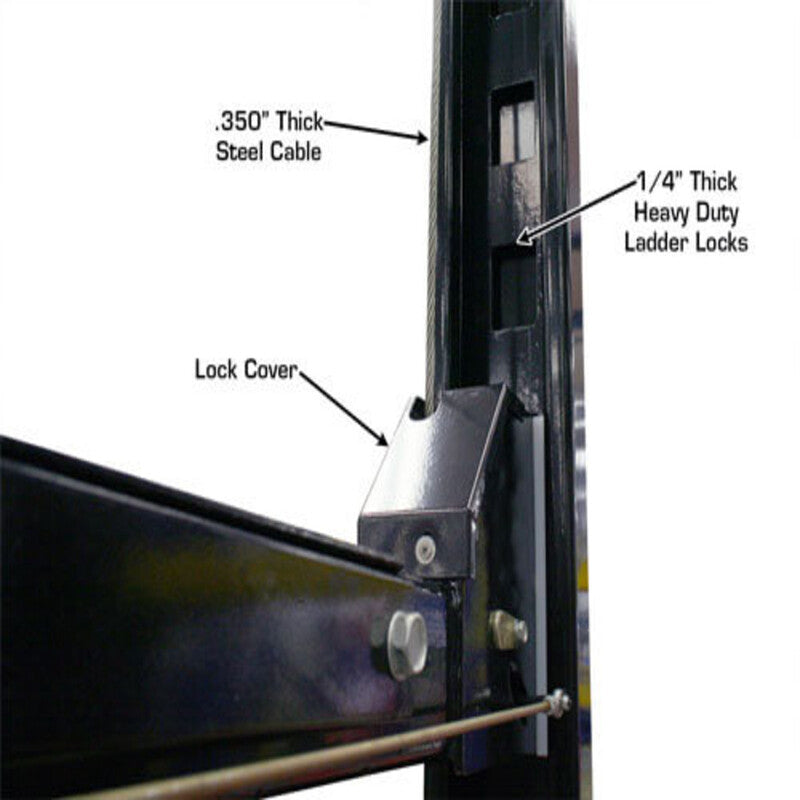

- Lock Design Lock Ladder w/ Double Lock Safety System
- Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
- Unit Includes:

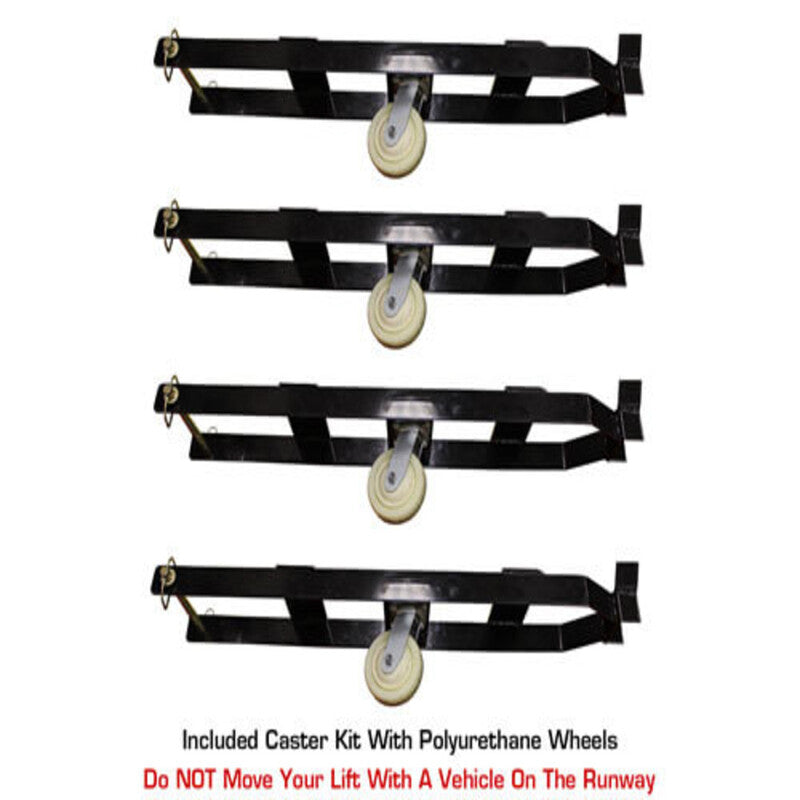

- Caster Kit with Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays
- 4 Wheel Stops
- 2 Rubber Wheel
- Buy as a Combo Atlas PRO8000EXT-L + RJ35
Atlas Pro8000EXT-L Documentation:
Atlas Pro8000EXT-L 4 Post Vehicle Storage Lifts Product Manual
Pro8000EXT-L 4 Post Vehicle Storage Lifts Optional Items (sold separately):
This Item has a FLAT RATE SHIPPING FEE: $399
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
