TTC301 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo by Atlas
Is your shop struggling to keep up with the diverse wheel sizes rolling through your doors? The Atlas TC301 and WBT-210 combo package is here to save the day. This versatile pair handles everything from passenger cars to semi-trucks, with the TC301 changing tires up to 63″ in diameter and the WBT-210 balancing wheels up to 47″ wide.
But here’s where it gets really interesting: this combo doesn’t just handle a wide range of wheels – it does it with style and precision. The TC301’s electric/hydraulic chuck clamps rims with up to 6,614 lbs of force, while the WBT-210’s computer-controlled system balances wheels at 150 rpm for cars and 90 rpm for trucks. With features like automatic start/stop, self-calibration, and a wired mobile control unit, you’ll breeze through jobs faster than ever. Don’t let another day go by watching potential profits roll out of your shop.
Tire Changer TTC301+ Wheel Balancer WBT-210 Specification
Atlas TC301 Specifications:
- Rim Clamping Range: 13″ – 27″
- Minimum Clamping Size with Alloy Adapters: 6 3/8″
- Maximum Wheel Weight: 3,300 lbs.
- Maximum Tire Diameter: 63″ (5′ 3″)
- Maximum Tire Width: 30 1/2″ (2′ 6 1/2″)
- Clamping Power: 6,614 lbs.
- Operating Pressure: 0-1885 PSI
- Acoustic Pressure: <70 dBA
- Bead Breaker Force: 4112 lbs.
- Tool Arm Positioning: Manual
- Tool Head Positioning: Manual
- Construction: Single piece frame with solid floor plate
- Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
- Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
- Shipping Weight: 1,390 lbs.
Atlas WBT-210 Specifications:
- Maximum Tire Diameter: 47″
- Rim Sizes (Cars and Light Trucks): 10″ – 32″
- Rim Width: 1 1/2″ – 20″
- Shaft Size: 40mm
- Maximum Wheel Weight: 440 lbs.
- Balancing Speed: 150 rpm (Car-Light Truck Mode) / 90 rpm (Truck Mode)
- Data Entry: Manual entry for all dimensions
- Measurements: Standard or Metric
- Accuracy: 1 gram (Car-Light Truck Mode) / 10 grams (Truck Mode)
- Weight Position Resolution: 1.4 degrees
- Self Calibration: Yes
- Motor: 1/3 HP
- Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
- Power Supply: 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
- Shipping Weight: 725 lbs.
TTC301 Tire Changer + WBT-210 Wheel Balancer Special Features

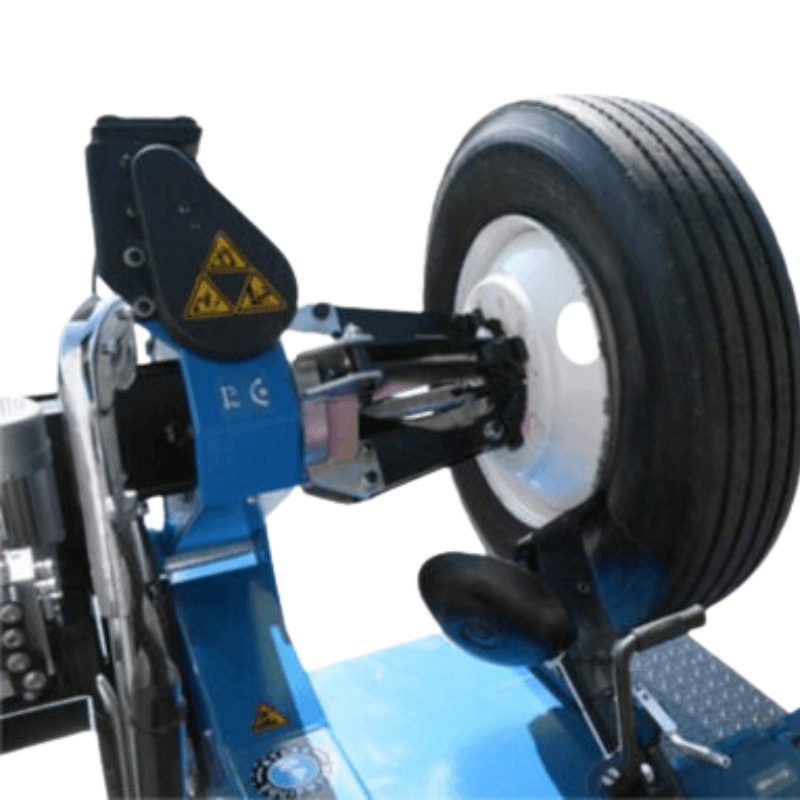

TTC301
- Standard Truck Tire Changer
- Handles rims from 13″ to 27″ and tire diameters in excess of 63″
- Accommodates tires with a max width of up to 30 1/2″
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty

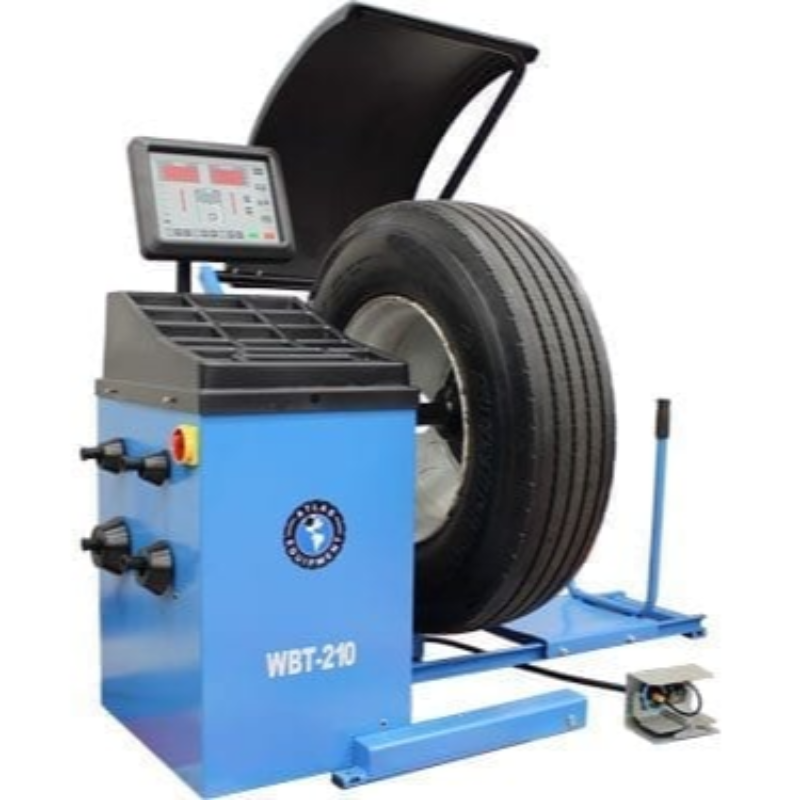

WBT-210
- Computer Controlled Heavy Duty Spin Balancer
- Cone sets for car and light truck tires
- Cone and spacer set for truck, bus, or implement tires
- Plastic Quick Release Nut included
- Heavy duty steel wing nut included
- Pneumatic wheel lift (external air supply required)
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-diagnosis
- Self-calibration
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers Included
- Wheel Width Calipers Included
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
- Optional Item(Sold Separately)
- Large Universal Adapter for WBT-210
Atlas TTC301 + WBT-210 Documentation
Atlas TTC301 Tire Changer Product Manual
Atlas WBT-210 Wheel Balancer Product Manual
Atlas TTC301 Tire Changer + WBT-210 Wheel Balancer Sold Separately
This Item has a FLAT RATE SHIPPING FEE: $599
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Fresno, CA
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
