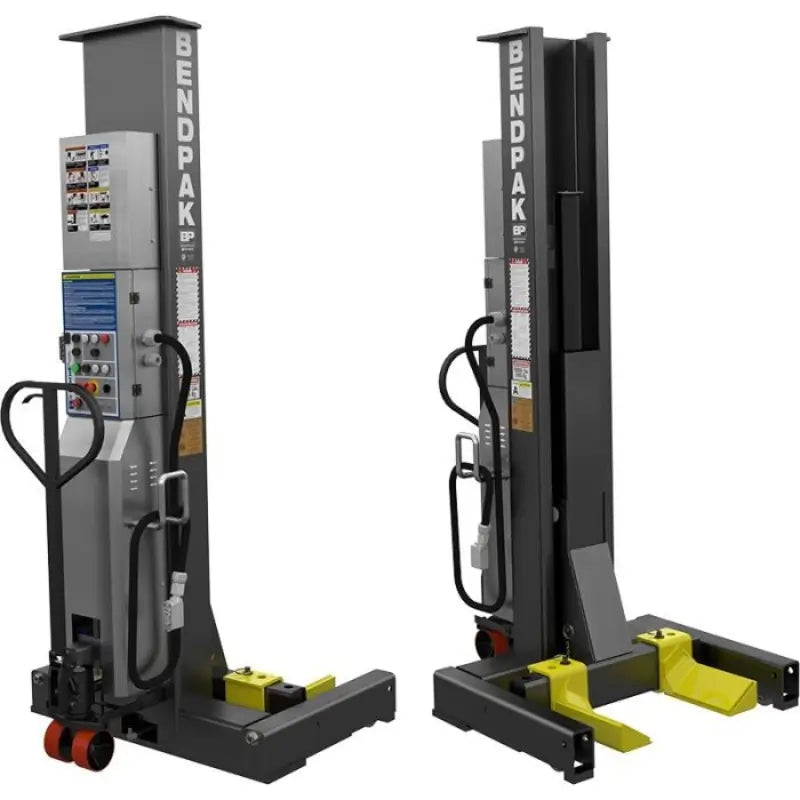

BendPak PCL-18B-2 36,000lb Mobile Column Lifts – Set of 2

PCL-18B-2 36,000lb Mobile Column Lifts by BendPak

Say hello to the BendPak PCL-18B-2, the tag-team lift system that’s as flexible as it is powerful! Built for heavy-duty maintenance, this two-column setup can hoist up to 36,000 lbs. without breaking a sweat. Got a multi-axle beast in your bay? No worries. Each column works independently but syncs up perfectly with its partner to keep everything steady and level. Plus, with a tough steel frame and a sleek powder-coated finish, it’s built to handle the rough and tumble of daily workshop life while still looking sharp.

But wait—it gets better! Expanding is as easy as adding columns, with configurations for 4, 6, or even 8 columns, boosting your lift game to a whopping 144,000 lbs. Designed with convenience in mind, these columns come equipped with pallet-jack wheels for easy maneuvering and adjustable forks to fit all sorts of wheel sizes. Quiet hydraulics and smart electronics keep things smooth and efficient, while multiple safety locks ensure everyone stays safe. Whether you’re lifting a single monster truck, an entire fleet, or anything in between, the PCL-18B-2 delivers serious lifting power with a side of versatility.

Column Lifts PCL-18B-2 Specification

Lifting Capacity

• Per Column: 18,000 lbs. (8,165 kg)
• Total (2 Columns): 36,000 lbs. (16,330 kg)

Lifting Dimensions

• Max. Lifting Height: 71.5 in. (1,889 mm)
• Column Height (Raised): 101 in. (2,565 mm)
• Column Height (Lowered): 146.5 in. (3,721 mm)
• Fork Width: 9.5 in. – 35 in. (241 mm – 889 mm)
• Fork Length: 11.5 in. (292 mm)

Power System

• Voltage: 208-240V, 3-phase, 50-60 Hz
• Lifting Speed: 85 seconds

Build and Dimensions

• Overall Depth: 48.75 in. (1,238 mm)
• Overall Width: 45 in. (1,143 mm)
• Chassis Length: 32.25 in. (819 mm)
• Column Weight: 1,450 lbs. (657 kg)

Shipping Details

• Shipping Weight per Column: 1,450 lbs. (657 kg)
• Shipping Dimensions per Column: 106” x 55” x 41” (2,696 mm x 1,397 mm x 1,041 mm)

PCL-18B-2 3,6000 lb Mobile Column Lifts Special Features

• High Lifting Capacity: Each column supports 18,000 lbs., allowing for a total capacity of 36,000 lbs. per 2-column set. Expandable to 4, 6, or 8 columns for up to 144,000 lbs.
• Precision Control: Intuitive controls on each column ensure synchronized lifting, smooth operation, and level vehicle positioning.
• Safety First: Multiple independent safety locks, 24V safety circuitry, emergency shut-offs, and warning alerts protect users and vehicles.
• Quiet Hydraulic System: Enclosed hydraulic system minimizes noise, ideal for sound-sensitive workspaces.
• Adjustable Forks: Accommodates various wheel sizes with multi-width and locking pin adjustments.
• Portable Design: Pallet-jack-style wheels and a low center of gravity make the columns easy to transport and maneuver.
• Durable Construction: Heavy-duty steel with a powder-coated finish resists wear and tear, ensuring long-term reliability.
• Flexible Usage: Supports heavy-duty trucks, buses, and vehicles with multiple axles. Can also be used to place vehicles on jack stands for multi-bay operations.
• Expandable System: Easily add more columns to increase lifting capacity and service capabilities.
• ANSI Compliant: Meets or exceeds ANSI/ALI ALCTV-2011 safety and performance standards.

BendPak PCL-18B-2 Documentation

  BendPak PCL-18B-2 Installation and Operations Manual

  BendPak PCL-18B-2 Product Brochure

Warehouse Pickup Locations: $800 Pickup Discount Available – Free Shipping Contact us for more information!

• Santa Paula, CA 93060
• Theodore, AL 36582
