10AP-168 10,000lb 2 Post Lift – ALI Certified, Extra Tall by BendPak
The BendPak 10AP-168 sets the benchmark for two-post lifts, delivering unmatched precision, safety, and adaptability for automotive professionals. With a 10,000-lb. lifting capacity and a lift height of 72.25 inches, this cutting-edge lift effortlessly handles a broad spectrum of vehicles, from electric cars to oversized SUVs. Designed with advanced technology, the Bi-Metric arms allow for both symmetric and asymmetric configurations, while the Low-Pro swing arms provide seamless access to low-clearance vehicles.
Engineered for heavy-duty use, the 10AP-168 includes essential safety features like the Automatic Swing Arm Restraint System (ASARS) and an automatic safety lock system. Its triple-telescoping arm system and customizable stackable adapters ensure secure frame engagement and ultimate flexibility.

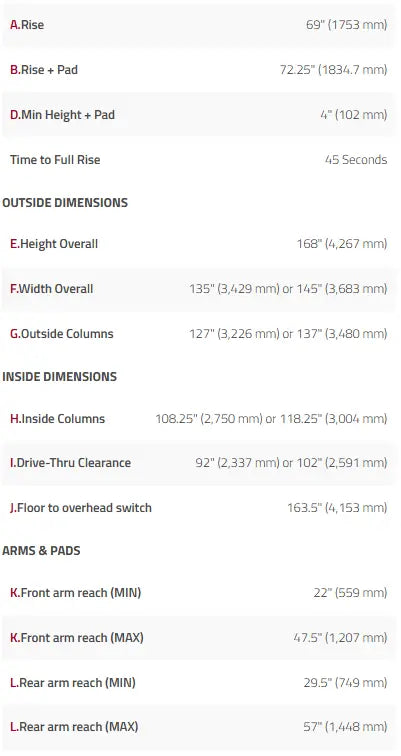

2 Post Lift 10AP-168 Specifications
- Lifting Capacity: 10,000 lbs. (4,536 kg)
- Rise (Maximum): 72.25″ (1,834.7 mm)
- Minimum Height with Pads: 4″ (102 mm)
- Overall Height: 168″ (4,267 mm)
- Width (Overall): 135″ or 145″ (3,429 mm or 3,683 mm)
- Inside Columns: 108.25″ or 118.25″ (2,750 mm or 3,004 mm)
- Drive-Thru Clearance: 92″ or 102″ (2,337 mm or 2,591 mm)
- Front Arm Reach (Minimum): 22″ (559 mm)
- Rear Arm Reach (Maximum): 57″ (1,448 mm)
- Time to Full Rise: ~45 seconds
- Motor Power: 220 VAC, 60 Hz, 1 Phase
- Noise Level: <70 dB
- Shipping Weight: 1,840 lbs.

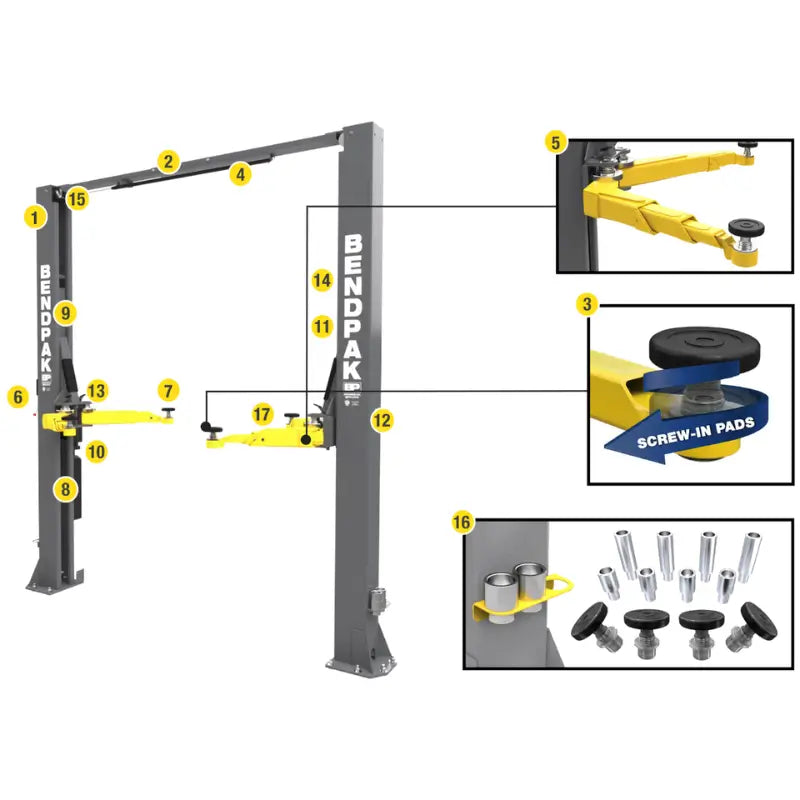

10AP-168 10,000lb 2 Post Lift Special Features
- Durable powder coat finish
- Expandable top beam accommodates wide or narrow drive-thru configurations
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar

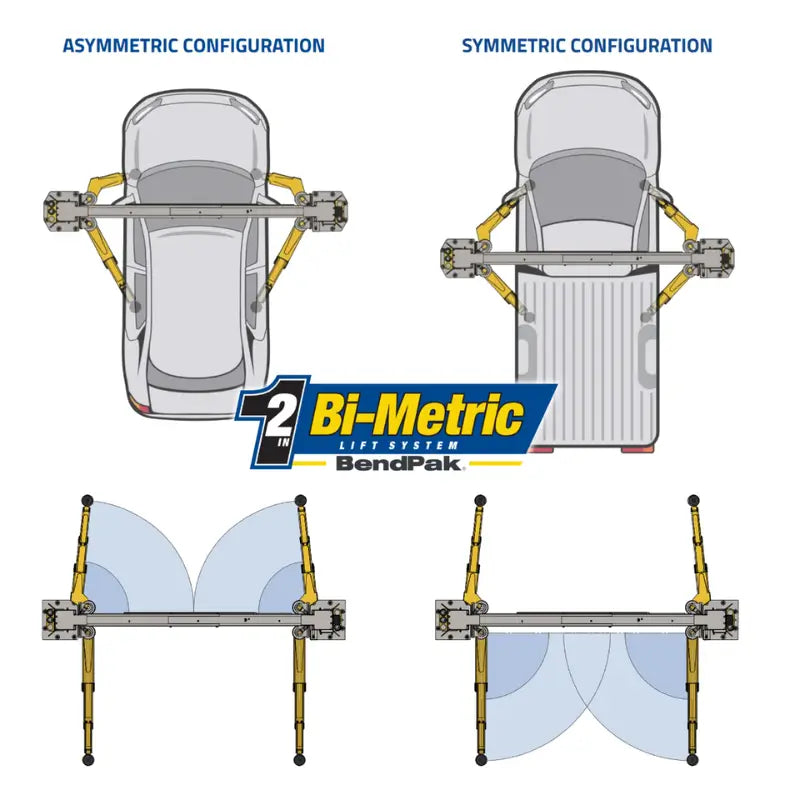

- Exclusive Bi-Metric™ arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53″ & 59″ tall carriages for superior strength and durability
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3″
- Automatic arm restraints withstand over 2000-pounds of side force
- 3/8″(10mm) High-strength multi-strand galvanized steel equalizing cable
- Oversized cable sheave diameter reduces cable fatigue
- Four triple-telescoping arms
- ALI certified
BendPak 10AP-168 Documentation
