BendPak HD-9SWX 9,000lb Double Wide Parking Lift – Extended Length/Width

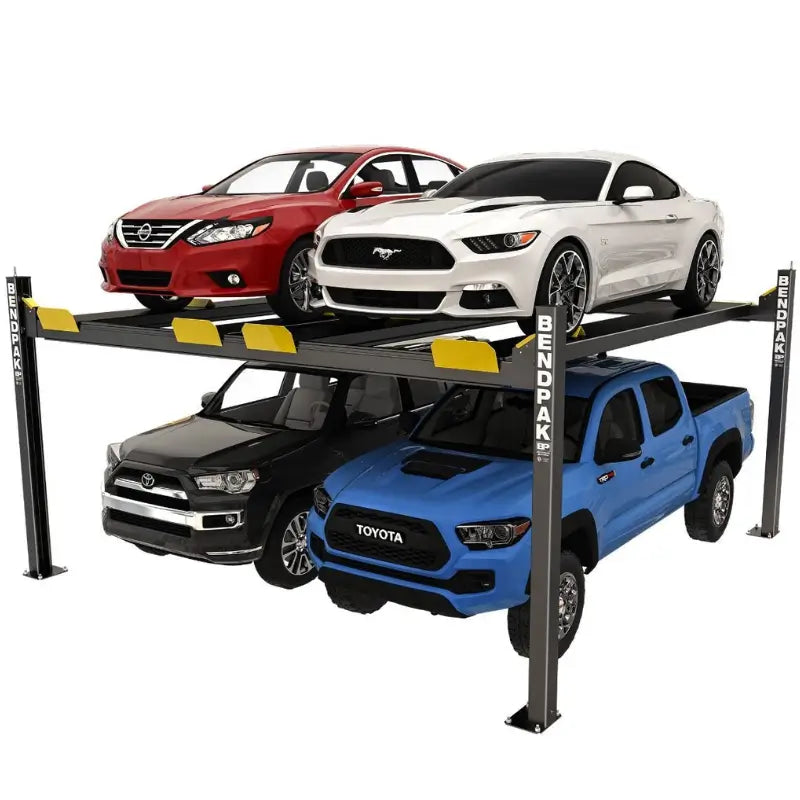

HD-9SWX 9,000lb Double Wide Parking Lift by BendPak

Is your garage struggling to keep up with multiple vehicles or larger trucks and SUVs? The BendPak HD-9SWX Double Wide Parking Lift solves these challenges with its robust 9,000-lb. lifting capacity and innovative design. Perfect for parking, storage, and maintenance, this extended-length lift offers an impressive 82” maximum rise and 188” runway length, providing ample clearance for long-wheelbase vehicles while maximizing your space.

Built with durability and user safety in mind, the HD-9SWX features heavy-duty 3/8” aircraft cables, a secure locking system, and fully enclosed lifting cables to ensure smooth operation. Its double-wide configuration accommodates up to four vehicles, while removable approach ramps and a freestanding design add flexibility for various vehicle types. Whether upgrading your home garage or enhancing a professional auto shop, the HD-9SWX delivers reliability, performance, and room to grow.

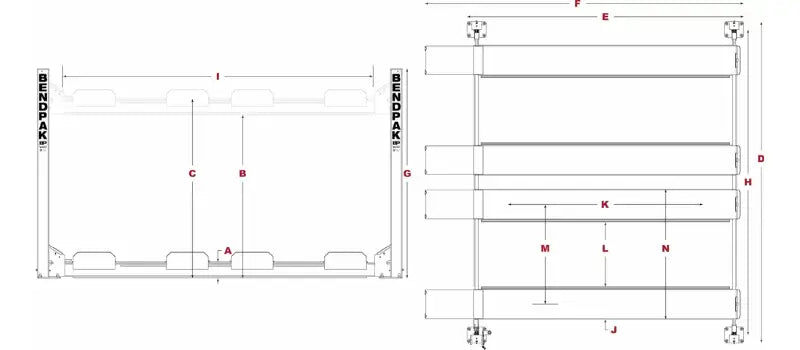

Double Wide Parking Lift HD-9SWX Specification

• Capacity:

  • Maximum Lifting Capacity: 9,000 lbs. (4,082 kg)
  • Front/Rear Axle Max Capacity: 4,500 lbs. (2,041 kg)

• Rise:

  • Minimum Runway Height: 7″ (178 mm)
  • Maximum Rise: 82″ (2,083 mm)
  • Maximum Lifting Height: 89″ (2,261 mm)
  • Time to Full Rise: 65 seconds

• Outside Dimensions:

  • Overall Width: 202″ (5,131 mm)
  • Overall Length: 242.5″ (6,159 mm)
  • Height of Columns: 102″ (2,591 mm)

• Inside Dimensions:

  • Width Between Columns: 192″ (4,877 mm)
  • Drive-Thru Clearance: 178″ (4,521 mm)

• Runways:

  • Runway Width: 19″ (483 mm)
  • Runway Length: 188″ (4,775 mm)
  • Width Between Runways: 34.25″ (870 mm) or 41″ (1,041 mm)

• Locking:

  • Locking Positions: 17
  • Lock Spacing: Every 4″ (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

• Shipping:

  • Weight: 3,038 lbs. (1,378 kg)
  • Dimensions: 205” x 22” x 51” (5,207 mm x 558 mm x 1,282 mm)

HD-9SWX 9,000lb Double Wide Parking Lift Special Features

• 9,000-lb. maximum lifting capacity
• Freestanding design
• Perfect for parking, storage and service
• Double-wide configuration for quad-vehicle storage
• Four runways
• Super-tall rise
• Extra-long ramp
• Runways accommodate wide or narrow vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Oversized sheave diameter reduces cable fatigue
• High-speed lifting
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature a durable matte finish
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Inside runways adjust for different tread widths
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Optional Item(Sold Separately)
  • Optional drive-thru ramps
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available
  • Comes standard with 1 Kit(pair) of Aluminum Ramps
• Warranty:
  • 5 Year – Lift Structure
  • 2 year – Hydraulic Unit & Power Unit
  • 1 Year – Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months

BendPak HD-9SWX Documentation

  BendPak HD-9SWX Installation and Operations Manual

  BendPak HD-9SWX Product Brochure
