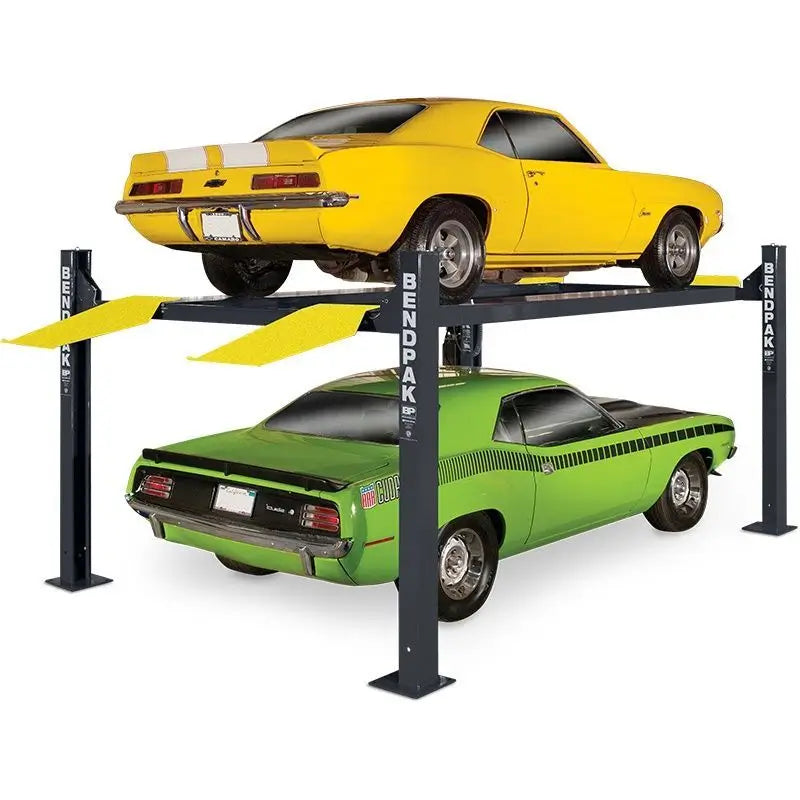

HD-9XL 9,000lb 4 Post Lift by BendPak
Got a garage full of dreams but nowhere to lift them? Meet the BendPak HD-9XL, the four-post lift that’s as bold as your automotive ambitions. With a 9,000-lb. lifting capacity and extended runways measuring a massive 182.25 inches, this lift is perfect for your long-wheelbase classics, rugged trucks, or oversized SUVs. It’s like giving your garage a stretch limo—it makes room for the big ones without cramping your style.
Built tougher than your last coffee-fueled wrenching session, the HD-9XL features aircraft-grade cables that could hold up a superhero (640% of the lift’s capacity, to be exact) and smooth-operating, self-lubricating rollers. The low-profile design keeps things sleek, while safety locks and a pneumatic release add a layer of worry-free operation. Whether you’re storing, servicing, or showing off your ride, the HD-9XL transforms your space into a haven for heavy metal.
4 Post Lift HD-9XL Specification
Lifting Specifications
- Maximum Lifting Capacity: 9,000 lbs. (4,082 kg)
- Max Capacity per Axle: 4,500 lbs. (2,041 kg)
- Minimum Runway Height: 5 in. (127 mm)
- Maximum Rise: 70 in. (1,778 mm)
- Maximum Lifting Height: 75 in. (1,905 mm)
- Time to Full Rise: 50 seconds
Dimensions
- Overall Width: 110.25 in. (2,800 mm)
- Outside Length: 198 in. (5,029 mm)
- Overall Length: 224.5 in. (5,702 mm)
- Height of Columns: 88 in. (2,235 mm)
- Width Between Columns: 100.25 in. (2,546 mm)
- Drive-Thru Clearance: 86.5 in. (2,197 mm)
Runway Dimensions
- Runway Width: 19 in. (483 mm)
- Length of Runways: 182.25 in. (4,629 mm)
- Width Between Runways: 35 in. (889 mm) or 41 in. (1,041 mm)
- Runway Centerline: 56.75 in. (1,441 mm) or 63 in. (1,600 mm)
- Outside Edge of Runways: 75.75 in. (1,924 mm) or 82 in. (2,083 mm)
Minimum Wheelbase Requirements
- Rated Capacity: 135 in. (3,429 mm)
- 75% Capacity: 115 in. (2,921 mm)
- 50% Capacity: 95 in. (2,413 mm)
- 25% Capacity: 80 in. (2,032 mm)
Locking
- Locking Positions: 14
- Lock Spacing: Every 4 in. (102 mm)
Power Unit
- Motor: 220 VAC / 60 Hz / 1 Ph
- Noise Level: 45 dB
- Air Supply Requirement: Minimum 30 psi / 3 CFM
Shipping
- Weight: 1,696 lbs. (769 kg)
- Dimensions: 192 in. x 22 in. x 28 in. (4,877 mm x 558 mm x 711 mm)
HD-9XL 9,000lb 4 Post Lift Special Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Wide drive-thru with standard lift height and long runways
- Electric / hydraulic power system
- Internal “Anti-Sway” slider blocks in each column
- Features heavy-duty 3/8″ aircraft cable
- Multi-position safety locks in each column
- Ramps feature non-skid surface
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder underneath runway
- Oversized self-lubricating cable rollers
- Rugged 1.25″ roller axles
- Adjustable lock ladders
- Push-button pneumatic safety release
- Optional Item (Sold Separately)
- Caster Kit
- Drip Trays
- Telescoping Jack Tray (JP45)
- Rolling Bridge Jack (RBJ4500)
- Aluminum Deck
-
Warranty
- 5 Year – Lift Structure
- 2 year – Hydraulic Unit & Power Unit
- 1 Year – Electrical and Operating Components
- *Reasonable labor costs covered for first 12 months
BendPak HD-9XL Documentation
Warehouse Pickup Locations: $400 Pickup Discount Available – Contact us for more information!
- Santa Paula, CA 93060
- Theodore, AL 36582
A – Min. Runway Height: 4.5″ (114 mm)
B – Max. Rise: 70″ (1,778 mm)
C – Max. Lifting Height: 74.5″ (1,892 mm)
D – Overall Width: 110.25″ (2,800 mm)
E – Outside Length: 198″ (5,029 mm)
F – Overall Length: 224″ (5,690 mm)
G – Height of Columns: 88″ (2,235 mm)
H – Width Between Columns: 100.25″ (2,555 mm)
I – Drive-Thru Clearance: 86.5″ (2,197 mm)
J – Runway Width: 19″ (483 mm)
K – Length of Runways: 188″ (4,775 mm)
L – Width Between Runways: 37.5″ (952 mm) – 44.375″ (1,127 mm)
M – Runway Centerline: 56.5″ (1,435 mm) – 63.375″ (1,610 mm)
N – Outside Edge of Runways: 75.5″ (1,918 mm) – 82.375″ (2,092 mm)
