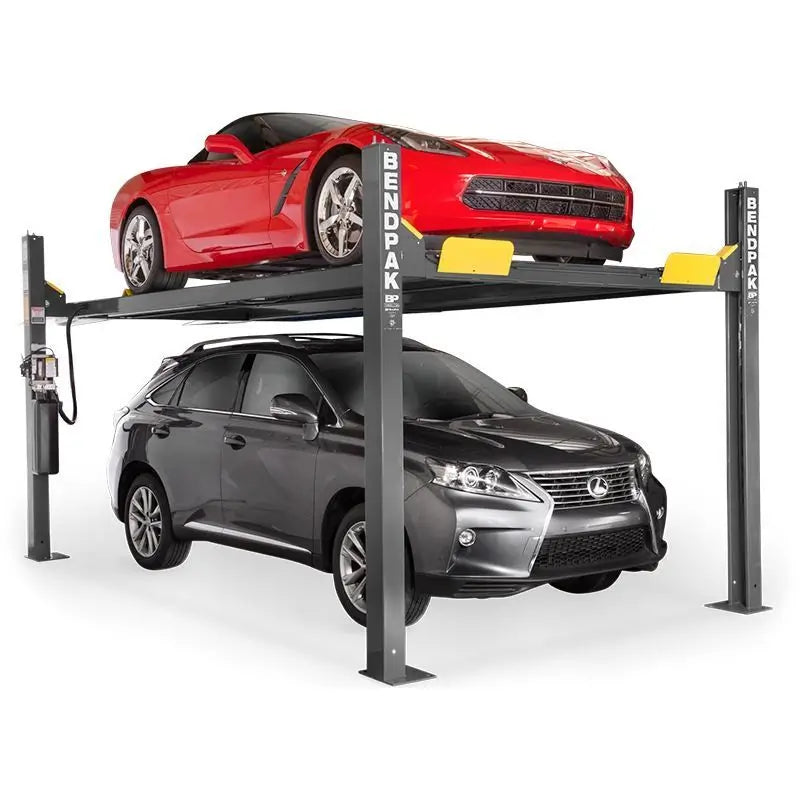

BendPak HD-9XW 9,000lb 4 Post Lift – Extended Height

HD-9XW 9,000lb 4 Post Lift by BendPak

Ever felt like your garage is bursting at the seams, especially with wide or tall vehicles in the mix? The BendPak HD-9XW swoops in as your ultimate solution, offering a jaw-dropping 9,000-lb. capacity and a sky-high runway rise of 82 inches. Whether you’re stacking vehicles for storage or tackling high-rise SUVs and light-duty trucks, this freestanding powerhouse turns your space into a playground for heavy-duty ingenuity. With its extra-wide design and robust construction, this lift transforms chaos into clarity, giving you room to work, store, or show off your prized rides—all without breaking a sweat.

Built like a fortress and smoother than your last victory lap, the HD-9XW boasts industry-certified safety features, including 17 locking positions, independent slack-cable latches, and heavy-duty aircraft-grade cables. Its electric-hydraulic power system delivers seamless operation, while removable approach ramps and optional longer ramps make it a dream for low-clearance vehicles. Add drip trays or a rolling bridge jack to customize your setup, and you’ve got a lift that’s not just functional—it’s legendary.

4 Post Lift HD-9XW Specification

• Capacity:

  • 9,000 lbs. lifting capacity.
  • 4,500 lbs. max capacity per axle (front/rear).

• Rise:

  • Minimum runway height: 5″ (127 mm).
  • Maximum rise: 82″ (2,083 mm).
  • Max lifting height: 87″ (2,210 mm).
  • Time to full rise: 50 seconds.

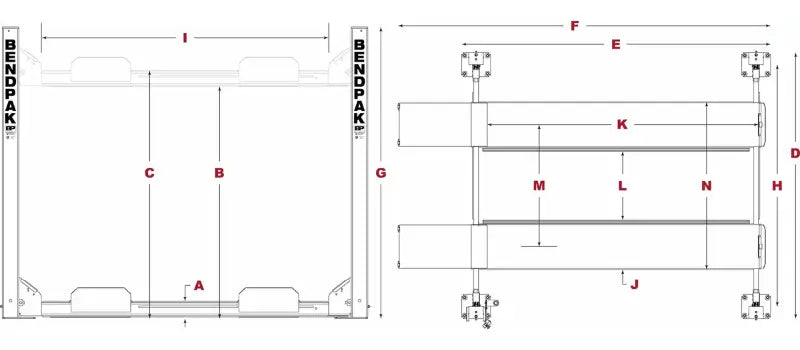

• Outside Dimensions:

  • Overall width: 110.25″ (2,800 mm).
  • Outside length: 198″ (5,029 mm).
  • Overall length: 224.5″ (5,702 mm).
  • Column height: 100.25″ (2,546 mm).

• Inside Dimensions:

  • Width between columns: 100.25″ (2,546 mm).
  • Drive-thru clearance: 86.5″ (2,197 mm).

• Runways:

  • Runway width: 19″ (483 mm).
  • Length: 182.25″ (4,629 mm).
  • Width between runways: 35″ (889 mm) or 41″ (1,041 mm).

• Locking:

  • 17 locking positions, spaced every 4″ (102 mm).

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1Ph.
  • Noise level: 45 dB.

• Shipping:

  • Weight: 1,778 lbs. (806 kg).
  • Dimensions: 191″ x 22″ x 28″ (4,851 mm x 558 mm x 711 mm).

HD-9XW 9,000lb 4 Post Lift Special Features

• 9,000-lb. maximum lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Freestanding design
• High-rise
• Perfect for parking, storage and service
• Runways accommodate narrow and standard vehicles
• Runways include rail-kit for optional accessories
• Electric-hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature a durable matte finish
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Longer approach ramps for low-ground clearance vehicles available
• ETL Approved
• Optional Item (Sold Separately)
  • Drip Trays
  • Solid Deck
  • Rolling Bridge Jacks (RJ-45)
  • Longer Approach Ramps
  • Drive-Thru Ramps
• Warranty
  • 5 Year – Lift Structure
  • 2 year – Hydraulic Unit & Power Unit
  • 1 Year – Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months

BendPak HD-9XW Documentation

  BendPak HD-9XW Installation and Operations Manual

  BendPak HD-9XW Product Brochure
