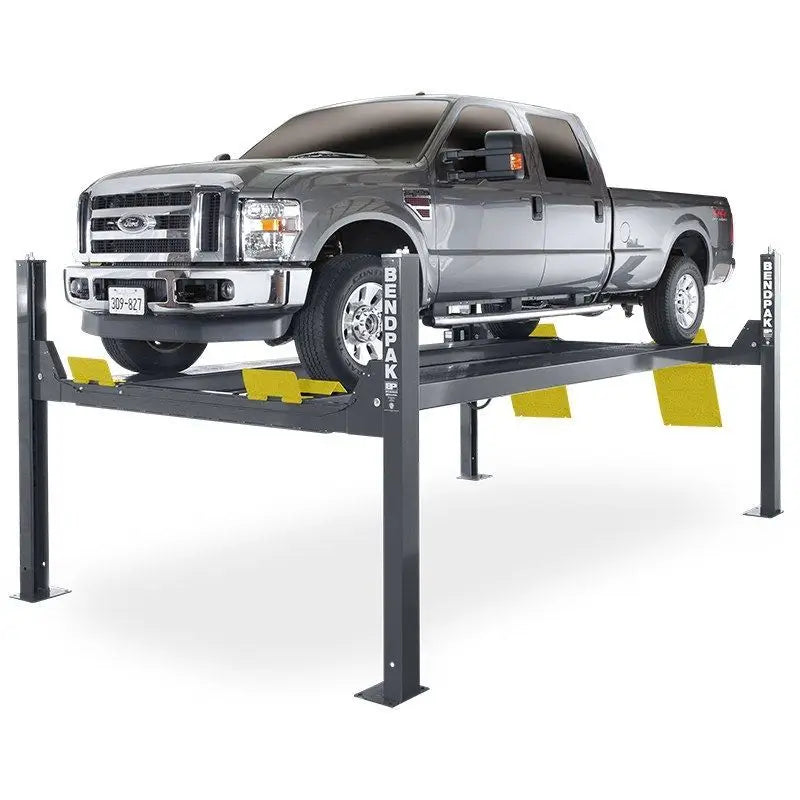

HDS-14X 14,000lb 4 Post Lift by BendPak
When your shop needs to handle the big players—limousines, heavy-duty trucks, and oversized SUVs—the BendPak HDS-14X is the ultimate ally. Boasting a massive 14,000-lb. lifting capacity and extended 229-inch runways, this four-post lift redefines what heavy-duty performance looks like. Engineered for safety and reliability, it features advanced spring-loaded safety locks, dual-hub cable sheaves, and a secondary lock system to ensure secure operation for even the toughest jobs.
But this lift isn’t just about brute strength—it’s about delivering an unparalleled service experience. With a 70-inch rise height, pneumatic push-button safety release, it gives you the versatility to tackle any challenge. Optional add-ons like drip trays and drive-thru ramps make it a flexible solution tailored to your shop’s needs. Upgrade your operations with the HDS-14X and elevate your service capabilities to new heights!
4 Post Lift HDS-14X Specification
Capacity
- Lifting Capacity: 14,000 lbs.
- Max Front/Rear Axle Capacity: 7,000 lbs.
Lift Dimensions
- Overall Width: 130″
- Overall Length: 272″
- Height of Columns: 92″
Runways
- Length: 227.5″
- Width: 20″
- Width Between Runways: 34.5″ or 41.5″
Performance
- Min. Runway Height: 7.5″
- Max. Lifting Height: 77.5″
- Time to Full Rise: 60 seconds
Locking System
- Lock Positions: 15 (every 4″)
- Secondary Slack-Cable Safety Latches
Power Requirements
- Motor: 220 VAC / 60 Hz / 1 Ph
- Noise: 45 dB
Shipping
- Weight: 2,740 lbs.
- Dimensions: 239″ x 22″ x 29″
HDS-14X 14,000lb 4 Post Lift Special Features
- 14,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Mid to long-style approach ramps for low ground clearance vehicles
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Features heavy-duty 1/2″ aircraft cable
- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Oversized self-lubricating cable rollers
- Rugged 1.75″ roller axles
- Multi-position safety locks in each column
- Customizable power unit location
- Approach ramps incorporate built-in rear-wheel chocks
- Independent backup slack-cable safety latches
- Runways feature a durable matte finish
- Optional drive-thru ramps available
- Optional drip trays available

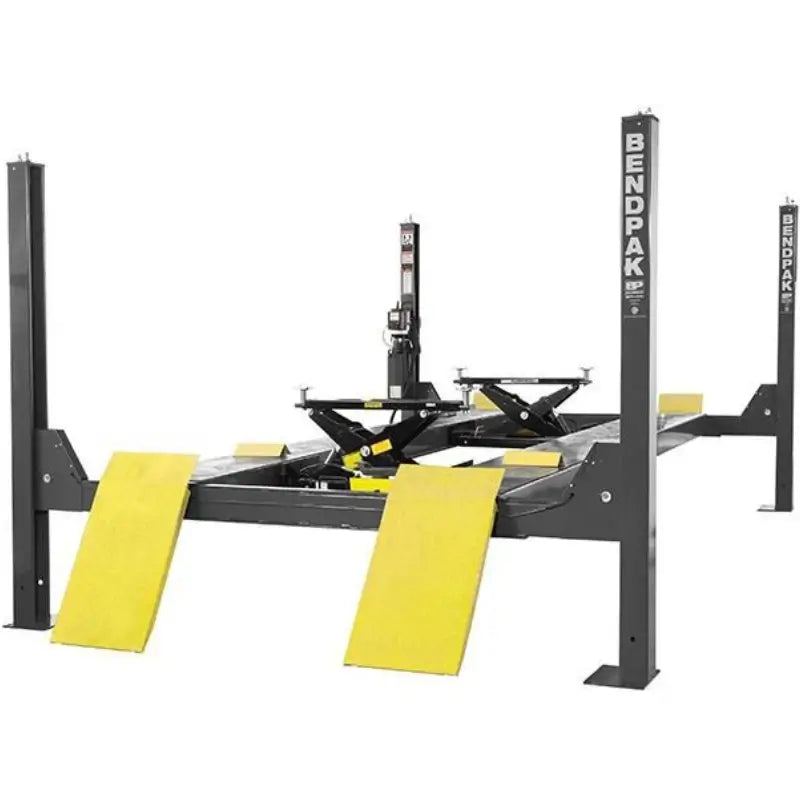

- Optional 7,000-lb. capacity rolling jacks available (Model RBJ7000)
- ETL approved
-
Optional Items (Sold Separately):
- Rolling Bridge Airline kit
- Roll-back kit
- Drive-thru Ramps
- Drip Trays
- 7,000-lb. Rolling Jacks (Model RJ7W)
-
Warranty:
- 5 Year – Lift Structure
- 2 year – Hydraulic Unit & Power Unit
- 1 Year – Electrical and Operating Components
- *Reasonable labor costs covered for first 12 months
BendPak HDS-14X Documentation
Warehouse Pickup Locations: $600 Pickup Discount Available – Contact us for more information!
- Santa Paula, CA 93060
- Theodore, AL 36582
