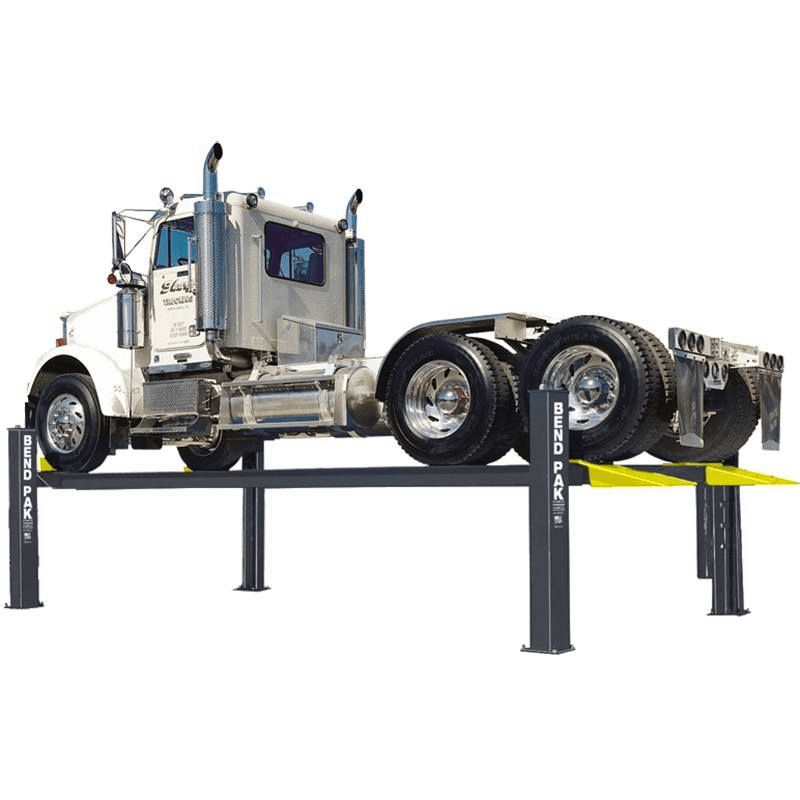

HDS-40X 40,000lb 4 Post Lift by BendPak
For the toughest lifting jobs, the BendPak HDS-40X delivers the power and reliability you need. With a mouthwatering 40,000-lb. lifting capacity and extended runways up to 310 inches, it’s perfect for handling oversized vehicles like buses, trucks, and military-grade equipment. The advanced safety systems—featuring spring-loaded safety locks, a secondary lock system, and dual-hub cable sheaves—ensure every lift is stable and secure, allowing you to focus on the task at hand. The wide drive-through clearance and user-friendly controls make it easy to load and operate, creating a seamless and safe experience for operators.
The HDS-40X is built to perform, with features like galvanized lifting cables, a maintenance-free hydraulic system, and a durable powder-coated finish that reduces upkeep while boosting longevity. Whether you’re servicing large fleets or tackling heavy-duty repairs, this lift ensures your shop stays productive. Its optional rolling bridge jacks enhance its functionality, offering you even more capabilities for wheel service. With the HDS-40X, you’ll experience top-tier performance, safety, and comfort that takes your maintenance facility to the next level.
4 Post Lift HDS-40X Specification
Capacity
- Lifting Capacity: 40,000 lbs.
- Max Capacity per Axle:
- Front Axle: 20,000 lbs.
- Rear Axle: 20,000 lbs.
Rise
- Min. Runway Height: 9.5 inches
- Max. Rise: 60 inches
- Max. Lifting Height: 67 inches
- Time to Full Rise: 75 seconds
Outside Dimensions
- Overall Width: 153.5 inches
- Outside Length: 317 inches
- Overall Length: 373.75 inches
- Height of Columns: 91.25 inches
Inside Dimensions
- Width Between Columns: 133.5 inches
- Drive-Thru Clearance: 109 inches
Runways
- Runway Width: 28 inches
- Runway Length: 316 inches
- Width Between Runways: 40.75 inches
- Runway Centerline: 74 inches
- Outside Edge of Runways: 102 inches
Minimum Wheelbase
- Rated Capacity: 230 inches
- 75% Capacity: 195 inches
- 50% Capacity: 165 inches
- 25% Capacity: 130 inches
Locking
- Locking Positions: 13
- Lock Spacing: Every 4 inches
Power Unit
- Motor: 220 VAC / 60 Hz. 1Ph.
- Noise: 45 dB
Shipping
- Weight: 6,748 lbs.
- Dimensions: 266 x 33 x 37 inches
HDS-40X 40,000lb 4 Post Lift Special Features
- 40,000-lb. lifting capacity
- Supersized 12″ diameter cable sheaves
- Galvanized lifting cables
- Extended length runways
- Grease nipples
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Maintenance-free electric hydraulic power system
- Conveniently positioned operator controls
- 12″ x 12″ base plates
- Runways feature a durable matte finish
-
Optional Item (Sold Separately)
- Rolling Bridge Jacks (RBJ25000)
- Extended approach ramps (48-inch steel ramps)
- Secondary lock system for added safety
-
Warranty
- 5 Year – Lift Structure
- 2 year – Hydraulic Unit & Power Unit
- 1 Year – Electrical and Operating Components
- *Reasonable labor costs covered for first 12 months
BendPak HDS-40X Documentations
BendPak HDS-40X 40,000lb 4 Post Lift Optional Item Sold Separately:
- 5175349 Telescoping Sliding Jack Platform
- 5150509 15-Gallon Rolling Oil Drain Pan For 4-Post Lifts
- LITESTIX LS36MDX
Warehouse Pickup Locations: $2000 Pickup Discount Available – Contact us for more information!
- Santa Paula, CA 93060
- Theodore, AL 36582

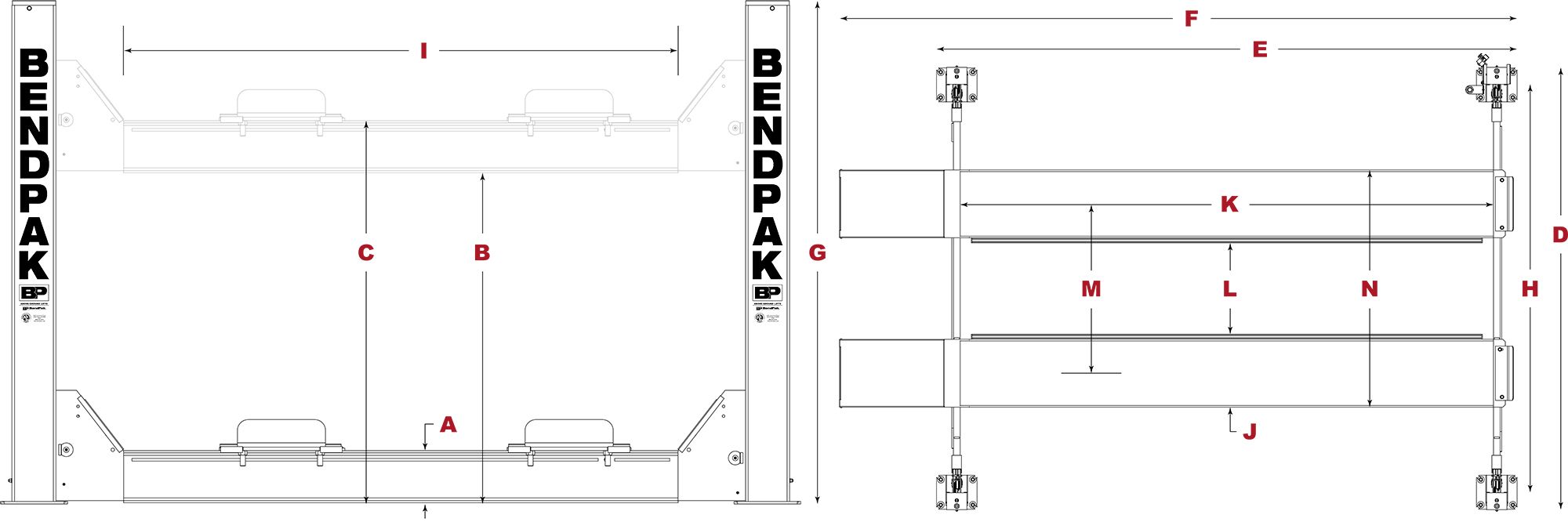

A – Min. Runway Height: 8.5” (216 mm)
B – Max. Rise: 60” (1,524 mm)
C – Max. Lifting Height: 68.5” (1,740 mm)
D – Overall Width: 153.5” (3,899 mm)
E – Outside Length: 317” (8,052 mm)
F – Overall Length: 373.5” (9,487 mm)
G – Height of Columns: 93” (2,362 mm)
H – Width Between Columns: 134” (3,404 mm)
I – Drive-Thru Clearance: 109” (2,769 mm)
J – Runway Width: 28” (711 mm)
K – Length of Runways: 304.5” (7,734 mm)
L – Width Between Runways: 41” (1,041 mm)
M – Runway Centerline: 69” (1,753 mm)
N – Outside Edge of Runways: 97” (2,464 mm)
