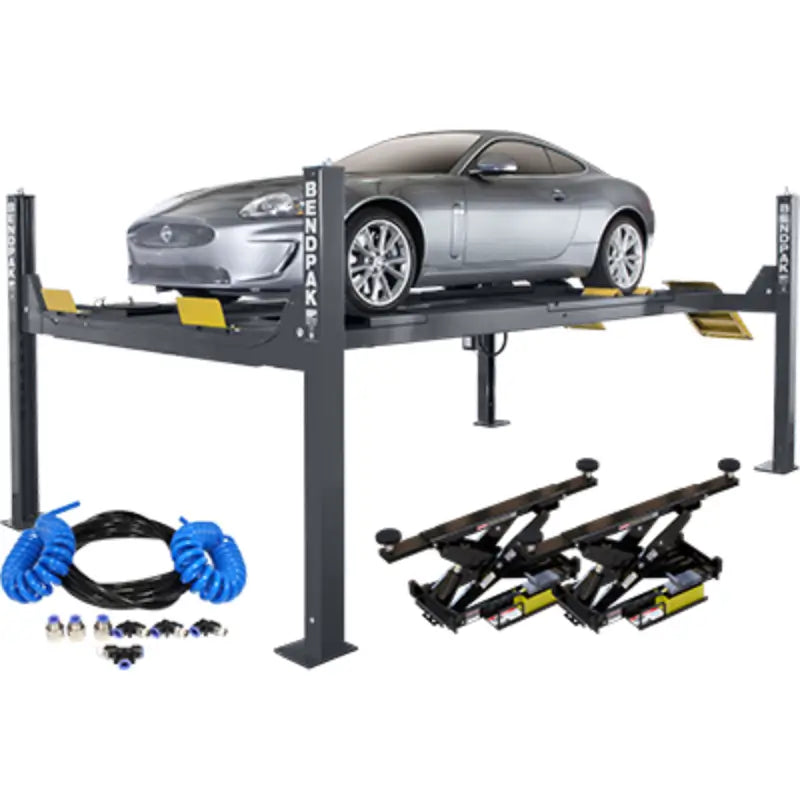

BendPak HDS14LSX Alignment Lift + RJ7W Rolling Bridge Jack Combo

BendPak HDS14LSX Alignment Lift + RJ7W Rolling Bridge Jack Combo

$15,395.00

Description
Reviews 0

HDS-14LSX Alignment Lift Combo by BendPak

Why settle for mediocrity when you can have sheer excellence with the BendPak HDS-14LSX Alignment Lift, RJ7W Rolling Bridge Jack, and Airline Kit? This isn’t just another lift—it’s a 14,000-lb capacity powerhouse engineered to take on heavy-duty tasks like a pro. With its 229-inch runway, galvanized turn plates, and rear slip plates, alignment precision has never looked this good. Add in spring-loaded locks, extended ramps, and a corrosion-resistant finish, and you’ve got a lift that screams reliability and longevity.

But wait, there’s more. The RJ7W Bridge Jack, with its 7,000-lb capacity, lets you handle wheels and brakes with absolute ease. Its air-hydraulic system ensures flawless operation, while the Airline Kit eliminates downtime, streamlining tool use like a dream. Bottom line? This isn’t just equipment—it’s the ultimate weapon in your workshop’s arsenal. If you’re serious about crushing the competition, this is how you do it.

Combo HDS14LSX+ RJ7W Specification

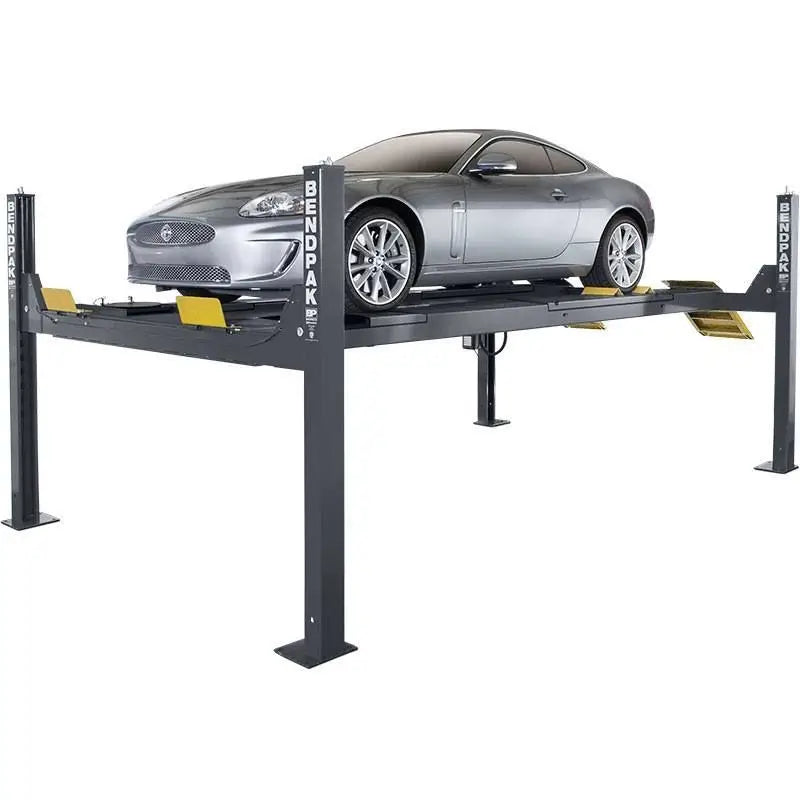

HDS14LSX Specification

Lifting Capacity: 14,000 lbs. (6,350 kg)
Max Front/Rear Axle Capacity: 7,000 lbs. (3,175 kg)
Runway Length: 229 inches (5,817 mm)
Min. Runway Height: 7.5 inches (191 mm)
Max. Lifting Height: 77.5 inches (1,969 mm)
Overall Width: 130 inches (3,302 mm)
Drive-Thru Clearance: 98 inches (2,489 mm)
Alignment Capacity:
- Min. 4-Wheel Alignment: 89 inches (2,261 mm)
- Max. 4-Wheel Alignment: 156 inches (3,962 mm)
- Max. 2-Wheel Alignment: 182 inches (4,623 mm)
Locking Positions: 15 with 4-inch (102 mm) spacing
Power Requirements: 220 VAC / 60 Hz / 1 Phase
Shipping Weight: 3,216 lbs. (1,458 kg)

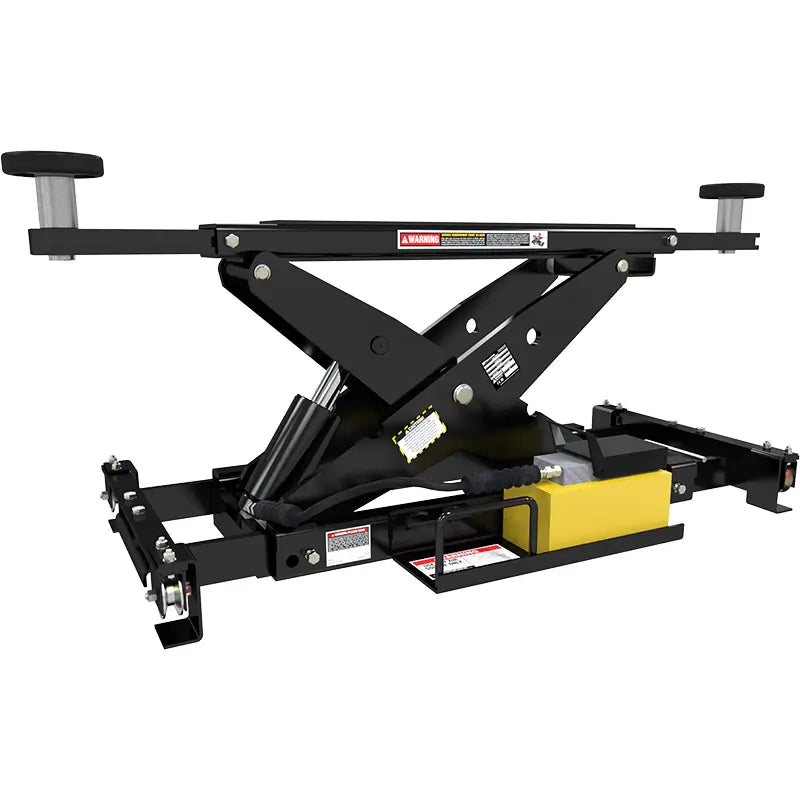

RJ7W Specification

Lifting Capacity: 9,000 lbs. (4,082 kg)
Suitable Lift Models: HDS-18E, HDS-27 Series
Min. Drive-Over Height: 5.25″ to 10.75″ (133 mm – 273 mm) with adapters
Max. Lifting Height: 16.25″ to 21.75″ (413 mm – 552 mm) with adapters
Reach: 42″–56″ (1,067 mm – 1,422 mm)
Pump Type: Air/Hydraulic
Air Pressure: 125 PSI (10–25 CFM)
Shipping Weight: 478 lbs. (217 kg)
Shipping Dimensions: 47″ x 25″ x 15″ (1,206 mm x 635 mm x 381 mm)

HDS14LSX+ RJ7W Combo Special Features

HDS14LSX

Extended-Length Design: Accommodates longer vehicles, such as trucks and vans.
Built-In Alignment System: Includes front turn plates and rear slip plates for precise adjustments.
Aircraft-Quality Cables: 1/2-inch diameter stainless-steel cables ensure strength and durability.
Dual-Hub Cable Sheaves: Oversized sheaves and 2.25″ axles reduce wear and increase lifespan.
Electric-Hydraulic Power System: Maintenance-free and ergonomically designed for operator ease.
Spring-Loaded Safety Locks: Engage at multiple positions for secure, adjustable lifting.
Secondary Lock System: Prevents operation in the event of cable slack for enhanced safety.
Integrated Components: Enclosed cables, sheaves, and hoses for protection and clean aesthetics.
Longer Approach Ramps: Designed for easy access for low-clearance vehicles.
Optional Rolling Bridge Jacks: Allow for additional wheel and brake service capabilities.
Push-Button Lock Release: Simplifies lowering with simultaneous pneumatic lock disengagement.
CE Approved and Certified: Meets or exceeds European Standard EN 1493 for safety and quality.

RJ7W

7,000-lb. Lifting Capacity: Designed for medium-duty vehicles, sports cars, and light trucks.
Easy-Roll Wheels: Stainless steel wheels ensure effortless gliding along runway channels.
Rubber Contact Pads: Protect vehicle undercarriages with non-marring surfaces.
Stackable Adapters: Customize lift height for varying suspension and chassis configurations.
High-Pressure Hydraulic Power Unit: Operates independently with pneumatic control for smooth lifting.
Foot Pedal Control: Simple and safe operation without manual strain.
Three Lock Levels: Multiple height options for flexibility and operator comfort.
Durable Construction: Hardened and zinc-plated steel components for long-lasting
