BendPak HDS14LSXE Alignment Lift + RJ7W Rolling Bridge Jack Combo

$15,895.00

Description
Reviews 0

HDS14LSXE 14,000lb Alignment Lift Combo by BendPak

The BendPak HDS14LSXE 14,000lb Alignment Lift and RJ7W Rolling Bridge Jack combo deliver unmatched versatility for professional vehicle maintenance. Designed with a 14,000-lb capacity and extended 229-inch runways, the HDS14LSXE provides precision alignments with its galvanized front turn plates and rear slip plates. It includes essential safety features like spring-loaded locks, a pneumatic lock release, and extended ramps for low-profile vehicles.

Paired with the RJ7W Rolling Bridge Jack, this combo offers additional 9,000-lb lifting capacity, perfect for wheel and brake servicing. Its air-hydraulic system, stackable adapters, and stainless steel wheels ensure flexibility across various vehicle types. Together, the HDS14LSXE and RJ7W redefine efficiency, making them an essential solution for modern workshops like yours.

Combo HDS14LSXE + RJ7W Specification

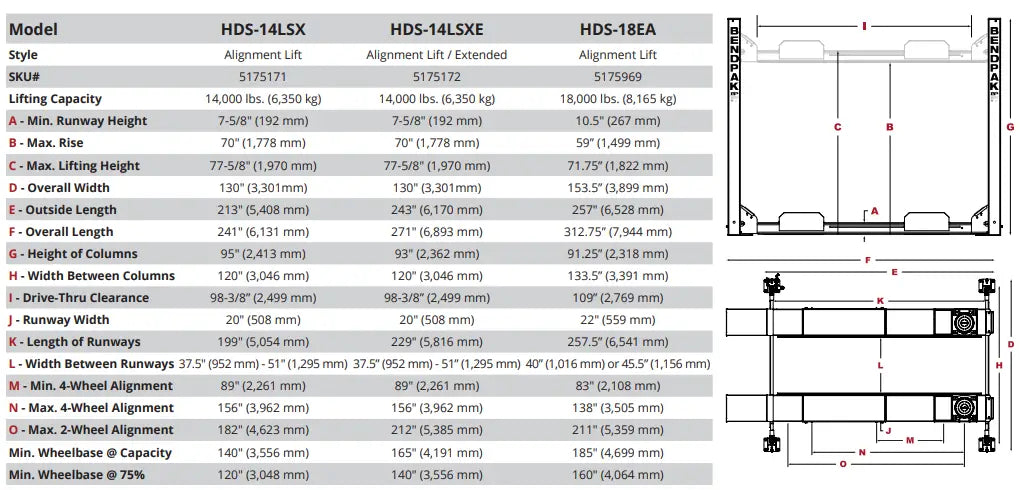

HDS14LSXE Specification

Lifting Capacity: 14,000 lbs. (6,350 kg)
Max Front/Rear Axle Capacity: 7,000 lbs. (3,175 kg)
Runway Length: 229 inches (5,817 mm)
Min. Runway Height: 7.5 inches (191 mm)
Max. Lifting Height: 77.5 inches (1,969 mm)
Overall Width: 130 inches (3,302 mm)
Drive-Thru Clearance: 98 inches (2,489 mm)
Alignment Capacity:
- Min. 4-Wheel Alignment: 89 inches (2,261 mm)
- Max. 4-Wheel Alignment: 156 inches (3,962 mm)
- Max. 2-Wheel Alignment: 182 inches (4,623 mm)
Locking Positions: 15 with 4-inch (102 mm) spacing
Power Requirements: 220 VAC / 60 Hz / 1 Phase
Shipping Weight: 3,216 lbs. (1,458 kg)

RJ7W Specification

Lifting Capacity: 9,000 lbs. (4,082 kg)
Suitable Lift Models: HDS-18E, HDS-27 Series
Min. Drive-Over Height: 5.25″ to 10.75″ (133 mm – 273 mm) with adapters
Max. Lifting Height: 16.25″ to 21.75″ (413 mm – 552 mm) with adapters
Reach: 42″–56″ (1,067 mm – 1,422 mm)
Pump Type: Air/Hydraulic
Air Pressure: 125 PSI (10–25 CFM)
Shipping Weight: 478 lbs. (217 kg)
Shipping Dimensions: 47″ x 25″ x 15″ (1,206 mm x 635 mm x 381 mm)

HDS14LSXE + RJ7W Combo Special Features

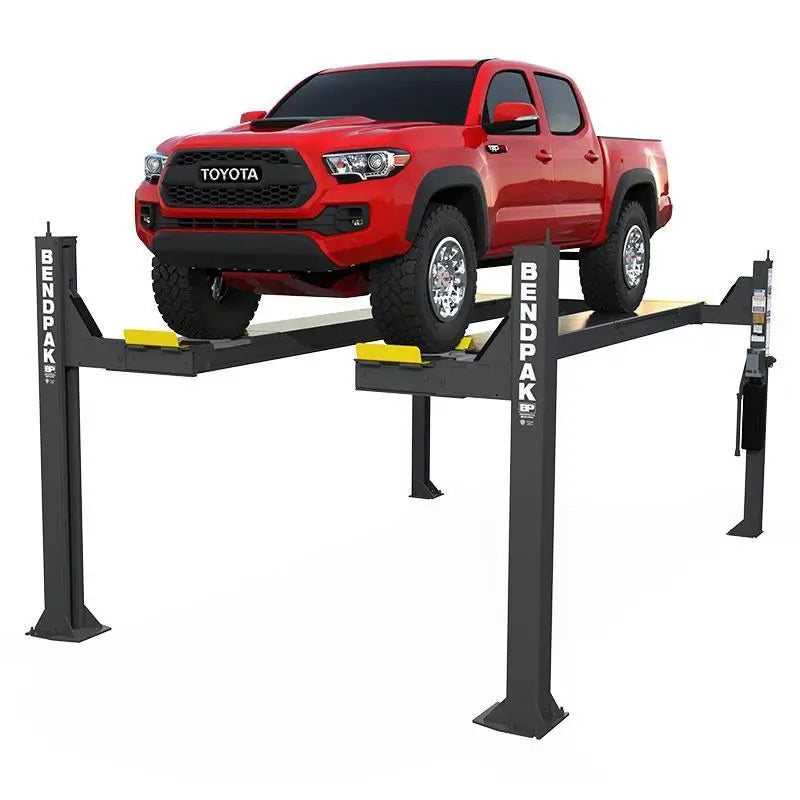

HDS14LSXE

Extended-Length Design: Accommodates longer vehicles, such as trucks and vans.
Built-In Alignment System: Includes front turn plates and rear slip plates for precise adjustments.
Aircraft-Quality Cables: 1/2-inch diameter stainless-steel cables ensure strength and durability.
Dual-Hub Cable Sheaves: Oversized sheaves and 2.25″ axles reduce wear and increase lifespan.
Electric-Hydraulic Power System: Maintenance-free and ergonomically designed for operator ease.
Spring-Loaded Safety Locks: Engage at multiple positions for secure, adjustable lifting.
Secondary Lock System: Prevents operation in the event of cable slack for enhanced safety.
Integrated Components: Enclosed cables, sheaves, and hoses for protection and clean aesthetics.
Longer Approach Ramps: Designed for easy access for low-clearance vehicles.
Optional Rolling Bridge Jacks: Allow for additional wheel and brake service capabilities.
Push-Button Lock Release: Simplifies lowering with simultaneous pneumatic lock disengagement.
CE Approved and Certified: Meets or exceeds European Standard EN 1493 for safety and quality.

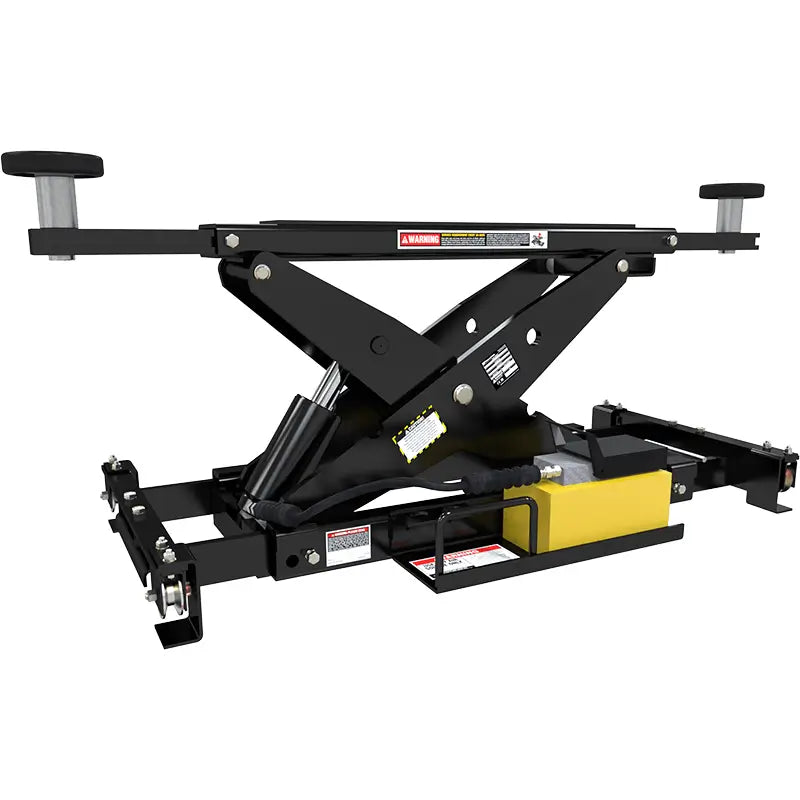

RJ7W

7,000-lb. Lifting Capacity: Designed for medium-duty vehicles, sports cars, and light trucks.
Easy-Roll Wheels: Stainless steel wheels ensure effortless gliding along runway channels.
Rubber Contact Pads: Protect vehicle undercarriages with non-marring surfaces.
Stackable Adapters: Customize lift height for varying suspension and chassis configurations.
High-Pressure Hydraulic Power Unit: Operates independently with pneumatic control for smooth lifting.
Foot Pedal Control: Simple and safe operation without manual strain.
Three Lock Levels: Multiple height options for flexibility and operator comfort.
Durable Construction: Hardened and zinc-plated steel components for long-lasting
