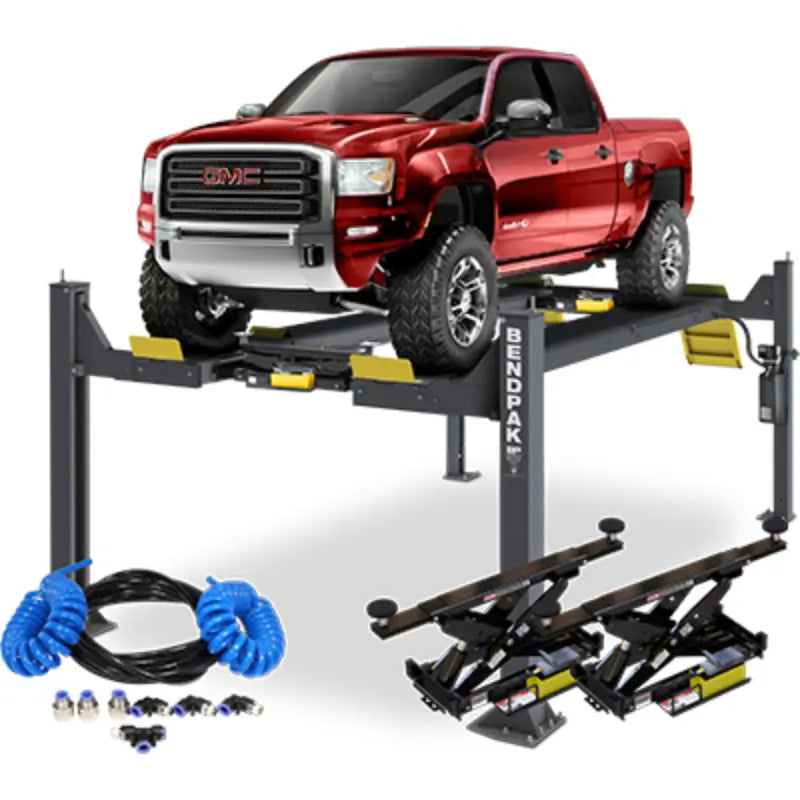

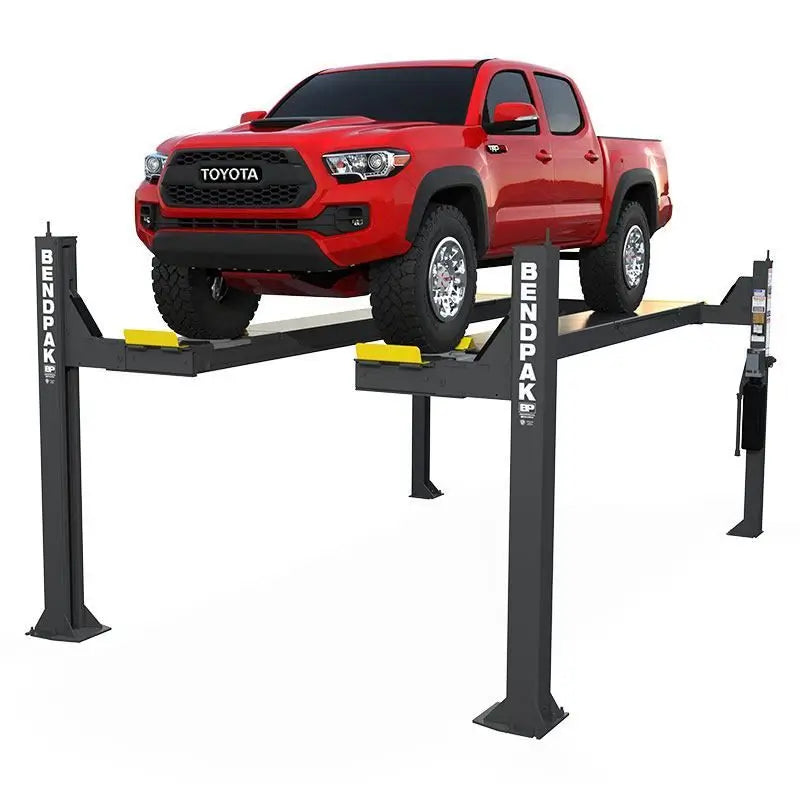

BendPak HDSO14AX 14,000lb Alignment Lift Combo by BendPak

Are you tired of performing vehicle alignment like you’re trying to solve a Rubik’s Cube while blindfolded? Meet the BendPak HDSO14AX 14,000lb Alignment Lift Combo, the superhero of the lift world, ready to rescue you from awkward service angles and cramped spaces. With a robust 14,000 lbs capacity, this beast can handle everything from medium-duty trucks to sports cars. It’s got a spacious, open-front design for zero-obstruction access, and its built-in turn plates and rear slip plates give you the smoothest ride when you’re adjusting wheels.

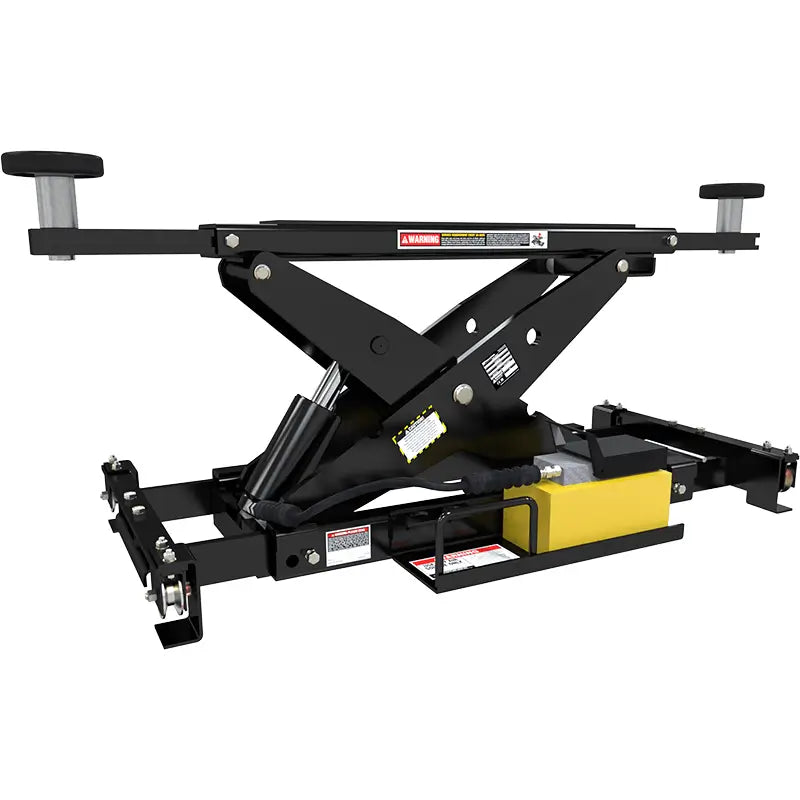

And it gets better: Two RJ Rolling Bridge Jacks! These bad boys can lift up to 7,000 lbs each, making it a 4-post lift that also doubles as a wizard for wheel and brake services. Want to save space and look like a pro? Roll those jacks across the runway like you’re cruising on a Friday night, all while working smarter—not harder.

Alignment Lift – Combo HDSO14AX Specification

HDSO14AX

Lifting Capacity: 14,000 lbs (6,350 kg)
Overall Width (Front): 143.25″ (3,638 mm)
Overall Width (Rear): 130″ (3,304 mm)
Outside Length: 215.5″ (5,472 mm)
Overall Length: 244.5″ (6,209 mm)
Height of Columns (Front): 103.25″ (2,623 mm)
Height of Columns (Rear): 92″ (2,338 mm)
Minimum Runway Height: 7.75″ (196 mm)
Maximum Rise: 77.5″ (1,970 mm)
Maximum Lifting Height: 70″ (1,778 mm)
Width Between Columns (Front): 123″ (3,124 mm)
Width Between Columns (Rear): 120″ (3,050 mm)
Runway Width: 20.5″ (520 mm)
Width Between Runways: 42″ (1,067 mm)
Length of Runways: 197.5″ (5,017 mm)
Minimum 4-Wheel Alignment Length: 89″ (2,261 mm)
Maximum 4-Wheel Alignment Length: 156″ (3,962 mm)
Maximum 2-Wheel Alignment Length: 182″ (4,623 mm)
Minimum Wheelbase @ Rated Capacity: 140″ (3,556 mm)
Minimum Wheelbase @ 75% Rated Capacity: 120″ (3,048 mm)
Minimum Wheelbase @ 50% Rated Capacity: 100″ (2,540 mm)
Minimum Wheelbase @ 25% Rated Capacity: 80″ (2,032 mm)
Locking Positions: 15
Lock Spacing: Every 4″ (102 mm)
Lifting Time: 60 seconds
Standard Motor: 220 VAC / 60 Hz / 1 Phase

RJ7W

Lifting Capacity: 7,000 lbs. (3,175 kg)
Suitable Lift Models: HDS-14 Series, HDSO14P, HD-14 Series
Minimum Drive-Over Height:
- Pad Only: 4″ (102 mm)
- Pad + 2.75″ Adapter: 6.75″ (171 mm)
- Pad + 5.5″ Adapter: 9.5″ (241 mm)
Maximum Lifting Height:
- Pad Only: 14.75″ (375 mm)
- Pad + 2.75″ Adapter: 17.5″ (445 mm)
- Pad + 5.5″ Adapter: 20.25″ (514 mm)
Reach:
- Support Base Width: 36.25″ (921 mm) – 46.5″ (1,181 mm)
- Maximum Arm Reach: 56″ (1,422 mm)
- Minimum Arm Reach: 42″ (1,067 mm)
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Maximum Operating Hydraulic Pressure: 4,550 PSI
Power Requirement: None
Shipping Weight: 440 lbs. (200 kg)
Shipping Dimensions: 42″ x 25″ x 15″ (1,066 mm x 635 mm x 381 mm)

HDSO14AX 14,000lb Alignment Lift – Combo Special Features

HDSO14AX

14,000-lb. lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
Heavy‐duty turn plates and integrated rear slip‐plates included
Multi‐position turn plate pockets
Automatic leveling system
Multiple auto-leveling locking positions
Runways include rail‐kit for optional accessories
Electric / hydraulic power system
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks, and sheaves
Internal “Anti-Sway” UHMW slider blocks in each column
Features oversize sheaves and heavy‐duty 1/2” aircraft cable
Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves
Multi‐position safety locks in each column with push‐button safety release
Runways adjust for different tread widths and feature a durable matte finish
Optional 7,000-lb. capacity bridge jacks available (Model RJ‐7) 14,000-lb. lifting capacity
