MDS-6LPF 6,000lb Mid-Rise Scissor Lift by BendPak
Got a tight workspace and an outdated lift taking up way too much room? We’ve all been there—wrestling with equipment that feels more like a roadblock than a tool. The frustration is real when you’re trying to get under a low-clearance car and your lift just won’t cooperate.

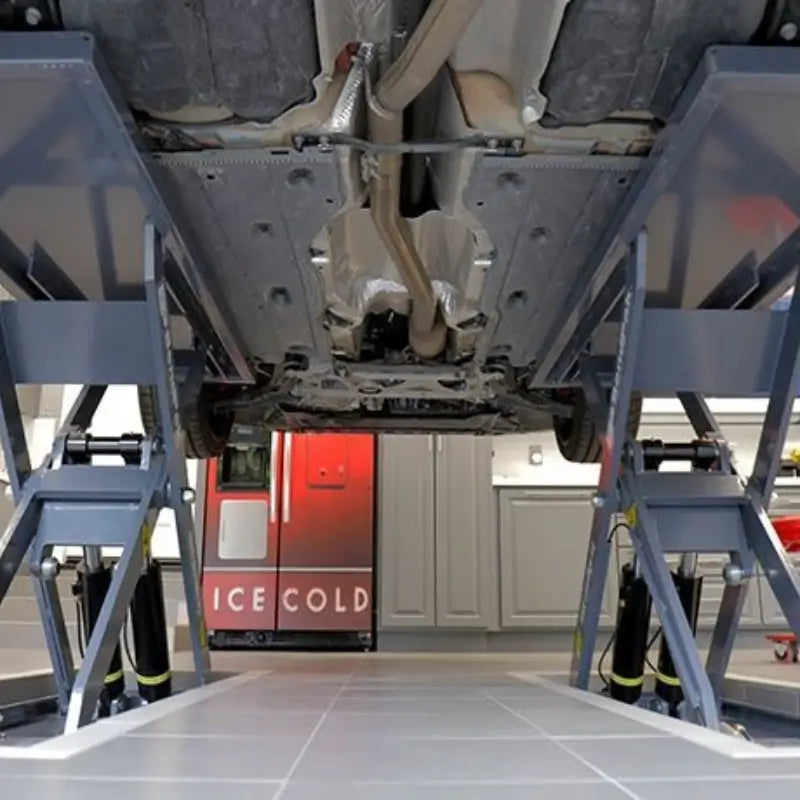

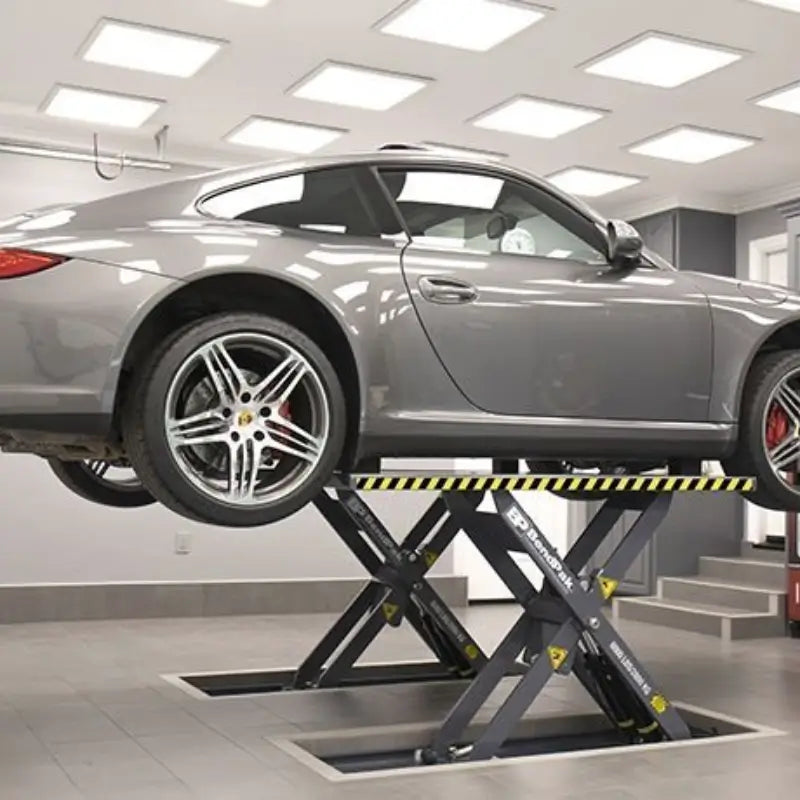

Enter the BendPak MDS-6LPF Mid-Rise Scissor Lift. With its flush-mount, zero-footprint design, you can finally reclaim your garage floor while enjoying the power of a 6,000-lb. capacity lift. The pneumatic “kick” mechanism ensures smooth lifting from a collapsed position, while the four hydraulic cylinders provide perfectly even elevation every time. Ready for safety? Solid-steel lock bars, durable rubber contact blocks, and a push-button release keep things secure and simple.
Scissor Lift MDS-6LPF Specification
- Lifting Capacity: 6,000 lbs. (2,722 kg)
- Full Rise: 44″ (1,118 mm) (Minus 4-3/8″ for sub-surface flooring)
- Lifting Height with Blocks: 46″ (1,168 mm) (Minus 4-3/8″ for sub-surface flooring)
- Lowered Height: Flush with ground
- Platform Dimensions: 19″ x 67″ (484 mm x 1,701 mm)
- Width Between Platforms: 40″ to 46″ (1,018 mm to 1,168 mm)
- Overall Length: 67″ (1,701 mm)
- Lifting Time: 35 seconds
- Locking Positions: 3 (21″, 32″, 38.75″)
- Motor: 208-230 VAC / 60 Hz / 1 Ph
- Shipping Weight: 1,422 lbs. (645 kg)
- Shipping Dimensions: 70” x 61” x 25” (1,778 mm x 1,549 mm x 635 mm)
MDS-6LPF 6,000lb Mid-Rise Scissor Lift Special Features
- Flush-Mount Design: Offers a zero-footprint solution that integrates seamlessly into any garage floor for a smooth, unobtrusive appearance.
- Extended Lift Platforms: Accommodates a wide range of vehicle sizes, including those with long wheelbases, for greater versatility.
- Pneumatic “Kick” Mechanism: Provides an initial boost for smooth lifting from a collapsed position, ensuring a steady rise.
- Four Hydraulic Cylinders: Delivers consistent, even lifting performance with equalized hydraulic pressure.
- Solid-Steel Safety Lock Bars: Automatically engage at three heights, offering maximum safety and flexibility.
- Push-Button Safety Lock Release: Simplifies operation by instantly disengaging locks for quick and safe lowering.
- Stainless-Steel Pneumatic Cylinders: Replace spring releases for improved durability and reliability.
- Durable Rubber Contact Blocks: Provide secure, non-slip vehicle lifting points for added safety and stability.
- Zerk Grease Fittings: Long-lasting, self-lubricating fittings minimize maintenance requirements.
- Adjustable Width Between Platforms: Adapts to different vehicle sizes and shop configurations.
- Powder-Coated Finish: Protects against corrosion and wear, ensuring long-lasting performance.
- Detailed Installation Guide: Includes comprehensive instructions, safety decals, and training materials for hassle-free setup and use.
