BendPak PCL-18B-6 108,000lb Mobile Column Lifts – Set of 6

PCL-18B-6 108,000lb Mobile Column Lifts by BendPak

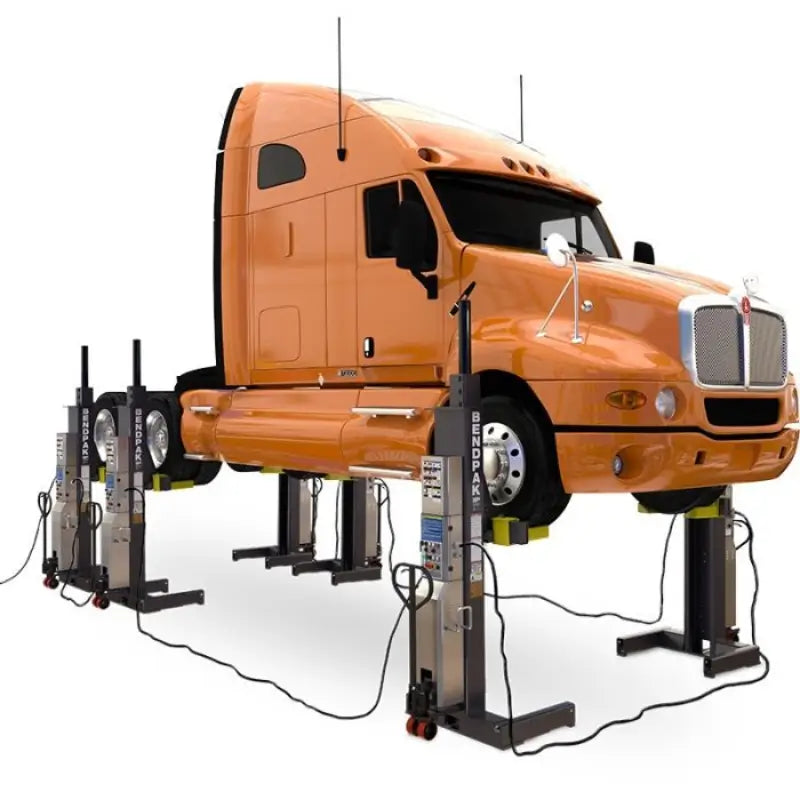

Got a big rig truck that needs a little lift? The BendPak PCL-18B-6 Mobile Column Lift System is your ticket to becoming the ultimate heavy-duty hero. With a combined lifting capacity of 108,000 lbs across six independent yet synchronized columns, it’s built to tackle everything from massive trucks to hefty industrial machines. Each column’s got its own smarts—advanced syncing, self-calibration, and a 24-volt safety system that ensures things stay smooth and level, every single time. You’ll be lifting those monsters with precision like it’s just another Tuesday.

Moving it around? Piece of cake. The built-in pallet-jack wheels make steering these columns almost fun—dare we say, forklift-race-worthy. Toss in intuitive controls, adjustable forks, and multiple height settings, and you’ve got yourself a lifting system that plays nice with all kinds of vehicles. And did we mention the safety? Emergency shut-offs, multiple locks, and sealed electronics mean you’ll get the job done without breaking a sweat—or anything else.

Column Lifts PCL-18B-6 Specification

Lifting Capacity

• Per Column: 18,000 lbs. (8,165 kg)
• Total (6 Columns): 108,000 lbs. (49,895 kg)

Lifting Dimensions

• Max. Lifting Height: 71.5 in. (1,889 mm)
• Column Height (Raised): 101 in. (2,565 mm)
• Column Height (Lowered): 146.5 in. (3,721 mm)
• Fork Width: 9.5 in. – 35 in. (241 mm – 889 mm)
• Fork Length: 11.5 in. (292 mm)

Power System

• Voltage: 208-240V, 3-phase, 50-60 Hz
• Lifting Speed: 85 seconds

Build and Dimensions

• Overall Depth: 48.75 in. (1,238 mm)
• Overall Width: 45 in. (1,143 mm)
• Chassis Length: 32.25 in. (819 mm)
• Turning Circle: 40 in. (1,016 mm)
• Column Weight: 1,450 lbs. (657 kg)

Shipping Details

• Shipping Weight per Column: 1,450 lbs. (657 kg)
• Shipping Dimensions per Column: 106” x 55” x 41” (2,696 mm x 1,397 mm x 1,041 mm)

PCL-18B-6 108,000lb Mobile Column Lifts Special Features

• Heavy-Duty Lifting Power: 108,000 lbs. total capacity with six synchronized columns for lifting large three-axle vehicles.
• Advanced Safety Features: Multi-point safety locks, 24V safety circuitry, emergency shut-offs, and warning alarms ensure secure operation.
• User-Friendly Operation: Intuitive controls and programmable height settings allow for efficient, customized operation from any column.
• Portable and Compact Design: Pallet-jack-style wheels and a low center of gravity enable easy transport and stable placement.
• Adjustable Wheel Forks: Accommodates a variety of wheel sizes with simple locking pins, eliminating the need for adapters.
• Smart Electronics: Self-calibration, self-diagnostics, and sealed components ensure precision, reliability, and minimal maintenance.
• Quiet and Efficient: Enclosed hydraulic system delivers smooth, quiet performance suitable for sound-sensitive environments.
• Durable Construction: Heavy-duty steel with a powder-coated finish provides resistance to wear and corrosion, ensuring long-term use.
• Flexible Configurations: Expandable to sets of 2, 4, or 8 columns for additional lifting capacity and versatility.
• Compliance with Standards: Meets or exceeds ANSI/ALI ALCTV-2011 standards for safety and reliability.

BendPak PCL-18B-6 Documentation

  BendPak PCL-18B-6 Installation and Operations Manual

  BendPak PCL-18B-6 Product Brochure
