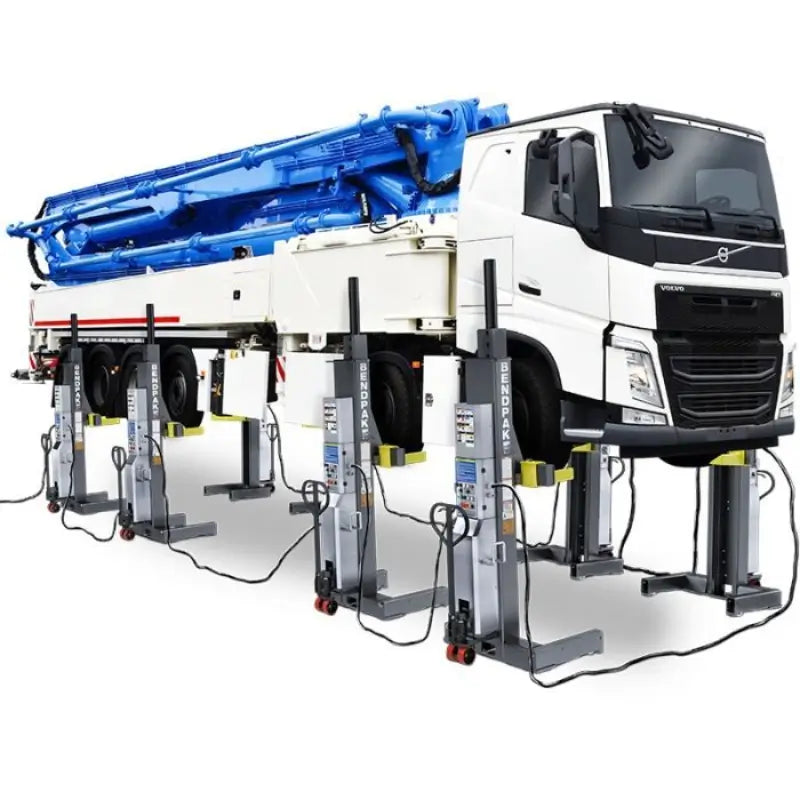

BendPak PCL-18B-8 144,000lb Mobile Column Lifts – Set of 8

PCL-18B-8 144,000lb Mobile Column Lifts by BendPak

You’ve got a hulking multi-axle truck sitting in your shop, and lifting it seems like a Herculean task—unless you’ve got the BendPak PCL-18B-8 Mobile Column Lift System at your disposal. With a whopping total capacity of 144,000 lbs across eight columns, each packing 18,000 lbs of lifting power, this system is ready to tackle anything you throw at it. Whether you’re lifting one beastly vehicle or breaking the system into smaller groups for multiple jobs, it’s as flexible as it is powerful. Plus, with smart features like 24-volt safety circuitry, easy-to-use controls, and self-diagnostic wizardry, you’ll feel like you’re piloting a futuristic piece of equipment that’s always got your back.

Now, let’s talk convenience. Maneuvering these bad boys around the shop is no sweat, thanks to built-in pallet-jack wheels and a low center of gravity that keeps things steady. Want durability? How about heavy-duty steel and a sleek powder-coated finish that’s practically armor against wear and tear. Oh, and those sealed components? They keep debris out, so you can lift with confidence, day after day. From fleet repairs to specialty vehicle maintenance, this lift brings the muscle, smarts, and ease you need for the ultimate shop experience.

Column Lifts PCL-18B-8 Specification

Lifting Capacity

• Per Column: 18,000 lbs. (8,165 kg)
• Total (8 Columns): 144,000 lbs. (65,317 kg)

Lifting Dimensions

• Max. Lifting Height: 71.5 in. (1,889 mm)
• Column Height (Raised): 101 in. (2,565 mm)
• Column Height (Lowered): 146.5 in. (3,721 mm)
• Fork Width: 9.5 in. – 35 in. (241 mm – 889 mm)
• Fork Length: 11.5 in. (292 mm)

Power System

• Voltage: 208-240V, 3-phase, 50-60 Hz
• Lifting Speed: 85 seconds

Build and Dimensions

• Overall Depth: 48.75 in. (1,238 mm)
• Overall Width: 45 in. (1,143 mm)
• Chassis Length: 32.25 in. (819 mm)
• Turning Circle: 40 in. (1,016 mm)
• Column Weight: 1,450 lbs. (657 kg)

Shipping Details

• Shipping Weight per Column: 1,450 lbs. (657 kg)
• Shipping Dimensions per Column: 106″ x 55″ x 41″ (2,696 mm x 1,397 mm x 1,041 mm)

PCL-18B-8 144,000lb Mobile Column Lifts Special Features

• Massive Lifting Power: 144,000 lbs. total capacity with eight synchronized columns, ideal for large four-axle vehicles and heavy-duty applications.
• Advanced Safety: Multi-point safety locks, 24V circuitry, emergency shut-offs, and warning alarms ensure operator and vehicle safety.
• Customizable Operation: Programmable height settings and independent or synchronized column control for tailored lifting solutions.
• Portable and Durable: Pallet-jack-style wheels and a low center of gravity for easy mobility; powder-coated steel construction ensures long-term durability.
• Smart Electronics: Self-diagnostics, calibration, and sealed components provide reliability, precision, and minimal maintenance.
• Adjustable Forks: Accommodates a wide range of wheel sizes without the need for specialized adapters.
• Quiet and Efficient: Enclosed hydraulic system ensures smooth, quiet operation, suitable for any workspace.
• Modular Configurations: Columns can be grouped into smaller sets for additional flexibility, lifting multiple vehicles simultaneously.
• Compliant with Standards: Meets or exceeds ANSI/ALI ALCTV-2011 safety and performance requirements.

BendPak PCL-18B-8 Documentation

  BendPak PCL-18B-8 Installation and Operations Manual

  BendPak PCL-18B-8 Product Brochure
