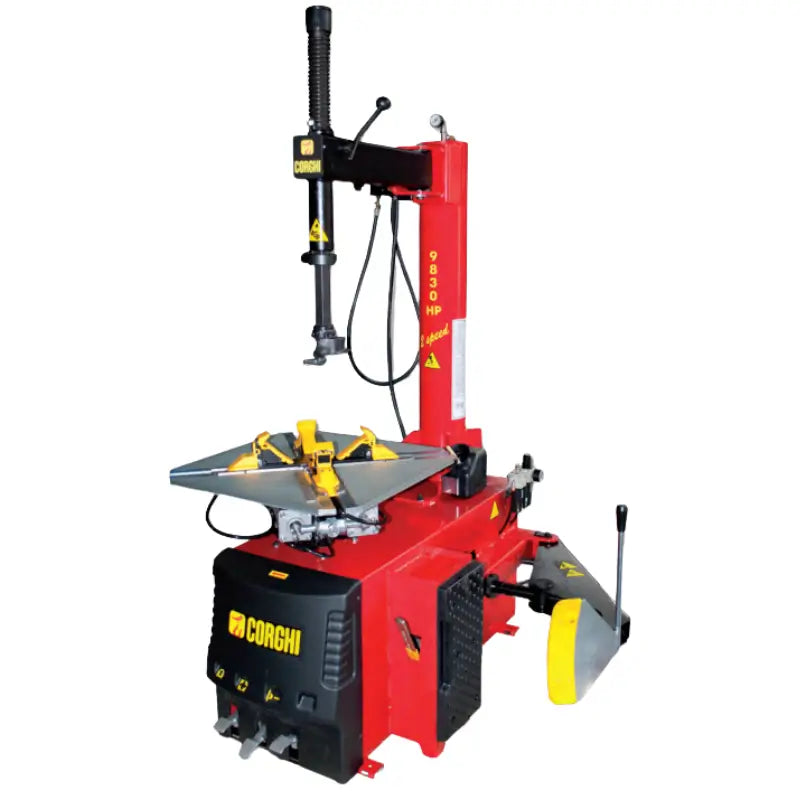

Corghi Artiglio A9830 FBB High Performance Swing Arm Rim Clamp Tire Changer (Elect.)

Artiglio A9830 FBB High Performance Swing Arm Rim Clamp Tire Changer (Elect.) by Corghi

Ever feel like your tire changer can’t keep up with modern tires? The Corghi Artiglio A9830 FBB High-Performance Swing Arm Tire Changer is built to tackle it all. From tiny 10” rims to massive 47” tires, its 26” turntable and 885 ft/lbs of torque make quick work of even the toughest challenges. Designed for high-performance shops, this machine’s bead breaker delivers a staggering 2,756 lbs of force, following the bead’s curve for precision without rim damage.

Packed with innovations like a pneumatic-powered bead lifter, two-speed reversible turntable, and user-friendly manual head clamping, the A9830 makes tire changes safer and faster. Add in optional upgrades like the PU1500 Power Assist Unit or bead-pressing tools, and you’ve got a versatile powerhouse. Whether you’re handling pressure-sensor-equipped rims or run-flat tires, the A9830 guarantees reliability, efficiency, and a superior experience for any professional tire shop.

Tire Changer Artiglio A9830 Specifications

• Turntable Inside Clamping Capacity: 13” to 29”
• Turntable Outside Clamping Capacity: 10” to 26”
• Maximum Tire Diameter: 47” (1200 mm)
• Maximum Tire Width: 14”
• Rotation Torque: 1200 Nm (885 ft/lbs)
• Rotation Speed: 6-15 rpm
• Height of Plate Above Ground: 28.15” (715 mm)
• Bead Breaker Maximum Opening: 40 mm to 420 mm
• Bead Breaker Shoe Force: 2756 lbs
• Power Supply: 115V, 1ph, 60Hz (Pneumatic on request)
• Operating Pressure: 145 psi (10 bar)
• Weight: 540 lbs
• Dimensions (L x D x H): Min. 38.5” Max. 55” x 44” x 79”

Artiglio A9830 Tire Changer Special Features

• Purchase of product includes Installation and On-Site Training
• Built-in table inflator with jets in the jaws
• Locking handle that locks the head away from the rim
• Powerful bead breaker blade that follows the bead to the inside rim contour
• Heavy-duty 2-speed turntable rotates in either direction
• Rebuildable stainless steel cylinders and heavy-duty turntable for durability
• Adjustable lateral bead breaker for easy operation
• Manual head clamping system for precision tire mounting
• Pneumatic-powered bead lifter and rim clamping assist for easy operation
• Available with the PU1500 Power Assist Unit, SX3, or SX BPL options
• Handles a wide range of tire sizes from 8” to 29”
• Capable of changing tires with pressure sensors (PAX capable with PAX kit)
• Warranty:
  • 3 Year Parts
  • 1 Year Labor

Corghi Artiglio A9830 Documentations

  Corghi Artiglio A9830 Product Brochure
