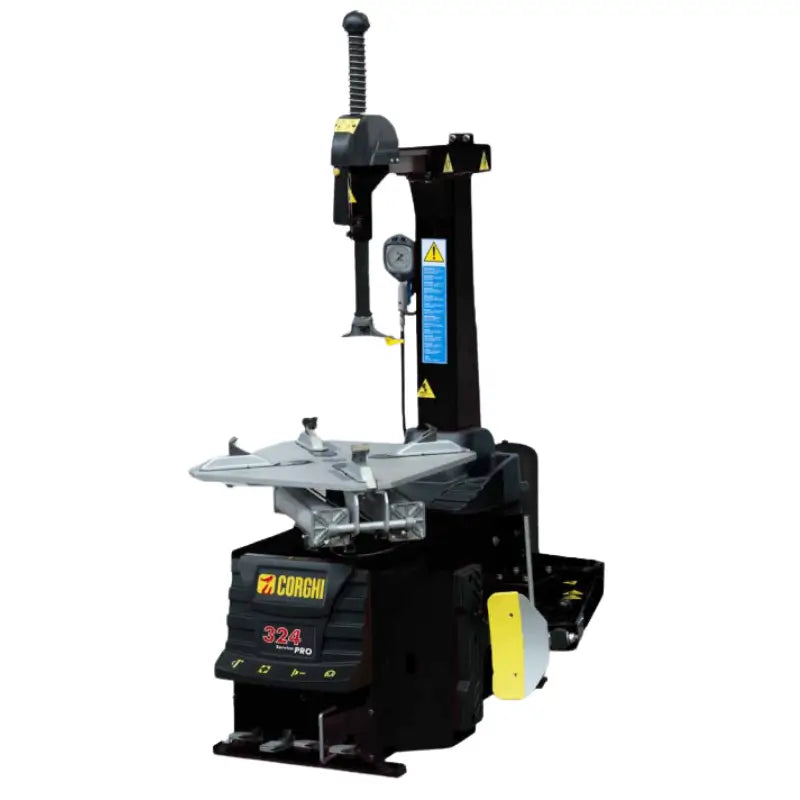

Corghi Service PRO324 Tilt Back Tire Changer (Elect. Only)

Service PRO324 Tilt Back Tire Changer (Elect. Only) by Corghi

Step into the world of high-performance tire service with the Corghi Service PRO324 Tilt Back Tire Changer, a masterpiece of Italian engineering. This automatic tire changer is crafted to handle everything from cars and light transport vehicles to motorcycles, offering precision, speed, and reliability. With a maximum wheel diameter of 43.3” and the ability to accommodate tires up to 14” wide, the PRO324 is designed for versatility. Its automatic tilt-back operation ensures effortless loading and unloading, while a robust bead breaker with 3,372 lb-ft of power tackles even the most stubborn tires with ease.

The PRO324 blends sophisticated design with advanced functionality. Equipped with external and internal clamping capabilities (11”–24” and 13”–26”, respectively) and a quiet motor running at less than 70 dB, it enhances productivity in a serene workspace. The adjustable chuck rotation speed (6.5–13 rpm) and a bead breaker with an impressive 15” opening make this machine a dream for tire service professionals. With the hallmark precision of Italian craftsmanship, the PRO324 elevates your tire shop to unparalleled levels of efficiency and elegance.

Tire Changer Service PRO324 Specifications

• External Rim Clamping Capacity: 11” to 24”
• Internal Rim Clamping Capacity: 13” to 26”
• Max Wheel Diameter: 43.3” (1100 mm)
• Tire Width: 3” to 14”
• Bead Breaker Opening: 15” (380 mm)
• Bead Breaking Power: 3372 lbf (15000 N)
• Working Air Pressure: 116 to 145 psi (8-10 bar)
• Motor Power: 1.1 hp (0.85 kW) to 1.47 hp (1.1 kW)
• Chuck Rotation Speed: 6.5 to 13 rpm
• Noise Level: < 70 dB
• Machine Weight: 562 lbs (255 kg)
• Gross Weight: 650 lbs (295 kg)
• Max Dimensions (LxPxH): 45” x 36” x 40” (1150 x 920 x 1000 mm)
• Warranty:
  • 3 Year Parts
  • 1 Year Labor

Service PRO324 Tire Changer Special Features

• Automatic tilt-back operation for easy loading and unloading of tires
• Bead-breaking power of 3372 lbf to handle difficult tires
• External clamping range from 11” to 24” and internal clamping from 13” to 26”
• Bead breaker with a 15” opening for larger tires
• Motor power ranging from 1.1 hp to 1.47 hp for consistent performance
• Chuck rotation speed of 6.5 to 13 rpm for smooth and controlled operation
• Noise level during operation is less than 70 dB for a quieter work environment
• Compatible with optional accessories, including plastic bead pressing clamp and motorcycle adaptor

Service PRO324 Documentations

  Corghi Service PRO324 Product Brochure
