Overview

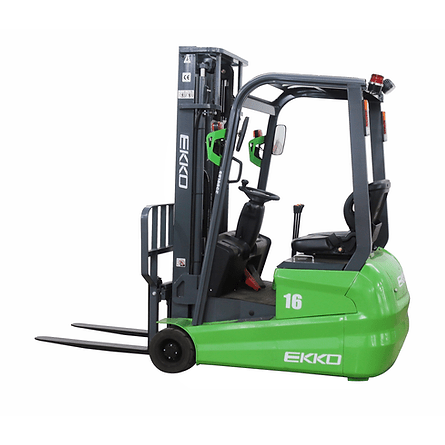

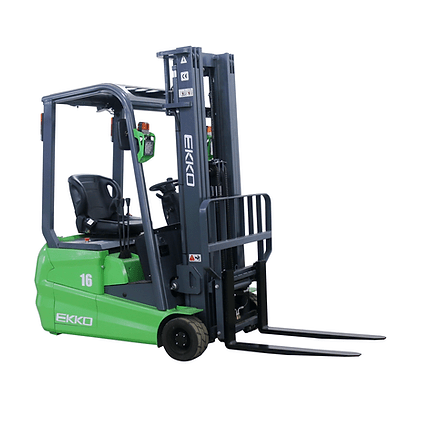

The EKKO EK16A-189Li 3-Wheel Lithium Forklift is engineered for small aisles, limited spaces, and cost-effective operations. It is perfect for loading and unloading trucks, managing loading docks, stock rooms, manufacturing floors, and warehouses. Recommended for indoor use on flat surfaces.
Key Features
- Load Capacity: 3,500 lbs
- Maximum Lifting Height: 189″ (15.75 ft)
- Free Lift Height: 31.5″
- Adjustable Forks: 7.9-26″
- Fork Length: 42.1″
- Tilt Function: 3°/6°
- Zapi Controller: Offers precision control
- Drive Motor: 24V AC
- Lift Motor: 3.3 kW
- Cushion Tires: Ideal for indoor environments
- Hydraulic Power Steering (HPS): Simplifies maneuvering
- Steel Construction: Built for durability
- Robotic Welding: Ensures consistent quality
- Charger: Included
- Battery: 24V/200Ah Lithium (Included)
Specifications
| Model: | EK16A-189Li |
| Lift: | Electric |
| Drive: | Electric |
| Load Capacity: | 3,500 lbs |
| Load Center Distance: | 24″ |
| Wheel Base: | 49.2″ |
| Maximum Lifting Height: | 189″ |
| Free Lifting Height: | 31.5″ |
| Lowered Mast Height: | 81.3″ |
| Fork Tilt (Forward/Backward): | 3°/6° |
| Overall Length: | 65″ |
| Overall Width: | 42.1″ |
| Fork Dimensions (T/W/L): | 1.4″/4″/42.1″ |
| Fork Adjustment Width: | 7.9-26″ |
| Turning Radius: | 58.9″ |
| Max Gradient Performance (Laden/Unladen): | 6%/10% |
| Lift Speed (Laden/Unladen): | 4.71″/10.2″ |
| Lowering Speed (Laden/Unladen): | 11.8″/15.7″ |
| Charger: | 24V/50A |
| Drive Motor: | AC |
| Lift Motor: | 3.3 kW |
| Battery Voltage: | 24V/200Ah |
| Service Weight: | 4,650 lbs |
Why Choose the EKKO EK16A-189Li?
The EKKO EK16A-189Li is designed to optimize material handling in compact spaces while maintaining superior performance. Its robust build and advanced features make it a reliable choice for indoor applications in warehouses, stock rooms, and manufacturing floors.
