Overview

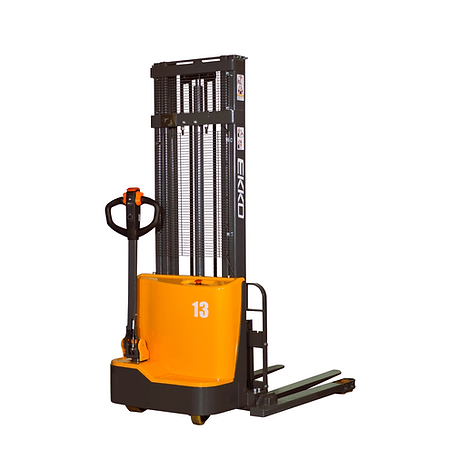

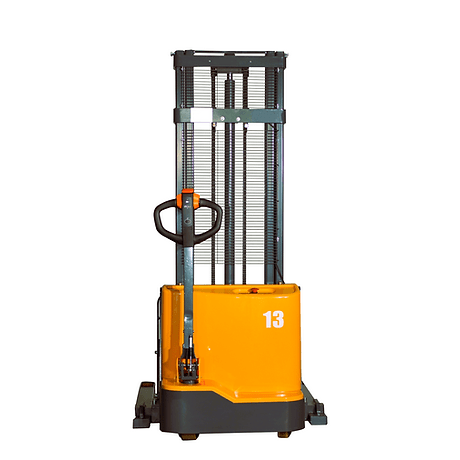

The EKKO EB13C-138 Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker, making it an excellent choice for loading and unloading trucks, managing stock rooms, loading docks, manufacturing floors, and warehouses.
Engineered with high-quality steel and durable components, this stacker ensures reliability across various terrains and challenging environments, offering consistent performance with minimal maintenance.
Key Features
- Load Capacity: 2800 lbs
- Raised Height: 138”
- Adjustable Forks: 8.6-32.1”
- Adjustable Legs: 35.4-51.2”
- Fork Length: 45.3”
- Controller: Curtis Instrument Controller
- Motors: DC Drive Motor and 24V Lift Motor
- Battery: 24V/85Ah included
- Wheels: Polyurethane for durability and smooth operation
- Ergonomic Design: Easy-to-use handle and controls
- Construction: Robust steel build with robotic welding
- Internal Charger: 24V/10A included
Specifications
| Model | EB13C-138 | |
| Load Capacity | (lbs) | 2800 |
| Max Lifting Height | (in) | 138” |
| Load Center Distance | (in) | 24 |
| Fork Length | (in) | 45.3 |
| Single Fork Width | (in) | 4 |
| Fork Adjustment Width | (in) | 8.6-32.1 |
| Lowered Fork Height | (in) | 2.56 |
| Adjustable Legs | (in) | 35.4-51.2 |
| Turning Radius | (in) | 56.1 |
| Overall Length | (in) | 73.4 |
| Max Overall Width | (in) | 61 |
| Extended Mast Height | (in) | 166.9 |
| Lowered Mast Height | (in) | 75.2 |
| Battery Voltage | (V/Ah) | 24V/85Ah |
| Internal Charger | (V/A) | 24V/10A |
| Lifting Motor | (kW) | 2.2 kW |
| Driving Motor | 0.75 kW | |
| Service Weight | (lbs) | 1390 |
