Overview

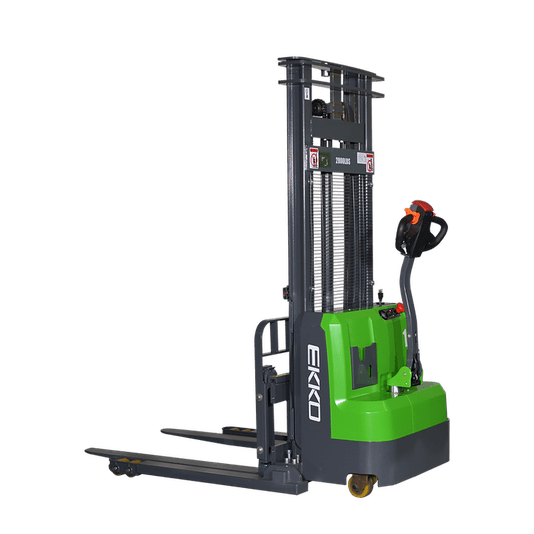

The EKKO EB14C-138Li Electric Straddle Stacker combines the capabilities of a forklift, reach truck, and walkie stacker into one powerful solution. Engineered for efficiency, this stacker is perfect for managing loading docks, stock rooms, manufacturing floors, and warehouses.

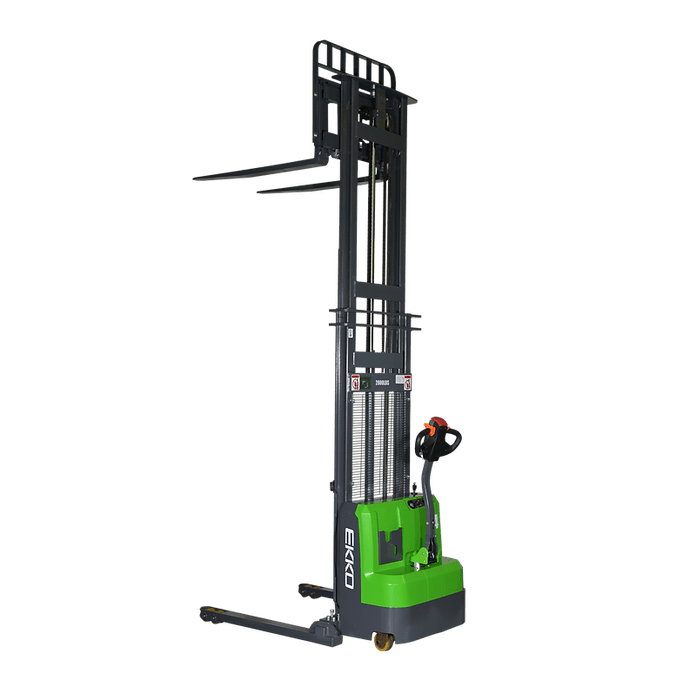

With a maximum lifting height of 138 inches (11.5 ft) and a durable steel construction, the EB14C-138Li is built to handle demanding tasks with ease and reliability.
Key Features
- Load Capacity: 3,000 lbs, perfect for heavy-duty applications.
- Raised Height: Maximum lifting height of 138” (11.5 ft).
- Adjustable Forks: Width adjustable from 8.7” to 32.1”.
- Adjustable Legs: Width adjustable from 35.4” to 51.2”.
- Fork Length: 45.3” for versatile load handling.
- Advanced Control: Equipped with a Curtis Instrument Controller for precision operation.
- Powerful Motors: Features a DC Drive Motor and a 2.2 kW lifting motor for seamless operation.
- Battery Performance: Powered by a 24V/50Ah lithium battery for long-lasting energy efficiency.
- Operator Comfort: Ergonomic handle and controls ensure user-friendly operation.
- Durable Build: High-quality steel construction for enhanced durability and impact resistance.
- Polyurethane Wheels: Offers smooth and stable movement across different terrains.
Specifications
| Model: | EB14C-138Li |
| Load Capacity: | 3,000 lbs |
| Max Lifting Height: | 138” (11.5 ft) |
| Fork Length: | 45.3” |
| Fork Adjustment Width: | 8.7” – 32.1” |
| Leg Adjustment Width: | 35.4” – 51.2” |
| Turning Radius: | 57.5” |
| Overall Length: | 73.7” |
| Overall Width: | 61” |
| Lowered Fork Height: | 2.6” |
| Battery: | 24V/50Ah Lithium |
| Service Weight: | 1,470 lbs |
| Charger: | 24V/20A Internal Charger |
| Lifting Motor: | 2.2 kW |
| Driving Motor: | DC Drive Motor |
| Extended Mast Height: | 166.9” |
| Lowered Mast Height: | 94.2” |
