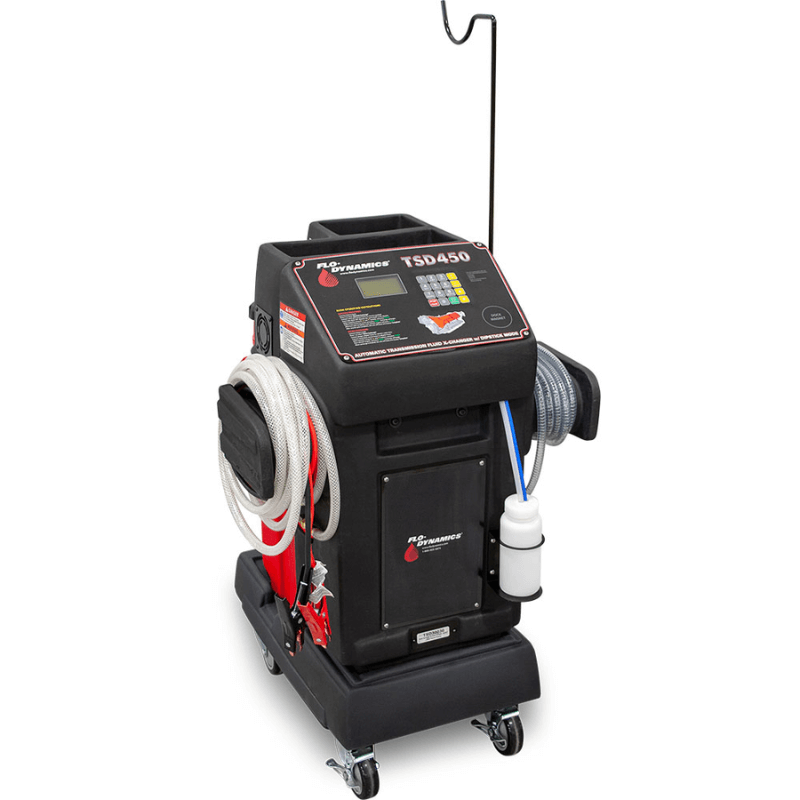

Flo-Dynamics 40400031 TSD450LCD ATF Inline & Dipstick Exchanger w/ Chemical Injection

TSD450LCDC ATF Inline & Dipstick Exchanger w/ Chemical Injection by Flo-Dynamics

Managing efficient transmission fluid exchanges can be complicated, especially when precision and speed are non-negotiable. The Flo-Dynamics TSD450LCDC ATF Inline & Dipstick Exchanger with Chemical Injection takes the guesswork out of the process. Built with a powerful 2.5-gallon-per-minute pump and automatic chemical injection, this machine delivers fast, accurate service every time. The 6.25” interactive touch screen guides you through each step, and its fully automatic operation ensures that technicians can complete exchanges with ease, saving time and eliminating errors.

Designed for busy service centers, the TSD450LCDC features a durable rotocast polyethylene body, clear service hoses for easy fluid verification, and a 24-quart capacity for new and used fluid. Its reverse flow direction, quart counter, and power interruption memory add versatility, while the built-in adapter rack keeps everything organized. With a compact design and stable 5-inch locking caster wheels, this machine is a must-have for professional technicians looking to streamline their workflow without sacrificing precision.

ATF Inline & Dipstick Exchanger TSD450LCDC Specifications

• Dimensions: 39”H x 24 ¾”W x 25”D
• Weight: 133 lb.
• New Fluid Tank Capacity: 24 quarts
• Used Fluid Tank Capacity: 24 quarts
• Exchange Capacity: 21 quarts
• Power Supply: 12V DC
• Pump Flow Rate: 2.5 gallons per minute

TSD450LCDC ATF Inline & Dipstick Exchanger Special Features

• Integrated automatic chemical injection for enhanced flushing
• One-touch flow reversal with push/pull knob for flexible fluid management
• Fast service times with a 2.5 gallon per minute pump
• Fully automatic operation with proven fluid measurement accuracy (±3%)
• Individual ADD/REMOVE fluid buttons for precise control
• Power interruption memory and pause button for added convenience
• Clear service hoses for visual fluid exchange confirmation
• Ergonomically designed working height for technician comfort
• Durable, rotocast polyethylene tanks prevent vehicle scratching
• Adapter rack drains into the waste tank, keeping adapters dry and organized
• 6.25” x 3.5” color touch screen with interactive controls
• Quart counter, fluid totalizer, and voltmeter for easy monitoring
• 5-inch locking caster wheels for stable and easy mobility
