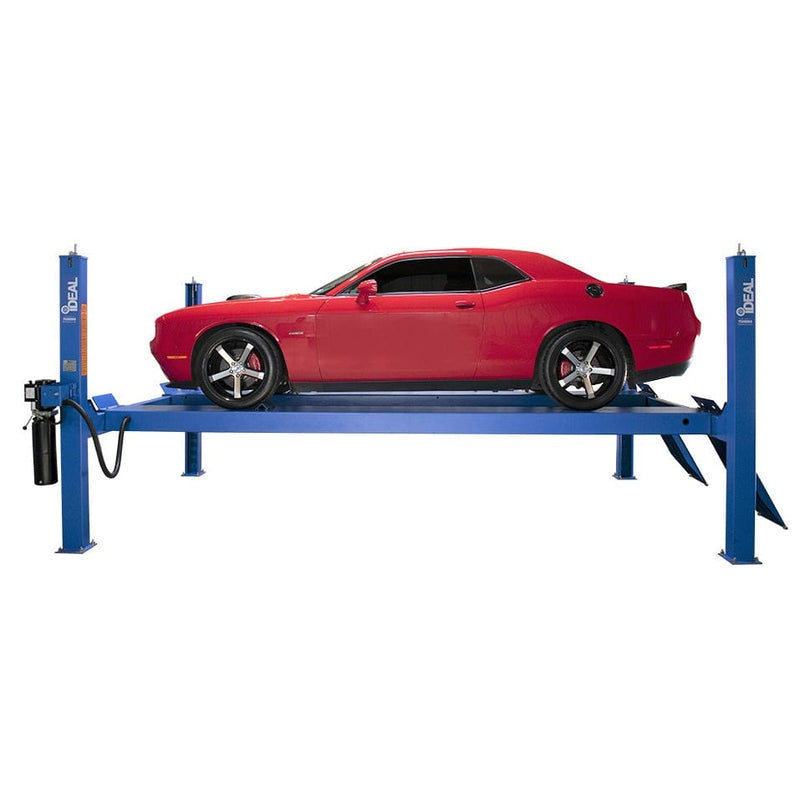

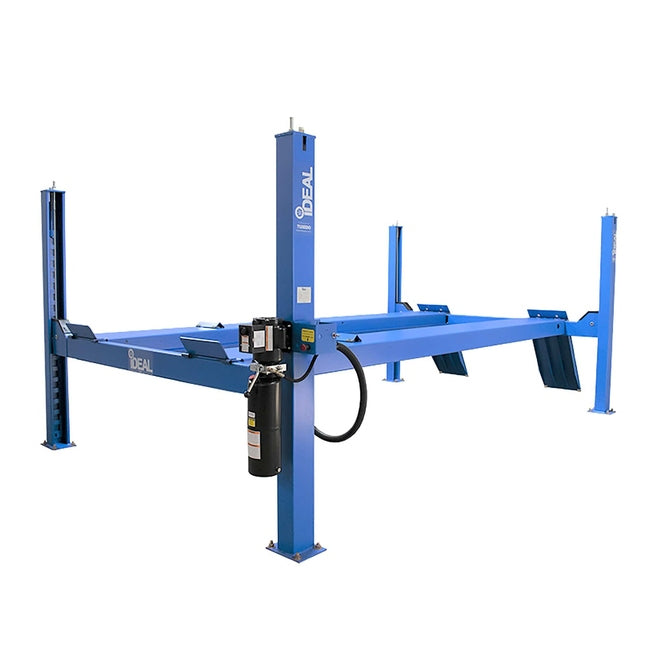

The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Lift
This lift is a high-performance closed-front, cable-pull vehicle lift designed for Cars, SUVs, Vans & Trucks.
The FP14KC-X Service Lift includes the latest in design & safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic/mechanical cable lift system with slack cable safety devices, and durable pulley & shaft design incorporating convenient grease fittings to the extended life of the lift.
Easy lift operation is provided with a single-point pneumatic lock release & high quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KC-X modular design provides the flexibility to extend the runways for servicing longer vehicles, while also providing the ability to convert into a high-quality Alignment Lift quickly & easily!
The standard provided powder coat finish, 20 wide runways, adjustable lock stops for easy runway leveling, and optional power unit mount positions complete the package for a premium, high-quality service lift, all at an unmatched value!
Features
- 14,000 LBS CAPACITY
- HIGH-PERFORMANCE COMMERCIAL SERVICE LIFT
- DURABLE, HIGH-QUALITY CABLE LIFT SYSTEM
- 182.5″ MAX WHEELBASE

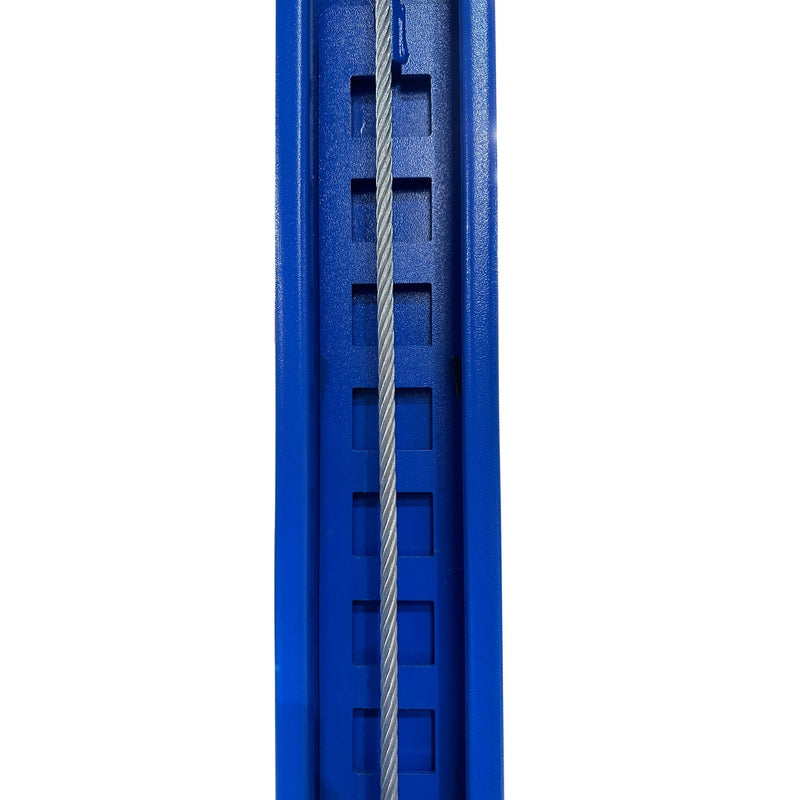

- 18 LOCKING HEIGHT POSITIONS
- 20″ WIDE RUNWAYS
- NARROW & WIDE RUNWAY MOUNTING POSITIONS
- SINGLE POINT PNEUMATIC LOCK RELEASE
- FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
- SLACK CABLE SAFETY DEVICES

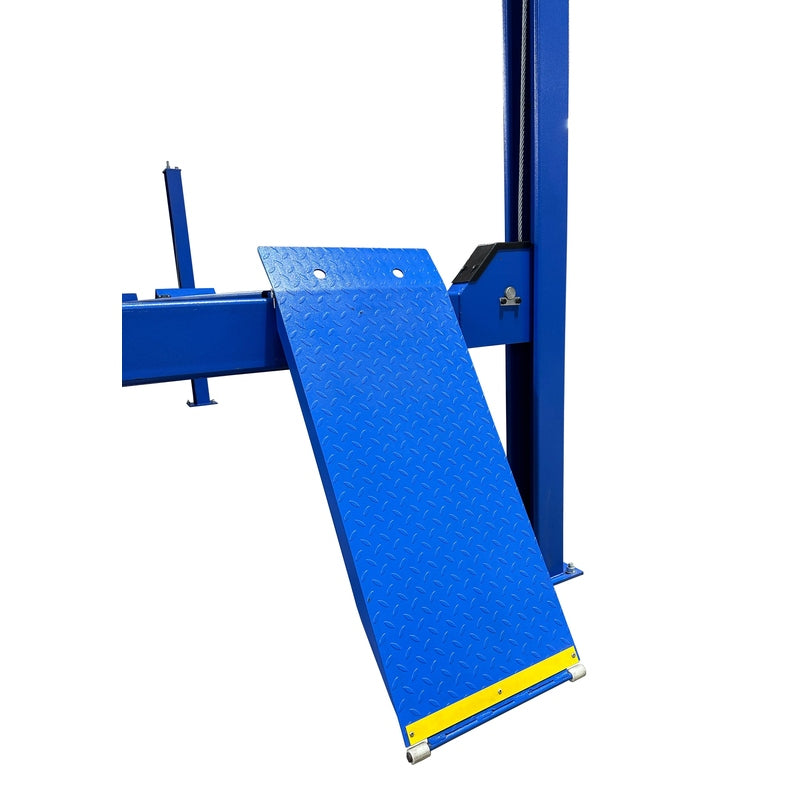

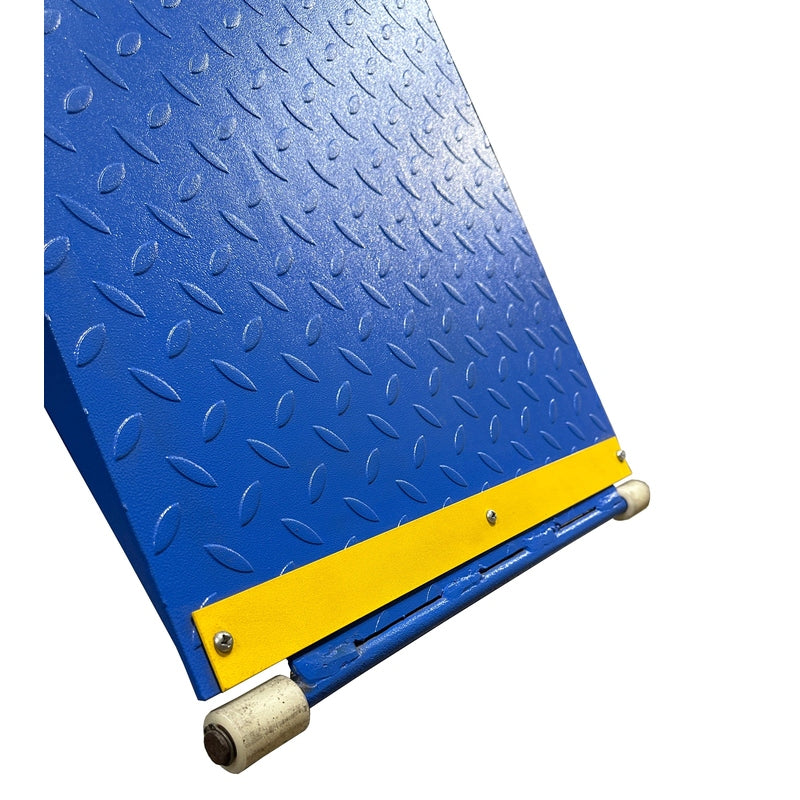

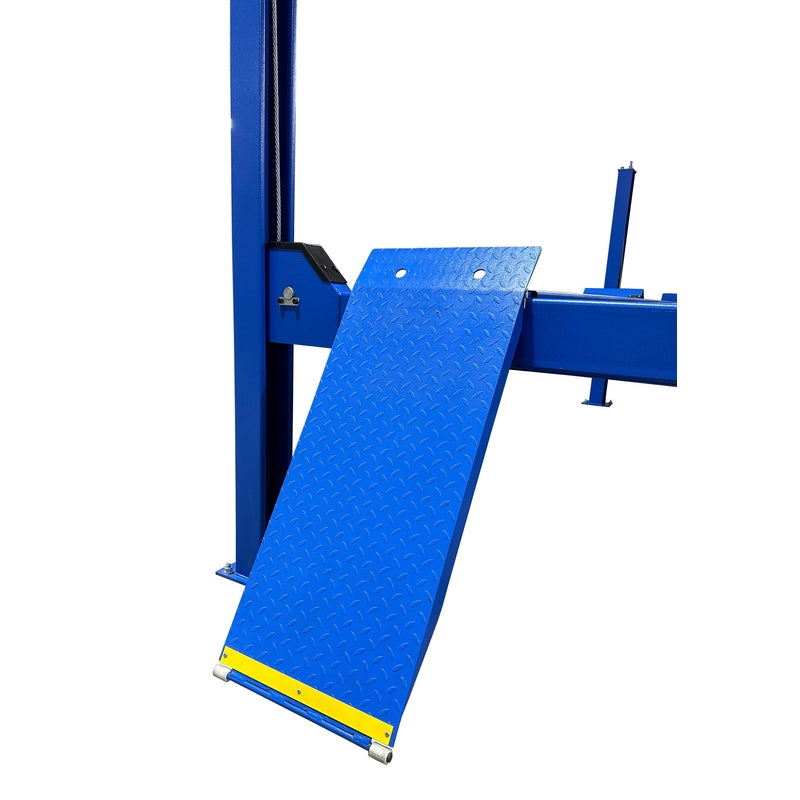

- SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS

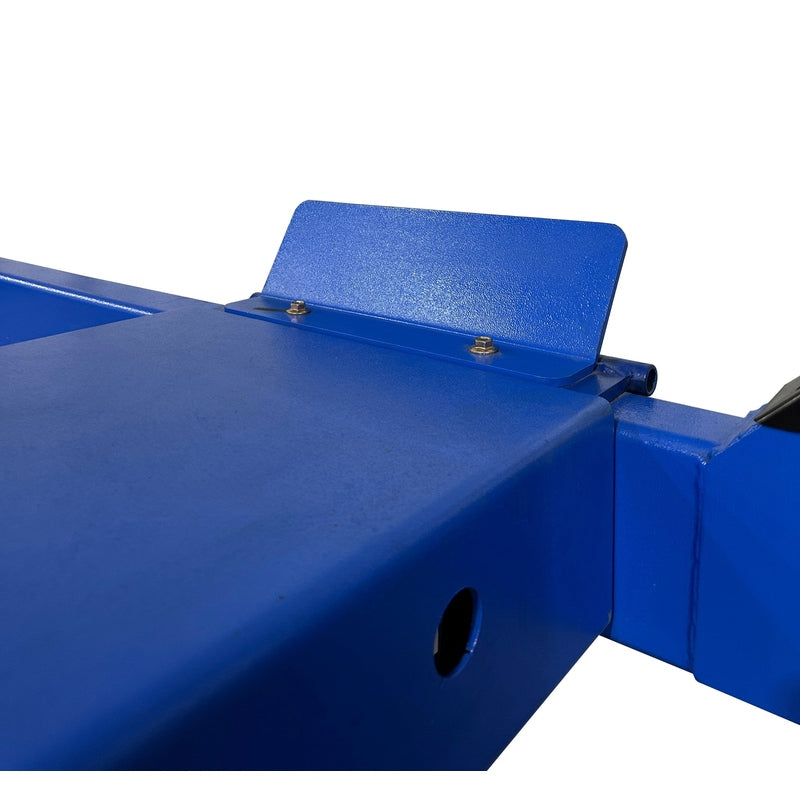

- WHEEL CHOCKS (1PR)
- DURABLE POWDER COAT FINISH
Specifications
| Lift model | FP14KAC-X |
| Capacity | 14000 lbs |
| Overall length w/ Ramp | 252-1/2″ |
| Overall width (without power unit) | 131-7/8″ |
| Overall width (with power unit) | 142″ |
| Overall height | 92-1/2″ |
| Max rise height | 79-1/2″ |
| Min height | 9-7/8″ |
| Width between posts | 116-1/4″ |
| Length between posts | 196″ |
| Width between runways | 43″ or 46″ |
| Width of runways | 20″ |
| Max wheelbase | 182-1/2″ |
| Max. align wheelbase (2 wheel) | 166-3/4″ |
| Min / Max. Align wheelbase (4 wheel) | 103″ / 157″ |
| Ramp length | 44″ |
| Max. Clearance under runway | 69-5/8″ |
| Drive-thru clearance | 100″ |
| Base plate | 10-1/2″ x 9″ |
| Power requirement | 220V – 20 Amp 1 PH |
| Ship weight | 3810 lbs |
| Min bay size | 16 x 25 |
Manual
The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Service Lift Manual
