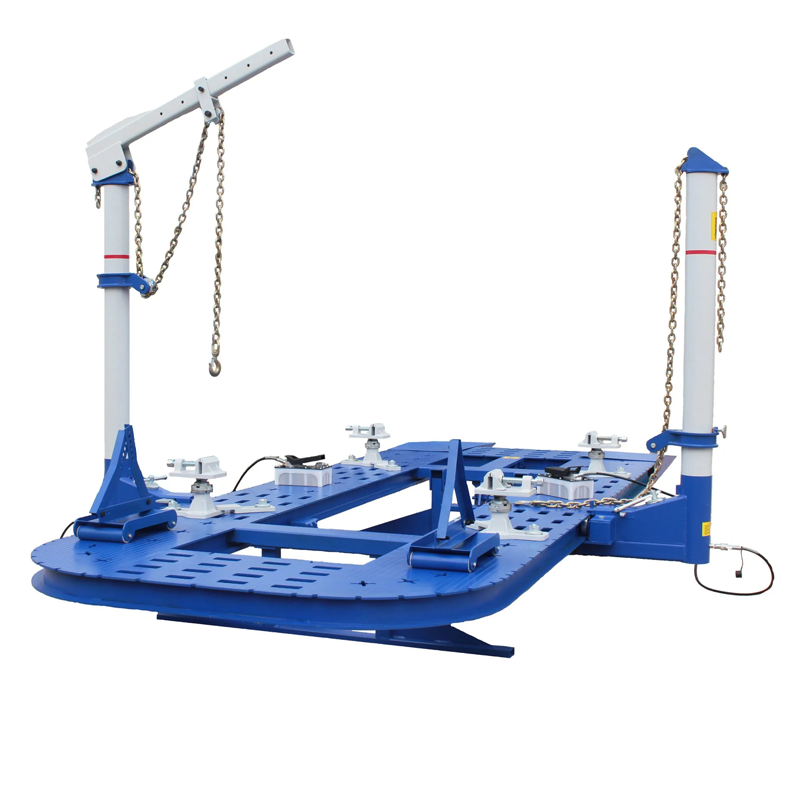

FR-77T-18 Frame Rack by iDeal
Are you struggling to handle larger vehicles or complex frame straightening jobs? The FR-77T-18 Tubular Deck Frame Rack Machine is the solution you’ve been waiting for. This robust machine features an 18-foot tubular deck that’s 82.6 inches wide, providing ample space for even the largest vehicles. With a lifting capacity of 7,700 lbs and two 10-ton pulling towers, it’s built to handle the most demanding repair tasks. The 10,000 PSI hydraulic pressure ensures you have the power when you need it most.
The iDeal FR-77T-18 is engineered for precision and efficiency. The tilt deck operation and drive-on ramps make vehicle positioning effortless. The universal anchoring system and adjustable tower collars adapt to any model. Quick disconnect hydraulic fittings and two 10-foot pulling chains make a more manageable workflow. The FR-77T-18, with its durable powder coat finish and optional accessories like the Professional Measure Kit and Air Bag Jack, is ready to transform your repair process, should you want it. And you should.
Frame Rack FR-77T-18 Specifications:
- Frame Rack Model: FR-77T-18
- Deck Design: Tubular
- Deck Length: 18′
- Deck Width: 82.6″
- Deck Height: 19.7″
- Pull Force Per Tower: 10 Ton
- Hydraulic Pressure: 10,000 PSI
- Required Air Pressure: 100 – 120 PSI
- Lifting Capacity: 7,700 lbs
- Power: NA
- Ship Weight: 4,189 lbs
- Options: FR-77-TBK25, FR77 Series Tool Board Kit, FR-PROMEASRKIT, Professional Measure Kit, FR-EWINCH, Electric Winch, FR-BAGJACK, Air Bag Jack
- Weight: 4000 lbs
- Pallet Dimensions: 84″L 240″W 35″H
FR-77T-18 Frame Rack Special Features:
- Durable, Heavy Duty steel deck Construction
- Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps
- Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
- Two – 10 Ton Pulling Towers with Telescoping Heads
- Adjustable Tower Collars
- Overhead Boom Pull Tower Extension
- Quick Disconnect Hydraulic Fittings
- Two – 10′ Pulling Chains with Hooks
- Two – High Quality Air/Hydraulic Pumps with Pressure Gauges
- Universal Wheel Stand And Dead Vehicle Dolly
- Powder Coat Finish
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
