iDeaL PSB-AFOFB1388-AK Open Front Paint Booth

PSB-AFOFB1388-AK Open Front Paint Booth by iDeal

No fancy intros: the iDeaL PSB-AFOFB1388-AK Open Front Paint commercial-grade booth boasts optimal airflow at 7,983 CFM and features a UL-listed Dayton 24″ tube-axial exhaust fan with spark-resistant blades, ensuring top-notch ventilation and safety. Experience unparalleled lighting with two LDPI industrial light fixtures, providing true ‘daylight color’ illumination. The heavy-duty 18 gauge panel construction and bright white powder coat finish guarantee durability and a clean workspace.

Upgrade your painting facility with the iDeaL PSB-AFOFB1388-AK. Compliant with OSHA and NFPA 33 regulations, it’s ready for immediate installation with all necessary hardware included. Order your solution for superior paint application in commercial settings.

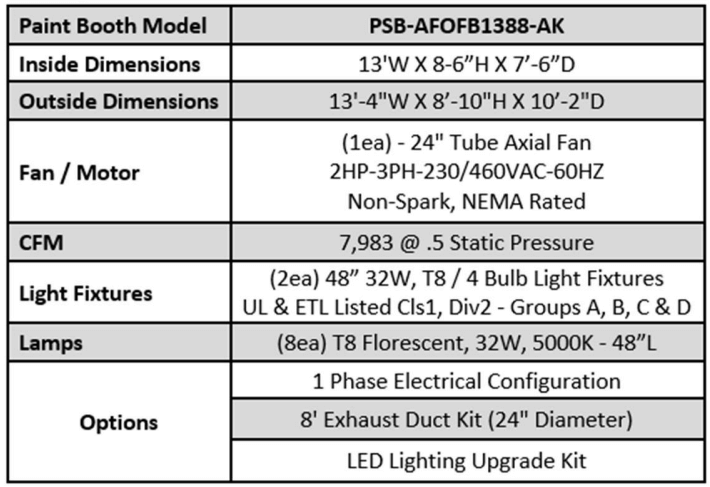

PSB-AFOFB1388-AK Open Front Paint Booth Specification

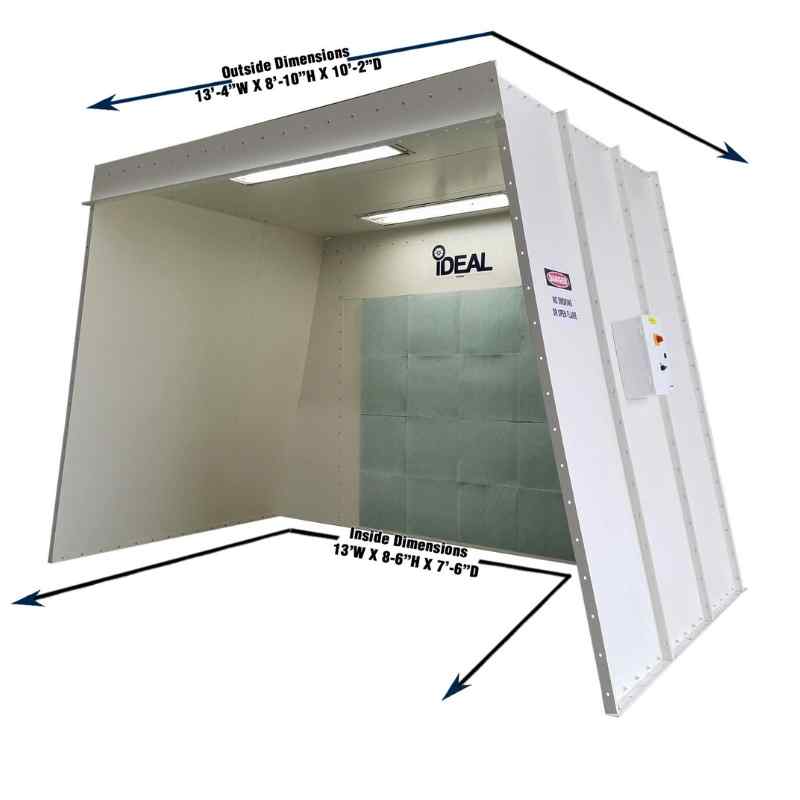

• Inside Dimensions: 13’ W x 8’ 6” H x 7’ 6” D
• Outside Dimensions: 13’ 4” W x 8’ 10” H x 10’ 2” D
• Fan / Motor:
  • (1ea) – 24″ Tube Axial Fan
  • 2HP-3PH-230/460VAC-60HZ
  • Non-Spark, NEMA Rated
• CFM: 7,983 @ .5 Static Pressure
• Light Fixtures:
  • (2ea) 48” 32W, T8 / 4 Bulb Light Fixtures
  • UL & ETL Listed Cls1, Div2 – Groups A, B, C & D
• Lamps:
  • (8ea) T8 Fluorescent, 32W, 5000K – 48” L
• Options:
  • 1 Phase Electrical Configuration
  • 8′ Exhaust Duct Kit (24″ Diameter)
  • LED Lighting Upgrade Kit
• Weight: 1358 lbs
• Pallet Dimensions: 121″L 54″W 38″H

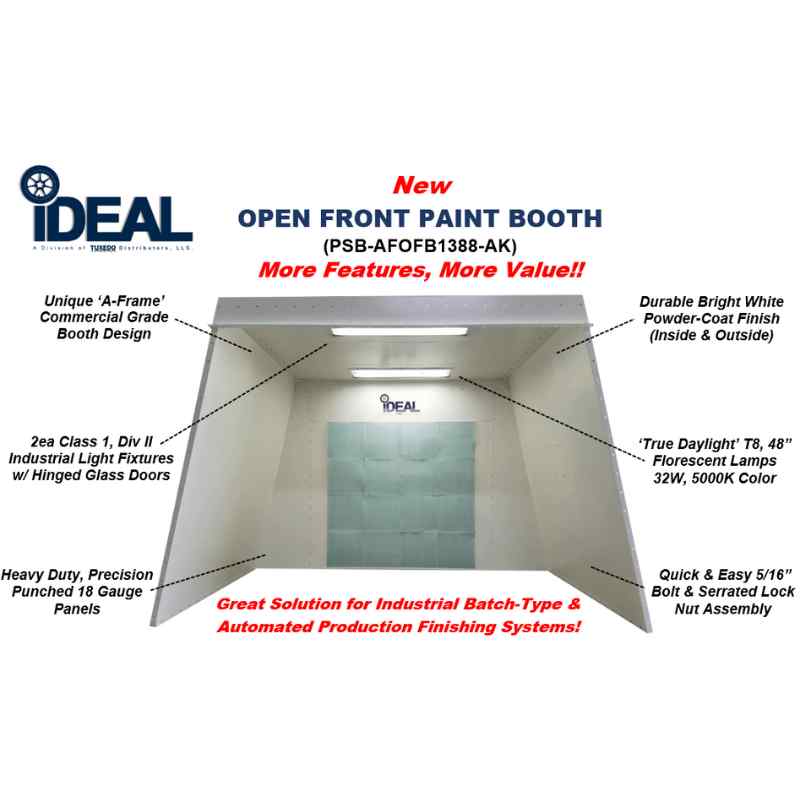

Open Front Paint Booth PSB-AFOFB1388-AK Special Features

• Typically ships within 48 hours!
• Commercial grade design for optimal air flow & lighting coverage
• Deluxe control panel included
• Bright white powder coat panel finish (inside & outside)
• Heavy duty precision punched 18 gauge panel construction
• Convenient 5/16” bolt & serrated lock nut assembly
• UL listed Dayton 24” tube-axial exhaust fan with spark resistant fan blades
• NEMA rated 2HP-3 phase – 230/460VAC-60HZ motor standard
• Premium AFC exhaust filters
• LDPI industrial light fixtures with inside access hinged glass door
• (2ea) LDPI industrial (Cls1 / Div 2) light fixtures – UL & ETL (Groups A, B, C & D)
• True ‘daylight color’ with GE T8 48” fluorescent lamps 32W – 2900 lumens, 5000K
• Optimal air flow with CFM 7,983 @ .5 static pressure
• Inside dimensions: 13′ W x 8′ H x 7.6′ D
• All assembly hardware, manometer & sealant included
• Meets and/or exceeds all applicable OSHA & NFPA 33 regulations
• Easy to install, operate & maintain
• Optional: 1PH electrical & PSB-25DUCTKIT-8 kit assembly

iDeal PSB-AFOFB1388-AK Documentation

   iDeaL PSB-AFOFB1388-AK Paint Booth Product Manual
