Katool KT-AV9 Wheel Alignment Machine

KT-AV9 Wheel Alignment Machine by Katool

Premature tire wear and lousy gas mileage – these are the telltale signs of a misaligned car. Ignoring the problem is like throwing money out the window (literally, in the form of shredded rubber!). Don’t be fooled by those back-alley alignment specials. Their “eyeball” techniques might leave your car worse off than before. You deserve precision, not guesswork!

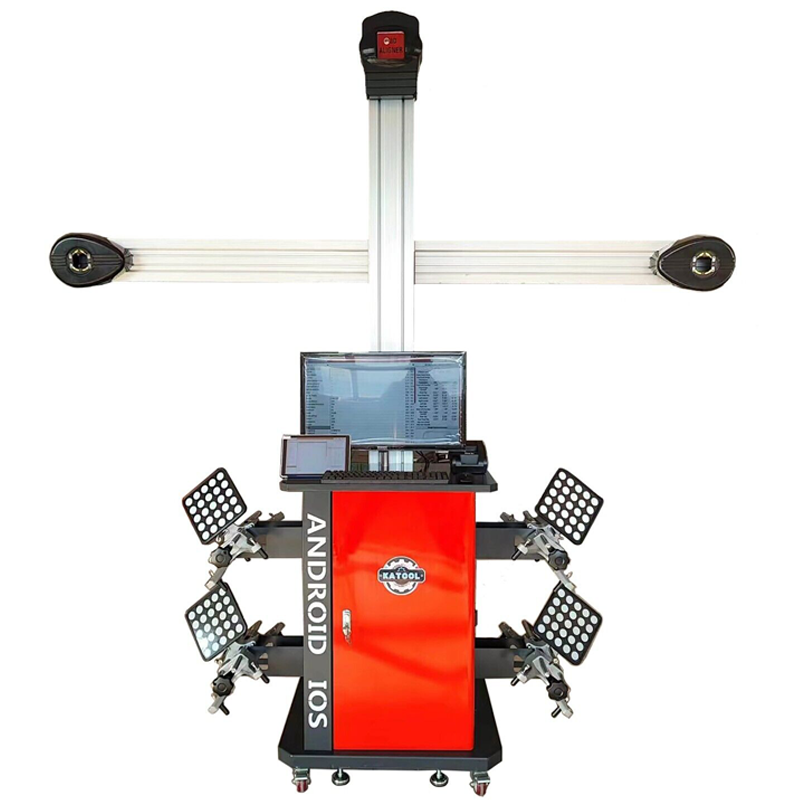

Introducing the Katool KT-AV9 Wheel Alignment Machine, the ultimate weapon against misalignment woes. This advanced system boasts crystal-clear dual cameras and a processing speed that would make any pit crew member drool. It even adapts to different lighting conditions, ensuring perfect results even in a dimly lit garage. Forget wasting time with complicated calibration. The KT-AV9 is pretty much plug-and-play, ready to work right out of the box. Plus, its unlimited memory and self-diagnostic features make setup and troubleshooting a breeze. Stop your customers from throwing money away on misaligned tires. Invest in the KT-AV9 and experience the difference!

Wheel Alignment KT-AV9 Specifications:

• Power Supply: 100-240V,50/60 HZ,1 Ph
• Working Temperature: 41F…104 F(+5℃…+40℃)
• Cameras (Total): 2
• Tire Diameter: 9 27/32-31 1/2 in(250-800 mm)
• Wheellbase: 62 63/64 -82 43/64 in(1.6-2.1m)
• Track Width: 70 55/64-177 11/64 in(1.8 -4.5 m)
• Warranty: 1-Year Limited
• Product Weight: 440.92 Ibs(200 kg)
• Shipping Weight: 529.11 Ibs(240 kg)
• Shipping Dimensions: 39.76×36.61×48.47 in(1010x930x1230mm) 110.24×15.75×15.75in(2800x400x400mm)

KT-AV9 From Katool Special Features:

• Mobile 3D Wheel Aligner for Lift Application
• Unlimited memory for vehicle specifications
• No calibration during installation
• Includes tablet and a 30inch display screen, mouse and keypad, and a printer
• Complementary wifi device and USB drive
• Uses Android and IOS systems for the software, minimizes the need for software and system maintenance
• Synchronous Display on Smart Phone and Pad
• The client can read the alignment operation on the smart device during the service
• During rear wheel adjustment, the engineer can check data change on a smartphone easily
• The post moves with a remote control, which makes it easy to track the height of the vehicles.
• Free database upgrades yearly
• The database keeps up with the most recent car models from all US, European and Asian brands.

Katool KT-AV9 Documentation:

 Katool KT-AV9 Wheel Alignment Product Manual
