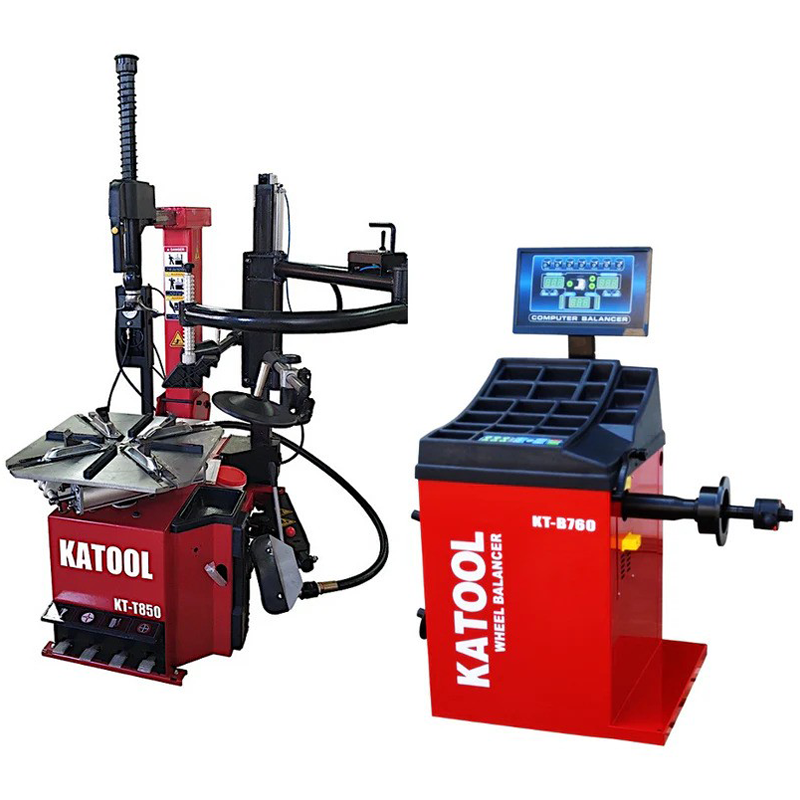

Katool KT-T850 Tire Changer with Wheel Balancer KT-B760 Combo

T850 Tire Changer and B760 Wheel Balancer by Katool

Improve your tire service with the dynamic duo of the Katool KT-T850 Tire Changer and KT-B760 Wheel Balancer! The KT-T850 tackles wheels up to a whopping 47 inches in diameter and 15 inches wide, with its 2.0HP motor spinning at 6.8 RPM to make quick work of even the toughest tires. Its alloy steel jaws and stainless steel mounting head treat your rims with kid gloves, while the bead blast seater and durable bead breaker cylinder flex their muscles to handle any job.

Partner it with the KT-B760 Wheel Balancer, and you’ve got a match made in automotive heaven. This precision powerhouse balances wheels up to 30 inches in diameter with ±1g accuracy in just 7 seconds flat. Built like a tank with 3mm-thick steel construction, it’s as tough as it is smart – featuring self-calibration, fault diagnosis, and multiple balance modes. Don’t wait! Upgrade your shop today.

Tire Changer T850 Specifications:

• Max Wheel Diameter: 47″
• Max Wheel Width: 15″
• Outside Clamp: 14″-26″
• Inside Clamp: 16″-28″
• Power Supply: 110V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed: 6.8r/min
• Air Pressure: 0.8-1.0Mpa(116-145psi)
• Net weight: 340KG / 750lbs

Wheel Balancer B760 Specifications:

• Rim Diameter: <30"
• Wheel Width: 3″-12″
• Wheel Diameter: <880mm/34.64"
• Balancing Speed: 180rpm
• Power Supply: 110V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Dia.: <135mm/5.31"
• Wheel Weight: 143lbs
• Balancing Accuracy: ±1g
• Measuring Time: 7S

KT-T850 from Katool Special Features:

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
• The high-quality spade cover effectively prevents the rim from being damaged
• Pull type pedal control system, easy for tire changing and maintenance
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
• Equipped with assist arms
• Bead blast seater
• 200mm aluminum bead breaker cylinder

KT-B760 from Katool Special Features:

• Automatic measurement ruler for auto input A and D values
• The body uses 3mm-thick steel with high strength, solid welding and low vibration
• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
• The 36mm shaft thread is made by quenching treatment to offer high strength
• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
• Various balance mode for different types of rims to provide more precision
• Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
• Unit selection (Ounce/Gram, MM/Inch)
• High quality integration power board, working stable and reliable
• Optional wheel guard
• Longer shaft, also compatible with wider wheels
• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

Katool B760 Documentation:

   Katool B760 Wheel Balancer Product Manual

KT-T850 Tire Changer and KT-B760 Wheel Balancer – Sold Separately

• Katool KT-T850
• Katool KT-B760
