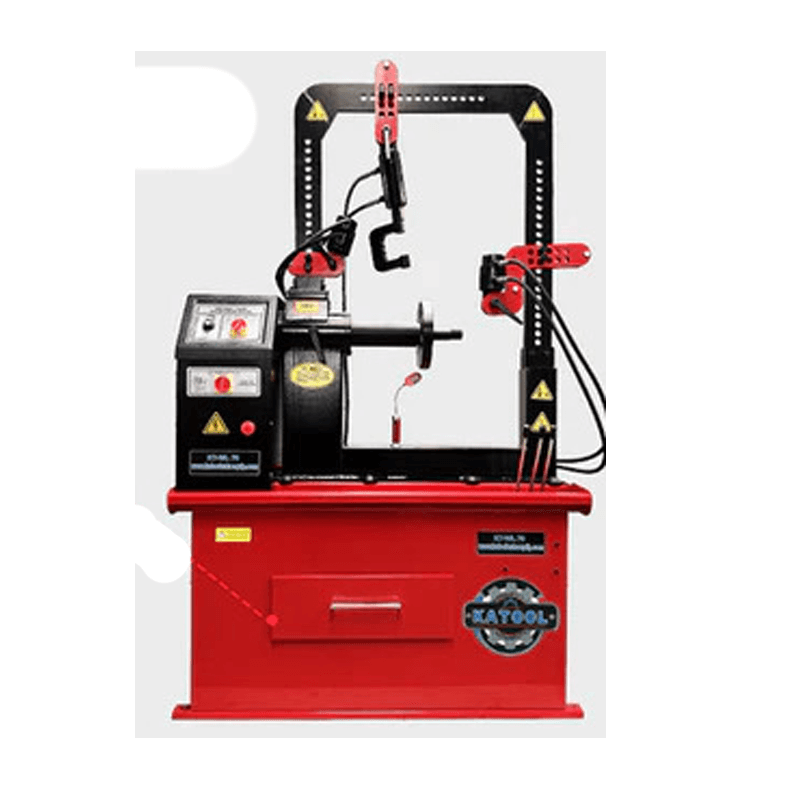

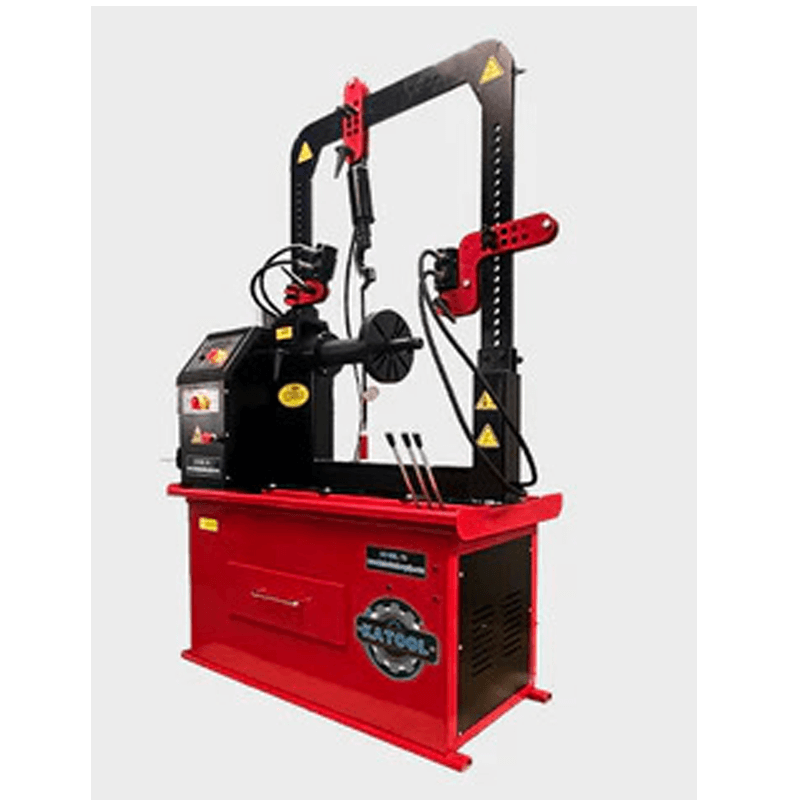

Katool KT-WL70 Rim Straightening Machine

Description

The Katool KT-WL70 Rim Straightening Machine is a professional-grade solution designed to restore bent or damaged wheels to their original shape with precision and efficiency. Ideal for automotive workshops and wheel repair specialists, this machine accommodates a wide range of wheel sizes and ensures high-quality results.

Features

• Versatile Wheel Compatibility: Handles rims with a working limit diameter of up to 26 inches, a maximum wheel diameter of 30 inches, and a maximum wheel width of 21.6 inches, making it suitable for various vehicle types.

• Powerful Performance: Equipped with a 15KW motor and operating at a working pressure of 15MPA, the KT-WL70 delivers robust performance for efficient wheel straightening.

• Durable Construction: Weighing 573.2 lbs (260 kg), this machine is built with high-quality materials to ensure longevity and reliable operation under frequent use.

• Quiet Operation: Designed to operate at noise levels below 79 dB, providing a comfortable working environment.

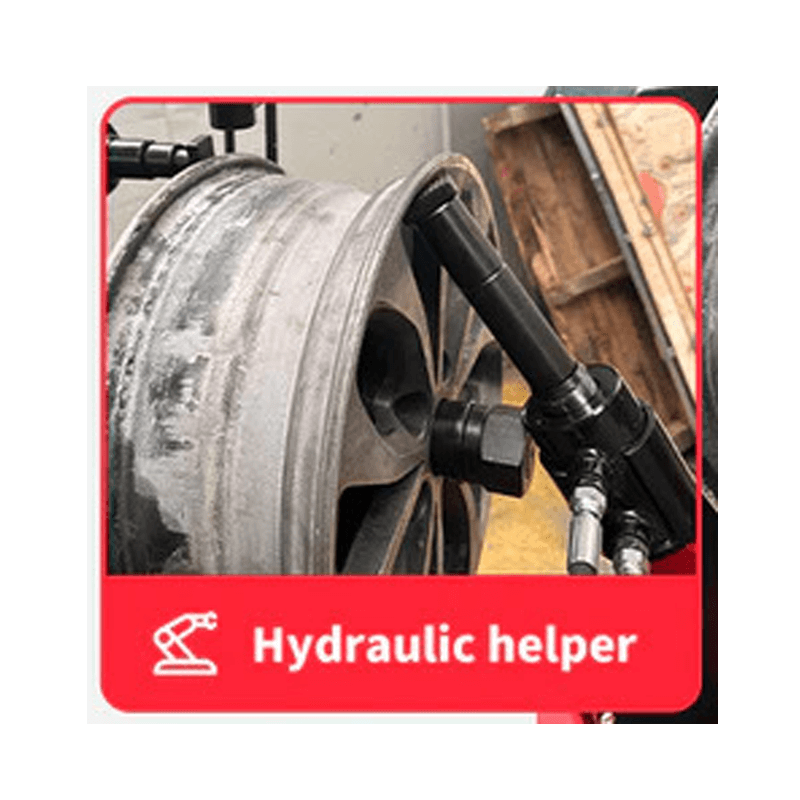

• Hydraulic Drive System: Features an automatic hydraulic drive for smooth and controlled operation during the straightening process.

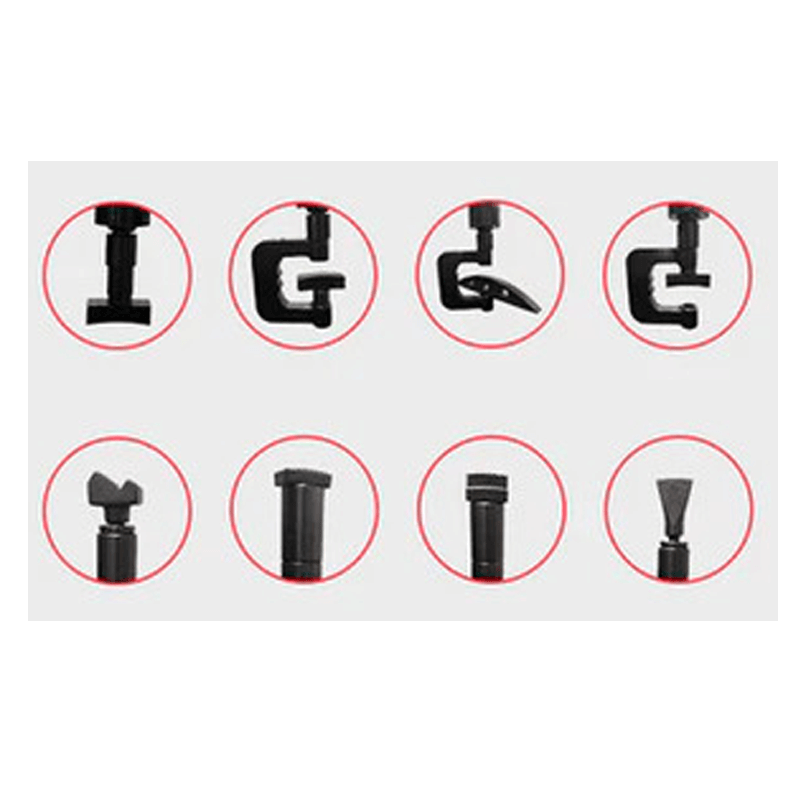

• User-Friendly Design: Incorporates easy controls and adjustable assist arms and fixtures, allowing for quick and precise adjustments, enhancing overall usability.

Specifications

• Working Limit Diameter: 26″
• Max Wheel Diameter:  30″
• Max Wheel Width: 21.6″
• Work Pressure: 15MPA
• Power: 15KW
• Power Supply: 220V/380V
• Weight: 260KG/573.2LBS
• Noises: <79DB
• Package Size: 40″x19.5″ x 55″
• Oil: AW-46 or AW-32 (colder climates)

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
– Cylinders, power units, motors, displays, electronics, etc.
– Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
– Claims must fall within the warranty period.
– Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
– Replacement parts will be provided at no cost, including free shipping.

Note:
– All warranty claims are subject to approval by the warranty/service department.
– Photos and/or videos of defects may be requested.
– Do not disassemble any equipment before the issue is determined.
– Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
– Labor is not included in the warranty.
