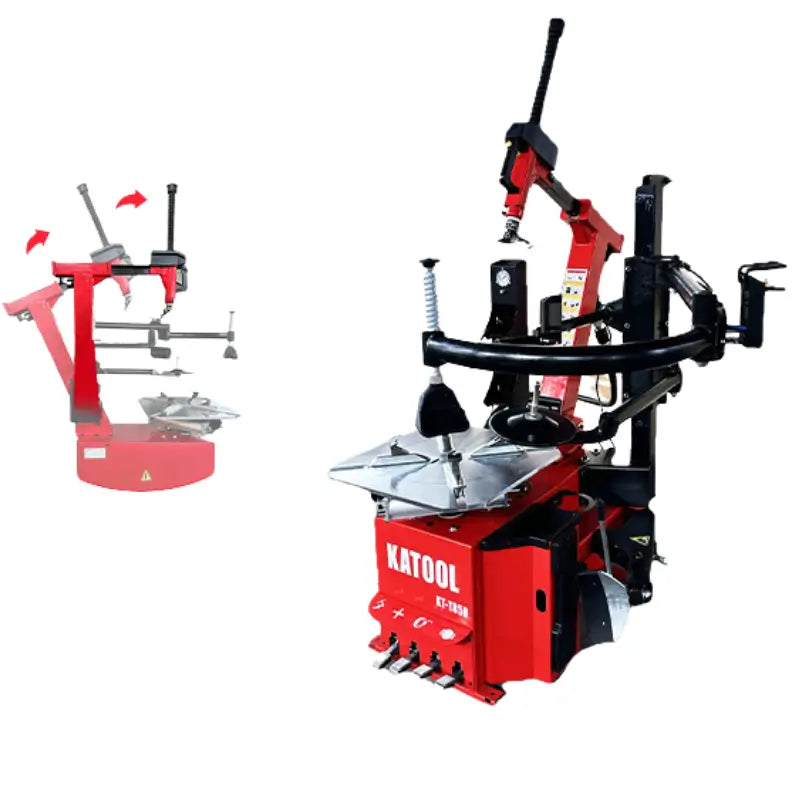

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

T850 Tire Changer by Katool

Built for a wide range of tires, the Katool KT-T850 Tilt-Arm Tire Changer handles diameters up to 47 inches and widths of 15 inches. Its expansive clamping system tackles both outside (14″-26″) and inside (16″-28″) rims, ensuring compatibility with various vehicles. The powerful 2.0HP motor and swift rotation speed of 6.8 rpm guarantee efficient tire changes, while the 0.8-1.0Mpa air pressure range optimizes performance. Weighing a substantial 750lbs, this machine provides unwavering stability – perfect for busy shops demanding reliability and speed.

Packed with user-friendly features, the KT-T850 prioritizes both efficiency and safety. The durable alloy steel jaw and stainless steel mounting head protect rims from damage, while the robust motor ensures long-lasting performance. A user-friendly pedal control system simplifies operation, and the reliable lubricator minimizes maintenance hassles. It boasts exceptional power and efficiency. For comprehensive tire service, the machine comes equipped with assist arms, a bead blast seater, and a durable bead breaker cylinder.

Tire Changer T850 Specifications:

• Max Wheel Diameter: 47″
• Max Wheel Width: 15″
• Outside Clamp: 14″-26″
• Inside Clamp: 16″-28″
• Power Supply: 110V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed: 6.8r/min
• Air Pressure: 0.8-1.0Mpa(116-145psi)
• Net weight: 340KG / 750lbs

KT-T850 from Katool Special Features:

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
• The high-quality spade cover effectively prevents the rim from being damaged

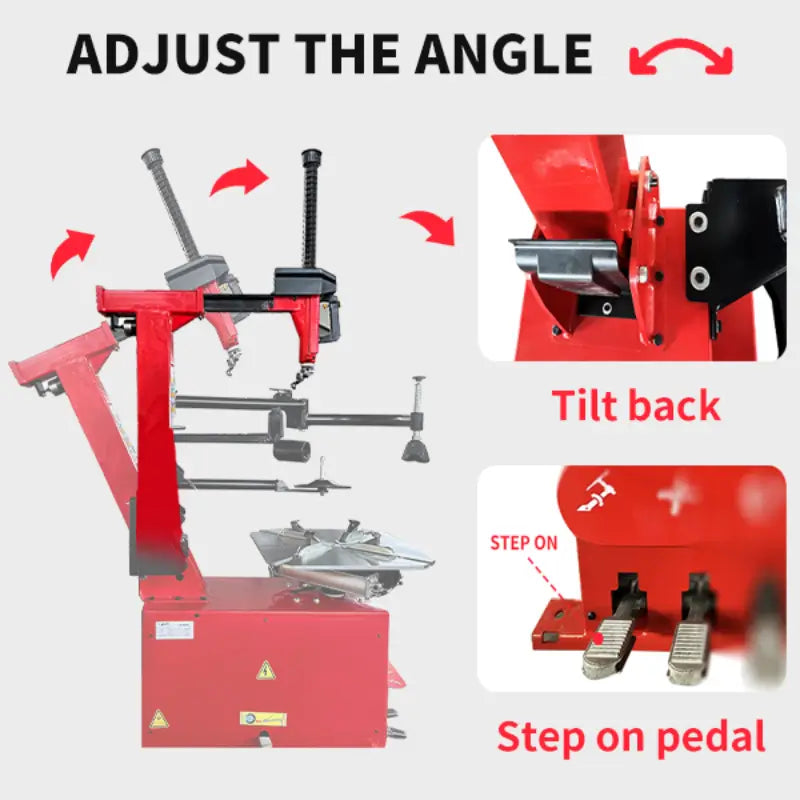

• Pull type pedal control system, easy for tire changing and maintenance
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

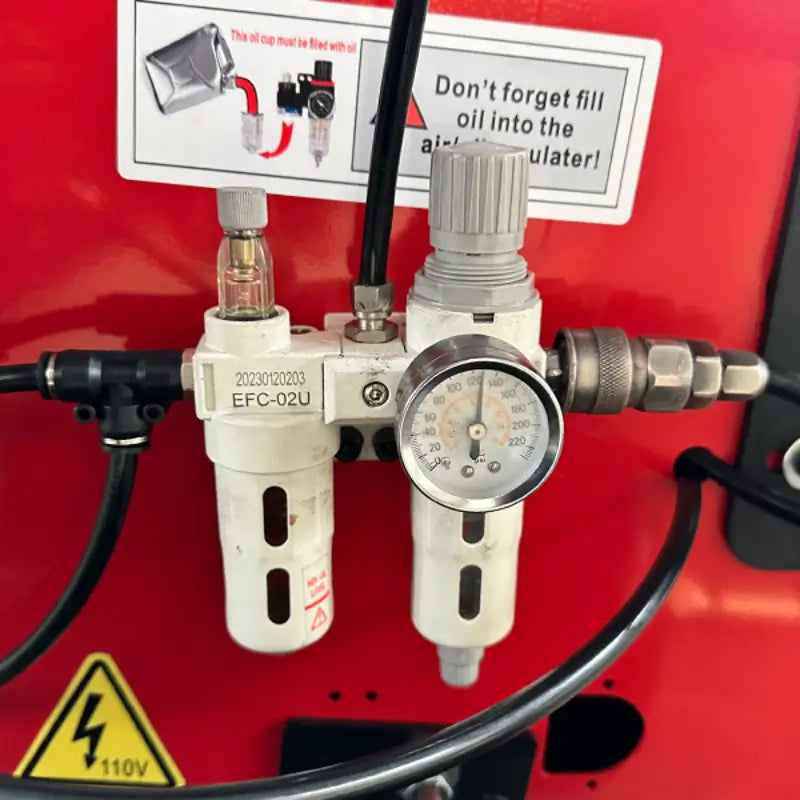

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

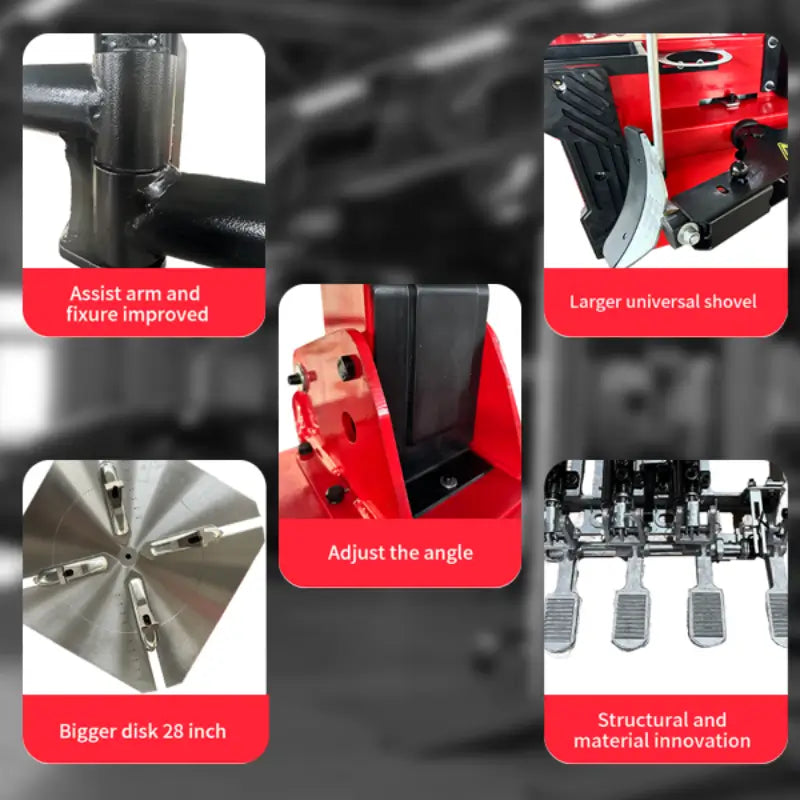

• Equipped with assist arms

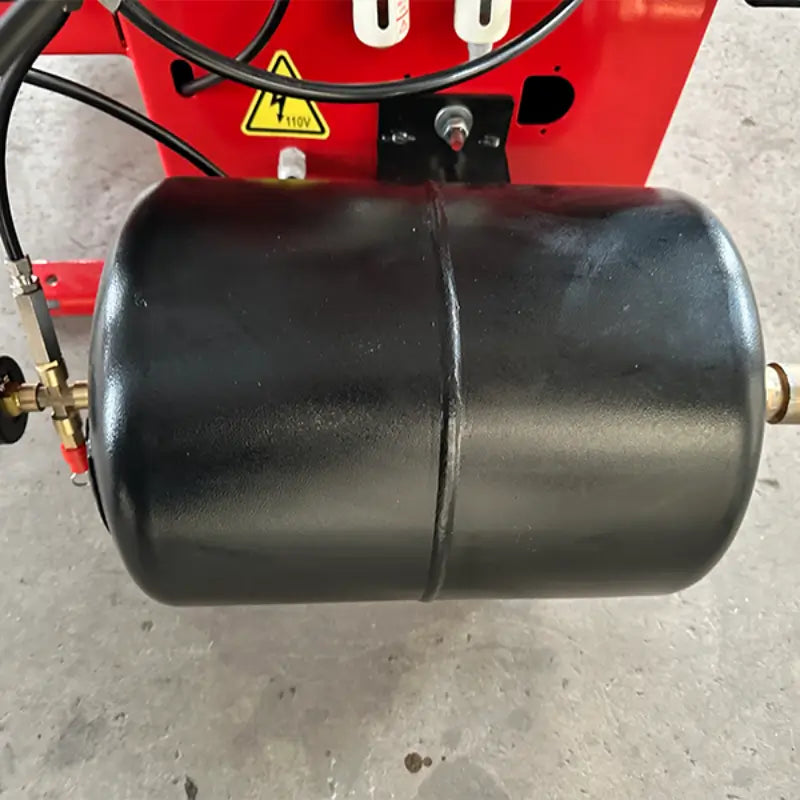

• Bead blast seater
• 200mm aluminum bead breaker cylinder
• Katool Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
• Purchase as a combo with KT-B700 Combo.
• Buy as a Combo KT-4H150 + KT-T850 and KT-B750
• Buy as a Combo KT-4H110 + KT-T850 and KT-B750
• Buy as a Combo KT-4H850 + KT-T850 and KT-B750
• Buy as a Combo KT-AS110D + KT-T850 and KT-B750
• Buy as a Combo KT-M110 + KT-T850 and KT-B750
• Buy as a combo KT-M120 + KT-T850 and KT-B750

T850 Tire Changer Optional Items (sold separately):

• Wheel Balancer KT-B700
• MC1 – Motor Cycle Adapter
• Katool KT-4H110, 4 Post Parking Lift
• Katool KT-B750 Wheel Balancer
• Katool KT-4H850, 4 Post Parking Lift
• Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer
• Katool KT-AS110D, 11,000 lb 2 Post Lift
