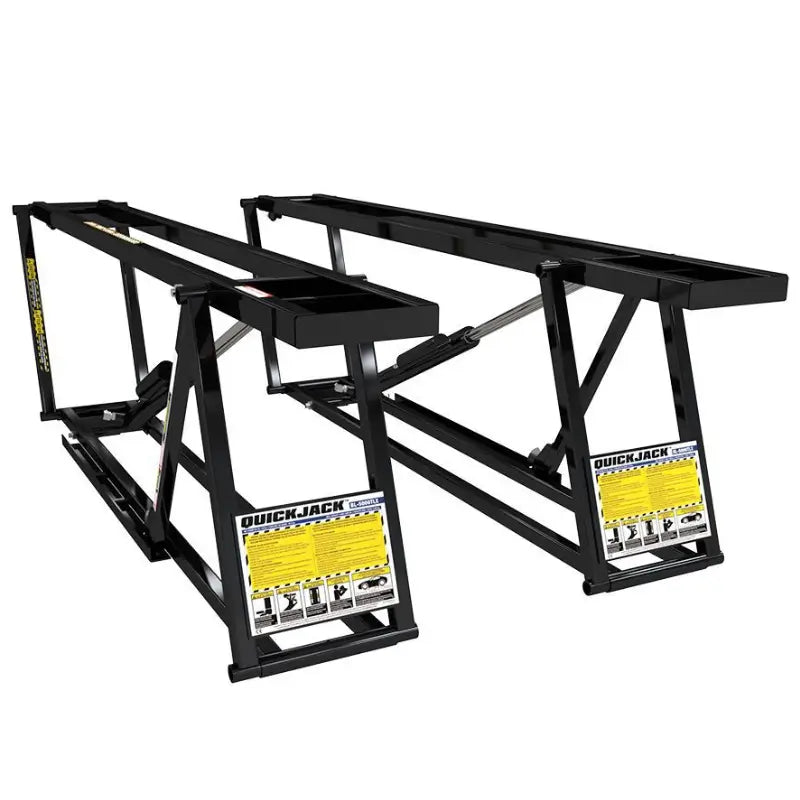

5000TLX 5,000lb Low Rise Scissor Lift by QuickJack

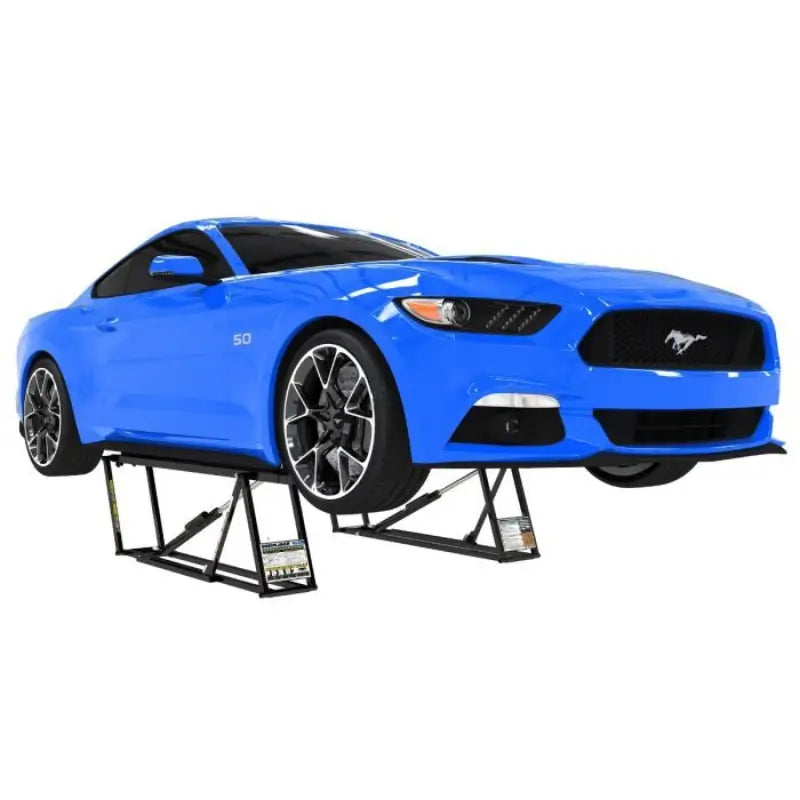

Ready to make lifting longer vehicles a breeze? Meet the QuickJack 5000TLX, your ultimate partner for conquering unwieldy lift points. Packing a 5,000-lb. capacity and a stretched 76-inch frame, this lift gives you six extra inches of reach to tackle vehicles other lifts can only dream of. Trucks? SUVs? Bring them on. With a sleek 3-inch lowered height and up to 26.75 inches of lift (with adapters), you’ve got space for all the tinkering your heart desires. And did we mention it’s fast? In half a minute, you’re locked, loaded, and ready for action.
The 5000TLX comes packed with QuickJack’s signature convenience, from its auto-locking safety bars to its adaptable power options (110V or 208-240V). Lightweight and portable, yet rugged enough to handle the big stuff, it’s got everything you need, including lift blocks and a hydraulic power unit. Say goodbye to awkward lifts and hello to precision, power, and pure lifting joy.

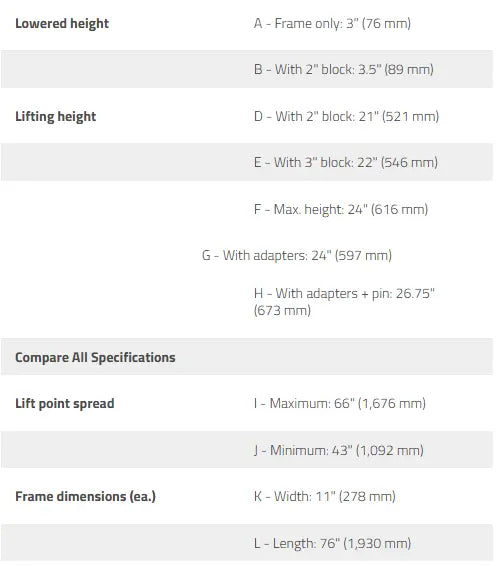

Scissor Lift 5000TLX Specifications
- Lifting Capacity: 5,000 lbs. (2,268 kg)
- Lowered Height: 3″ (Frame only); 3.5″ with 2″ block
- Maximum Lifting Height: 24″ with blocks; 26.75″ with adapters and pins
- Lift Point Spread: 43″ – 66″ adjustable
- Frame Dimensions: 11″ width x 76″ length x 3″ height
- Frame Weight: 81.5 lbs.; Power unit weight: 15 lbs.
- Time to Full Rise: 30 seconds
- Shipping Weight: 250 lbs.
- Power Unit Options: 110V AC or 208-240V AC
5000TL 5,000lb Low Rise Scissor Lift Special Features
- 5,000-lb. lifting capacity for vehicles with longer wheelbases.
- Extended frame length of 76 inches for additional lift point reach.
- Maximum lift height of 24 inches for enhanced undercarriage access.
- Compact 3-inch lowered profile for low-clearance vehicles.
- Auto-locking safety bars and one-touch control operation.
- Accommodates lift point spreads between 43″ and 66″.
- Ideal for light-duty trucks, SUVs, and longer consumer vehicles.
- Portable design for home garages and commercial workshops.
- Includes rubber lift blocks, hydraulic power unit, and quick-connect fittings.
QuickJack 5000TLX Documentation
Warehouse Pickup Locations: No Pickup Discount Available – Contact us for more information!
- Santa Paula, CA 93060
- Theodore, AL 36582
