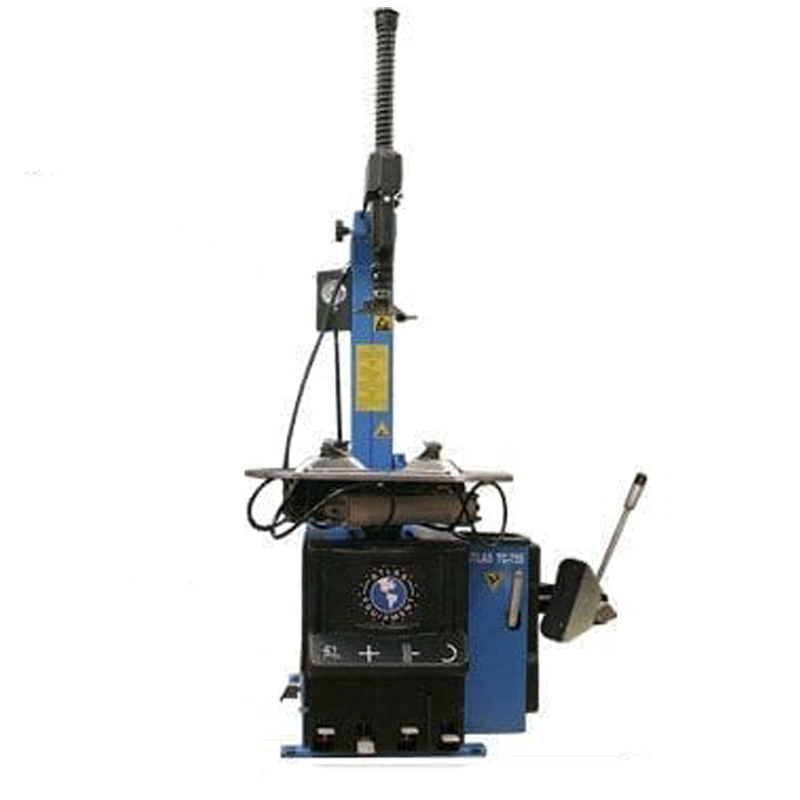

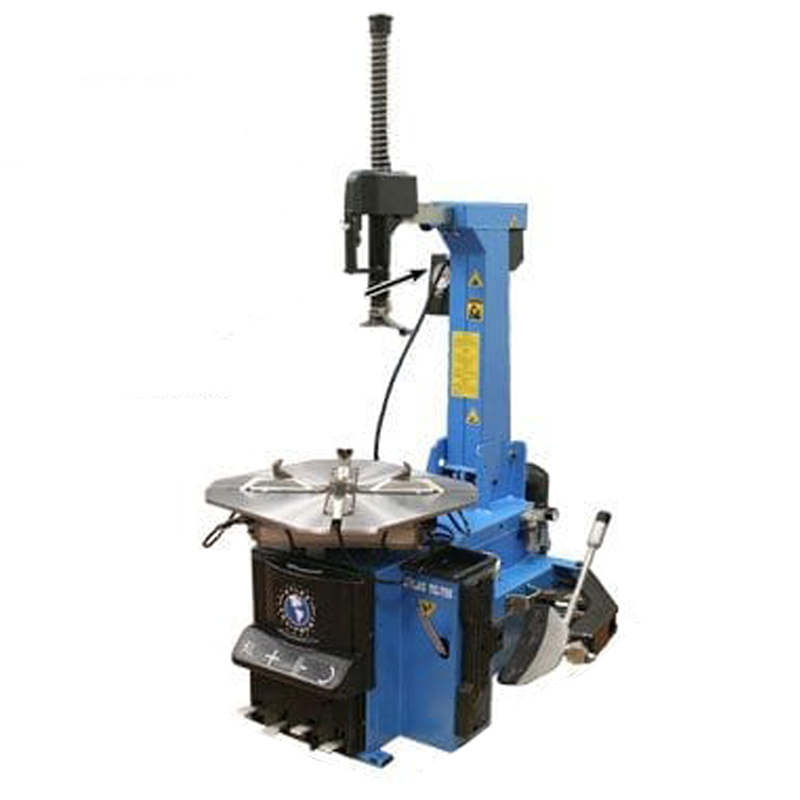

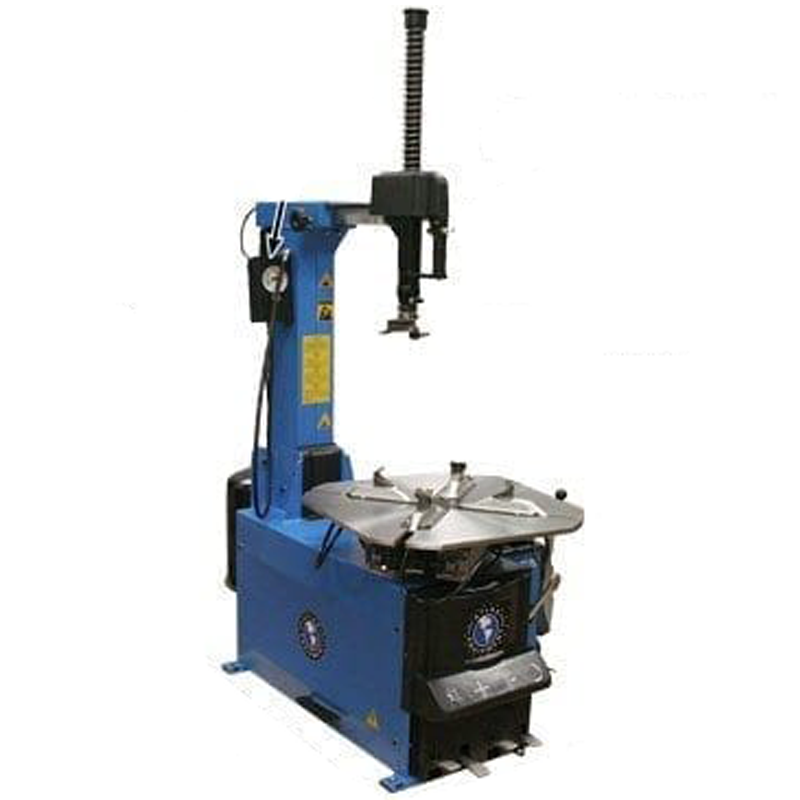

Atlas TC755 Tilt-Back Rim-Clamp Tire Changer w/ Beadblaster

TC755 Tire Changer by Atlas

Tired of tire changers that treat wheels like punching bags? The Atlas TC755 is here to end your tire-changing nightmares. Its tilt-back design and pneumatic locking mount/demount head mean you can say goodbye to accidental rim scratches and hello to smooth operations. This powerhouse handles rims up to 29 7/8″ and tires up to 47″ in diameter, with a skull-crushing 5,500 lb. bead breaking force. Its innovative tilt-back design and foot-operated column keep your workspace clear and rims safe.

Its built-in “Beadblaster” system tames even the stiffest sidewalls, while the button-controlled bead breaker gives you precision at your fingertips. With a 1 HP motor delivering 885 ft/lbs of turntable torque and three-position adjustable jaws, it’s ready for any wheel that rolls your way. The Atlas TC755 brings finesse to your tire service, boosting your efficiency and keeping any wheel unscathed.

Tire Changer TC755 Specification:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions): 1) 11 7/8″ – 26″ 2) 12 7/8″ – 27″ 3) 13 3/4″ – 28″
• Internal Locking Rim Dimension (3 Positions): 1) 13 7/8″ – 27 7/8″ 2) 14 5/8″ – 28 7/8″ 3) 15 5/8″ – 29 7/8″
• Maximum Tire Diameter: 47″
• Maximum Wheel Width (Bead Breaker): 18″
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 650 lbs.

TC755 Tire Changer Special Features:

• Tilt-Back Column Tire Changer
• Rim-Clamp Style
• Extra-Large turntable, more clearance
• Air operated jaws & bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws, three mounting positions
• Button-Controlled Bead Breaker (operated at blade)
• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included
• Filter/Regulator/Lubricator Included
• 20″ Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included
• Built in “Beadblaster”
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty
• Optional Item(Sold Separately)
  • 700 Series E-Z Assist Arm
  • Pneumatic Leverless Head Assembly
  • Quick Change Head Assembly

Atlas TC755 Documentation:

  Atlas TC755 Tire Changer Product Manual
