HD2P-9KMSC 9,000lb 2 Post Lift – Floor Plate by Titan
Craving that pro-garage vibe without leaving your home? The Titan HD2P-9KMSC 9,000lb 2-Post Lift with Floor Plate has got you covered. Designed for both seasoned mechanics and hardcore car enthusiasts, this beast offers a 9,000 lb lifting capacity and a max lift height of 81-3/4” with adapters, making it perfect for just about any vehicle. Got a low-clearance garage? No worries – the floor plate design ensures stability while keeping everything low and accessible. And thanks to its direct-drive hydraulic cylinders, you’ll experience smooth, reliable lifting every time.
What’s cool about this lift? It’s packed with handy extras like 3-stage front arms for better reach, threaded lifting pads for fine-tuning, and a single-point lock release for quick, easy operation. Safety isn’t an afterthought either – it comes with an overhead shut-off bar, carriage limit switch, and steel toe-guards to keep you and your ride safe. Plus, the durable textured powder-coated finish means it’ll look sharp and stay tough, even after years of use.
2 Post Lift HD2P-9KMSC Specifications
- Type: Floor Plate / Asymmetric
- Lifting Capacity: 9,000 lb
- Lifting Time: 50-60 seconds
- Overall Height: 140-1/2″ (Cylinders extend 7” through top plates at max height)
- Width Between Posts: 111-1/2″
- Drive-Thru Width: 100-3/4″
- Low Pad Height: 3-3/4″
- Lifting Height: 74-1/4” (81-3/4″ with truck adapters and threaded pad mounts)
- Power Unit: 220V / 1Ph / 60Hz
- Shipping Dimensions:
- Length: 142″
- Width: 22″
- Height: 42″
- Weight: 1,380 lb
HD2P-9KMSC 9,000lb 2 Post Lift Special Features
- Power on Green LED
- Single button operation
- Included Electrical disconnect
- Single lever lowering

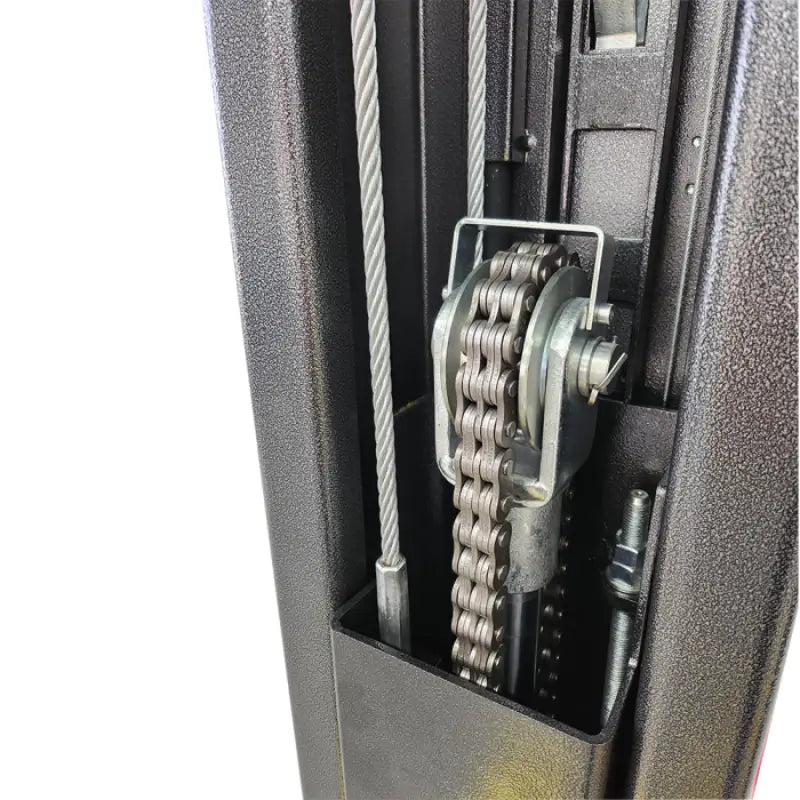

- Chain Over Roller Hydraulic Cylinders
- Serviceable Arm Restraint Locks
- Thread-up Lifting Pads
- Carriage Limit Switch
- 3-Stage Front Arms
- Single-Point Lock Release
- European Style Carriages

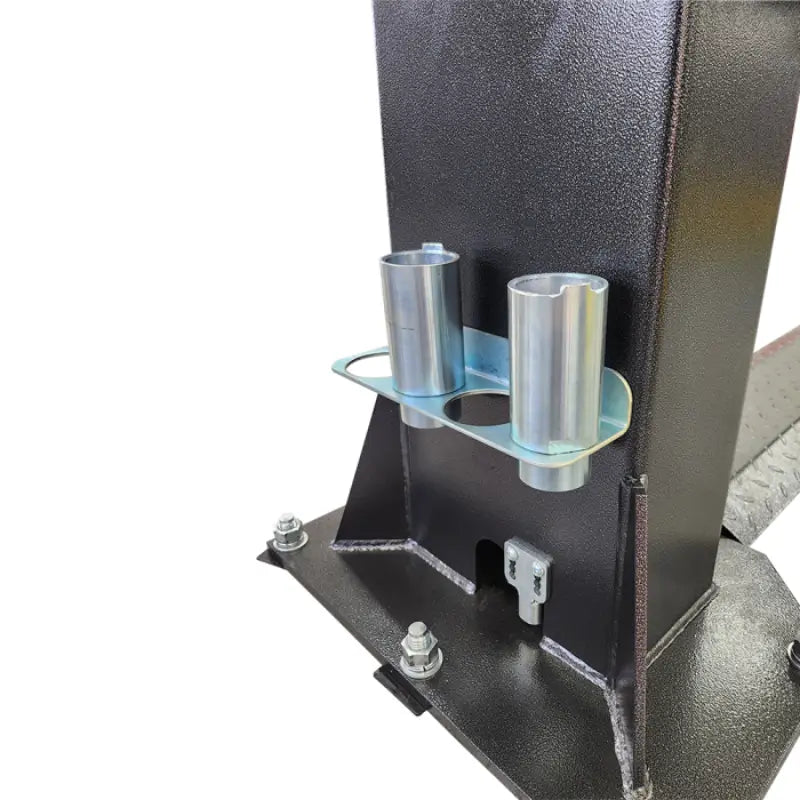

- 4” Truck Adapters
- Rubber Door Guards
- Steel Toe-guards
- Steel Hydraulic Oil Reservoir
- 5 Year Structural Warranty
- 2 Year Electric/Hydraulic Warranty
- Lifetime Warranty on Nylon Slide Blocks
- Durable Textured Powder-coated Finish
Titan HD2P-9KMSC Document
This Item has a FLAT RATE SHIPPING FEE: $599*
*Based on Nationwide Averages – Contact us to see if we can ship for less.
Warehouse Pickup locations (No shipping charge):
- Greenwood, IN 46143
