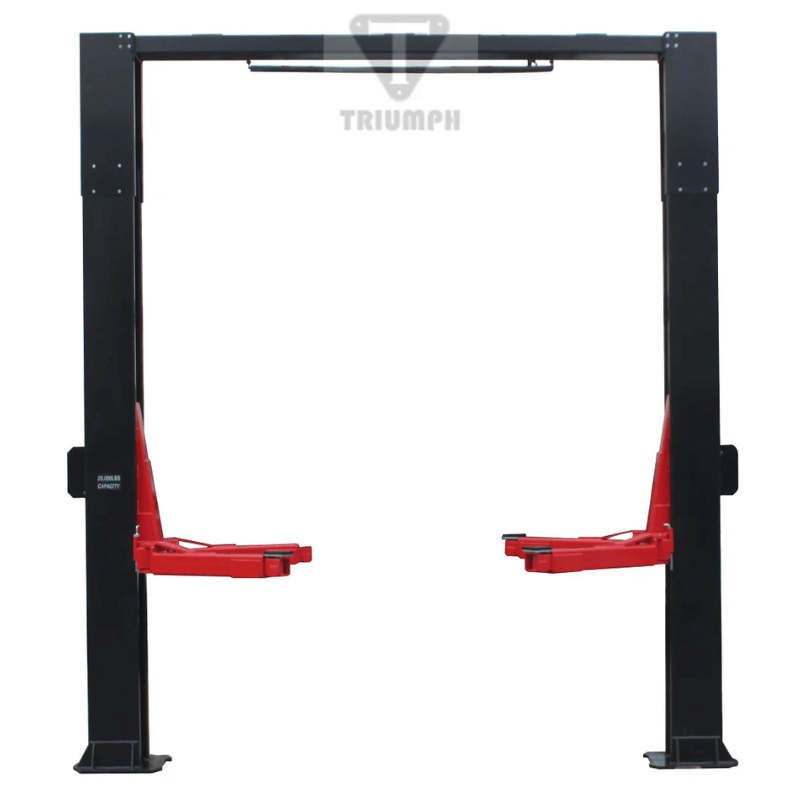

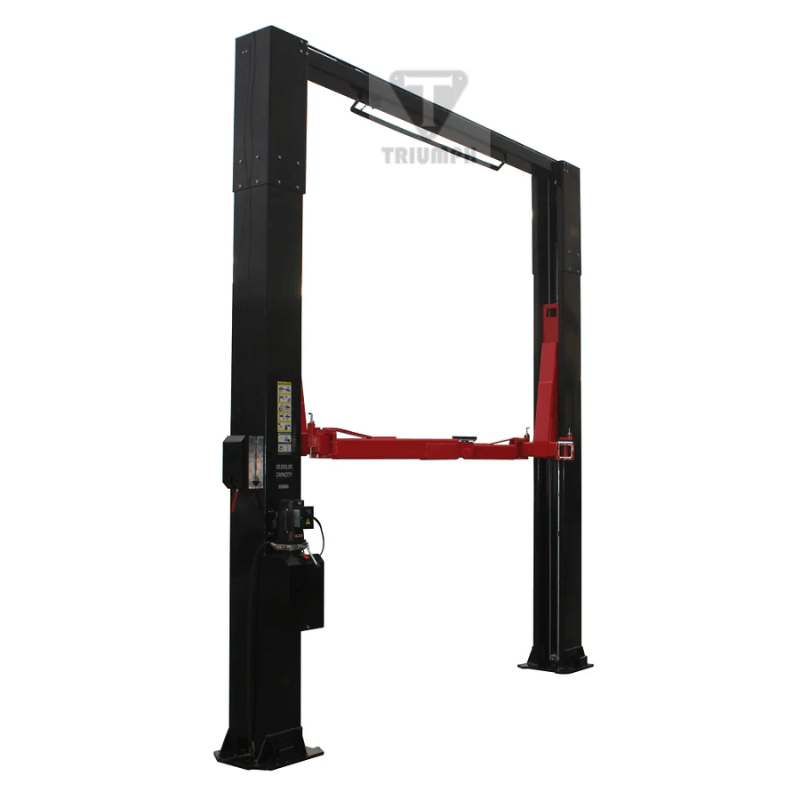

Triumph NTO-20S, 20,000 lb 2 Post Lift – Heavy Duty

NTO-20S 20,000 lb Two Post Auto Lift  by Triumph

Need a lift that doesn’t flinch at the sight of a massive truck? Meet the Triumph NTO-20S—your new heavyweight champion with a 20,000 lb lifting capacity! Don’t settle for anything less. Upgrade to the Triumph NTO-20S today and make your shop the envy of every other mechanic on the block. What? Why, you ask?

This isn’t just another lift—it’s a beast. With a towering height of 170.5″ and a higher-than-average 74″ lifting height, the NTO-20S isn’t afraid to reach new heights. It’s ISO 9001 and CE Certified, meaning it’s built like a vault and won’t let you down… literally. Imagine lifting a 20,000 lb truck like it’s a bag of groceries. The NTO-20S does just that, with its direct drive cylinders and an electrical override automatic safety shut-off that screams, “Safety first, but make it quick!” Add a 40-second lift time and a generous 113″ drive-through width, and you’ve got a lift that means business.

2 Post Auto Lift Triumph NTO-20S Specifications:

• Capacity: 20,000 lbs
• Overall Height: 170.5″
• Overall Width: 155″
• Lifting Height: 74″
• Distance Between Posts: 124″
• Drive Through Width: 113″
• Lowered Height: 6″
• Base Plate Size: 21″x20″
• Lift Time: 40 Seconds
• Voltage: 220 Volt
• Horsepower: 3 HP
• Concrete Requirement: 6″ Slab, 4,000 PSI
• Style: Overhead
• Lock Release: Single Point
• Electric Safety Cutoff: Yes
• Shipping Dimensions:
  • Weight: 2,700
  • 144″xL x 36″W x 48″H

NTO-20S 20,000 lb 2 Post Auto Lift Special Features:

• High-capacity lift with 20,000 lb capability
• Direct drive cylinders for smooth and reliable operation
• Electrical override automatic safety shut-off
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Included:
  • Mounting hardware
  • Truck adapters included
• Warranty:
  • One-year parts warranty and five-year structural warranty
• Quick 40-second lift time for efficient workflow
• Designed for installation on a 6″ concrete slab with 4,000 PSI strength

Triump NTO-20S Documentation:

   Triumph NTO-20S 2 Post Lift Installation Instruction

This Item has a FLAT RATE SHIPPING FEE: $799*

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.
