Triumph NTR-24 24,000lb 4 Post Car Lift

NTR-24 24,000 lb Four Post Auto Lift by Triumph

Need a lift that can handle the big boys? Meet the NTR-24, Triumph’s heavy-duty four-post powerlifter with an impressive 24,000 lb lifting capacity. Whether it’s a commercial truck, a bus, or a beastly fleet vehicle, this lift raises it all without breaking a sweat. With a maximum lifting height of 70.8 inches and 9 lock positions, you’ll have the perfect height and security for every job. The spacious runways, adjustable from 45.3 to 49.2 inches apart, ensure a snug fit for larger vehicles, making maintenance a breeze.

Built tough for demanding environments, the NTR-24 combines durability and efficiency in one sleek package. Its 220V single-phase electrical system powers smooth and reliable operation, while the 9-inch minimum runway height makes loading even the heaviest vehicles easy. Plus, with a total length of over 338 inches with ramps and a shipping weight of a whopping 6,614 lbs, this lift isn’t just sturdy—it’s a mammoth built for real-world heavy lifting.

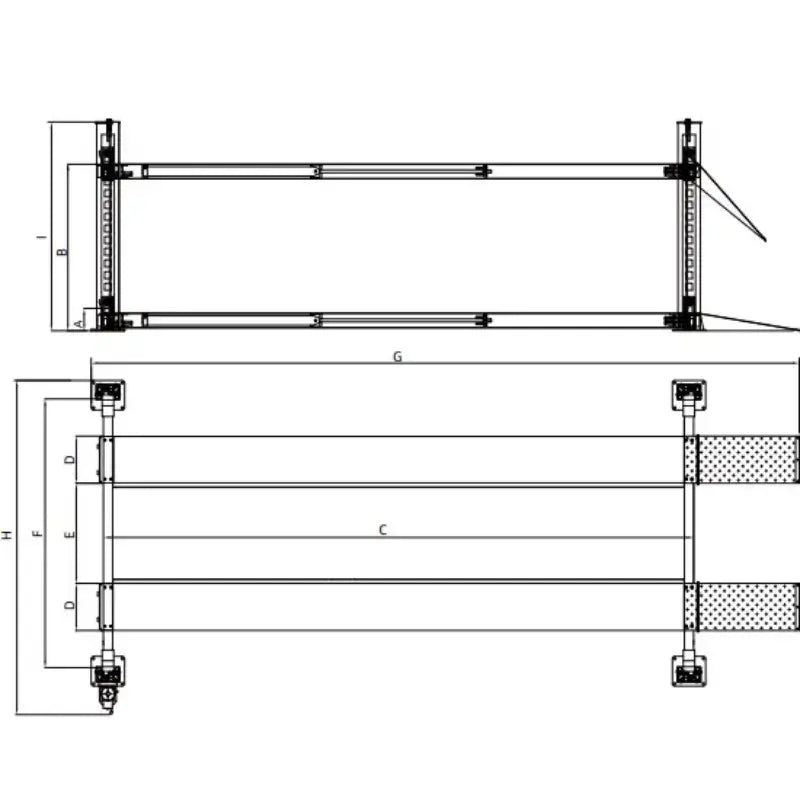

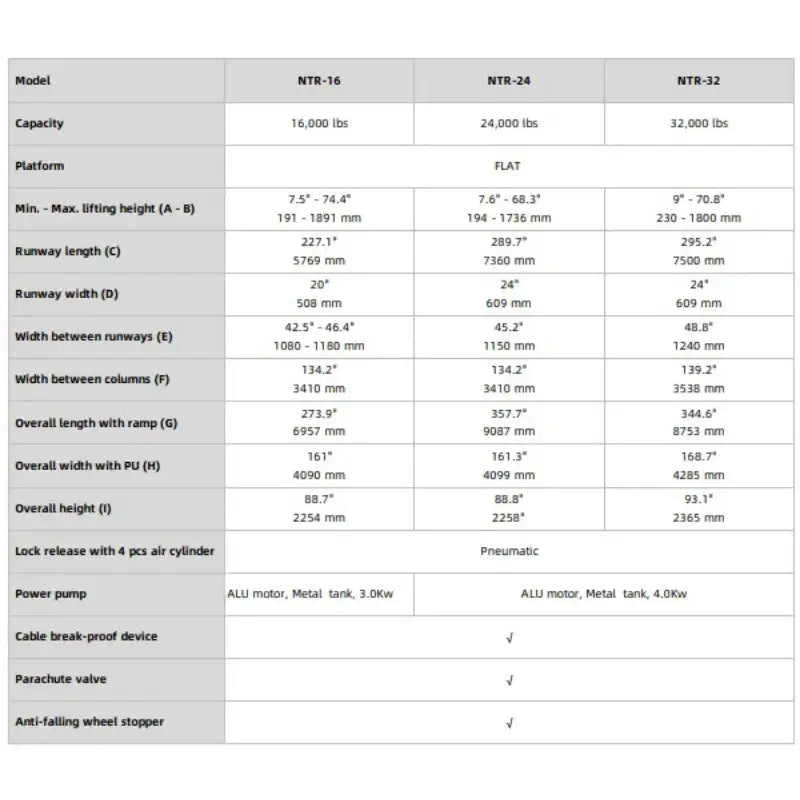

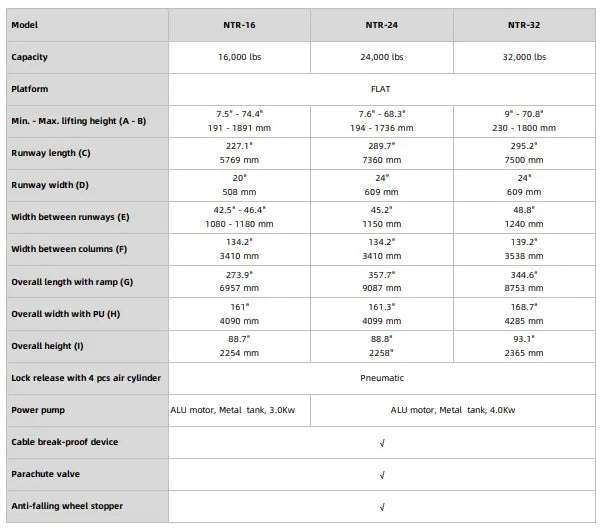

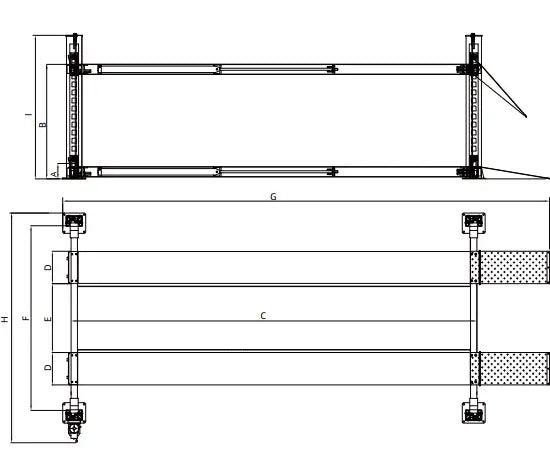

4 Post Lift NTR-24 Specifications

• Lifting Capacity: 24,000 lbs
• Overall Height: 93.1″
• Overall Length Without Ramps: 300″
• Overall Length With Ramps: 338.9″
• Overall Width: 150.1″
• Minimum Runway Height: 9″
• Maximum Lifting Height: 70.8″
• Runway Length: 289.9″
• Runway Width: 24″
• Width Between Runways: 45.3″ – 49.2″
• Width Between Columns: 131.8″
• Number of Lock Positions: 9
• Electrical Requirement: 220V Single Phase
• Shipping Weight: 6,614 lbs
• Shipping Dimensions: 295x30x43 inches

NTR-24 24,000 lb Four Post Auto Lift Special Features:

• Heavy-duty construction for handling large commercial vehicles
• 9 lock positions for secure and adjustable lifting heights
• Wide 24″ runways to support a variety of large vehicles
• Adjustable spacing between runways for flexibility and versatility
• High lifting capacity ideal for trucks, buses, and fleet maintenance
• 220V single-phase electrical system for consistent and reliable operation
• Durable steel frame ensures long-lasting performance
• Spacious design allows for efficient vehicle servicing
• Precision-engineered for safety, stability, and smooth operation
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Buy as a Combo Triumph NTR-24 + RJ-15000 Combo

Triumph NTR-24 Documentation

No documents

Triumph NTR-24 24,000 Optional Item (Sold Separately)

• RJ-15000 Rolling Bridge Jack

This Item has a FLAT RATE SHIPPING FEE: $999

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.
