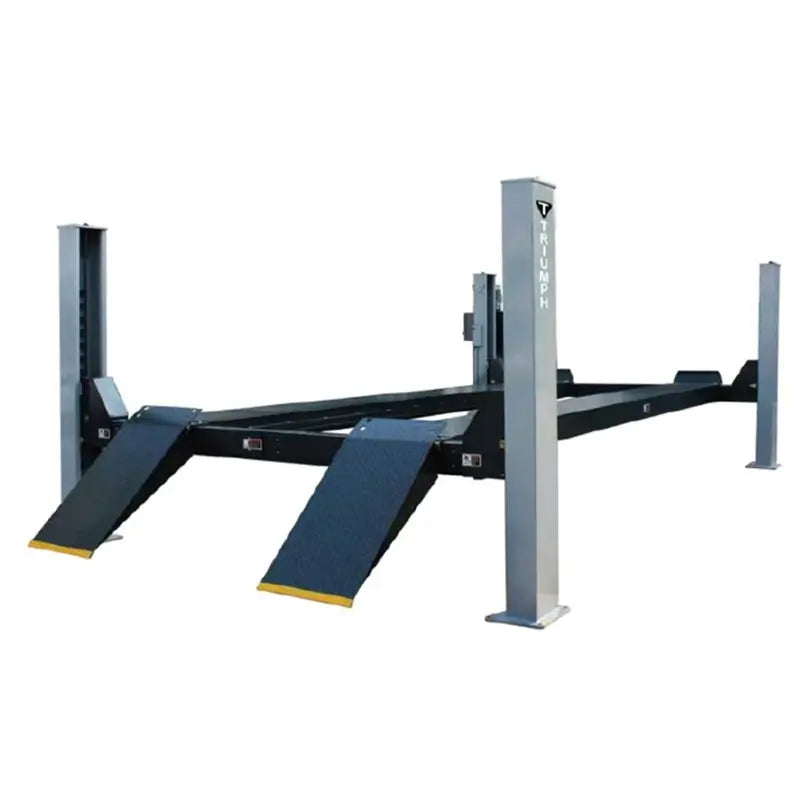

Triumph NTR-32 32,000lb 4 Post Car Lift

NTR-32 32,000 lb 4 Post Car Lift by Triumph

When you’re lifting giants, you need a true titan. Meet the NTR-32, Triumph’s ultimate heavy-duty four-post lift, designed to hoist an incredible 32,000 lbs. Whether it’s a bus, a commercial truck, or a colossal fleet vehicle, this lift is ready for the job. With a maximum lifting height of 70.8 inches and 9 lock positions, it offers flexibility and safety for handling vehicles of all shapes and sizes. The wide, adjustable runways (spanning 48.75 to 52.7 inches) ensure a secure grip on even the broadest of vehicles, giving technicians plenty of room to work with confidence.

Built like a fortress, the NTR-32 features a rugged steel frame and precision-engineered components, ensuring superior stability under heavy loads. The 220V single-phase power system delivers smooth, reliable performance, while the expansive 295.2-inch runway length accommodates oversized vehicles effortlessly. If you’re looking for a lift that laughs in the face of heavyweight challenges, the NTR-32 is your go-to solution for serious automotive shops and industrial operations.

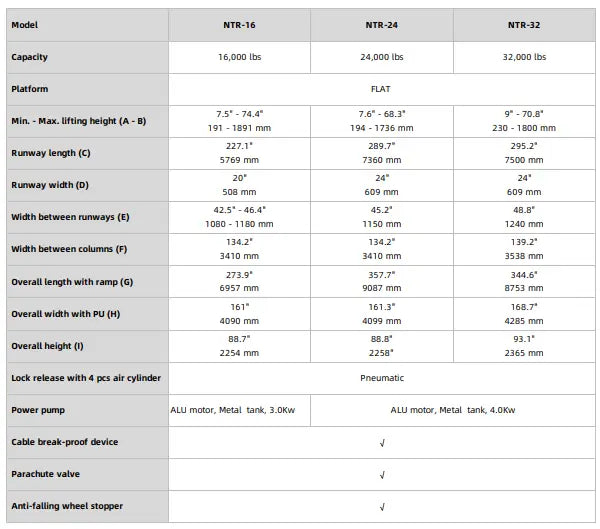

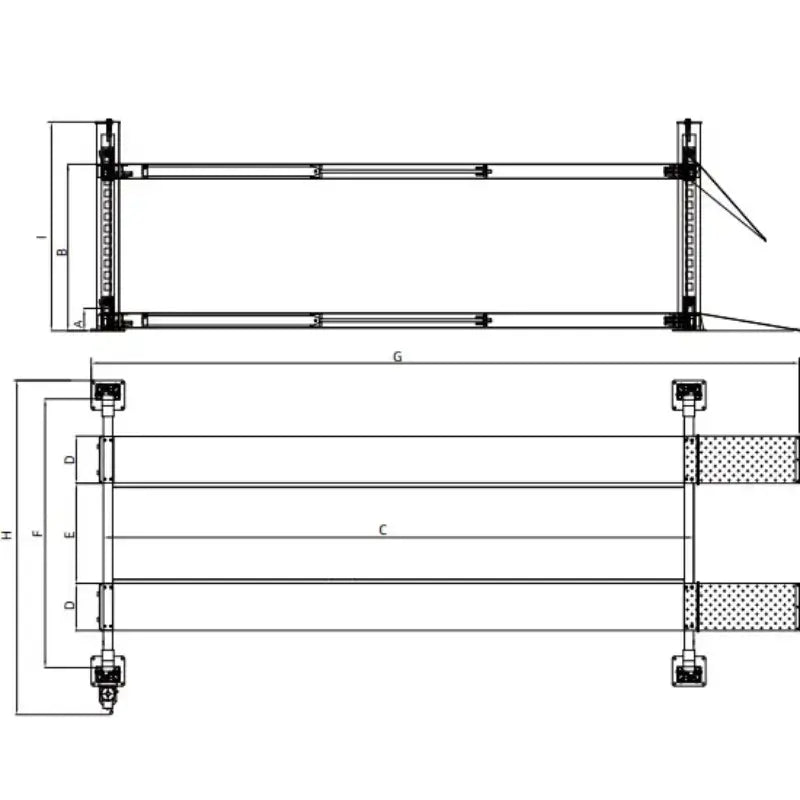

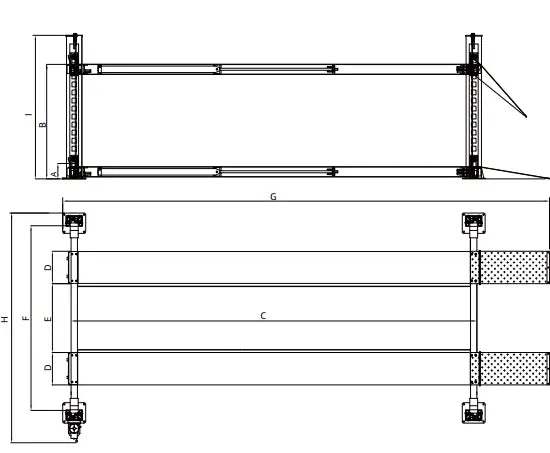

4 Post Lift NTR-32 Specifications

• Lifting Capacity: 32,000 lbs
• Overall Height: 93.1″
• Overall Length Without Ramps: 305.5″
• Overall Length With Ramps: 344.6″
• Overall Width: 168.7″
• Minimum Runway Height: 9″
• Maximum Lifting Height: 70.8″
• Runway Length: 295.2″
• Runway Width: 24″
• Width Between Runways: 48.75″ – 52.7″
• Width Between Columns: 139.2″
• Number of Lock Positions: 9
• Electrical Requirement: 220V Single Phase
• Shipping Weight: 9,037 lbs
• Shipping Dimensions: 301x30x43 inches

NTR-32 32,000 lb 4 Post Car Lift Special Features:

• Industry-leading 32,000 lbs lifting capacity for heavy-duty vehicles
• 9 lock positions for secure and adjustable lifting heights
• Wide 24″ runways to support a variety of large and oversized vehicles
• Adjustable spacing between runways for flexibility in vehicle accommodation
• Durable, high-strength steel construction for long-lasting performance
• Designed for servicing buses, commercial trucks, and large fleet vehicles
• Reliable 220V single-phase electrical system for efficient and consistent operation
• Spacious and robust design ensures ample room for technicians to work safely and effectively
• Precision-engineered for smooth lifting, superior stability, and operator confidence
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Buy as a Combo Triumph NTR-32 + RJ-15000 Combo

Triumph NTR-32 Documentation

No documents

Triumph NTR-32 Optional Item (Sold Separately)

• NTR-32 32,000 lb Four Post Auto Lift – combo with RJ’s
• RJ-15000 Rolling Bridge Jack

This Item has a FLAT RATE SHIPPING FEE: $899

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.
