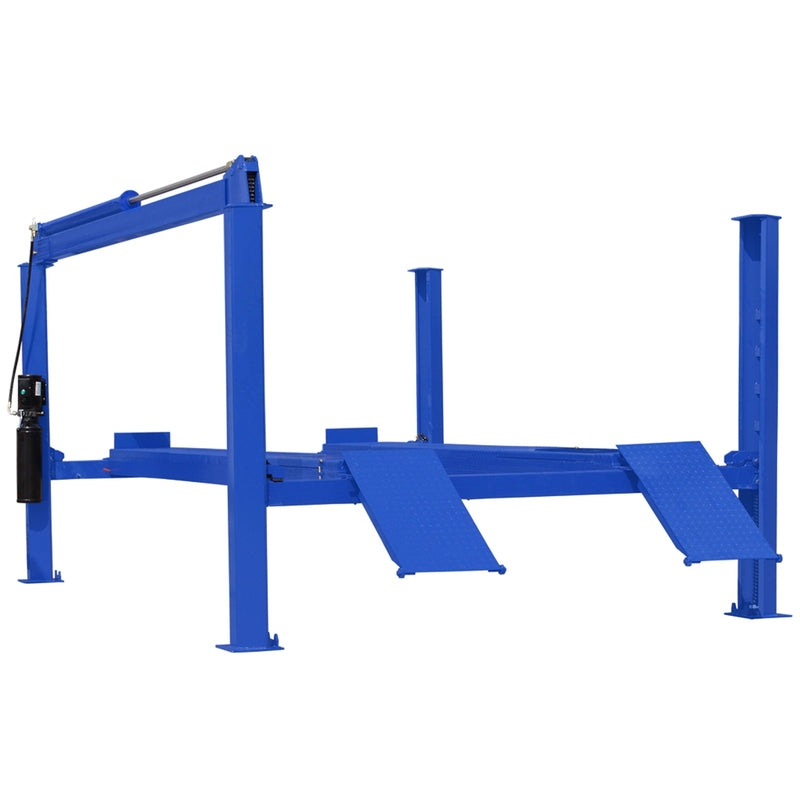

Tuxedo 14,000 lb Four Post Lift – Chain Driven
These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
- 14,000 lbs Capacity

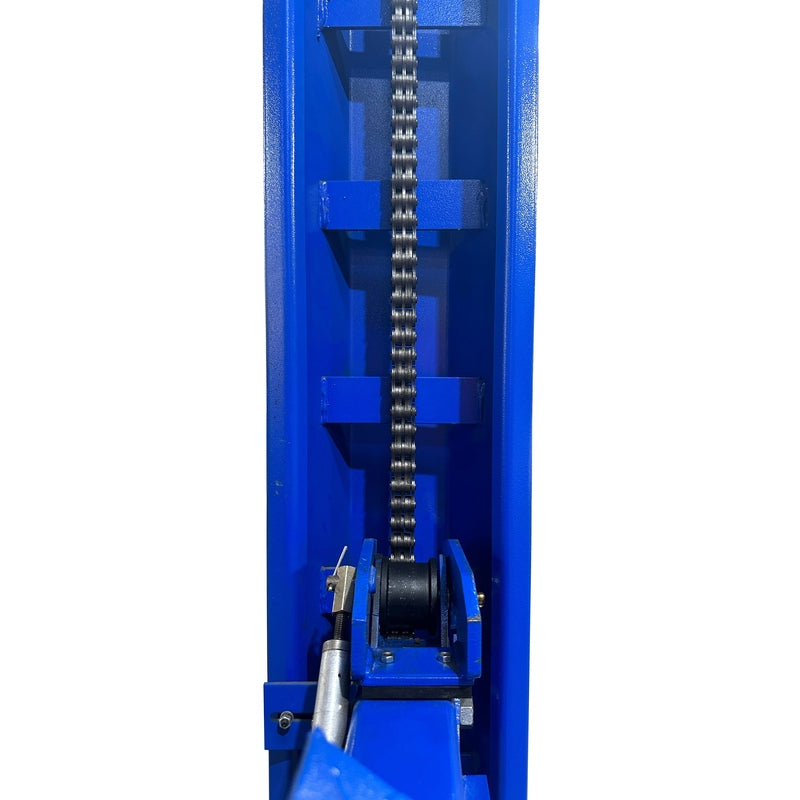

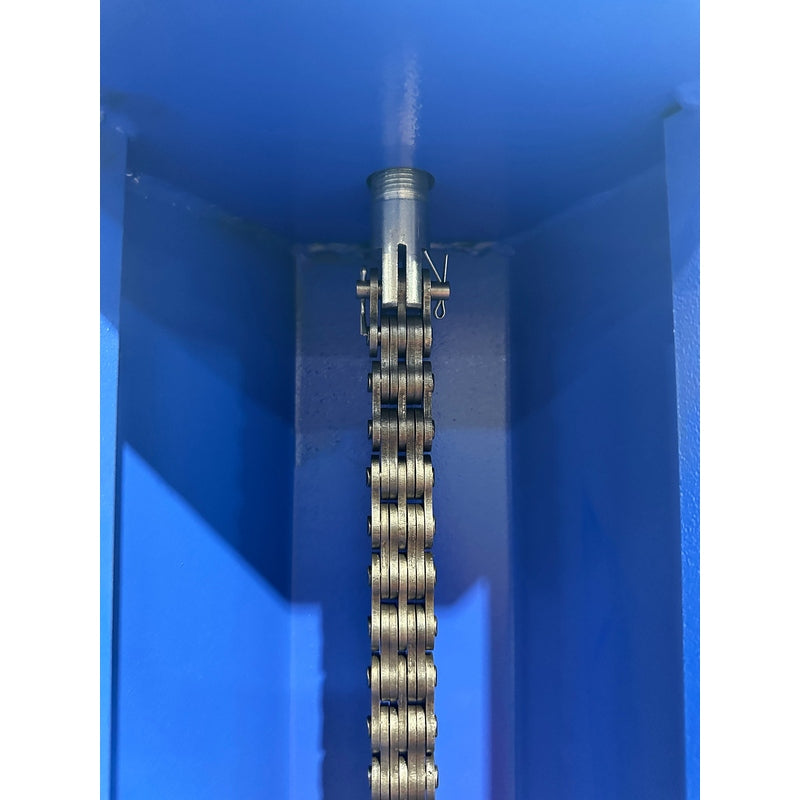

- Chain Driven
- 182 max wheelbase

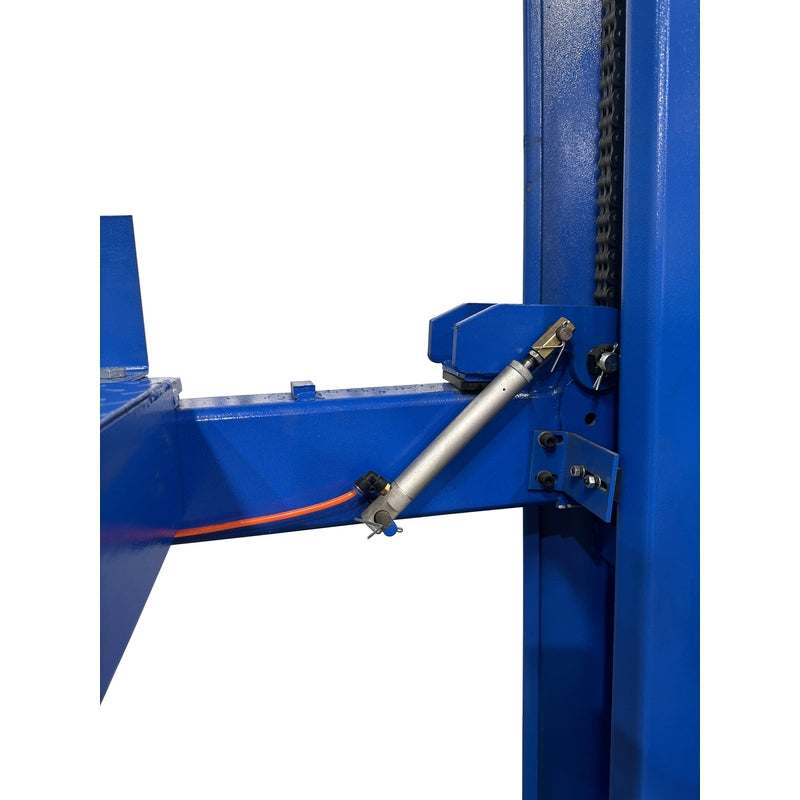

- Single Point Pneumatic Lock Release
- Powder Coat Finish

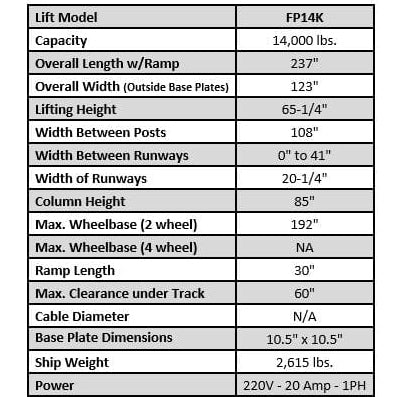

Specifications
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 237″ |
| Overall Width (Without Power Unit) | 123″ |

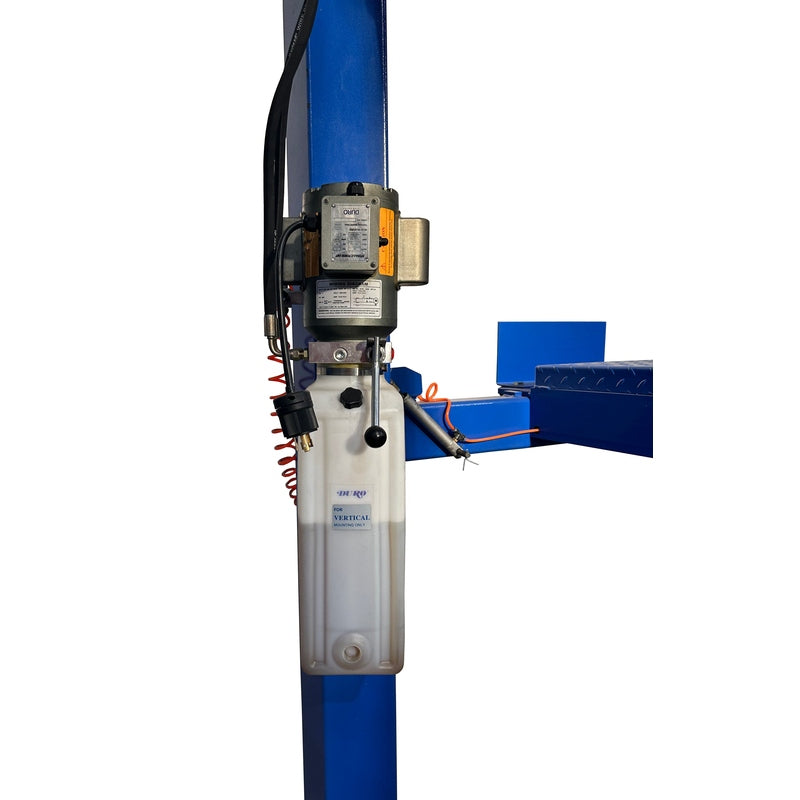

| Overall Width (WithPower Unit) | 129″ |
| Overall Height | 99″ |
| Max Rise Height | 65 – 1/4″ |
| MinHeight | 7 – 1/2″ |
| Width Between Posts | 108″ |
| LengthBetween Posts | 187″ |
| Width Between Runways | 41″ |
| Width of Runways | 20″ |
| Max. Wheel Base | 182″ |
| Ramp Length | 30″ |
| Max. Clearance Under Runway | 60″ |
| Drive-Thru Clearance | 99″ |

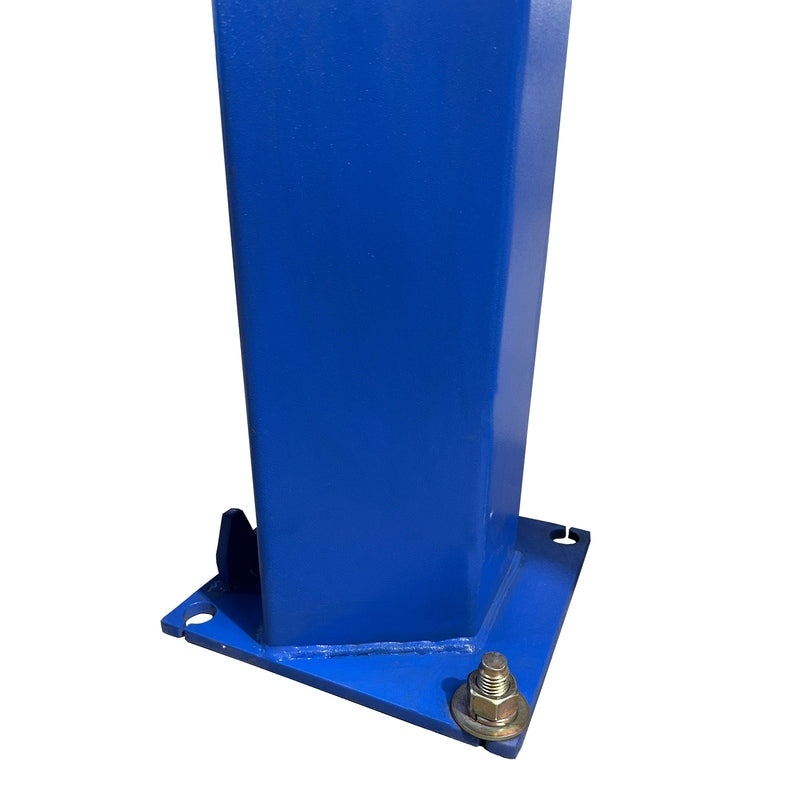

| Base Plate | 10-1/2″ x 10-1/2″ |
| Power Requirement | 220V-20 Amp |
| Ship Weight | 2,615 lbs. |
| Min Bay Size | 15x 24 |
