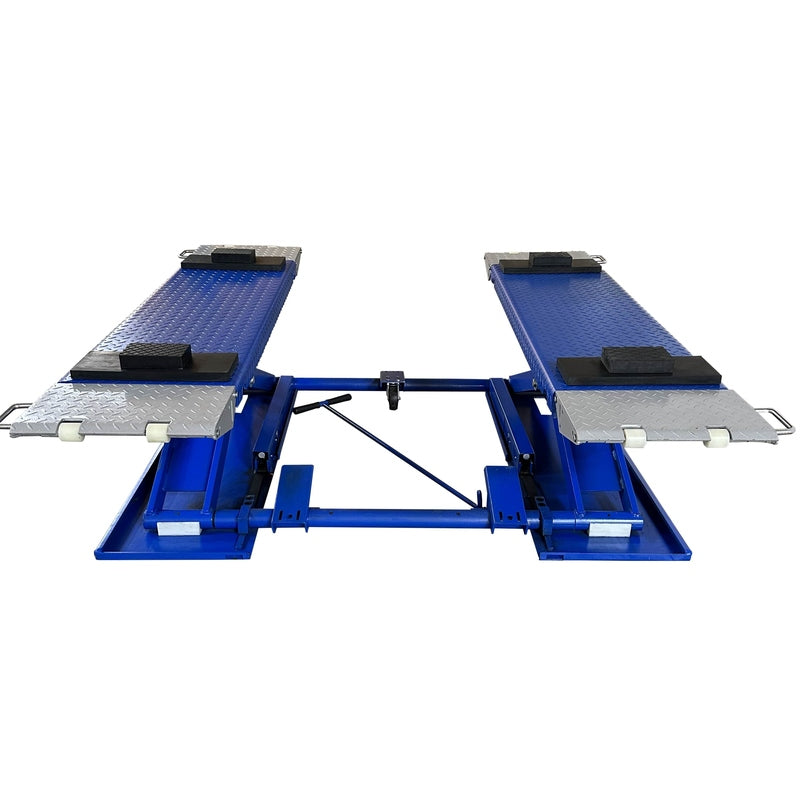

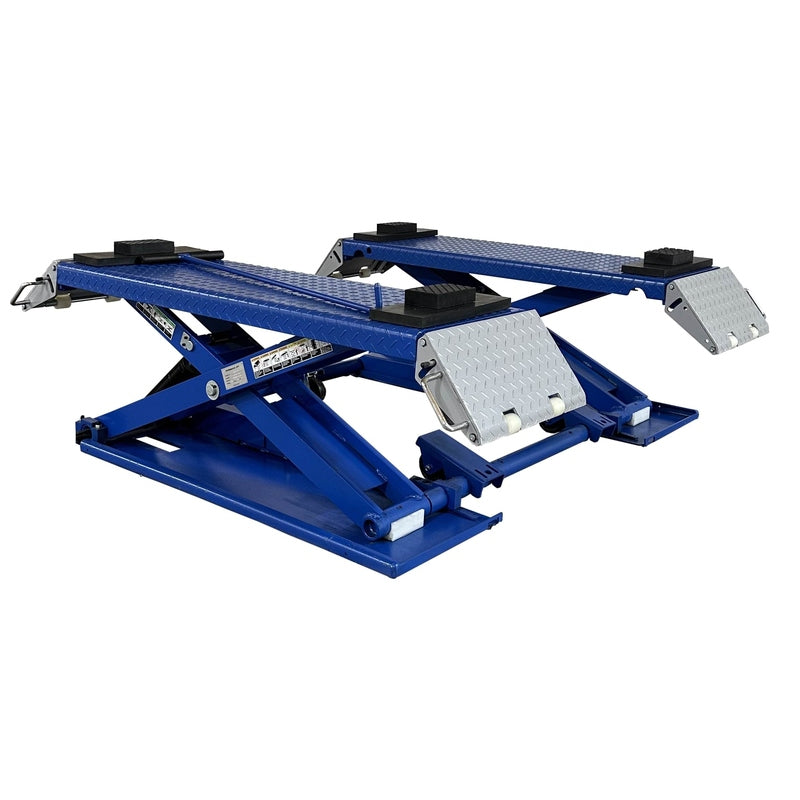

Tuxedo 6,500 lb Mid-Rise Portable Scissor Lift
Updated Design & Increased Capacity!

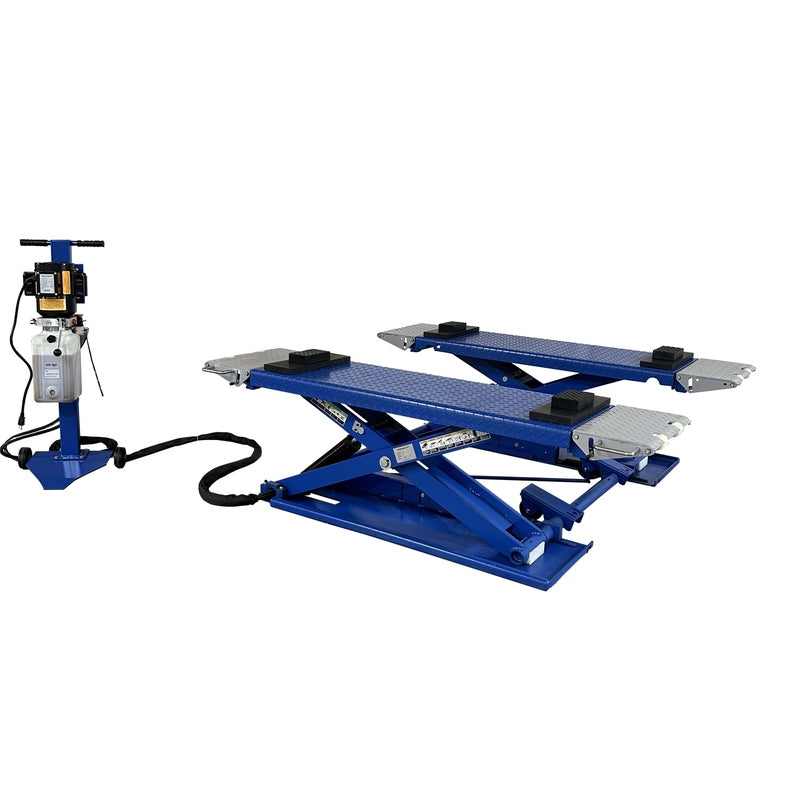

The MR6.5K-38 is a portable 6,500 lb. hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, pneumatic single point / double lock release system designed to lift cars & light trucks to a comfortable working height of 38. The lift comes standard with load bearing flip-up runway extensions, rubber spacer blocks, along with a power unit dolly, lift wheel kit & tow bar for convenient portability feature.
The improved MR6.5K-38 lift now includes an additional weight capacity of 500 lbs. along with flat top platforms as part of the improved design. The improved MR6.5K-38 is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.
Features
- 6,500 Lbs Capacity

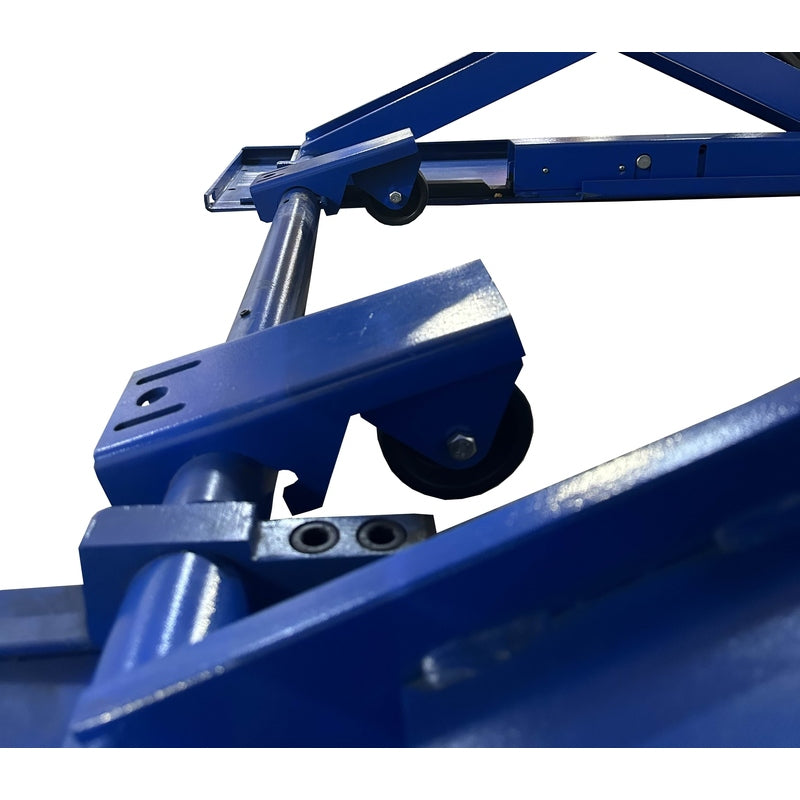

- Portable Lift Design With Wheel Kit & Tow Bar

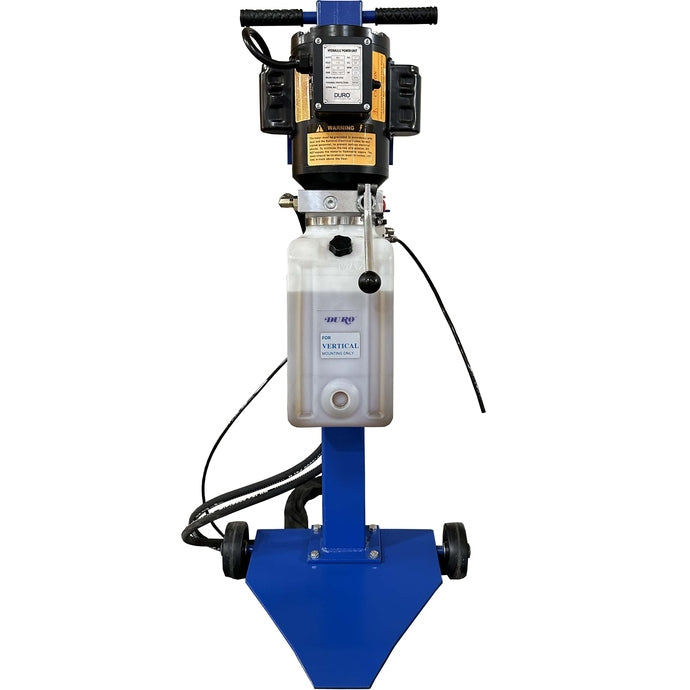

- Portable Dolly Mounted Power Unit
- Low Drive Over Height Of 4″
- Pneumatic Single Point Double Lock
- Release System
- Load Bearing Flip-Up Runway Extensions
- Rubber Spacer Blocks Included Optional Mr6K-38-Suv Adapter For
- Suv Frame Lifting
Specifications
| Lift Model: | MR6.5K-38 |
| Capacity: | 6,500 lb. |
| Overall Length: | 77″ |
| Overall Width: | 75-1/4″ |
| Lifting Height: | 38″ |
| Min. Pad Height: | 4″ |
| Lifting Height with Adapters: | 39-1/2″ |
| Width Between Runways: | 33-1/4″ |
| Width of Runways: | 18-3/16″ |
| Lifting Speed: | 40S |
| Pad Length: | 56″ |
| Ship Weight: | 1,355 lbs |
| Power: | 115V – 20 Amp – 1PH |
| Air Supply: | 90 – 125 PSI |
Manual
Tuxedo MR6.5K-38 6,500 lb Mid-Rise Portable Scissor Lift Manual
