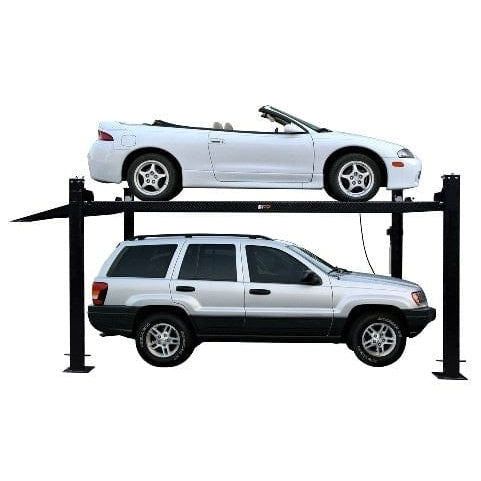

Tuxedo 8,000 Lb 4 Post Storage Lift
Introducing the New 8,000 lb. DX Storage Lift! The new FP8K-DX-XLT Four Post Storage Lifts come standard with Poly Casters and Drip Trays, along with a Jack / Tool Tray, making these models one of the best Service & Storage Lift values in the industry!

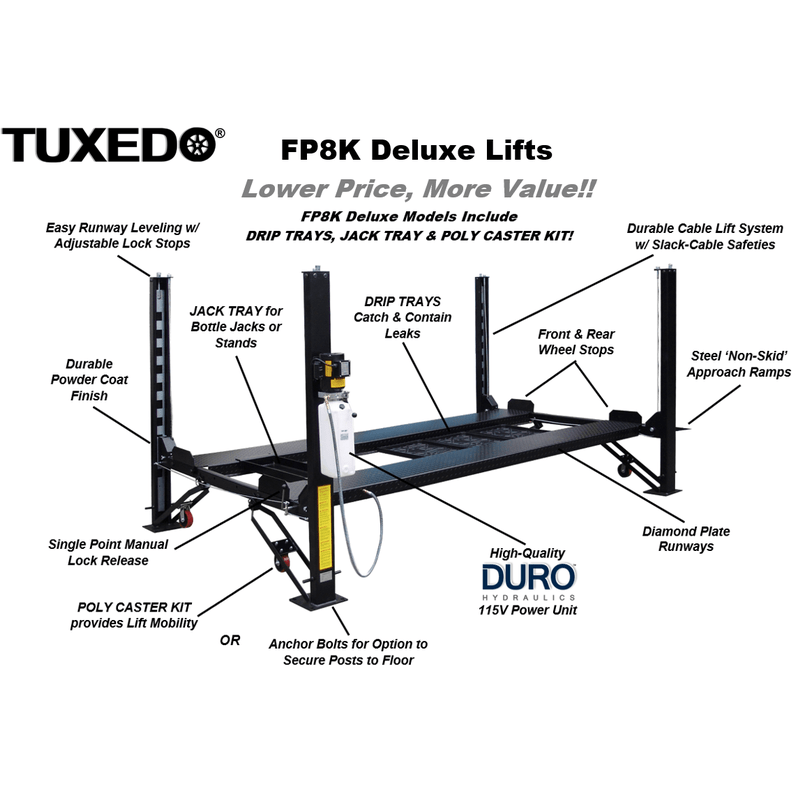

Features
- Deluxe Storage Lift
- 8,000 Lbs. Capacity
- Extended Lift Height & Length
- Cable Driven Lift System
- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety

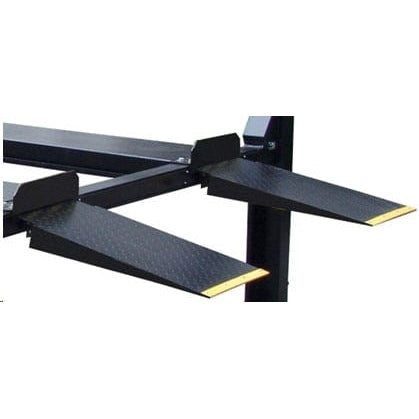

- Steel Approach Ramps
- Fits In Larger Residential Garages
- Great For Storage Of Many Full-Size Trucks

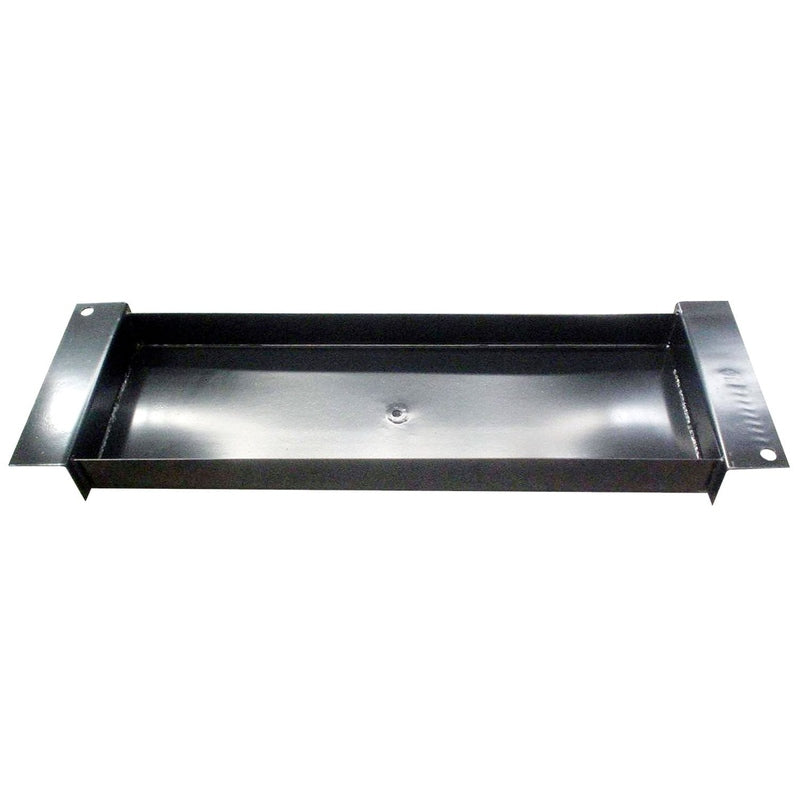

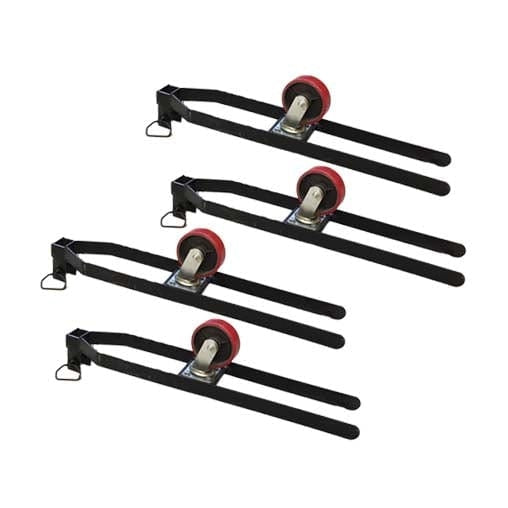

- Includes Drip Trays, Jack Tray & Poly Caster Kit

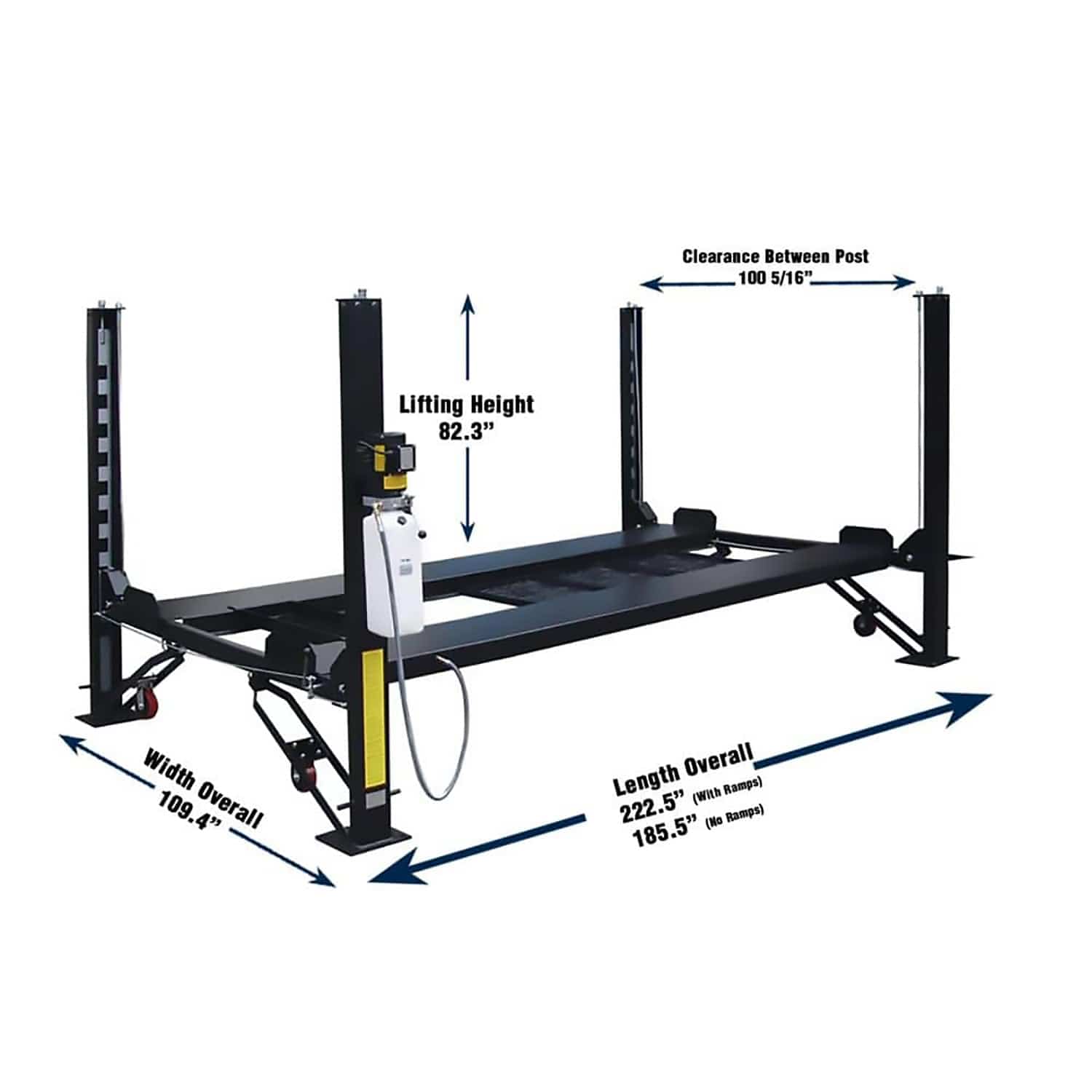

Specifications
| Lift Model | FP8K-DX-XLT |
| Capacity | 8,000 lbs. |
| Overall Length w/Ramp | 222-1/2″ |
| Overall Width(Outside Base Plates) | 109-3/8″ |
| Overall Height | 94″ |
| Lifting Height | 82-1/4″ |
| Width Between Posts | 100-5/16″ |
| Length of Runways | 180-1/2″ |
| Width of Runways | 18-5/8″ |
| Lifting Speed | 100S |
| Maximum Clearance under Track | 78″ |
| Cable Diameter | 3/8″ |
| Base Plate Size | 10″ x 12″ |
| Lock Position | 12 |
| Ship Weight | 1,800 lbs |
| Power | 115V 20 Amp 1PH |
