Tuxedo 8,000 Lb Deluxe Storage 4 Post Lift
The new FP8K-DX Four Post Storage Lifts come standard with Poly Caster sand Drip Trays, along with a Jack/Tool Tray, making these models one of the best Service & Storage Lift values in the industry
Features
- 8,000 lbs Capacity.
- Cable driven.
- Single Point Manual Lock Release.
- Adjustable Locking Positions.
- Slack Cable Safety.
- Steel Approach Ramps.
- Fits in most residential garages.

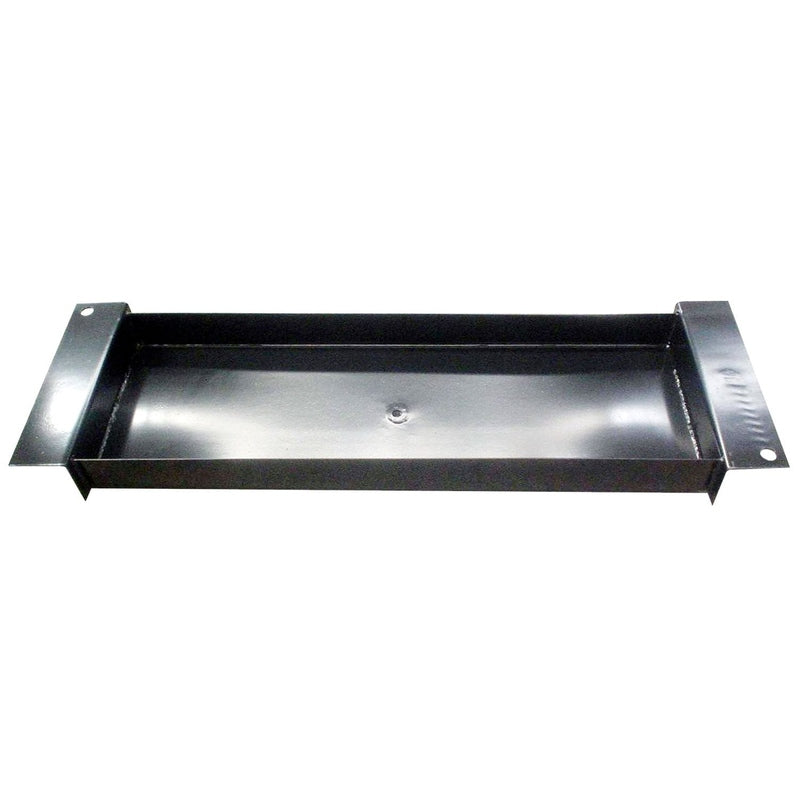

- Includes Drip Trays, Jack Tray & poly Caster Kit.

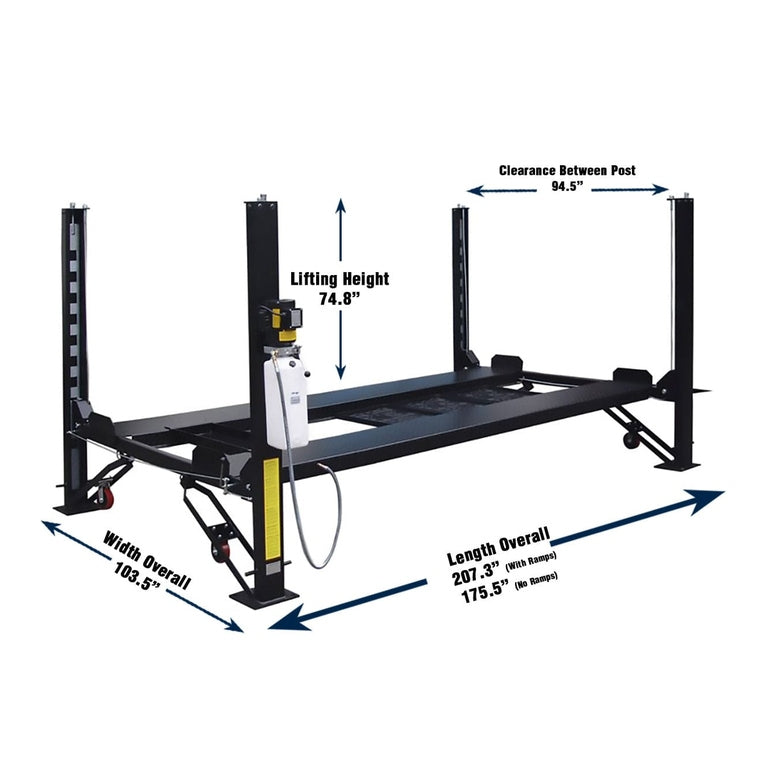

Specifications
| Lift Model | FP8K-DX |
| Capacity | 8,000 lbs |
| Overall Length w/Ramp | 207-5/16″ |
| Overall Width(Outside Base Plates) | 103-1/2″ |
| Overall Height | 86″ |
| Lifting Height | 74-3/4″ |
| Width Between Posts | 94-1/2″ |
| Length of Runways | 165-1/2″ |
| Width of Runways | 18-5/8″ |
| Lifting Speed | 90S |
| Maximum Clearance under Track | 70″ |
| Cable Diameter | 3/8″ |
| Base Plate Size | 10″ x 12″ |
| Lock Position | 10 |
| Ship Weight | 1,705 lbs |
| Power | 115V 20 Amp 1PH |
