Description

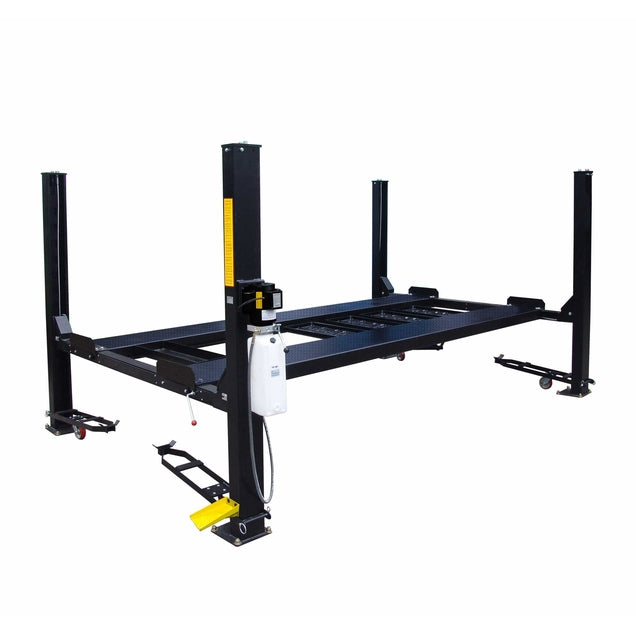

The FP9K-DX-XLT Four Post Lift is designed and constructed to be a commercial grade lift, with industry leading Runway length & Drive-Thru width, allowing the ability to either Store or Service largevehicles. In addition, the FP9K-DX-XLT comes standard with Poly Casters, Drip Trays & Jack / ToolTray, making it one of the best lift values in the industry!

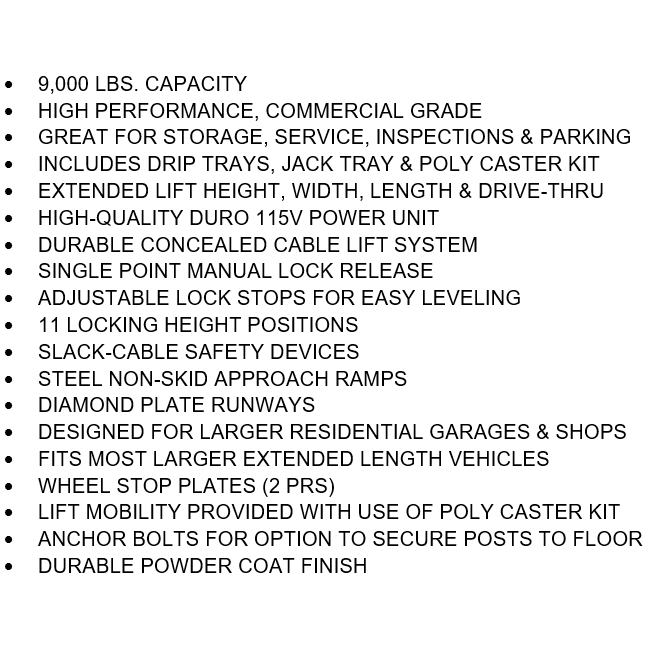

Features
- Deluxe Storage / Service Lift
- 9,000 Lbs. Capacity
- Extended Runway Length & Drive-Thru Width
- Cable Driven Lift System
- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety

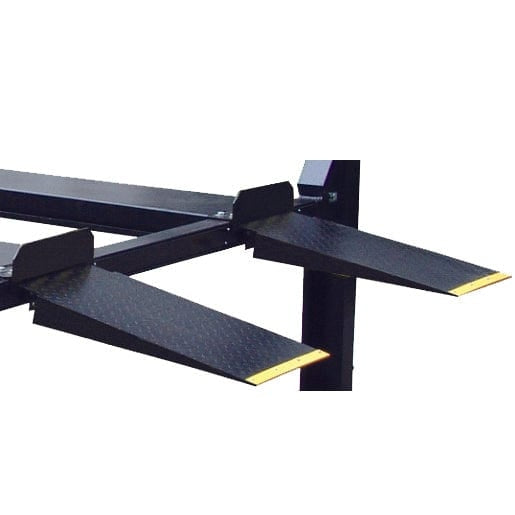

- Steel Approach Ramps

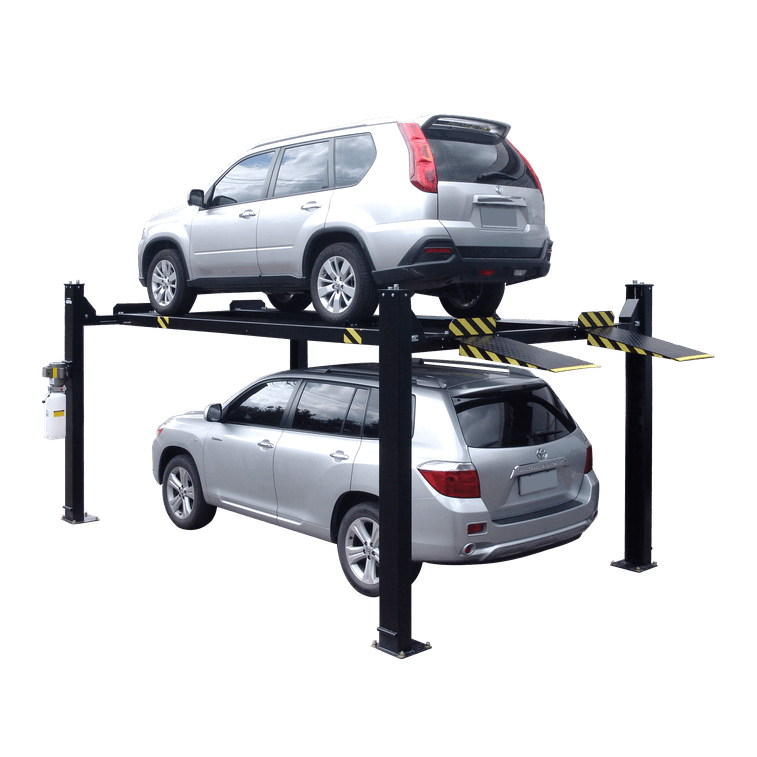

- Great For Storage And/Or General Commercial Service
- Includes Drip Trays, Jack Tray & Poly Caster Kit

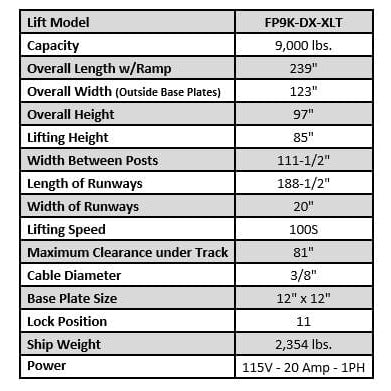

Specifications
| Lift Model | FP9K-DX-XLT |
| Capacity | 9,000 lbs |

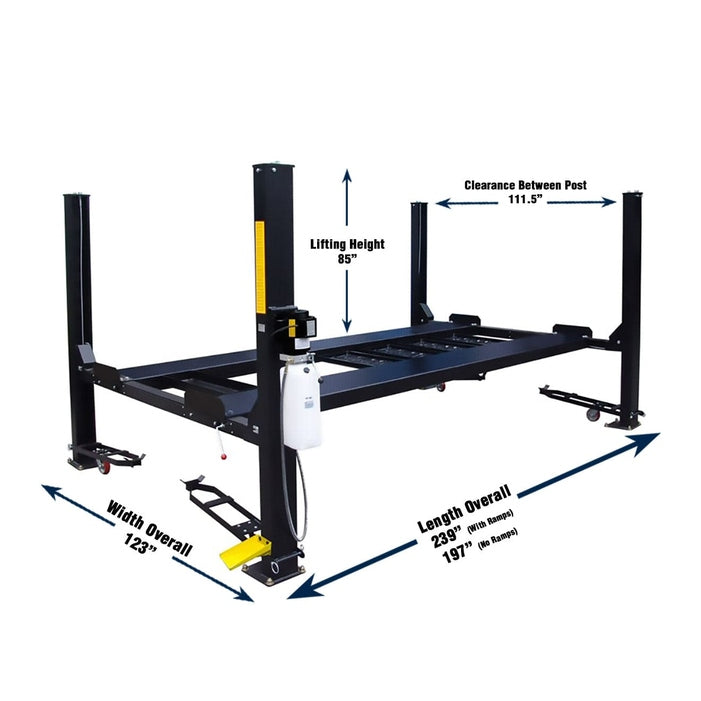

| Overall Length w/Ramp | 239″ |
| Overall Width(Outside Base Plates) | 123″ |
| Overall Height | 97″ |
| Lifting Height | 85″ |
| Width Between Posts | 111-1/2″ |
| Length of Runways | 188-1/2″ |
| Width of Runways | 20″ |
| Lifting Speed | 100S |
| Maximum Clearance under Track | 81″ |
| Cable Diameter | 3/8″ |
| Base Plate Size | 12″ x 12″ |
| Lock Position | 11 |
| Ship Weight | 2,354 lbs |
| Power | 115V 20 Amp 1PH |
