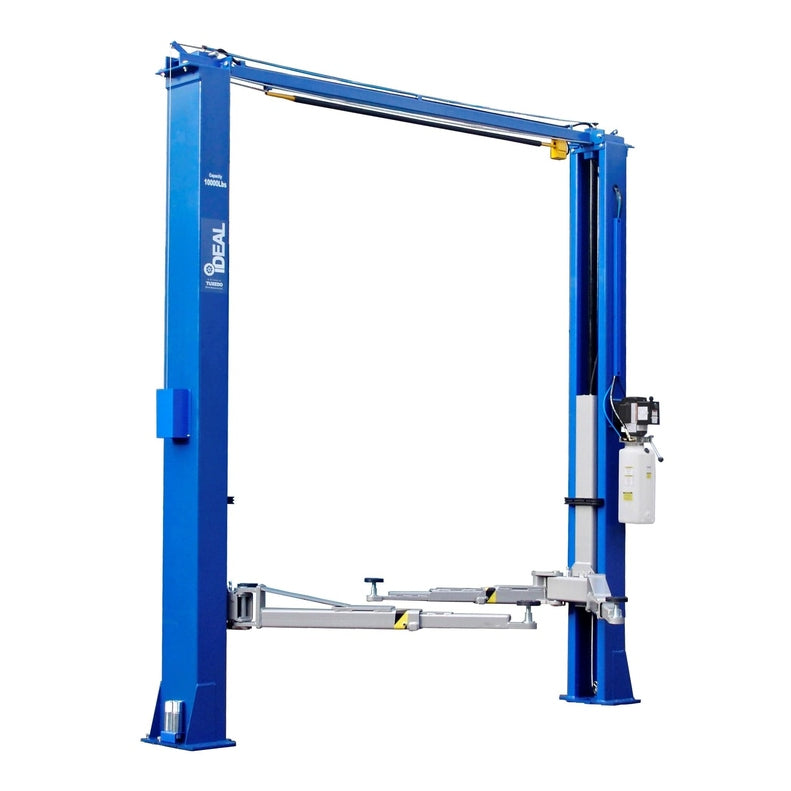

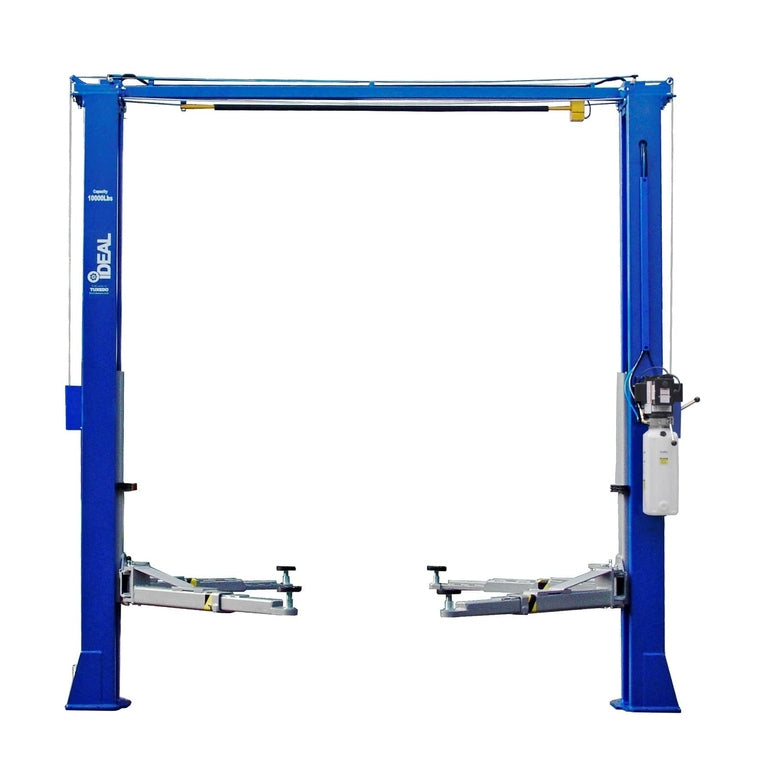

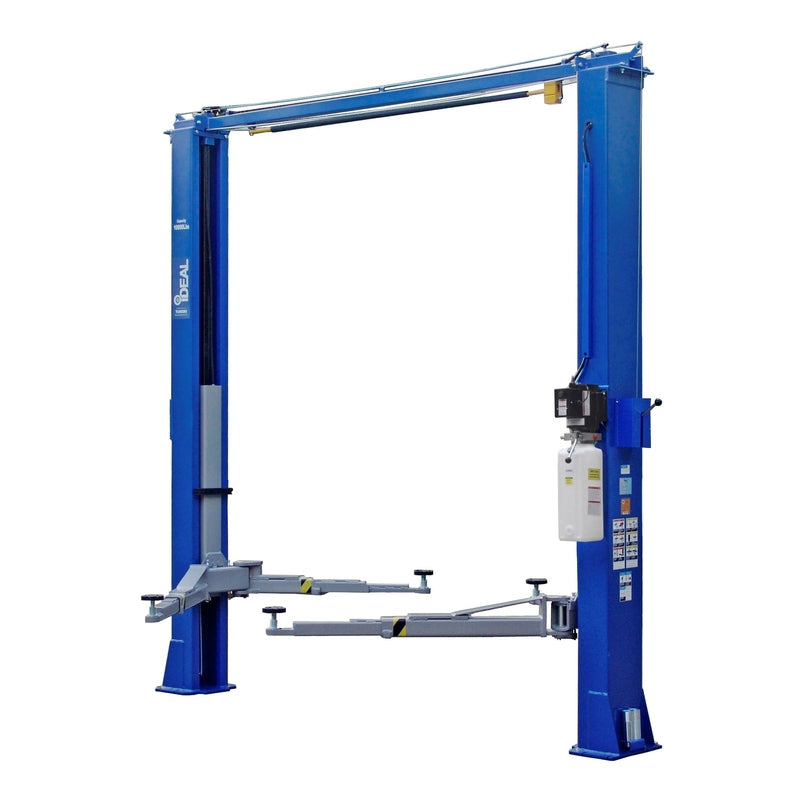

iDEAL TP10KAC-DX ALI Certified 2 Post Lift
The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified two post car lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4 make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with single point lock release and clean design make this lift one of our most popular models.
Features
Bi-Symmetric Arm Design

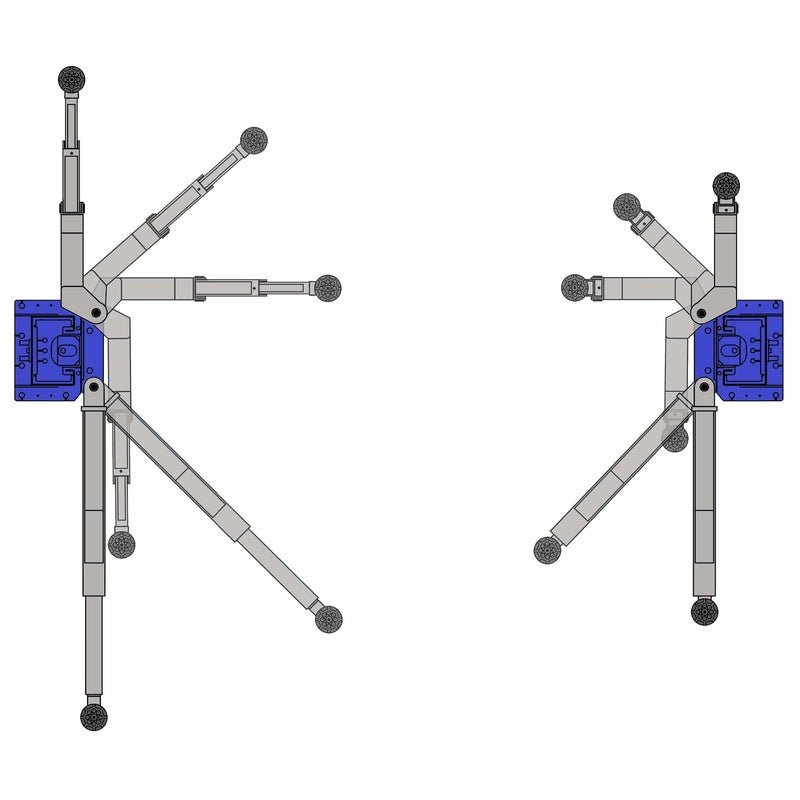

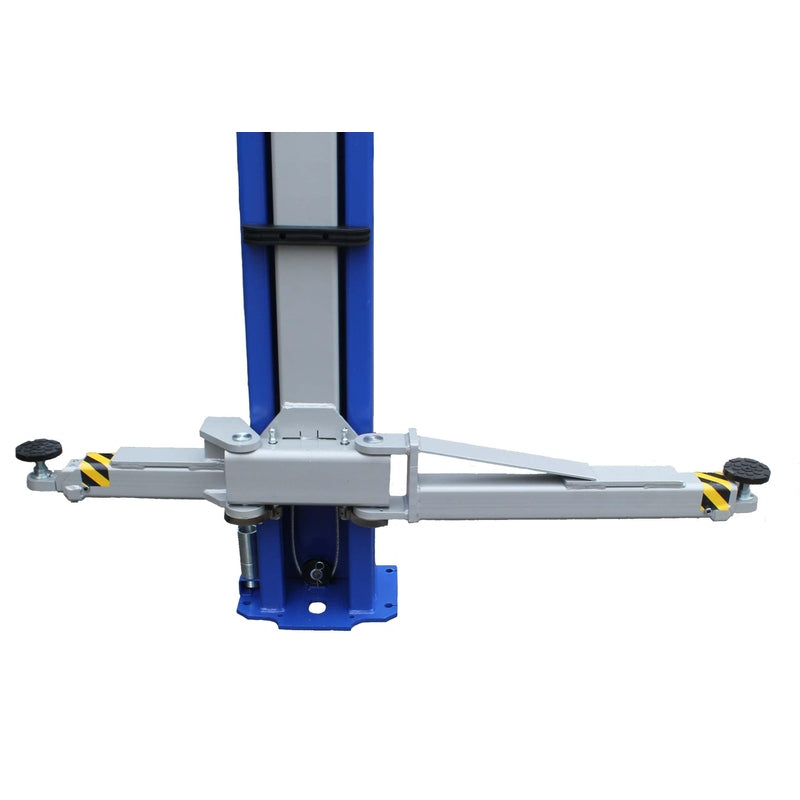

Offset Three Stage Short Arm
Low Profile Lifting Arms

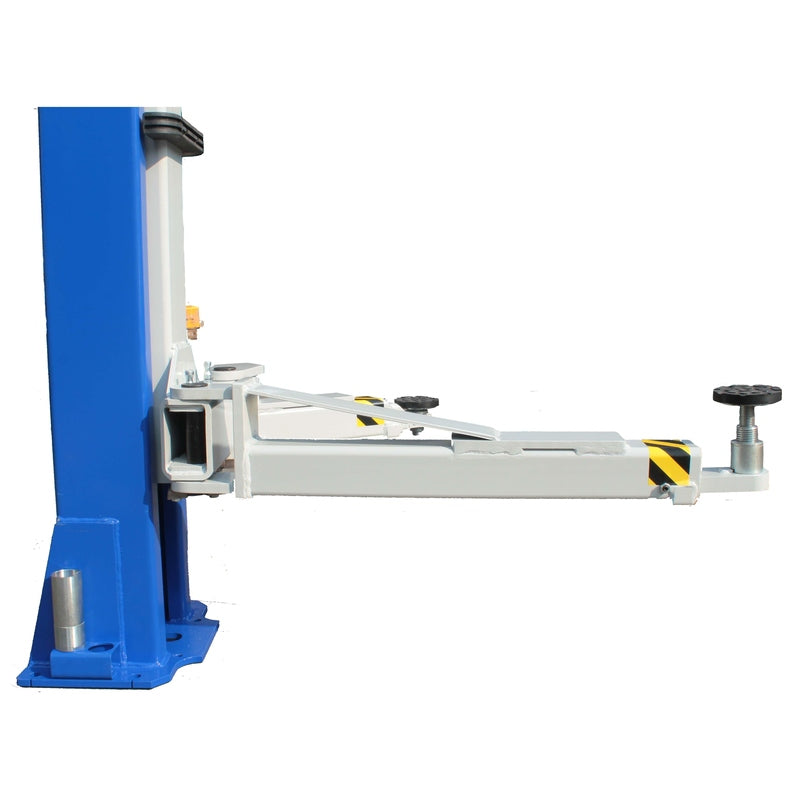

Adjustable Spin Up Pads
Single Point Lock Release
Rigid Single Piece Column
Direct Pull Hydraulic Cylinder
Rubber Door Guards
Padded Overhead Shutoff
Truck Adapters Included

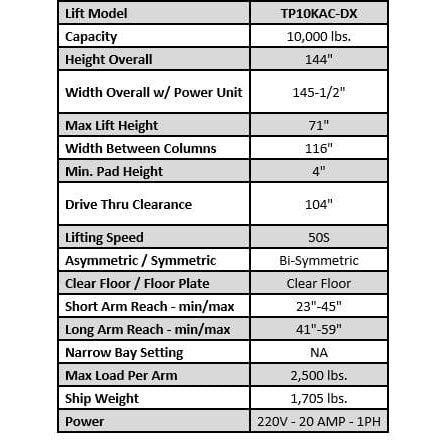

Specifications

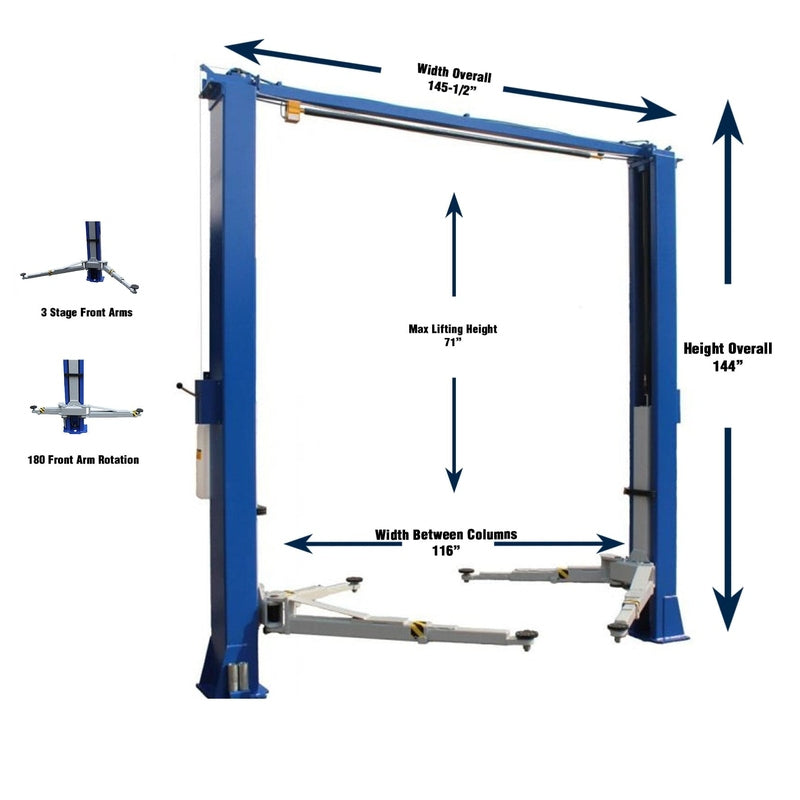

| Capacity | 10,000 lbs. |
| Overall Width | 137 3/16″ |
| Overall Width w/Power Unit | 145 1/2″ |
| Overall Height | 144″ |
| Minimum Ceiling Height | 12′ |
| Low Pad Height | 4″ |
| Max. Lift Height | 71″ |
| Max. Lift Height w/Tallest Adapter | 76 1/2″ |
| Width Between Columns | 116″ |
| Drive Thru Width | 104″ |
| Floor to Overhead Shutoff | 136″ |
| Arm Reach Front | 23″ 45″ |
| Arm Reach Rear | 41″ 57″ |
| Maximum Load Per Arm | 2,500 lbs |
| Electric Power Unit | 220VAC, 20 Amp, 1 Phase |
| Rise Speed | 50 Seconds |
| Minimum Concrete | 4 1/4″ / 3000PSI |
| Operating Pressure | 3,050 PSI |
| Shipping Weight | 1,705 lbs. |
| Shipping Dimensions | 140″ L X 19″ W X 40″ T |
Manual
iDEAL TP10KAC-DX ALI Certified Two Post Overhead Automotive Lift Manual
