Description
Engineered and built to offer great features at an economical price, the TP11KC-DX features and designs will make this the most used lift in your garage. With versatile user-friendly Bi-Symmetric configurable arms, 3 Stage Front Arms, Symmetric Columns, Single Point Lock Release, Low Profile Arms, Rubber Door Guards and Spin Up Pads with 2″ and 4″ Stackable Truck Adapters offers everything you’d expect and more!
Features
- 11,000 lbs Capacity

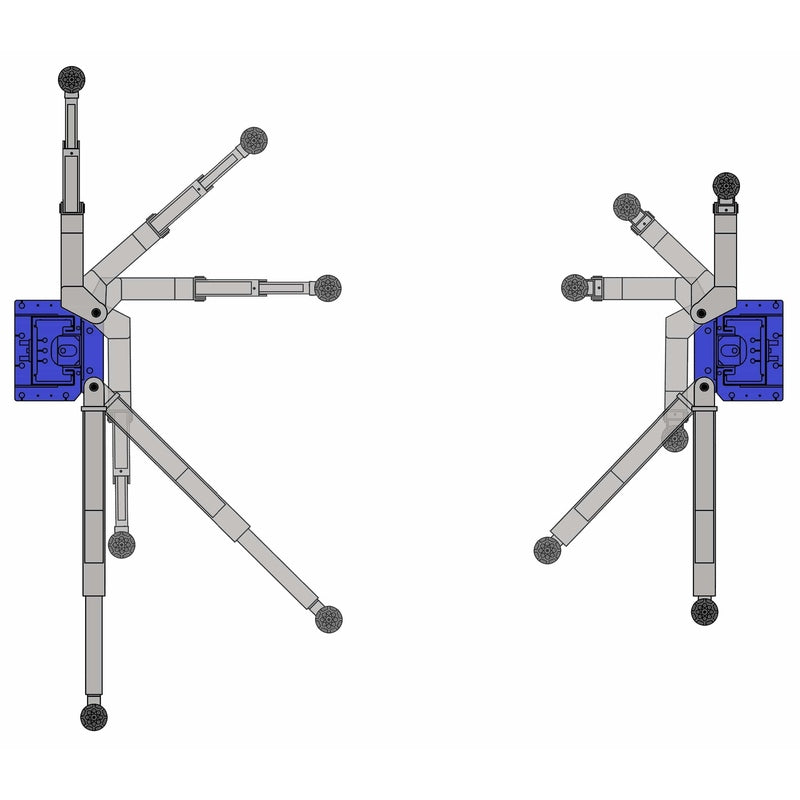

- Bi-Symmetric arm design
- Rubber Door Guards

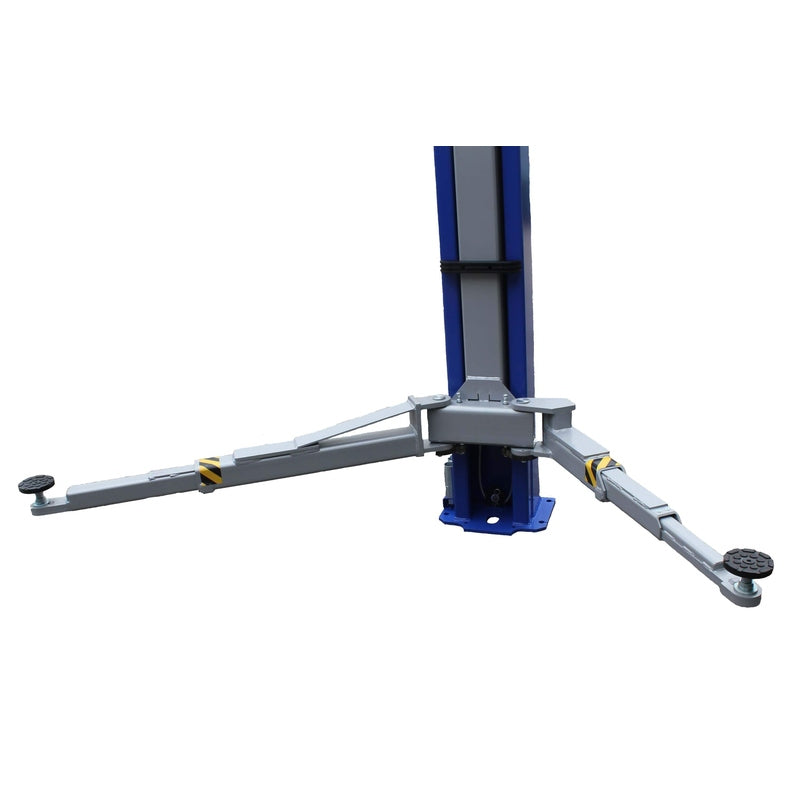

- 3 Stage Front Arms
- Single Piece Column
- Direct Drive pull Cylinders
- Single Point Lock Release
- Heavy Duty Arm Restraint System
- Spin Up Low Profile Lift Pads
- Stackable Adapters Included
- External hose guards

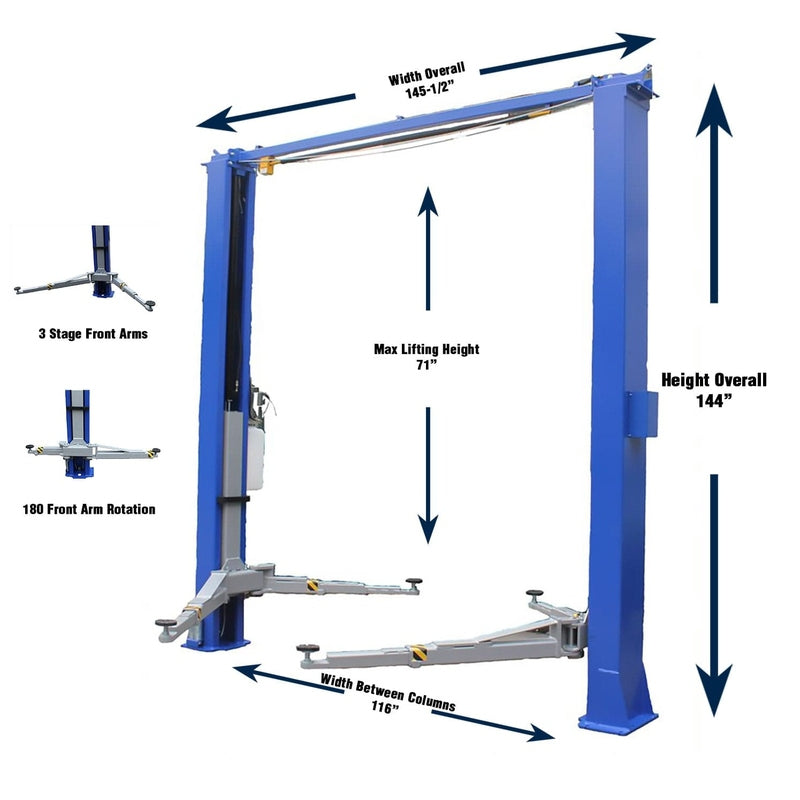

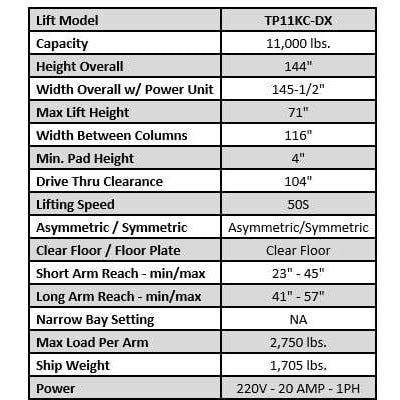

Specifications
| Lift Model | TP11KC-DX |
| Capacity | 11,000 lbs. |
| Height Overall | 144″ |
| Width Overall w/ Power Unit | 145-1/2″ |
| Max Lift Height | 71″ |
| Width Between Columns | 116″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 104″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric/Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach min/max | 23″ 45″ |
| Long Arm Reach min/max | 41″ 57″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,750 lbs. |
| Ship Weight | 1,705 lbs |
| Power | 220V 20 AMP 1 PH |
